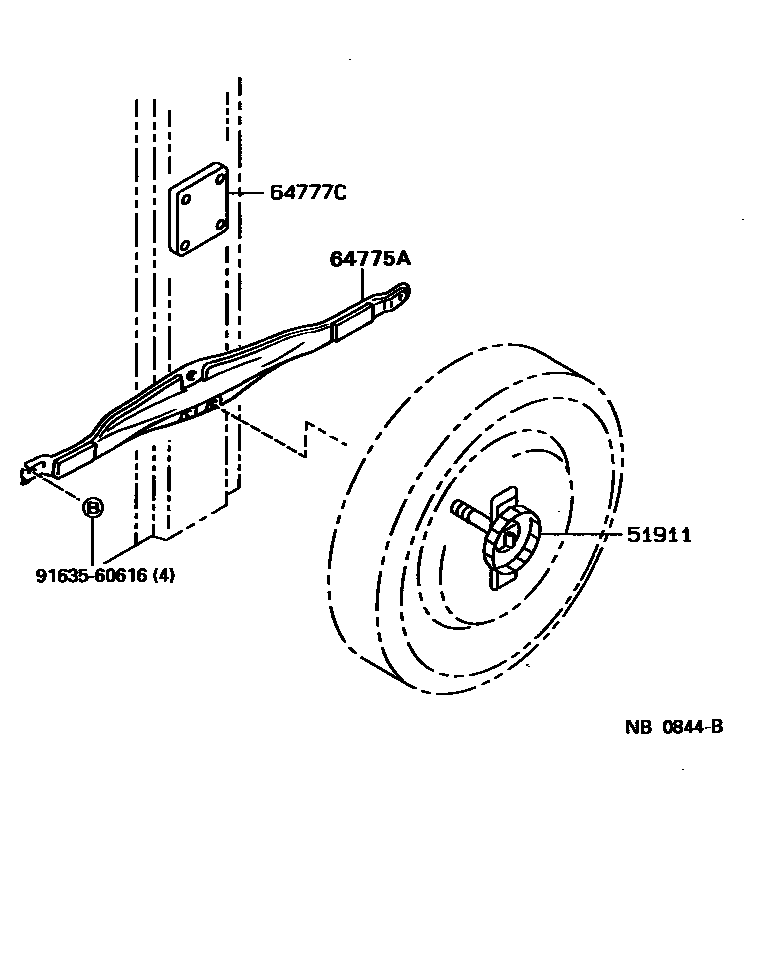

SPARE WHEEL CARRIER

51911BOLT ASSY, SPARE WHEEL MOUNTING

main51910-22040iGX81,LX80,MX8#,RX8#¥1,140198808-199608

64775AGUARD, SPARE WHEEL

main64775-22020iGX81,LX80,MX8#,RX8#¥3,910198808-199608

64777CCUSHION, SPARE WHEEL

main64777-22020iGX81,LX80,MX8#,RX8#¥780198808-199608

9163560616

main91635-60616¥120

4 parts on this diagram · 1 diagram in section
