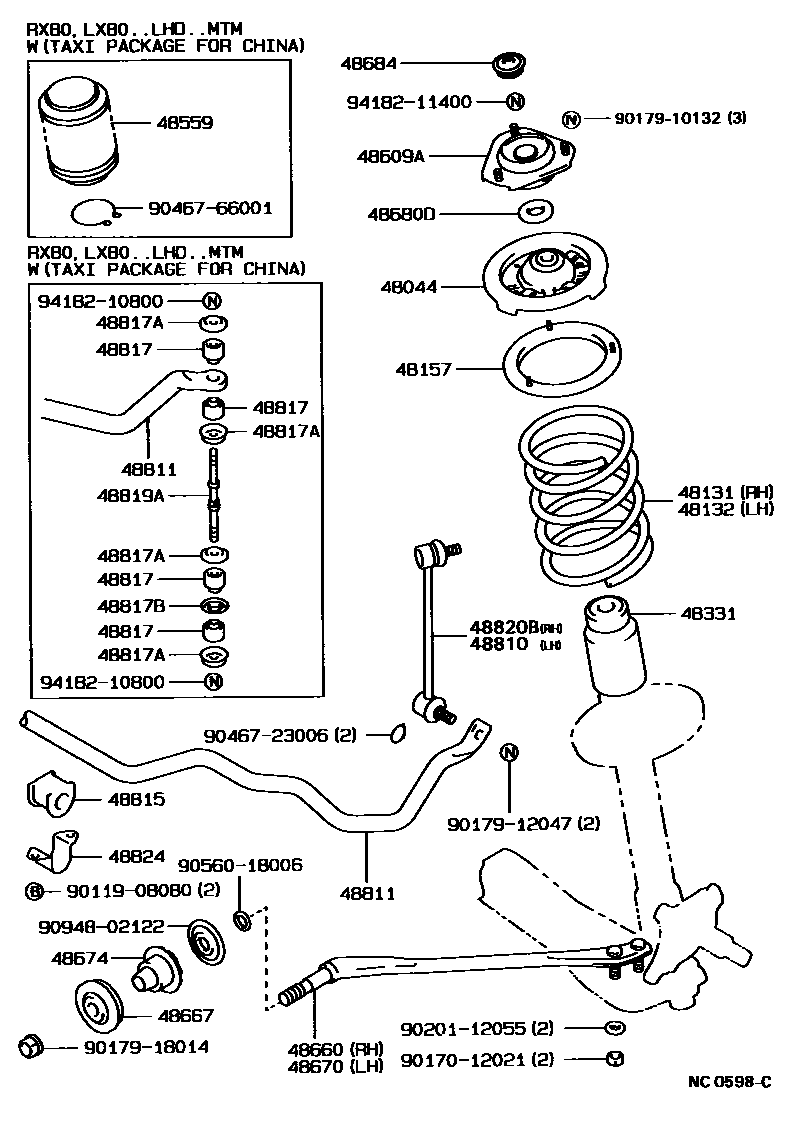

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-22050iGX81,LX80,MX8#,RX8#198808-199608

main48044-22070iLX80,RX80..LHD..5F..GEN198808-199302

TAXI PACKAGE FOR CHINA

48131SPRING, FRONT COIL, RH

main48131-2A430iGX81..LHD198808-198909

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A440iRX80198808-199302

main48131-2A450iRX80..LHD..5F..GEN198808-199008

TAXI PACKAGE FOR CHINA OR HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A450iRX80198808-199302

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A450iRX80..RHD;RX80..LHD..4FC..GEN198808-199008

HARSH ROAD PACKAGE 1

main48131-2A490iMX83199002-199008

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A500iRX81198808-199008

main48131-2A520iRX81199008-199308

HARSH ROAD PACKAGE 1

main48131-2A520iGX81..4FC199008-199608

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A520iMX83198808-199002

main48131-2A530iMX81199008-199302

HARSH ROAD PACKAGE 1

main48131-2A570iLX80198808-199008

main48131-2A580iLX80..5F198808-199008

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A580iLX80..4FC198808-199008

TAXI PACKAGE FOR CHINA OR HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A610iGX81198909-199008

main48131-2A610iGX81..LHD198808-198909

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A610iGX81..LHD198808-198909

HARSH ROAD PACKAGE 1

main48131-2A630iMX81198808-199008

main48131-2A640iMX81198808-199008

HARSH ROAD PACKAGE 1

main48131-2A700iLX80199008-199011

main48131-2A740iGX81..4FC199008-199302

HARSH ROAD PACKAGE 1

main48131-2A770iMX83199008-199302

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A830iLX80199011-199302

main48131-2A830iLX80199008-199011

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A840iRX81199008-199308

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A850iLX80199011-199302

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A860iMX83199011-199302

AUSTRALIA SPEC

48132SPRING, FRONT COIL, LH

main48131-2A430iGX81..LHD198808-198909

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A440iRX80198808-199302

main48131-2A450iRX80..RHD;RX80..LHD..4FC..GEN198808-199302

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A450iRX80..RHD;RX80..LHD..4FC..GEN198808-199008

TAXI PACKAGE FOR CHINA OR HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A450iRX80..RHD;RX80..LHD..4FC..GEN198808-199008

HARSH ROAD PACKAGE 1

main48131-2A490iMX83199002-199008

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A500iRX81198808-199008

main48131-2A510iMX81198808-199008

HARSH ROAD PACKAGE 1

main48131-2A520iRX81199008-199308

HARSH ROAD PACKAGE 1

main48131-2A520iMX83198808-199002

main48131-2A520iRX81199008-199608

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A530iMX81199008-199302

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A540iMX81199008-199302

HARSH ROAD PACKAGE 1

main48131-2A570iLX80198808-199008

main48131-2A580iLX80..5F198808-199008

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A580iLX80..4FC198808-199008

TAXI PACKAGE FOR CHINA OR HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A610iGX81..LHD198808-198909

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A610iGX81..RHD198808-198909

HARSH ROAD PACKAGE 1

main48131-2A610iGX81198909-199008

main48131-2A640iMX81198808-199008

main48131-2A700iLX80199008-199011

main48131-2A740iGX81..5F199008-199302

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A740iGX81..4FC199008-199302

HARSH ROAD PACKAGE 1

main48131-2A770iMX83199008-199302

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A830iLX80199011-199302

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A830iLX80199008-199011

main48131-2A840iRX81199008-199308

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A850iLX80199011-199302

HARSH ROAD PACKAGE 1 OR HARSH ROAD PACKAGE 2

main48131-2A860iMX83199011-199302

AUSTRALIA SPEC

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-22030iGX81,LX80,MX8#,RX8#198808-198908

sub48157-22031

main48157-22031iGX81,LX80,MX8#,RX8#198908-199608

48331BUMPER, FRONT SPRING, NO.1

main48331-14020iGX81,LX80,MX8#,RX8#198808-199008

main48331-22040iLX80,RX80..LHD..5F..GEN198808-199302

TAXI PACKAGE FOR CHINA

main48331-22050iGX81,LX80,MX8#,RX8#199008-199608

48559COVER, SHOCK ABSORBER, DUST

main48559-22010iLX80,RX80..LHD..5F..GEN198808-199302

TAXI PACKAGE FOR CHINA

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-22070iLX80,RX80..LHD..5F..GEN198808-199008

CHINA TAXI SPEC

main48609-22070iGX81,LX80,MX8#,RX8#198808-199608

main48609-22120iLX80,RX80..LHD..5F199212-199302

CHINA TAXI SPEC

48660BAR ASSY, STRUT, RH

main48660-22080iGX81,LX80,MX8#,RX8#198808-199608

48667RETAINER, STRUT BAR

main48667-22020iGX81,LX80,MX8#,RX8#198808-199608

48670BAR ASSY, STRUT, LH

main48670-22080iGX81,LX80,MX8#,RX8#198808-199608

48674CUSHION, STRUT BAR

main48674-22120iGX81,LX80,MX8#,RX8#198808-199302

sub48674-22141

main48674-22141iRX81199302-199608

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iGX81,LX80,MX8#,RX8#198808-199608

48684COVER, BEARING DUST

main48684-14020iGX81,LX80,MX8#,RX8#198808-199608

48810LINK ASSY, FRONT STABILIZER, LH

main48810-22010iGX81,LX80,MX8#,RX8#198808-199511

sub48810-22011

main48810-22011iRX81199511-199608

48811BAR, STABILIZER, FRONT

main48811-22340iRX81..V;GX81,LX80,RX80198808-199302

main48811-22380iGX81,RX81199011-199608

main48811-22420iLX80,RX80..LHD..5F..GEN198808-199302

TAXI PACKAGE FOR CHINA

main48811-22450iMX81;RX81..GEN198808-199008

main48811-22460iMX83198812-199011

sub48811-22380

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-22040iMX83198812-199608

main48815-22060iLX80,RX80..LHD..5F..GEN198808-199302

TAXI PACKAGE FOR CHINA

main48815-22110iMX81;RX81..GEN198808-199008

main48815-22120iRX81..V;GX81,LX80,RX80198808-199302

48817CUSHION, FRONT STABILIZER

main48817-22020iLX80,RX80..LHD..5F..GEN198808-199302

TAXI PACKAGE FOR CHINA

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02015iLX80,RX80..LHD..5F..GEN198808-199008

TAXI PACKAGE FOR CHINA

main90948-02032iLX80,RX80..LHD..5F199008-199302

TAXI PACKAGE FOR CHINA

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02015iLX80,RX80..LHD..5F199008-199302

TAXI PACKAGE FOR CHINA

main90948-02032iLX80,RX80..LHD..5F..GEN198808-199008

TAXI PACKAGE FOR CHINA

48819ABOLT, FRONT STABILIZER

main48819-24010iLX80,RX80..LHD..5F..GEN198808-199302

TAXI PACKAGE FOR CHINA

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-22010iGX81,LX80,MX8#,RX8#198808-199511

sub48820-22011

main48820-22011iRX81199511-199608

48824BRACKET, STABILIZER, FRONT

main48824-22060iGX81,LX80,MX8#,RX8#198808-199608

9011908080

main90119-08080

9017012021

main90170-12021

9017910132

main90179-10132

9017912047

main90179-12047

9017918014

main90179-18014

9020112055

main90201-12055

9046723006

main90467-23006

9046766001

main90467-66001

9056018006

main90560-18006

9094802122

main90948-02122

9418210800

main94182-10800

9418211400

main94182-11400

34 parts on this diagram · 2 diagrams in section
