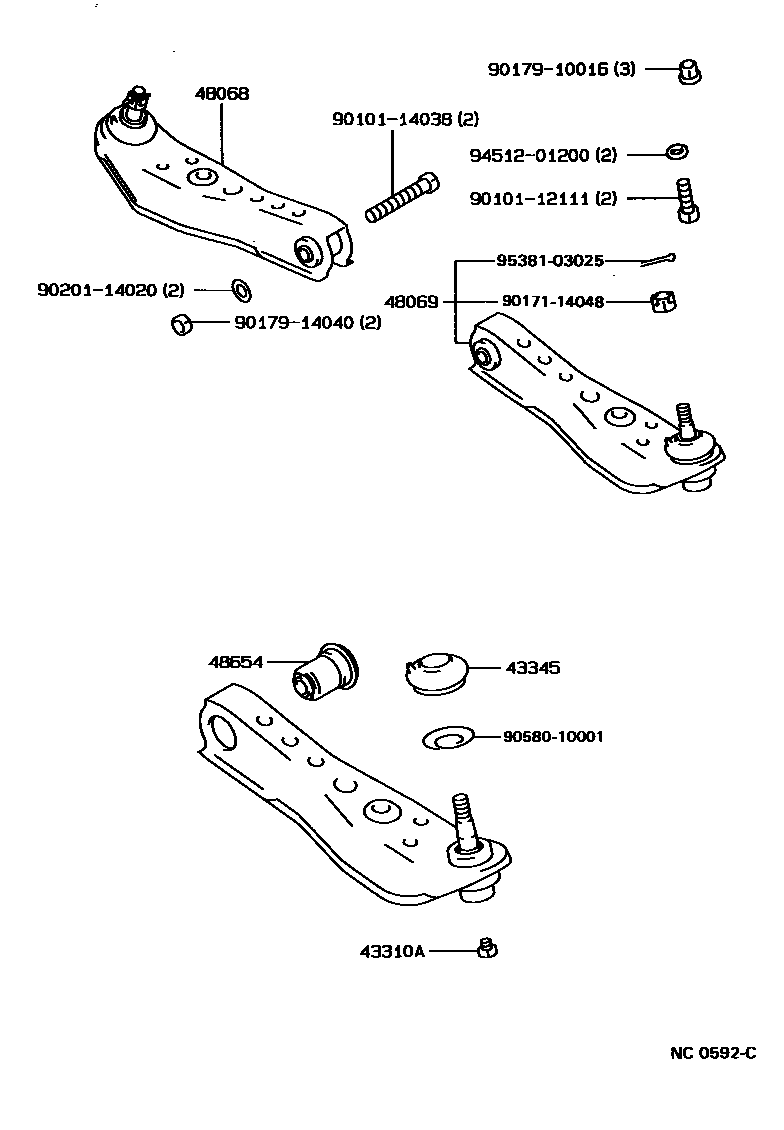

FRONT AXLE ARM & STEERING KNUCKLE

43310APLUG (FOR BALL JOINT)

main90345-06014iGX81,LX80,MX8#,RX8#198808-199608

43345COVER, LOWER BALL JOINT DUST

main43345-22070iGX81,LX80,MX8#,RX8#198808-199608

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-29115iGX81,LX80,MX8#,RX8#198808-199608

sub48068-49036

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-29115iGX81,LX80,MX8#,RX8#198808-199608

sub48069-49036

48654BUSH, LOWER ARM

main48654-22030iGX81,LX80,MX8#,RX8#198808-199608

9010112111

main90101-12111

9010114038

main90101-14038

9017114048

main90171-14048

9017910016

main90179-10016

9017914040

main90179-14040

9020114020

main90201-14020

9058010001

main90580-10001

9451201200

main94512-01200

9538103025

main95381-03025

14 parts on this diagram · 1 diagram in section
