BRAKE BOOSTER & VACUUM TUBE

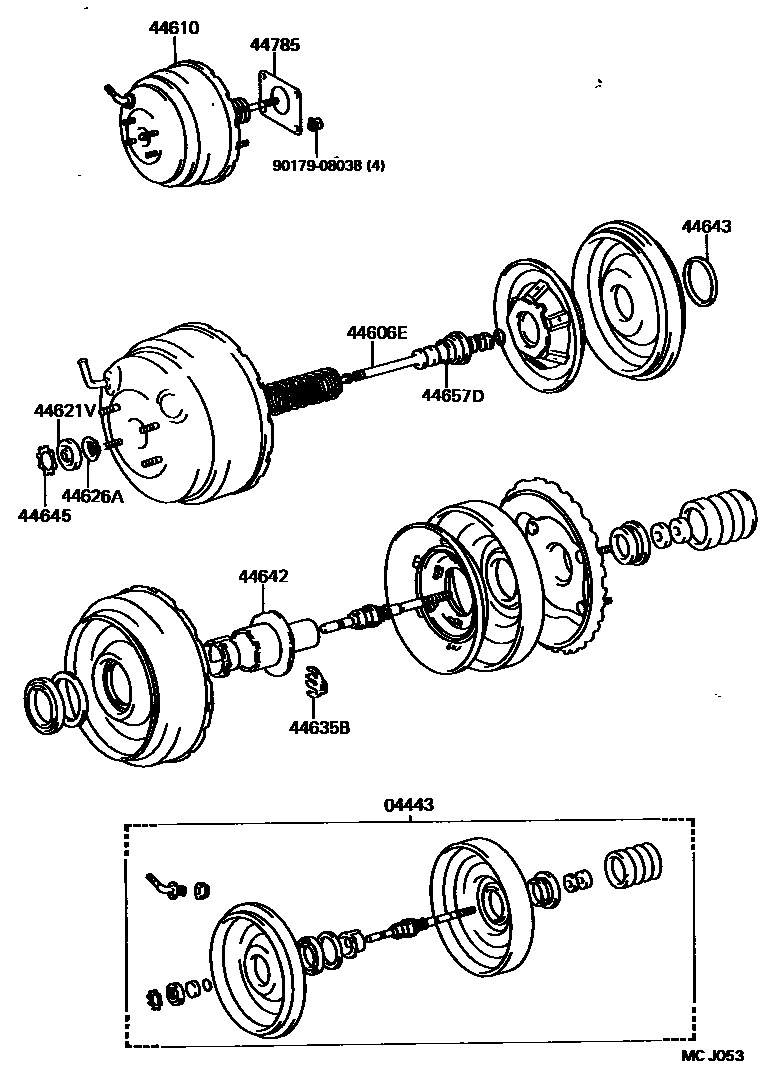

Parts diagram

04443BOOSTER KIT, BRAKE

main04443-22570i198808-199008

main04443-22610i198808-199008

AISIN

main04443-22630i198808-199008

main04443-22640i198808-199008

main04443-22650i198808-199008

main04443-22660i198808-199008

main04443-22680i198808-199008

JKC

44606EROD SUB-ASSY, BRAKE BOOSTER PISTON

main44606-12520i198808-199008

AISIN

main44606-20800i198808-199008

main44608-17090i198808-199008

main44608-32020i198808-199008

JKC

main44608-32020i198808-199008

44610BOOSTER ASSY, BRAKE

main44610-22650i198808-199008

main44610-22690i198808-199302

main44610-22700i198808-199302

main44610-22720i198808-199302

main44610-22730i198808-198902

main44610-22730i198902-199608

AISIN

main44610-22740i198808-199302

main44610-22800i198902-199608

JKC

main44610-22810i199008-199302

W(*66)

main44610-22820i199008-199302

44621VSEAL, BOOSTER BODY

main44621-14030i198808-199008

main44621-28120i198808-199008

44626ARETAINER, BOOSTER BODY SEAL

main44626-60010i198808-199008

44635BKEY, VALVE STOPPER

main44633-20811i198808-199008

main44633-28130i198808-199008

JKC

main44633-28130i198808-199008

main44635-20800i198808-199008

main44635-28120i198808-199008

AISIN

44642PISTON, BRAKE BOOSTER

main44642-20800i198808-199008

main44642-32010i198808-199008

44643RETAINER, DIAPHRAGM

main44643-20800i198808-199008

44645RETAINER, BOOSTER PUSH ROD SEAL

main44628-60010i198808-199008

main44645-10080i198808-199008

main44645-22020i198808-199008

44657DCASE, REACTION DISC

main44657-30560i198808-199008

44785GASKET, BRAKE BOOSTER

main44785-32010i198808-199608

9017908038

main90179-08038

12 parts on this diagram · 11 diagrams in section
