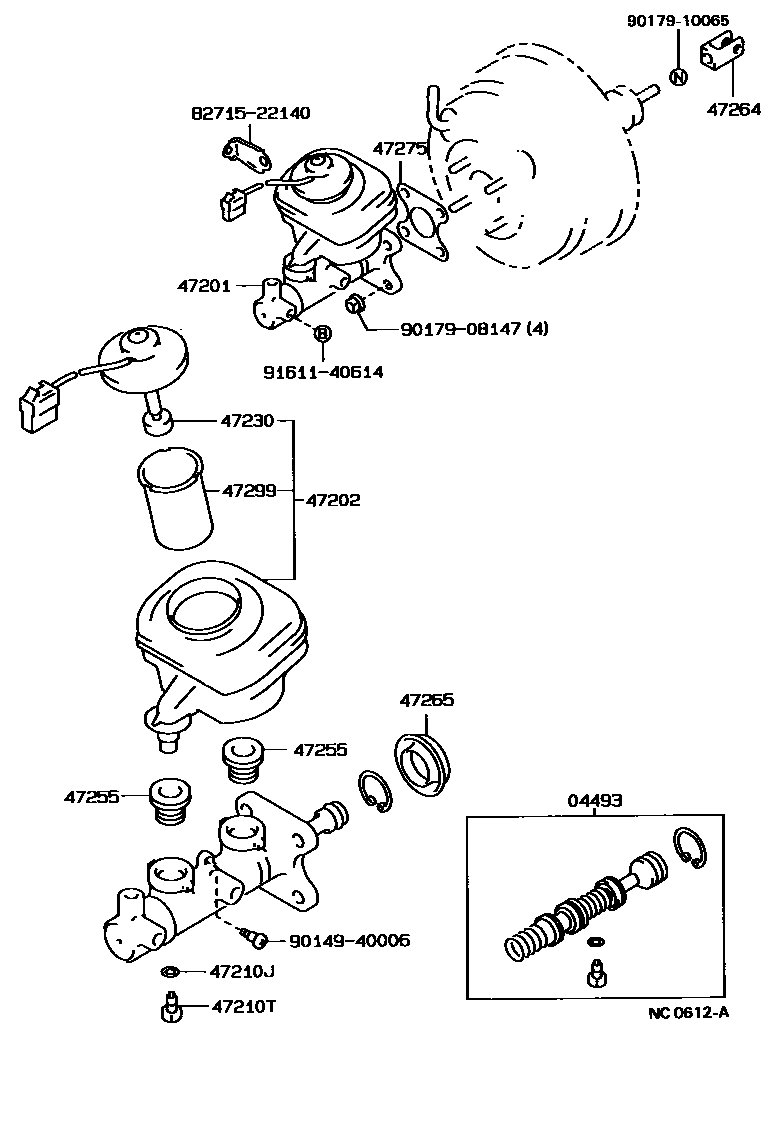

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-22150iMX83198808-199302

main04493-22160iMX81198808-199302

main04493-22170iGX81..LHD198808-199008

main04493-22200iMX83..GLX198908-199008

W(*66)

main04493-22210iGX81..4FC;LX80,RX8#198910-199601

sub04493-43010

main04493-22220iMX83199008-199302

W(*66)

main04493-30180iGX81..RHD;LX80,RX8#198808-198910

sub04493-22210

main04493-43010iRX81199601-199608

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-22600iMX83198808-199302

main47201-22610iGX81,RX80..RHD198808-199302

main47201-22620iLX80,RX8#..LHD198808-199608

main47201-22630iMX81198808-199302

main47201-22650iGX81..LHD198808-199302

main47201-22700iMX83..GLX198908-199008

W(*66)

main47201-22750iMX83199008-199302

W(*66)

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-22240iLX80,RX8#;GX81,MX83..RHD198808-199608

main47202-22260iGX81,MX81..LHD198808-199302

47210JGASKET(FOR MASTER CYLINDER)

main90430-06104iMX83199008-199302

W(*66)

main90430-06104iGX81,LX80,MX8#,RX8#198808-199608

47210TBOLT(FOR BRAKE MASTER CYLINDER)

main90109-06008iGX81,MX81..LHD198808-199302

main90109-06077iMX83199008-199302

W(*66)

main90109-06077iLX80,RX8#;GX81,MX83..RHD198808-199608

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main84460-22020iGX81,MX81..LHD198808-199302

main84460-22030iLX80,RX8#;GX81,MX83..RHD198808-199008

sub84460-40020

main84460-40020iLX80,RX8#;GX81,MX83..4FC199008-199608

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iLX80,RX8#;GX81,MX83..RHD198808-199608

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-22010iGX81,LX80,MX81,RX8#198808-199608

main47264-30040iMX83198808-199008

main47264-50010iMX8#199008-199302

47265BOOT, MASTER CYLINDER

main47265-20050iLX80,RX8#;GX81,MX83..RHD198808-199608

NO.1

main47265-20060iGX81,MX81..LHD198808-199302

NO.2

main47265-22030iMX83199008-199302

W(*66)

47275GASKET, BRAKE MASTER CYLINDER

main47275-24010iGX81,LX80,MX8#,RX8#198808-199608

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-32010iGX81,LX80,MX8#,RX8#198808-199608

8271522140BRACKET,WIRING HARNESS CLAMP

main82715-22140

9014940006

main90149-40006

9017908147

main90179-08147

9017910065

main90179-10065

9161140614

main91611-40614

16 parts on this diagram · 2 diagrams in section
