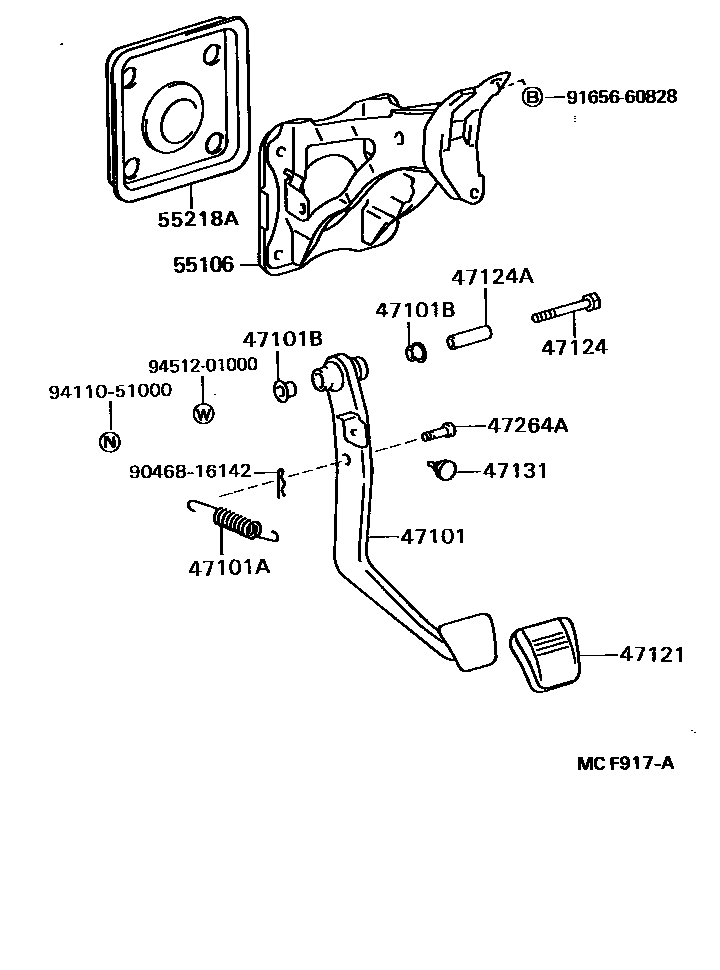

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-22330iGX81,RX80..RHD..5F198808-199302

main47101-22340iGX81,MX83,RX80..RHD..4FC198808-199302

main47101-22350iGX81,LX80,MX81,RX8#..LHD..5F198808-199608

main47101-22360iLX80,MX81,RX8#..LHD..4FC198808-199608

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12033iGX81,LX80,MX8#,RX8#198808-199608

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iGX81,LX80,MX8#,RX8#198808-199608

47121PAD, BRAKE PEDAL

main31321-14020iGX81,LX80,MX81,RX8#..5F198808-199608

main47121-14010iGX81,LX80,MX8#,RX8#..4FC198808-199608

47124SHAFT, BRAKE PEDAL

main90101-10039iGX81,LX80,MX8#,RX8#198808-199608

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iGX81,LX80,MX8#,RX8#198808-199608

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06032iGX81,LX80,MX8#,RX8#198808-199008

sub90541-06036

main90541-06036iGX81,LX80,MX8#,RX8#199008-199306

47264APIN(FOR PUSH ROD)

main90249-10064iGX81,LX80,MX8#,RX8#198808-199608

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-22180iGX81,MX83,RX80..RHD198808-199302

main55106-22200iGX81,LX80,MX81,RX8#..LHD198808-199608

55218ASEAL, DASH PANEL INSULATOR

main55218-22010iGX81,LX80,MX8#,RX8#198808-199608

9046816142

main90468-16142

9165660828

main91656-60828

9411051000

main94110-51000

9451201000

main94512-01000

14 parts on this diagram · 1 diagram in section
