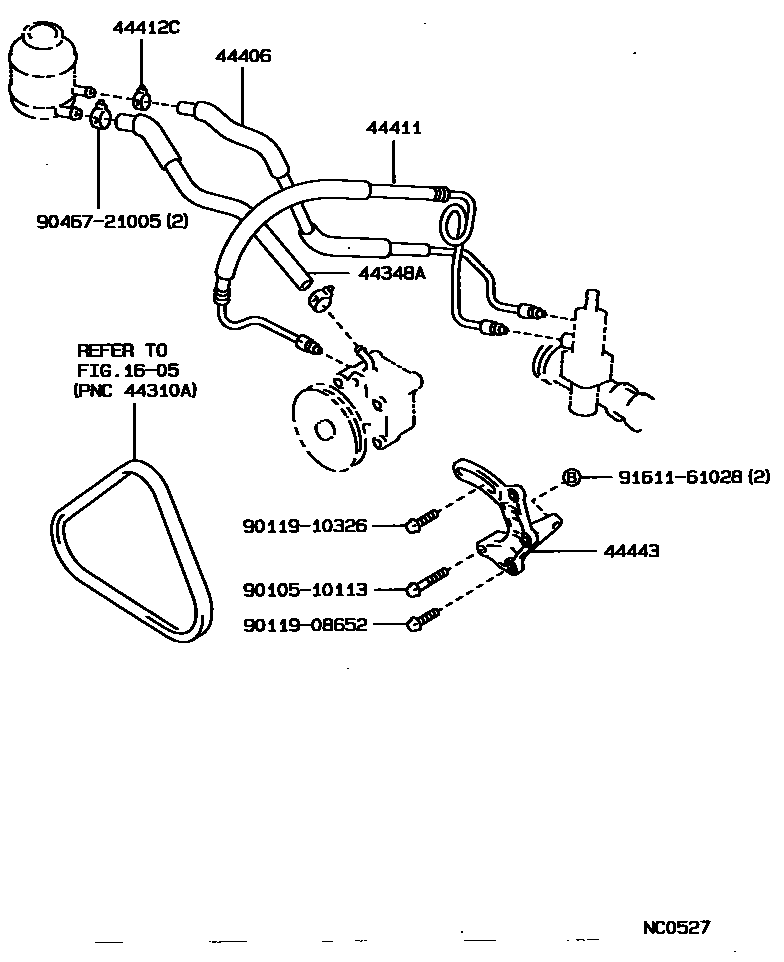

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1605

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-22150iGX81198808-199302

main44348-22170iLX80198808-199302

main44348-22190iMX83198808-199302

main44348-22200iRX8#198808-199608

sub44348-22201

44406TUBE SUB-ASSY, RETURN

main44406-22120iGX81..RHD198808-199302

main44406-22140iRX8#..LHD198808-199608

main44406-22150iLX80198808-199302

main44406-22170iMX83198808-199302

44411HOSE, PRESSURE FEED

main44411-22530iMX83198808-199302

main44411-22550iRX8#..LHD198808-199608

main44411-22560iLX80198808-199302

main44411-22590iGX81..RHD198808-199302

44412HOSE, RETURN

main44412-22470iRX8#..LHD198808-199608

sub44412-22471

main44412-22480iMX81198808-199302

sub44412-22481

main44412-22490iMX83198808-199302

44412CCLAMP(FOR RETURN HOSE)

main90467-16008iGX81..RHD198808-199302

sub90467-16019

44443BRACKET, PUMP

main44443-22100iGX81198808-199302

main44443-22110iLX80198808-199302

main44443-30070iMX81198808-199302

main44443-30100iMX83198808-199302

main44443-35020iRX8#198808-199608

9010510113

main90105-10113

9011908652

main90119-08652

9011910326

main90119-10326

9046721005

main90467-21005

9161161028

main91611-61028

12 parts on this diagram · 7 diagrams in section
