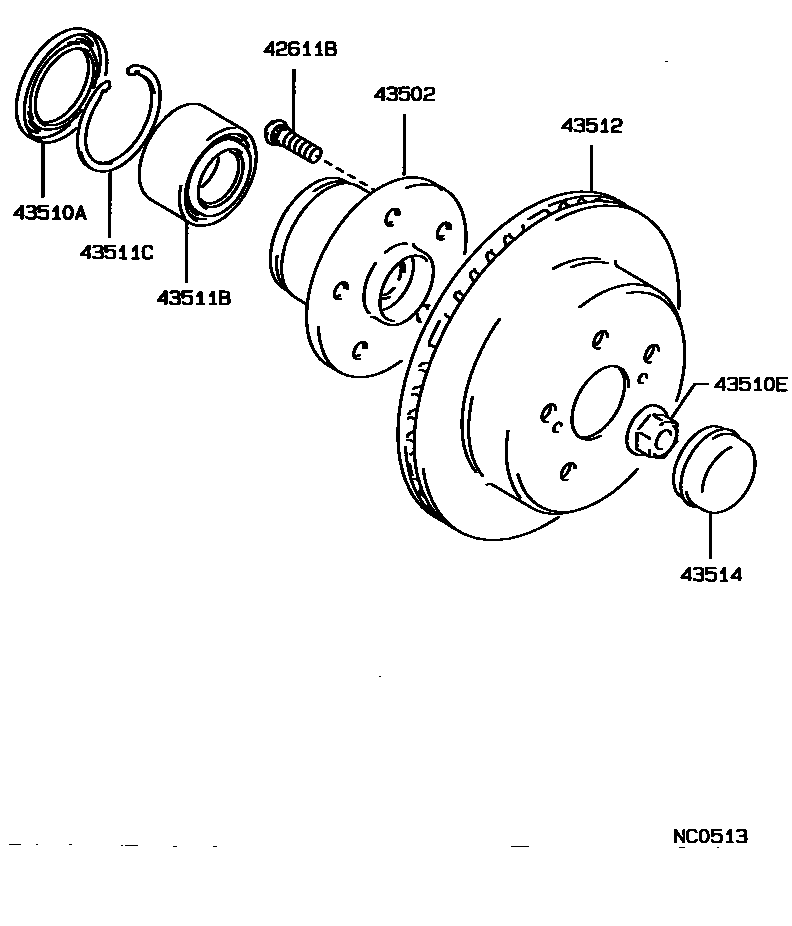

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02049iGX81,LX80,MX8#,RX8#198808-199608

43502HUB SUB-ASSY, FRONT AXLE

main43502-22060iGX81,LX80,MX8#,RX8#198808-199608

main43503-22010iMX83..GLX198908-199008

W(*66)

main43503-22010iMX83199008-199302

AUSTRALIA SPEC OR W(*66)

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48013iGX81,LX80,MX8#,RX8#198808-199608

43510ENUT (FOR STEERING KNUCKLE)

main90179-22017iGX81,LX80,MX8#,RX8#198808-199608

43511BBEARING (FOR FRONT AXLE HUB)

main90369-32003iGX81,LX80,MX8#,RX8#198808-199608

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-77001iGX81,LX80,MX8#,RX8#198808-199608

OD=77

43512DISC, FRONT

main43512-22120iGX81,LX80,MX8#,RX8#198808-199302

sub43512-22170

main43512-22160iMX81,RX81..GL,XL199008-199608

sub43512-22180

main43512-22170iGX81199008-199302

W(ALUMINUM WHEEL)

main43512-22180iMX8#..GD,GLX199008-199302

W(ALUMINUM WHEEL)

43514CAP, FRONT HUB GREASE

main43514-22030iGX81,LX80,MX8#,RX8#198808-199601

sub43514-43010

main43514-43010iRX81199601-199608

8 parts on this diagram · 1 diagram in section
