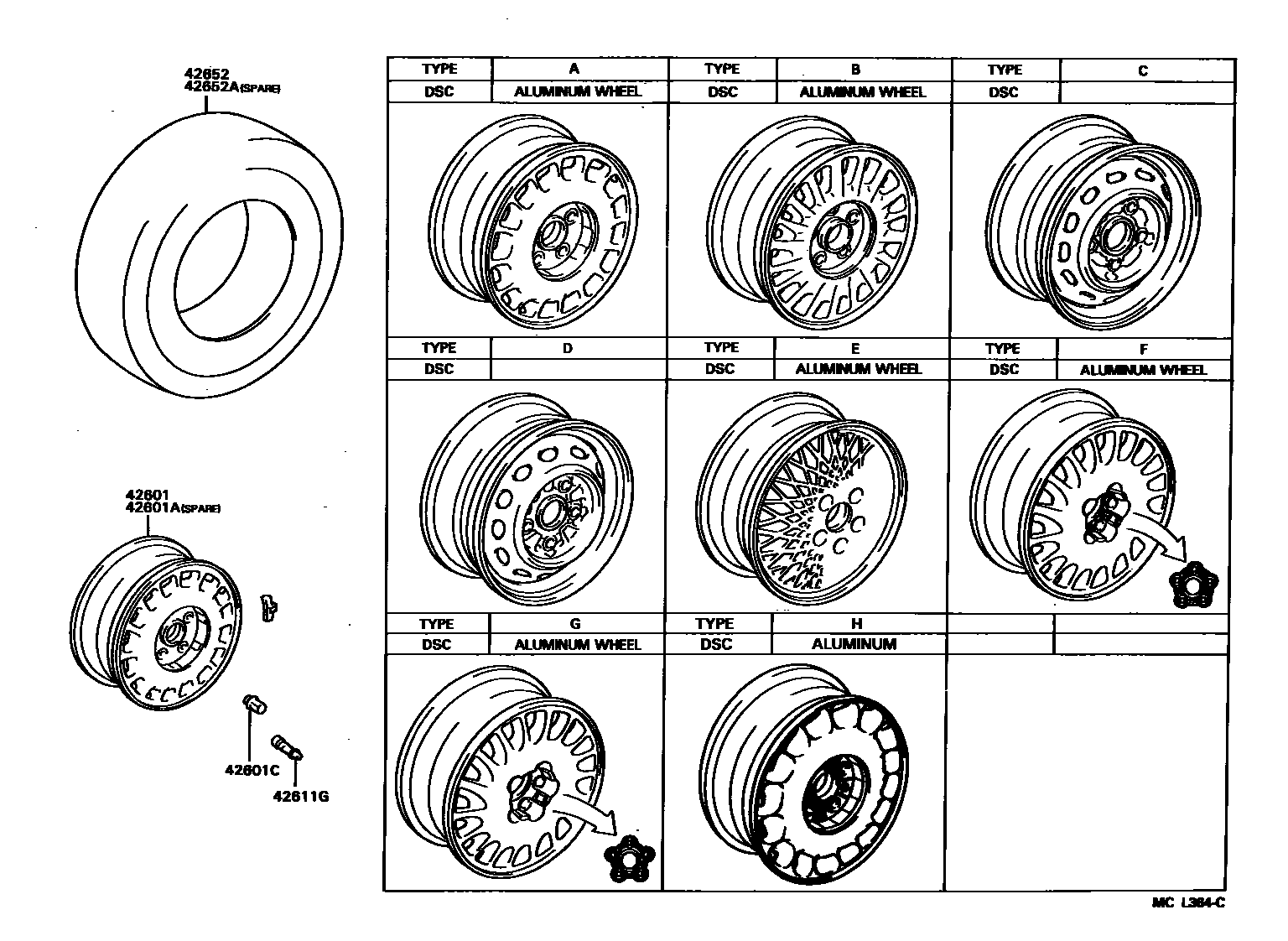

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-22420-03iLX80,RX80..LHD..5F..GEN198808-199302

14X5.5J, #,TYPE C,SILVER M.

sub42611-22420¥11,300

sub42611-22421¥10,600

main42611-22440iGX81,MX81..GD,GL,GLX¥35,500198808-198908

15X6JJ,ALUMINUM WHEEL,TYPE H

sub42611-22430¥35,500

main42611-22440iMX83..GLX¥35,500198808-198908

15X6JJ,TYPE H

sub42611-22430¥35,500

main42611-22450iMX83..GLX¥35,500198808-199008

15X6JJ,ALUMINUM WHEEL,TYPE A

main42611-22450iMX83..GLX¥35,500198808-199008

15X6JJ,TYPE A

main42611-22460iRX8#..GL..V¥30,500198808-199008

5.5JJX14,ALUMINUM WHEEL,TYPE B

sub42611-22560¥30,500

main42611-22480-03iRX80..XL198808-199608

5.5JX14,TYPE D,DARK SILVER M.

main42611-22510-03iMX81,RX81..XL199008-199302

5.5JX14,TYPE D,SILVER M.,050 ,176 ,3J9 ,8G2 ,869

main42611-22510-03iMX81,RX8#..XL198908-199008

5.5JX14,TYPE D,SILVER M.,050 ,170 ,176 ,202 ,3H4 ,4L4 ,8G2

main42611-22510-03iMX81,RX81..XL199008-199302

5.5JX14,TYPE D,SILVER M.,050 ,176 ,3J9 ,4J1 ,869

main42611-22510-03iRX81..XL199302-199308

5.5JX14,TYPE D,SILVER M.,040 ,3J9 ,4M7

main42611-22510-03iMX81,RX80..XL198808-198908

5.5JX14,TYPE D,SILVER M.,050 ,170 ,176 ,202 ,3H4 ,4K2 ,8G2

main42611-22520iMX83..GLX¥35,500198908-199008

15X6JJ,CAPTIN,ALUMINUM WHEEL,TYPE A

sub42611-22450¥35,500

main42611-22520iGX81,MX81..GD,GL,GLX¥35,500198908-199008

15X6JJ,CAPTIN,TYPE A

sub42611-22450¥35,500

main42611-22550iMX83¥39,500199008-199302

6JJX15,TYPE E

main42611-22560iGX81,RX80..LHD..(GL,GLX)¥30,500199008-199608

14X5.5J, #,ALUMINUM WHEEL,TYPE B

sub42611-22561¥30,500

main42611-22560iMX81..GL¥30,500199008-199302

14X5.5J, #,TYPE B

sub42611-22561¥30,500

main42611-22610iMX81..GL¥35,500199008-199302

6JJX15,6JJX15,TYPE F;6JJX15,ALUMINUM WHEEL,TYPE F

sub42611-22660¥35,500

main42611-22610iMX81..GL¥35,500199008-199302

6JJX15,6JJX15,ALUMINUM WHEEL,TYPE F

sub42611-22660¥35,500

main42611-22610iMX83¥35,500199108-199302

6JJX15,6JJX15,AUSTRALIA PACKAGE,TYPE F

sub42611-22660¥35,500

main42611-22670iGX81¥38,600199008-199302

6JJ-15,TYPE G

main42611-22670iMX81..GD¥38,600199008-199302

6JJ-15,ALUMINUM WHEEL,TYPE G

main42611-22670iMX83¥38,600199209-199302

6JJ-15,6JJX15,AUSTRALIA PACKAGE,TYPE G

42601AWHEEL, DISC (FOR SPARE)

main42611-22420-03iLX80,RX80..LHD..5F199008-199302

14X5.5J, #,TYPE C,SILVER M.

sub42611-22420¥11,300

sub42611-22421¥10,600

main42611-22420-03iLX80,RX80..LHD..5F..GEN198808-199008

14X5.5J, #,ALUMINUM WHEEL,TYPE C,SILVER M.

sub42611-22420¥11,300

sub42611-22421¥10,600

main42611-22440iGX81,MX81..GD,GL,GLX¥35,500198808-198908

15X6JJ,TYPE H

sub42611-22430¥35,500

main42611-22440iGX81,MX81..GD,GL,GLX¥35,500198808-198908

15X6JJ,ALUMINUM WHEEL,TYPE H

sub42611-22430¥35,500

main42611-22450iMX83..GLX¥35,500198808-199008

15X6JJ,TYPE A

main42611-22450iMX83..GLX¥35,500198808-199008

15X6JJ,ALUMINUM WHEEL,TYPE A

main42611-22460iGX81,RX8#..LHD..(GL,GLX)..GEN¥30,500198808-199008

5.5JJX14,ALUMINUM WHEEL,TYPE B

sub42611-22560¥30,500

main42611-22480-03iRX80..RHD..XL198808-199608

5.5JX14,TYPE D,DARK SILVER M.

main42611-22510-03iMX81,RX81..XL199008-199302

5.5JX14,TYPE D,SILVER M.,050 ,176 ,3J9 ,8G2 ,869

main42611-22510-03iMX81,RX8#..XL198908-199008

5.5JX14,TYPE D,SILVER M.,050 ,170 ,176 ,202 ,3H4 ,4L4 ,8G2

main42611-22510-03iMX81,RX80..XL198808-198908

5.5JX14,TYPE D,SILVER M.,050 ,170 ,176 ,202 ,3H4 ,4K2 ,8G2

main42611-22510-03iMX81,RX81..XL199008-199302

5.5JX14,TYPE D,SILVER M.,050 ,176 ,3J9 ,4J1 ,869

main42611-22510-03iRX81..XL199302-199308

5.5JX14,TYPE D,SILVER M.,040 ,3J9 ,4M7

main42611-22520iMX83..GLX¥35,500198908-199008

15X6JJ,CAPTIN,ALUMINUM WHEEL,TYPE A

sub42611-22450¥35,500

main42611-22520iGX81,MX81..GD,GL,GLX¥35,500198908-199008

15X6JJ,CAPTIN,TYPE A

sub42611-22450¥35,500

main42611-22550iMX83¥39,500199008-199302

6JJX15,TYPE E

main42611-22560iMX81..GL¥30,500199008-199608

14X5.5J, #,ALUMINUM WHEEL,TYPE B

sub42611-22561¥30,500

main42611-22560iMX81..GL¥30,500199008-199302

14X5.5J, #,TYPE B

sub42611-22561¥30,500

main42611-22610iGX81¥35,500199008-199302

6JJX15,6JJX15,TYPE F

sub42611-22660¥35,500

main42611-22610iGX81¥35,500199008-199302

6JJX15,6JJX15,ALUMINUM WHEEL,TYPE F

sub42611-22660¥35,500

main42611-22610iMX81..GL¥35,500199008-199302

6JJX15,6JJX15,TYPE F;6JJX15,ALUMINUM WHEEL,TYPE F

sub42611-22660¥35,500

main42611-22610iMX83¥35,500199108-199302

6JJX15,6JJX15,AUSTRALIA PACKAGE,TYPE F

sub42611-22660¥35,500

main42611-22670iMX81..GL¥38,600199008-199302

6JJ-15,TYPE G

main42611-22670iMX81..GD¥38,600199008-199302

6JJ-15,ALUMINUM WHEEL,TYPE G

main42611-22670iMX83¥38,600199209-199302

6JJ-15,6JJ-15,AUSTRALIA PACKAGE,TYPE G

42601CNUT, HUB (FOR AXLE)

main90942-01007iLX80,RX80..LHD..5F..GL¥230198808-199608

main90942-01062iMX83..GLX¥530198808-199008

W(ALUMINUM WHEEL)

main90942-01069iMX81..GL¥360199008-199302

W(ALUMINUM WHEEL)

main90942-01069iMX81..GL¥360198808-199302

CAP NUT

main90942-01069iRX81..GL¥360199302-199608

W(ALUMINUM WHEEL),CAP NUT

main90942-01083iMX81..GL¥680199008-199302

W(ALUMINUM WHEEL)

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iGX81,LX80,MX8#,RX8#¥390198808-199608

42652TIRE

main42605-22210iRX80..RHD..5F..XL;RX80..4FC..XL..GEN198808-199302

185/70R14,W(TUBE)

main42605-22210iRX81199302-199608

185/70R14,W(TUBE),W(ALUMINUM WHEEL)

main42652-14520iMX83..GLX198808-199302

205/6OR15 89H

main42652-22340iGX81199008-199302

205/60R15

main42652-22340iGX81,MX81..GD,GL,GLX198808-199302

205/60R15,W(ALUMINUM WHEEL)

main42652-22340iMX81..GD199008-199302

205/60R15,MIDDLE EAST PACKAGE

main42652-22430iMX83..GL198808-199008

195/70R14

main42652-22440iGX81,LX80,RX8#198808-199608

185/70R14

main42652-30200iMX81..GL,XL198808-199302

195/70R14 90H

main42652-32161iRX81199308-199310

185/70R14 88H

main42652-32161iRX81199310-199608

185/70R14 88H,W(ALUMINUM WHEEL)

42652ATIRE (FOR SPARE)

main42605-22210iRX80..LHD..5F..XL..GEN198808-199302

185/70R14,W(TUBE)

main42605-22210iRX81199302-199608

185/70R14,W(TUBE),W(ALUMINUM WHEEL)

main42652-14520iMX83..GLX198808-199302

205/6OR15 89H

main42652-22340iMX81..GL198808-199302

205/60R15,W(ALUMINUM WHEEL)

main42652-22340iMX81..GD199008-199302

205/60R15

main42652-22340iMX81..GD199008-199302

205/60R15,MIDDLE EAST PACKAGE

main42652-22430iMX83..GL198808-199008

195/70R14

main42652-22440iGX81,LX80,RX8#198808-199608

185/70R14

main42652-30200iMX81..GL,XL198808-199302

195/70R14 90H

main42652-32161iRX81199308-199310

185/70R14 88H

main42652-32161iRX81199310-199608

185/70R14 88H,W(ALUMINUM WHEEL)

6 parts on this diagram · 3 diagrams in section
