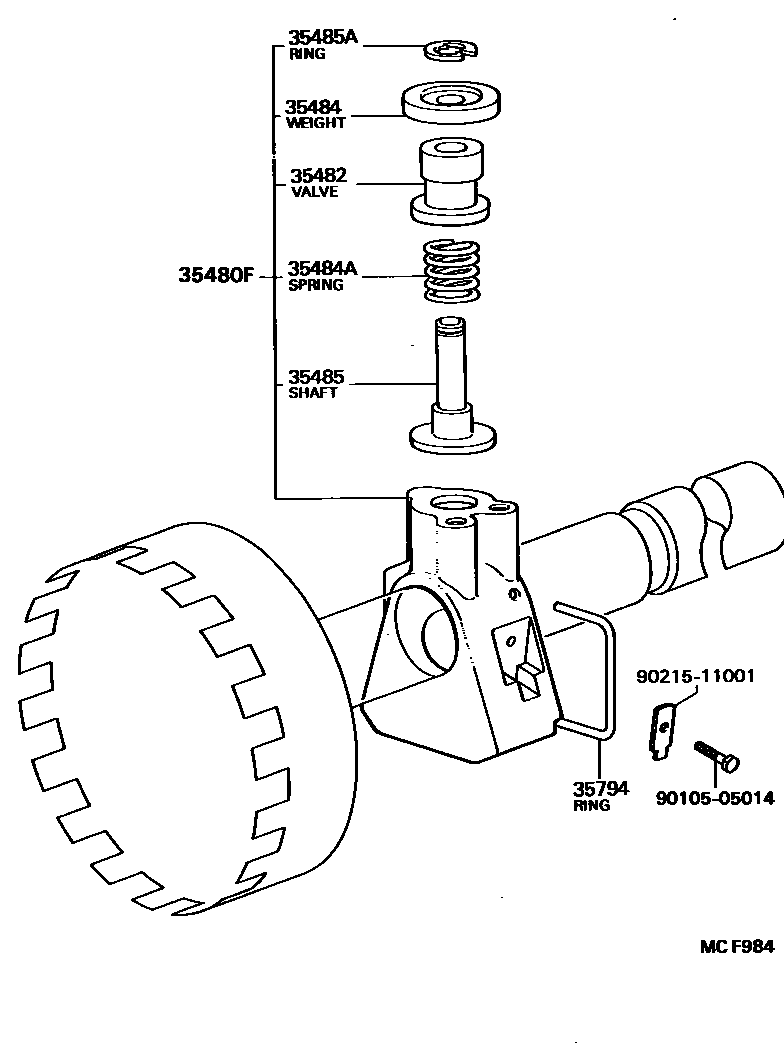

REAR OIL PUMP & GOVERNOR (ATM)

35480FBODY ASSY, GOVERNOR

main35480-30060iGX81,MX81,RX8#..4FC¥11,500198808-199608

main35480-30080iLX80..4FC¥11,400198808-199302

35482VALVE, GOVERNOR

main35482-20010iLX80..4FC¥1,740198808-199302

main35482-22010iGX81,MX81,RX8#..4FC¥1,950198808-199608

35484WEIGHT, GOVERNOR, OUTER

main35484-20020iLX80..4FC¥710198808-199302

main35484-22010iGX81,MX81,RX8#..4FC¥750198808-199608

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09030iLX80..4FC¥130198808-199302

main90501-09673iGX81,MX81,RX8#..4FC¥200198808-199608

35485SHAFT, GOVERNOR VALVE

main35485-22010iGX81,LX80,MX81,RX8#..4FC¥1,220198808-199608

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iGX81,LX80,MX81,RX8#..4FC¥190198808-199608

35794RING, GOVERNOR RETAINING

main35794-22010iGX81,LX80,MX81,RX8#..4FC¥550198808-199608

9010505014

main90105-05014¥70

9021511001

main90215-11001¥120

9 parts on this diagram · 1 diagram in section
