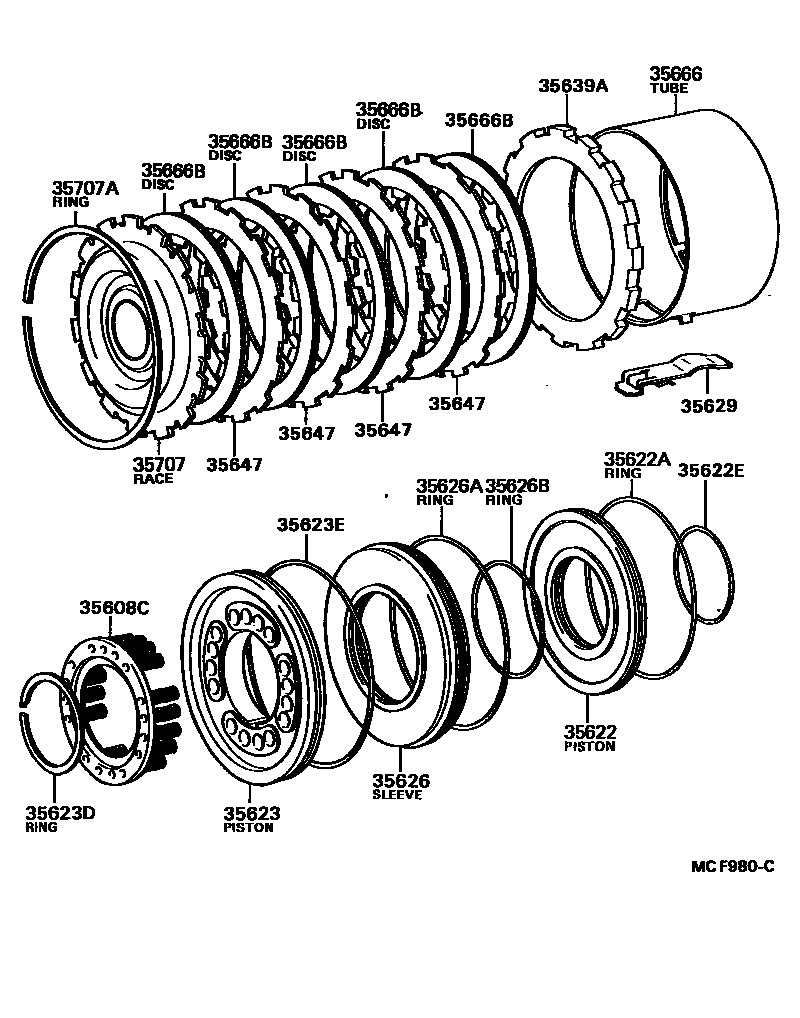

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1A42D,A42DL,A43D,A43DL 0003 1A340E

35608CSPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN

main35608-20020iGX81,LX80,MX81,RX8#..4FC¥1,060198808-199608

35622PISTON, BRAKE, NO.2

main35622-22010iGX81,LX80,MX81,RX8#..4FC¥1,850198808-199608

main35622-30010iMX83¥2,500198808-199302

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99193iGX81,LX80,MX81,RX8#..4FC¥800198808-199608

35622ERING, O (FOR BRAKE PISTON NO.2)

main90301-57188iMX83¥630198808-199608

INNER

main90301-99193iMX83¥800198808-199302

OUTER

35623PISTON, BRAKE, NO.3

main35623-22010iGX81,LX80,MX81,RX8#..4FC¥2,330198808-199608

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iGX81,LX80,MX81,RX8#..4FC¥240198808-199608

35623ERING, O, NO.1 (FOR BRAKE PISTON)

main90301-99192iGX81,LX80,MX81,RX8#..4FC¥800198808-199608

35626SLEEVE, BRAKE REACTION

main35626-22010iGX81,LX80,MX81,RX8#..4FC¥2,100198808-199608

main35626-30020iMX83¥3,150198808-199302

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99200iGX81,LX80,MX81,RX8#..4FC¥800198808-199608

sub90301-99109¥190

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iGX81,LX80,MX8#,RX8#..4FC¥630198808-199608

sub90301-67005¥190

35629SPRING (1ST & REVS BRAKE PLATE STOPPER)

main35629-22010iGX81..4FC¥270198808-199608

35639APLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iGX81,LX80,MX81,RX8#..4FC¥3,250198808-199608

35647PLATE, CLUTCH, NO.2

main35647-22010iGX81,LX80,MX81,RX8#..4FC¥1,670198808-199608

35666TUBE, BRAKE APPLY

main35666-26010iLX80..4FC¥2,470198808-199302

main35666-30010iGX81,MX81,RX8#..4FC¥2,460198808-199608

35666BDISC, CLUTCH (FOR BRAKE)

main35633-30050iLX80..4FC¥2,640198808-199109

sub35633-30060¥2,630

main35633-30060iLX80..4FC¥2,630199109-199608

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-30020iGX81,LX80..4FC¥8,000198808-199302

main35707-30030iMX81,RX8#..4FC¥13,600198808-199608

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iGX81,LX80,MX81,RX8#..4FC¥520198808-199608

17 parts on this diagram · 2 diagrams in section
