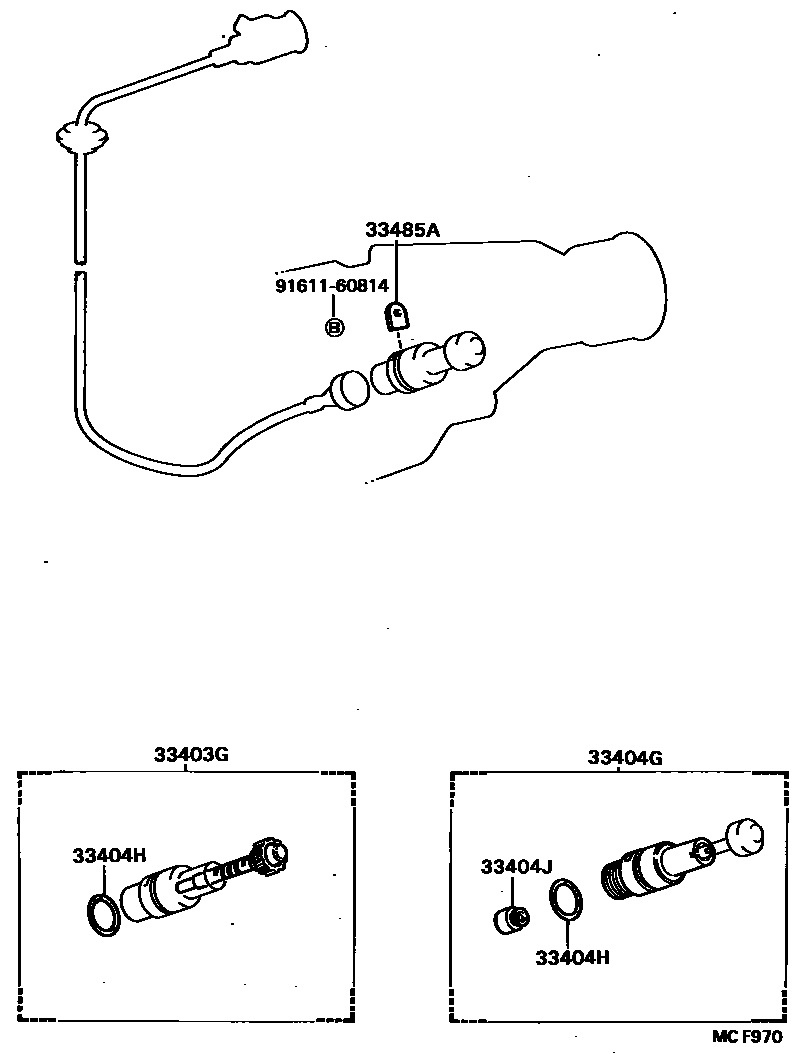

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-29235iGX81,MX81..4FC198808-199302

N=20,MARK 20:6

main33403-69135iLX80,MX83,RX8#..4FC198808-199608

N=19,MARK 19:6

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iGX81,LX80,MX8#,RX8#..4FC198808-199608

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iGX81,LX80,MX8#,RX8#..4FC198808-199608

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iGX81,LX80,MX8#,RX8#..4FC198808-199608

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iGX81,LX80,MX8#,RX8#..4FC198808-199608

9161160814

main91611-60814

6 parts on this diagram · 1 diagram in section
