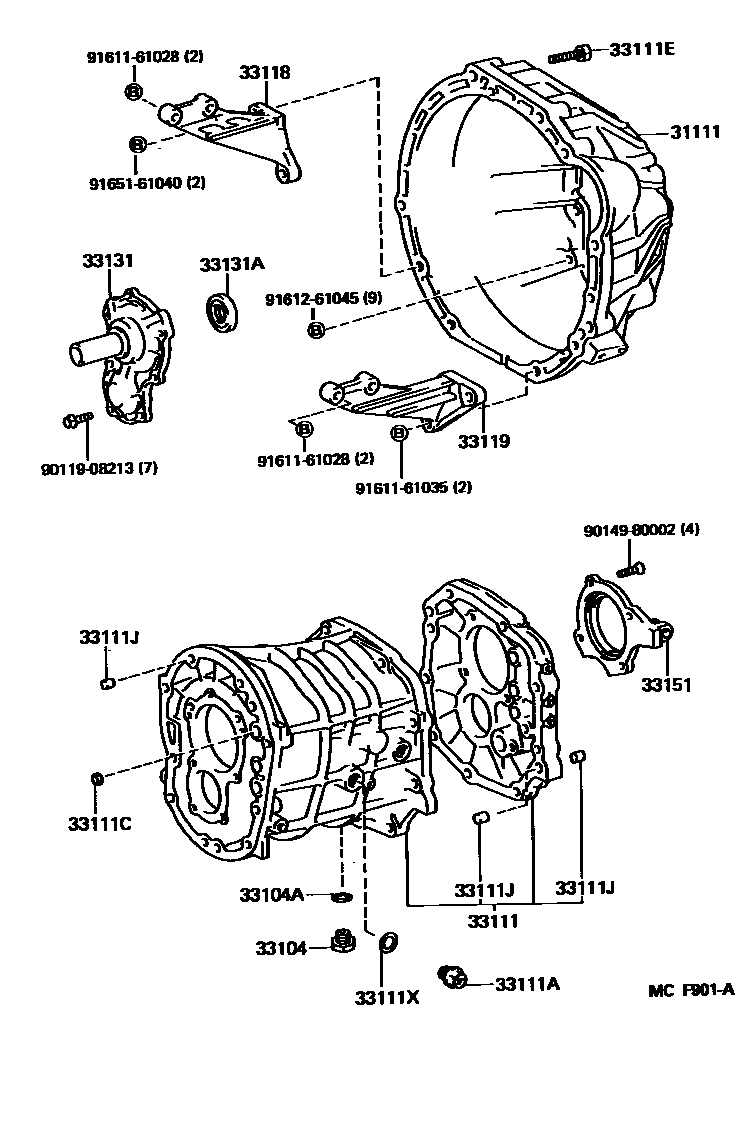

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111APLUG, MANUAL TRANSMISSION CASE
33111CPLUG(FOR TRANSMISSION CASE)
OD=14
OD=17,OD=17
33111EBOLT(FOR TRANSMISSION CASE & ENGINE SETTING)
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=16,OD=12
33111XGASKET, TRANSMISSION CASE PLUG
33118PLATE, STIFFENER, RH(MTM)
33119PLATE, STIFFENER, LH(MTM)
33131RETAINER, BEARING, FRONT(MTM)
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
9011908213
main90119-08213
9014980002
main90149-80002
9161161028
main91611-61028
9161161035
main91611-61035
9161261045
main91612-61045
9165161040
main91651-61040
20 parts on this diagram · 8 diagrams in section
