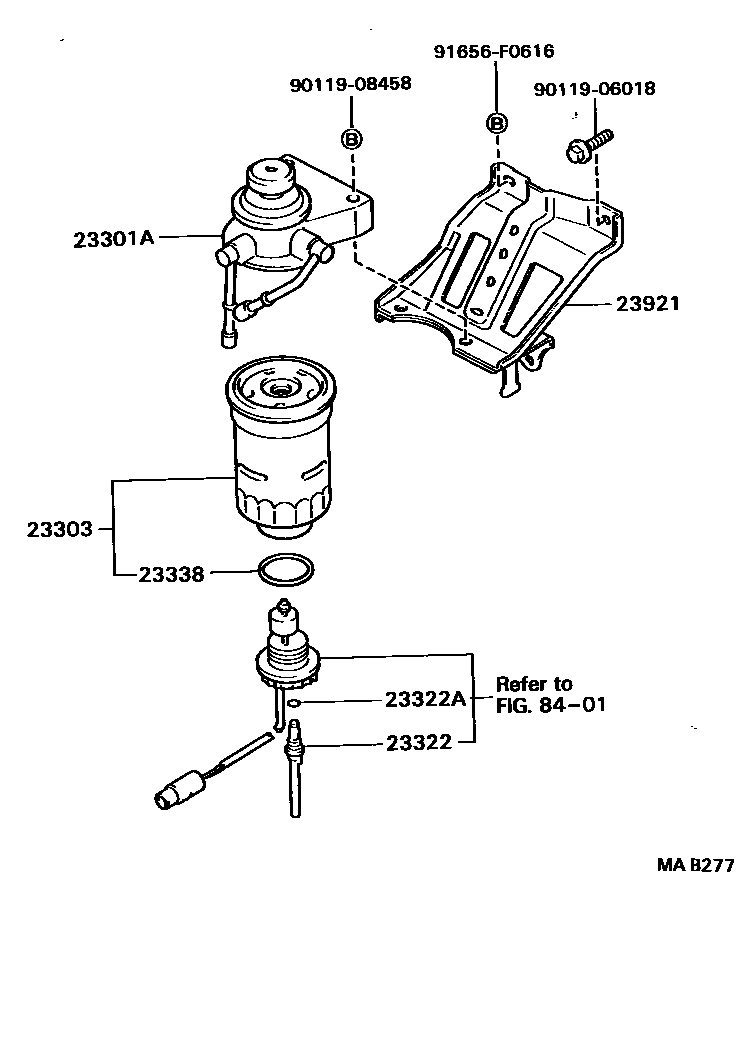

FUEL FILTER

0001 1 0002 1

23301ACAP ASSY, FUEL FILTER

main23301-54390i2L..LX80198808-199302

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2L..LX80199201-199302

main23303-64020i2L..LX80198808-199201

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i2L..LX80198808-198903

main23322-64020i2L..LX80198903-199302

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2L..LX80198808-199302

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2L..LX80198808-199302

23921SUPPORT, FUEL FILTER

main23921-38020i22R..RX8#198808-199608

main23921-54150i2L..LX80198808-199302

8401

9011906018

main90119-06018

9011908458

main90119-08458

91656F0616

main91656-F0616

10 parts on this diagram · 2 diagrams in section
