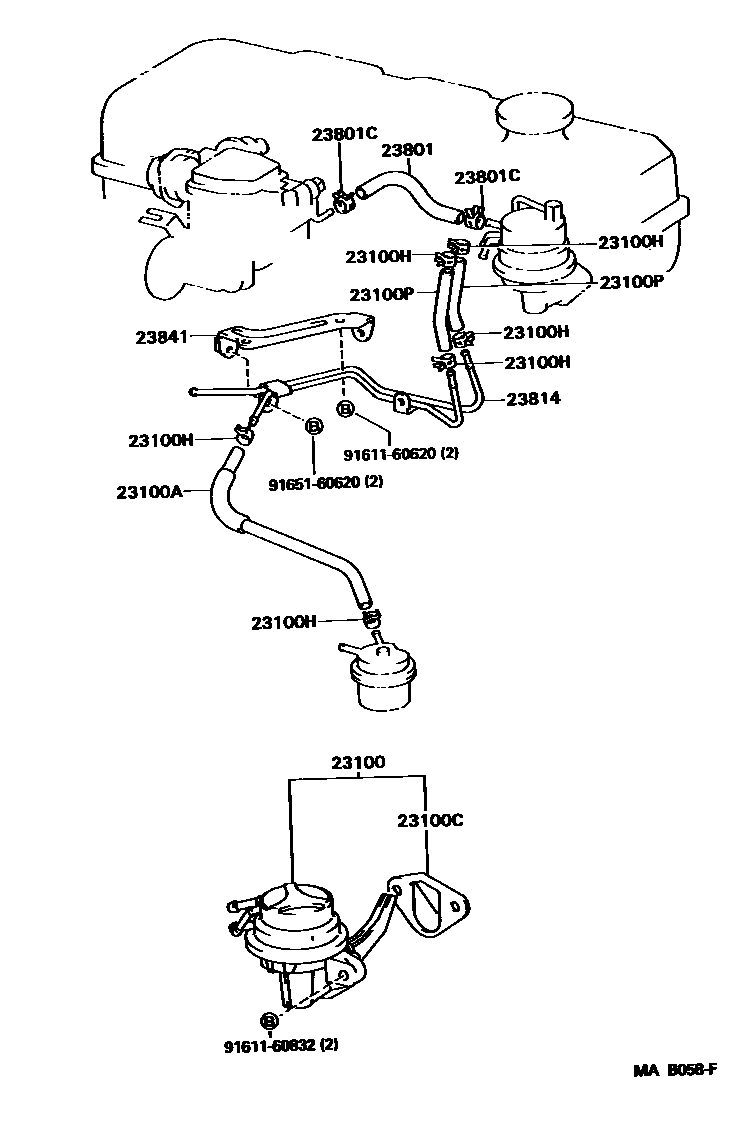

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-39336i22R..RX8#198808-199608

23100AHOSE, FUEL

main90447-12058i22R..RX81199507-199608

main90447-12082i22R..RX8#198808-199507

sub90447-12058

23100CINSULATOR, FUEL PUMP

main90923-06010i22R..RX8#198808-199608

23100HCLIP(FOR FUEL HOSE)

main96132-41100i22R..RX8#198808-199008

FILTER TO PIPE

sub96132-51100

main96132-41100i22R..RX8#198808-199608

FUEL PUMP PIPE

sub96132-51100

23100PHOSE(FOR FUEL PUMP TO FUEL TUBE)

main95333-06020i22R..RX8#198808-199409

sub95337-06020

main95334-06012i22R..RX81199409-199608

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main95333-06020i22R..RX8#198808-199608

L=200

sub95337-06020

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-41100i22R..RX8#198808-199608

sub96132-51100

23814PIPE, FUEL DELIVERY

main23814-37040i22R..RX8#198808-199608

23841CLAMP, FUEL PIPE(HOSE), NO.1

main23841-35050i22R..RX8#198808-199608

9161160620

main91611-60620

9161160832

main91611-60832

9165160620

main91651-60620

12 parts on this diagram · 1 diagram in section
