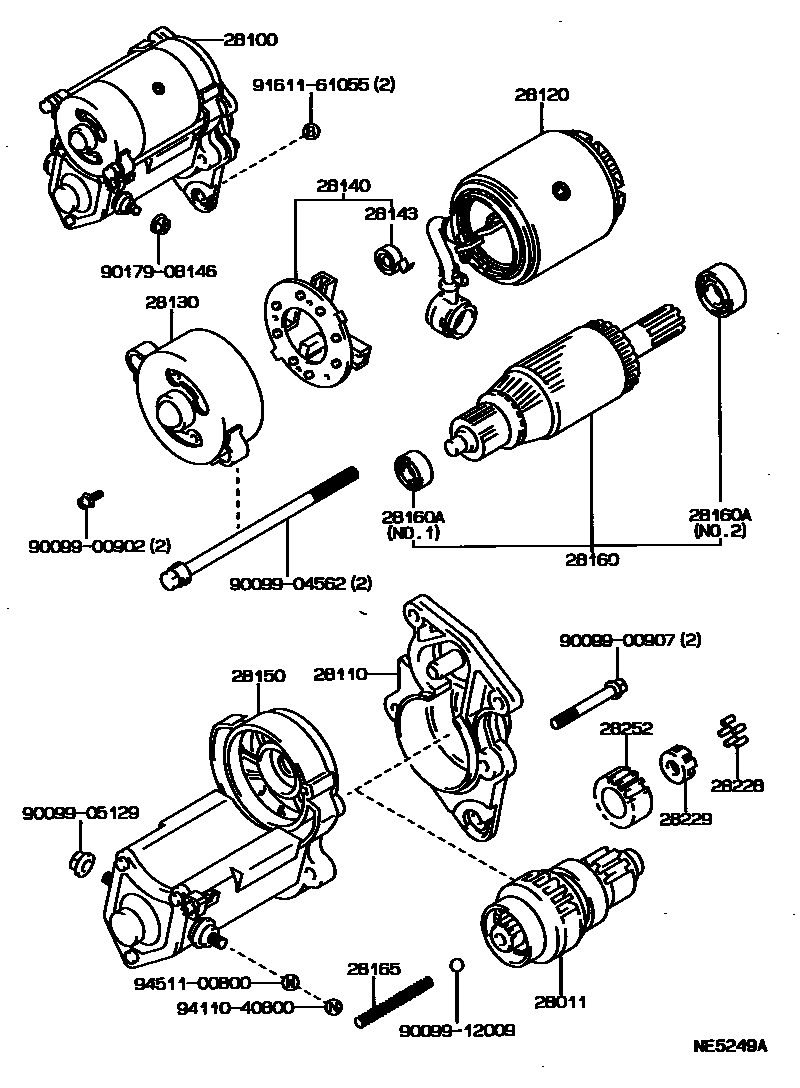

STARTER

0001 112V 1.0KW 0002 112V 2.0KW 0003 112V 2.8KW 0004 112V 1.0KW 0005 112V 1.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i22R,1GFE,5ME,7MGE..GX81,MX8#,RX8#198808-199608

main28011-54010i2L..LX80..5F198808-199302

COLD SPEC

main28011-54070i2L..LX80..5F198808-199302

28100STARTER ASSY

main28100-15040i1GFE..GX81198808-199302

12V 1.0KW

main28100-34060i22R..RX80..RHD198808-199302

12V 1.0KW

main28100-34080i22R..RX8#..LHD198808-199302

12V 1.0KW

main28100-35100i22R..RX81199302-199608

12V 1.0KW

sub28100-35090

main28100-41060i5ME,7MGE..MX8#198808-199008

12V 1.0KW

sub28100-45050

main28100-42040i5ME,7MGE..MX8#199008-199302

12V 1.0KW

sub28100-46100

main28100-54180i2L..LX80..5F198808-199302

12V 2.0KW

main28100-54190i2L..LX80..4FC198808-199302

12V 2.8KW

sub28100-54220

main28100-54190i2L..LX80..4FC198808-199302

12V 2.8KW,COLD SPEC

sub28100-54220

28110HOUSING ASSY, STARTER DRIVE

main28110-15040i1GFE..GX81198808-199302

main28110-34060i22R..RX80..RHD198808-199302

main28110-34080i22R..RX8#..LHD198808-199608

main28110-41060i5ME,7MGE..MX8#198808-199008

main28110-42040i5ME,7MGE..MX8#199008-199302

main28115-54011i2L..LX80..5F198808-199302

COLD SPEC

main28115-54070i2L..LX80..5F198808-199302

28120YOKE ASSY, STARTER

main28120-26071i22R,1GFE,5ME,7MGE..GX81,MX8#,RX8#198808-199608

main28120-54070i2L..LX80..5F198808-199302

main28120-56081i2L..LX80..4FC198808-199302

COLD SPEC

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-15020i5ME,7MGE..MX8#198808-199302

main28130-15040i1GFE..GX81198808-199302

main28130-34060i22R..RX8#198808-199608

main28130-54060i2L..LX80..5F198808-199302

COLD SPEC

sub28130-54430

sub28199-46080

sub90099-04207

28140HOLDER ASSY, STARTER BRUSH

main28140-26070i22R,1GFE,5ME,7MGE..GX81,MX8#,RX8#198808-199608

main28140-54070i2L..LX80..5F198808-199302

main28140-77090i2L..LX80..4FC198808-199302

COLD SPEC

28143SPRING, STARTER BRUSH

main90099-17112i22R,1GFE,5ME,7MGE..GX81,MX8#,RX8#198808-199608

main90099-17115i2L..LX80..5F198808-199302

28150SWITCH ASSY, MAGNET STARTER

main28150-15070i1GFE..GX81198808-199302

main28150-34060i22R..RX8#..LHD199010-199302

sub28150-34080

main28150-34080i22R..RX8#198808-199302

main28150-41060i5ME,7MGE..MX8#198808-199302

main28150-54070i2L..LX80..5F198808-199302

sub28150-54110

main28150-54140i2L..LX80..5F198808-199302

COLD SPEC

sub28150-54190

main28150-72150i22R..RX81199302-199608

28160ARMATURE ASSY, STARTER

main28160-26070i22R,1GFE,5ME,7MGE..GX81,MX8#,RX8#198808-198908

sub28160-26071

main28160-26071i22R,1GFE,5ME,7MGE..GX81,MX8#,RX8#198908-199608

main28160-54070i2L..LX80..5F198808-198908

sub28160-54071

main28160-54071i2L..LX80..5F198908-199302

main28160-54140i2L..LX80..4FC198808-199302

COLD SPEC

28160ABEARING, STARTER ARMATURE

main28253-45020i22R,1GFE,5ME,7MGE..GX81,MX8#,RX8#198808-199608

NO.1

main28253-54070i2L..LX80..5F198808-199302

NO.1

main90099-10107i2L..LX80..4FC198808-199302

COLD SPEC,NO.1

main90099-10107i2L..LX80..5F198808-199302

NO.1

main90099-10113i22R,1GFE,5ME,7MGE..GX81,MX8#,RX8#198808-199608

NO.2

main90099-10119i2L..LX80..5F198808-199302

NO.2

main90099-10119i2L..LX80..4FC198808-199302

COLD SPEC,NO.2

main90099-10131i2L..LX80..5F198808-199302

NO.2

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i2L..LX80..5F;22R,1GFE,5ME,7MGE..GX81,MX8#,RX8#198808-199608

main28165-77090i2L..LX80..4FC198808-199302

COLD SPEC

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040i2L..LX80..5F;22R,1GFE,5ME,7MGE..GX81,MX8#,RX8#198808-199608

main28228-56080i2L..LX80..5F198808-199302

COLD SPEC

28229RETAINER, STARTER IDLE GEAR

main28229-26040i2L..LX80..5F;22R,1GFE,5ME,7MGE..GX81,MX8#,RX8#198808-199608

main28229-56080i2L..LX80..4FC198808-199302

COLD SPEC

28252GEAR, STARTER IDLE

main28254-45020i22R,1GFE,5ME,7MGE..GX81,MX8#,RX8#198808-199608

main28254-54070i2L..LX80..5F198808-199302

main28254-77090i2L..LX80..4FC198808-199302

COLD SPEC

9009900902

main90099-00902

9009900907

main90099-00907

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9017908146

main90179-08146

9161161055

main91611-61055

9411040800

main94110-40800

9451100800

main94511-00800

23 parts on this diagram · 5 diagrams in section
