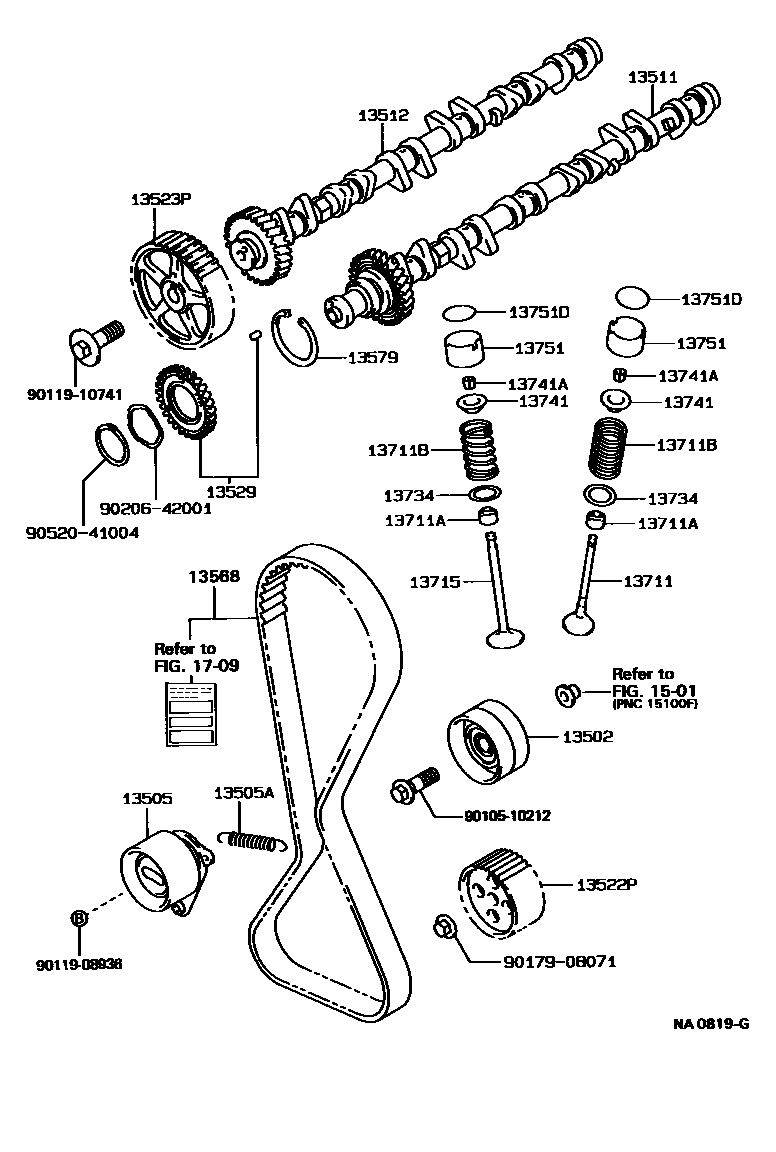

CAMSHAFT & VALVE
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13505ASPRING, TENSION(FOR IDLER)
13511CAMSHAFT
13512CAMSHAFT, NO.2
13522GEAR, PUMP DRIVE SHAFT
13522PPULLEY, PUMP DRIVE SHAFT
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523PPULLEY, CAMSHAFT TIMING
13529GEAR, CAMSHAFT SUB
13568BELT, TIMING
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
EXHAUST
EXHAUST SIDE
INTAKE
INTAKE SIDE
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13751DPAD, VALVE ADJUSTING
T=2.50
T=2.55
T=3.25
T=3.30
T=2.00
T=2.05
T=2.10
T=2.15
T=2.20
T=2.25
T=2.30
T=2.35
T=2.40
T=2.45
1501
1709
9010510212
9011908936
9011910741
9017908071
9020642001
9052041004
29 parts on this diagram · 5 diagrams in section
