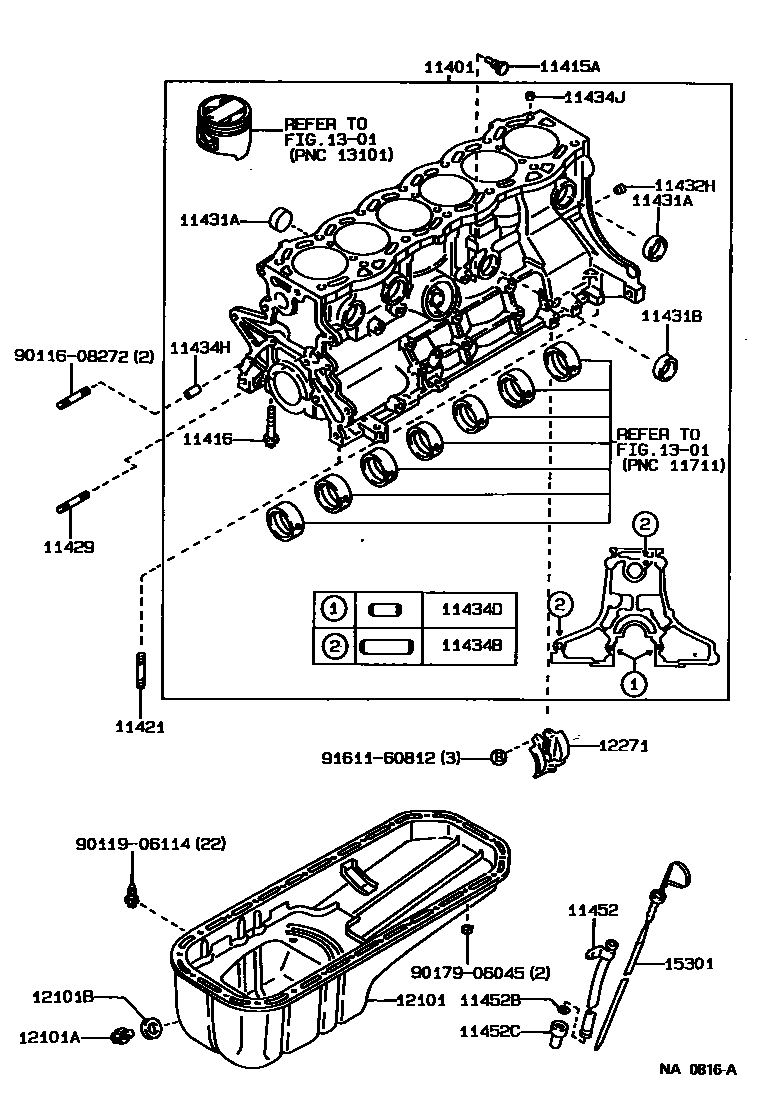

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-39447i22R..RX8#198808-199608

main11401-49415i5ME..MX81198808-199302

main11401-49615i7MGE..MX83198808-198903

sub11401-49616

main11401-49616i7MGE..MX83198903-199302

main11401-59345i2L..LX80198808-199104

sub11401-59347

main11401-59347i2L..LX80199104-199302

main11401-79415i1GFE..GX81198808-199302

sub11401-80020

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main96431-53828i22R..RX8#198808-199608

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90345-53001i5ME..MX81198808-199302

main90345-53030i2L..LX80198907-199006

main96431-23814i1GFE..GX81198808-199302

main96432-23814i22R..RX8#198808-199608

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10028i1GFE..GX81198808-199302

main90910-02042i22R..RX8#198808-199608

main90910-02047i5ME,7MGE..MX8#198808-199302

main90910-02061i2L..LX80198808-199302

11421BOLT, STUD(FOR OIL PAN)

main90116-06014i1GFE..GX81198808-199302

main90116-08208i5ME,7MGE..MX8#198808-199302

main92122-40814i22R..RX8#198808-199608

11429BOLT, STUD(FOR ALTERNATOR BRACKET)

main90116-10051i1GFE..GX81198808-199302

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-42500i2L..LX80198808-199302

main96411-43500i1GFE..GX81198808-199302

main96411-44000i5ME,7MGE..MX8#198808-199302

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43500i2L..LX80198808-199302

main96411-44000i1GFE..GX81198808-199608

main96412-43500i5ME,7MGE..MX8#198808-199302

11432HPLUG, W/HEAD TAPER SCREW, NO.5

main90344-53015i1GFE..GX81198808-199302

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113i22R..RX8#198808-199608

L=22,OD=10

main90250-10192i5ME,7MGE..MX8#198808-199302

L=22,OD=10

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i1GFE..GX81198808-198904

L=14,OD=6

main90250-06015i1GFE..GX81198904-199302

L=11,OD=6

main90250-10192i5ME,7MGE..MX8#198808-199302

L=22,OD=10

main90253-11001i2L..LX80198808-199012

L=11,OD=11

main90253-11021i2L..LX80199012-199302

L=8,OD=11

11434HPIN, RING (FOR TIMING BELT COVER SET)

main90253-11021i1GFE..GX81198808-199302

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13017i1GFE..GX81198808-199302

11452GUIDE, OIL LEVEL GAGE

main11452-35010i22R..RX8#198808-199608

main11452-41020i5ME..MX81198808-199302

main11452-42020i7MGE..MX83198808-199302

main11452-54070i2L..LX80198808-199302

main11452-70020i1GFE..GX81198808-199302

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main96721-19010i1GFE..GX81198808-199302

11452CUNION(FOR OIL LEVEL GAGE GUIDE)

main90405-10016i1GFE..GX81198808-199302

12101PAN SUB-ASSY, OIL

main12101-35011i22R..RX8#198808-199608

main12101-42040i5ME,7MGE..MX8#198808-199302

main12101-54100i2L..LX80198808-199005

sub12101-54102

sub90341-12012

sub90430-12027

main12101-54102i2L..LX80199005-199302

sub12101-54104

main12101-70070i1GFE..GX81198808-199302

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2L..LX80198808-199302

main90341-12026i1GFE..GX81199111-199608

sub90341-12012

main90341-18089i2L..LX80198808-199302

sub90033-41020

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12019i1GFE..GX81198808-199111

sub90430-12028

main90430-12021i22R..RX8#198808-199004

sub90430-12028

main90430-12027i1GFE..GX81199004-199312

sub90430-12031

main90430-12028i1GFE..GX81199111-199207

sub90430-12031

main90430-12031i1GFE..GX81199210-199608

main90430-18013i5ME,7MGE..MX8#198808-199007

sub90430-18023

main90430-18024i5ME,7MGE..MX8#199007-199106

sub90430-18026

main90430-18026i5ME,7MGE..MX8#198909-199302

12271SCREEN, OIL SEPARATOR

main12271-70010i1GFE..GX81198808-199302

1301

15301GAGE SUB-ASSY, OIL LEVEL

main15301-35020i22R..RX8#198808-199608

main15301-42030i7MGE..MX83198808-199302

main15301-43030i5ME..MX81198808-199302

main15301-54060i2L..LX80198808-199302

main15301-70050i1GFE..GX81198808-199302

9011608272

main90116-08272

9011906114

main90119-06114

9017906045

main90179-06045

9161160812

main91611-60812
