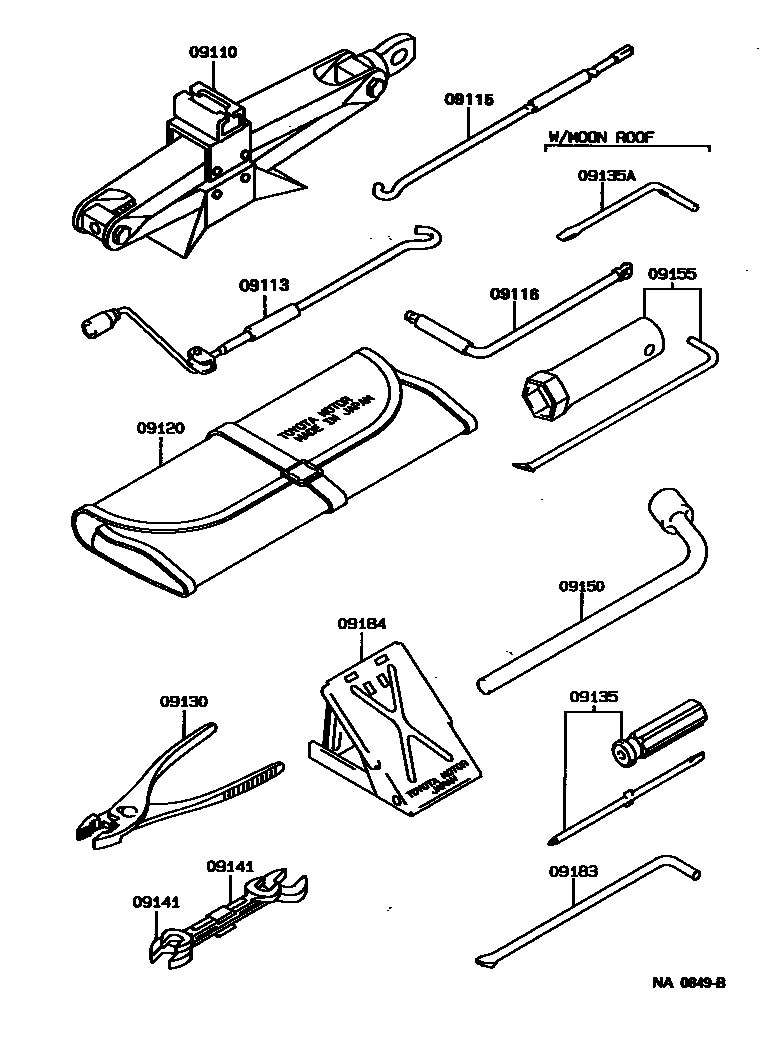

STANDARD TOOL

09110JACK ASSY

main09110-22050iMX83198808-199302

main09111-22050iGX81,LX80,MX81,RX8#198808-199608

sub09111-17020

09113HANDLE, JACK

main09113-30040iRX81199309-199608

09115ROD SUB-ASSY, JACK HANDLE

main09115-30020iGX81,LX80,MX8#,RX8#198808-199309

09116LEVER, JACK HANDLE

main09116-30010iGX81,LX80,MX8#,RX8#198808-199309

09120BAG, TOOL

main09120-30020iGX81,LX80,MX8#,RX8#198808-199309

main09120-30030iRX81199309-199608

09130PLIERS

main99913-11500iGX81,LX80,MX8#,RX8#198808-199608

09135DRIVER, SCREW

main99915-10700iGX81,LX80,MX8#,RX8#198808-199608

09135ABIT, SCREW DRIVER

main09135-00012iRX81..5F;MX83..GLX;GX81,LX80,MX81,RX80..GD,GL,GLX198808-199304

09141SPANNER

main99914-10810iGX81,LX80,MX8#,RX8#198808-199608

8 X 10

main99914-11214iGX81,LX80,MX8#,RX8#198808-199608

12 X 14

09150WRENCH, HUB NUT BOX

main09150-26010iGX81,LX80,MX8#,RX8#198808-199608

09155WRENCH, SPARK PLUG

main09155-41020iMX81198808-199302

main09155-43021iRX8#198808-199608

main09155-74020iGX81198808-199302

09183WRENCH, WHEEL CAP

main09183-00010iGX81,LX80,MX8#,RX8#198808-199608

09184STOPPER, WHEEL

main09184-00010iGX81,LX80,MX8#,RX8#198808-199608

13 parts on this diagram · 1 diagram in section
