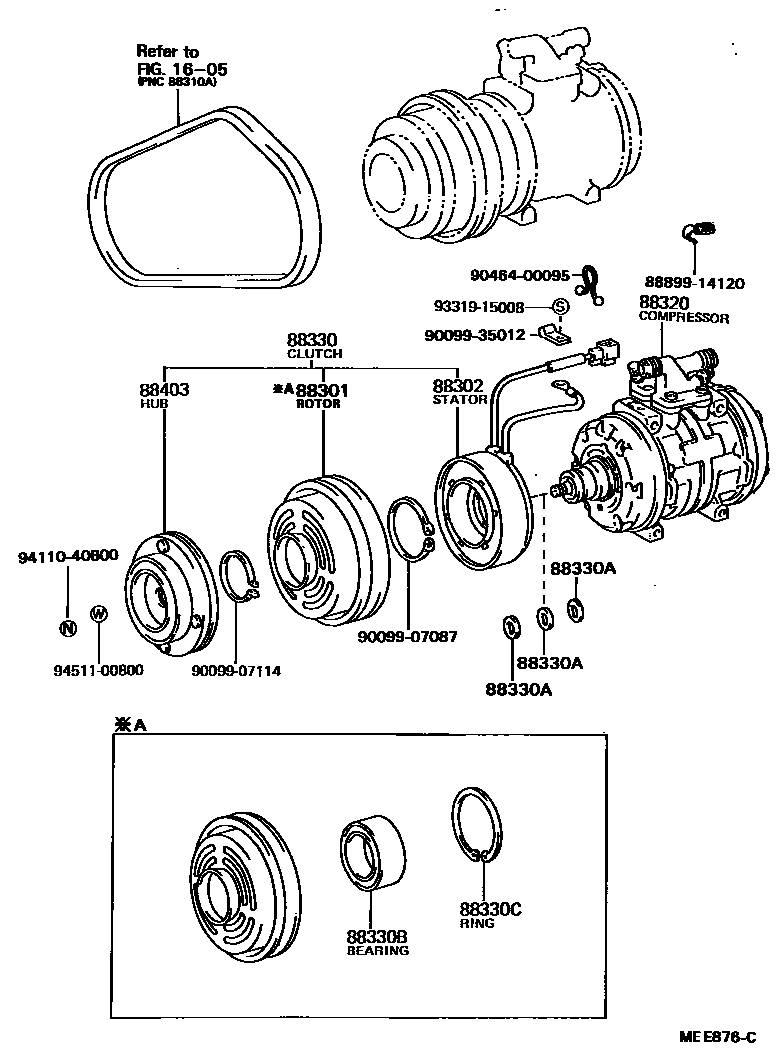

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0011 1 0014 1 0015 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14010iMX7#198408-198808

main88412-14020iRX70198408-198808

sub88412-36030

main88412-22030iLX7#198408-198808

main88412-22050iGX71198408-198808

main88412-22060iRX70..ME198508-198608

main88412-22070iRX72..ME198608-198808

main88412-30290iMX73..ME198504-198608

main88412-30300iGX71..ME198504-198608

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iLX7#198408-198808

main88411-16020iMX73..ME198608-198708

sub88411-16021

main88411-22080iMX7#198408-198808

main88411-22120iMX73..ME198504-198608

main88411-22140iGX71..ME198504-198608

main88411-22150iRX72..ME198608-198708

sub88411-22151

main88411-30430iMX73..ME198708-198808

sub88411-30460

88320COMPRESSOR ASSY, COOLER

main88320-14521iMX73..ME198608-198708

10PA17C

sub88320-14523

main88320-22300iMX7#198408-198808

10P15C

main88320-22310iGX71198408-198501

10P15C

main88320-22330iLX7#198408-198808

10P15C

main88320-22370iRX70198408-198501

10P15C

main88320-22390iGX71198501-198808

10P15C

main88320-22410iRX7#..GEN,SA198501-198808

10P15C

main88320-22420iGX71..ME198504-198608

10P17C

main88320-22430iMX73..ME198504-198608

10P17C

main88320-22440iRX70..ME198508-198608

10P17C

main88320-22450iRX72..ME198608-198708

10PA17C

sub88320-22451

main88320-22460iMX73..ME198708-198808

10PA17C

sub88320-22461

main88320-22470iRX72..ME198708-198802

10PA17C

sub88320-22472

main88320-22471iRX72..ME198802-198808

10PA17C

sub88320-22473

88330CLUTCH ASSY, MAGNET

main88410-14100iRX7#..GEN,SA198408-198808

main88410-22080iLX7#198408-198808

sub88410-60140

main88410-22110iGX71198408-198808

main88410-22120iMX7#..(GL,GLX)..(ARL,EUR,GEN,SA)198408-198808

main88410-22140iMX73..ME198504-198608

main88410-22150iGX71..ME198504-198608

main88410-22160iRX70..ME198508-198608

main88410-22170iMX73..ME198608-198708

sub88410-22310

main88410-22180iRX72..ME198608-198708

main88410-22200iRX72..ME198708-198808

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iGX71,MX7#198408-198808

main88335-14020iMX73,RX72..ME198608-198808

main90099-01108iLX7#,RX70198408-198808

T=0.5

main90099-01350iLX70,RX70,71,72..GEN,SA198408-198808

T=0.1

main90099-01351iLX7#,RX70198408-198808

T=0.2

88330BBEARING, MAGNET CLUTCH

main90099-10133iMX73..GLX..SA;GX71,LX70,MX72,RX70;MX73..ARL,EUR,GEN,ME198408-198808

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07094iLX70,RX70198408-198808

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-12030iGX71,MX7#..(GL,GLX)..(ARL,EUR,GEN,SA)198408-198808

main88403-14030iMX73..ME198408-198808

sub88403-12030

main88403-16010iMX73,RX72..ME198608-198708

sub88403-16011

main88403-16011iMX73,RX72..ME198708-198808

main88403-30280iRX70..ME198504-198808

8889914120COVER, EVAPORATOR

main88899-14120

9009907087

main90099-07087

9009907114

main90099-07114

9009935012

main90099-35012

9046400095

main90464-00095

9331915008

main93319-15008

9411040800

main94110-40800

9451100800

main94511-00800

17 parts on this diagram · 11 diagrams in section
