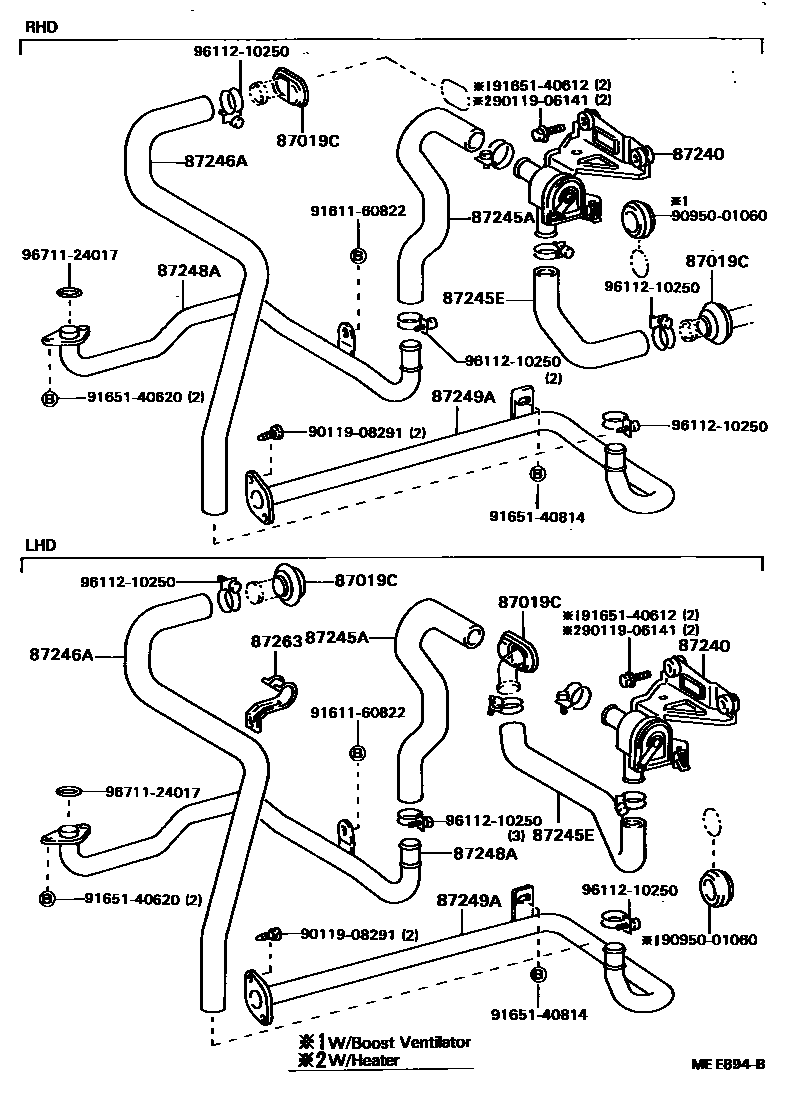

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0005 1 0007 1 0008 1

87019CGROMMET, HEATER HOSE

main90480-01272iGX71,LX7#,MX7#,RX7#..LHD198408-198808

INLET

main90480-01272iGX71,MX73,RX70,72,YX70..RHD198408-198808

OUTLET

main90480-36011iGX71,LX7#,MX7#,RX7#..LHD198408-198808

INLET

main90480-36011iGX71,MX73,RX70,72,YX70..RHD198408-198808

OUTLET

87240VALVE ASSY, HEATER WATER

main87240-22240iMX7#..EFI198408-198808

main87240-22250iMX73..RHD..GLX198408-198808

W/*AAC

main87240-22260iGX71,LX7#,RX70,YX70198408-198808

main87240-22261iGX71,LX70,RX7#198608-198808

main87240-22270iGX71..RHD198502-198808

W/*AAC

main87240-22280iMX73..LHD..EUG198408-198608

main87240-22290iMX73..GD,GTX198408-198808

W/*AAC

main87240-22300iGX71..LHD..GEN198408-198808

W/*AAC

87245AHOSE, HEATER WATER, INLET A

main87245-22500iLX70198708-198808

main87245-22660iGX71198408-198808

main87245-22690iMX73..RHD..TWC198408-198508

sub87245-22691

main87245-22691iMX73..RHD..(ARL,EUR,SA)198508-198808

main87245-22710iMX73..EFI..GEN198408-198808

main87245-22740iLX7#198408-198708

main87245-22800iYX70198502-198508

sub87245-22801

main87245-22801iYX70198508-198808

main87245-22830iMX73..LHD..EUG198408-198608

main87245-22880iRX7#198408-198808

87245EHOSE, HEATER WATER, INLET E

main87245-22610iMX73..RHD198408-198808

main87245-22620iGX71,RX70,72,YX70..RHD198408-198808

main87245-22630iMX73..LHD..EUG198408-198608

main87245-22640iMX7#..LHD..EFI198408-198808

main87245-22650iGX71..LHD198408-198808

main87245-22780iLX7#198408-198808

87246AHOSE, HEATER WATER, OUTLET A

main87245-22670iGX71..RHD198408-198808

main87245-22700iMX73..ARL198408-198808

main87245-22720iMX73..ARL198408-198808

main87245-22790iRX70,72..RHD198408-198808

main87245-22810iYX70198502-198808

main87245-22820iGX71,MX7#..LHD198408-198808

main87245-22860iLX7#198408-198808

main87245-22870iRX7#..LHD198408-198808

87248APIPE, HEATER WATER INLET, A

main87208-22130iRX7#198408-198808

sub87208-35160

87249APIPE, HEATER WATER OUTLET, A

main87208-22011iGX71198408-198808

main87208-22030iRX7#198408-198808

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-22090iRX7#..LHD198408-198808

9011906141

main90119-06141

9011908291

main90119-08291

9095001060

main90950-01060

9161160822

main91611-60822

9165140612

main91651-40612

9165140620

main91651-40620

9165140814

main91651-40814

9611210250

main96112-10250

9671124017

main96711-24017

17 parts on this diagram · 6 diagrams in section
