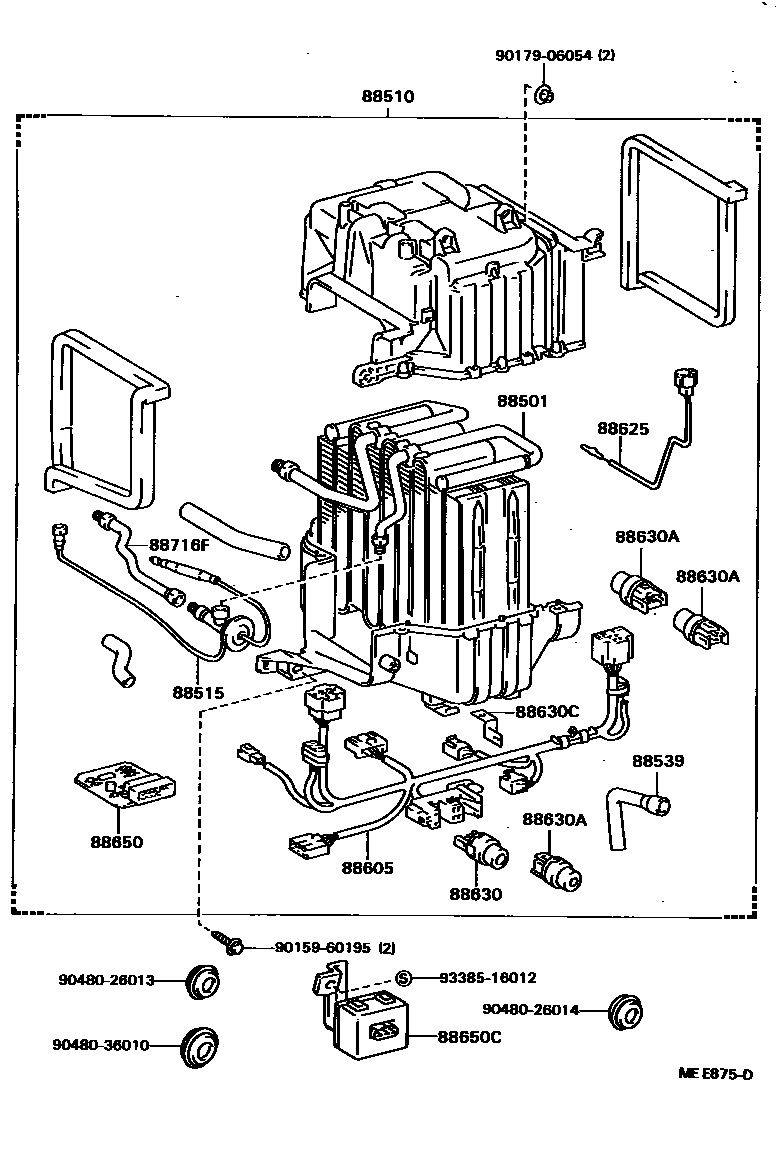

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0004 1

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-22150iGX71,MX73,RX70,YX70..RHD198408-198601

sub88501-22151

main88501-22151iGX71,MX73,RX70,YX70..RHD198601-198808

main88501-22152iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

main88501-22160iGX71,LX7#,MX7#,RX70..LHD198408-198601

sub88501-22161

main88501-22161iGX71,LX7#,MX7#,RX70..LHD198601-198608

main88501-22162iGX71,LX70,MX73,RX7#..LHD198608-198808

88510UNIT ASSY, COOLER

main88510-22230iMX73..GEN,SA198408-198808

main88510-22231iMX73..TWC..GEN198608-198708

W/*AAC

main88510-22240iGX71..RHD198408-198608

W/LEVER TYPE *AIC

sub88510-22241

main88510-22240iGX71..SA198608-198808

sub88510-22241

main88510-22240iMX73..RHD..GLX..(ARL,EUR)198408-198608

W/*AAC

sub88510-22241

main88510-22241iGX71..RHD..GEN198608-198808

W/*AAC

main88510-22250iRX70,YX70..RHD198408-198808

W/HEATER

sub88510-22251

main88510-22251iRX70,72..RHD..GEN198608-198808

W/HEATER

main88510-22260iRX70..RHD..GEN198408-198608

W/*BV

sub88510-22261

main88510-22261iRX70,72..RHD..GEN198608-198808

W/*BV

main88510-22270iMX73..ME198408-198504

W/PUSH TYPE *AAC

main88510-22280iMX7#..LHD198408-198508

W/LEVER TYPE *AAC

sub88510-22281

main88510-22280iGX71..LHD..GEN198408-198508

sub88510-22281

main88510-22281iMX7#..LHD..EUR198508-198608

W/LEVER TYPE *AAC

sub88510-22282

main88510-22282iGX71..LHD198608-198808

main88510-22290iGX71..EUG198408-198508

W/HEATER

sub88510-22291

main88510-22291iGX71..EUG198508-198608

W/HEATER

sub88510-22292

main88510-22292iRX7#..LHD..GEN198608-198808

W/HEATER

main88510-22300iRX70..4F..ME198408-198608

W/*BV

main88510-22301iRX7#..LHD..GEN198608-198808

W/*BV

main88510-22310iGX71..RHD..GEN198408-198608

W/MANUAL *AIC

sub88510-22311

main88510-22311iGX71..RHD..GEN198608-198808

W/MANUAL *AIC

main88510-22311iMX73..EFI..GEN198701-198808

main88510-22320iLX70..GEN198408-198608

sub88510-22321

main88510-22321iLX70198608-198808

main88510-22350iLX7#..EUG198408-198608

main88510-22370iLX70..GEN198408-198608

W/*BV

sub88510-22371

main88510-22371iLX70198608-198808

W/*BV

main88510-22390iMX73..ME198504-198608

W/PUSH TYPE *AAC

main88510-22391iMX73..GD,GTX198608-198808

W/PUSH TYPE *AAC

main88510-22400iMX73..ME198504-198510

W/LEVER TYPE *AAC

main88510-22410iRX70..ME198504-198608

W/HEATER

sub88510-22411

main88510-22410iMX73..ME198510-198608

W/LEVER TYPE *AIC

sub88510-22411

main88510-22411iMX73..XL..ME198608-198808

W/LEVER TYPE *AIC

main88510-22411iRX72..XL..ME198608-198808

W/HEATER

88515VALVE, COOLER EXPANSION

main88515-16030iLX70,RX7#..GEN¥7,100198408-198808

W/*BV

sub88515-16031¥7,400

main88515-16030iGX71,MX73,RX70..ME¥7,100198504-198608

sub88515-16031¥7,400

main88515-16031iMX73,RX72..ME¥7,400198608-198808

main88515-22070iGX71,LX7#,MX7#,RX70,YX70¥10,000198408-198808

W/HEATER

sub88515-22071¥10,000

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-22110iMX73..EFI;MX73..GLX..TWC;GX71,LX7#,MX72,RX70,YX70198408-198808

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-22300iMX73..(GL,GLX)..(GEN,SA)198408-198808

main88605-22301iMX73..GEN198608-198808

main88605-22310iGX71..GLX198408-198808

W/*AAC

main88605-22310iMX7#..EFI..(ARL,EUR);MX73..GLX..TWC..(ARL,EUR)198408-198608

W/LEVER TYPE *AAC

main88605-22320iMX73..ARL198408-198808

W/MANUAL *AIC

main88605-22320iGX71,RX70,YX70..GL,STD,XL198408-198808

W/HEATER

main88605-22320iMX73..EFI..GEN198701-198808

main88605-22330iRX70..XL..ME198408-198808

W/*BV

main88605-22340iMX73..ME198411-198504

W/PUSH TYPE *AAC

main88605-22380iLX70..GEN198408-198808

W/*BV

main88605-22390iLX7#..EUG198408-198608

main88605-22460iLX70..4FC198608-198808

W/HEATER

main88605-22470iLX70..4FC198608-198808

W/*BV

main88605-22480iMX73..ME198504-198608

W/PUSH TYPE *AAC

main88605-22481iMX73..GD,GTX198608-198808

W/PUSH TYPE *AAC

main88605-22490iMX73..ME198504-198510

W/LEVER TYPE *AAC

main88605-22490iGX71..RHD..GEN198508-198608

main88605-22500iMX73,RX72..(GD,GL,GT,GTX)..ME198510-198808

W/LEVER TYPE *AC

main88605-22500iGX71..ME198504-198808

W/HEATER

88625THERMISTOR, COOLER, NO.1

main88625-90A00iRX70..XL..ME198408-198808

W/*BV

sub88625-12070

88630RELAY ASSY, COOLER

main90987-03001iMX73..EFI;MX73..GLX..TWC;GX71,MX72,RX70,YX70¥2,230198408-198808

88630ARELAY ASSY, COOLER

main90987-02004iMX73..GEN¥2,330198408-198808

main90987-02004iLX70..GEN¥2,330198408-198808

W/*BV

88630CBRACKET, COOLER RELAY

main88688-22230iMX73..RHD..GLX..(ARL,EUR)198408-198808

main88688-22230iGX71,RX70,72,YX70..RHD198408-198808

W/HEATER

main88688-22240iLX7#198408-198808

main88688-22240iGX71,MX7#,RX70..LHD198408-198808

W/HEATER

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-22130iGX71..LHD198408-198808

main88650-22130iMX73..EUR,SA;MX73..GLX..ARL198510-198608

W/PUSH TYPE *AAC

main88650-22150iRX7#..GEN,SA198408-198808

W/*BV

main88650-22150iRX70..XL..ME198408-198508

main88650-22160iLX70..GEN198408-198808

W/*BV

main88650-22180iLX7#..EUG198408-198608

88650CAMPLIFIER SUB-ASSY, AIRCONDITIONER

main88650-22220iGX71,MX73..ME198504-198808

main88650-22230iRX70,72..ME198504-198808

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-22680iGX71,MX73,RX70,YX70..RHD¥2,710198408-198808

main88716-22681iGX71,MX73,RX70,72..RHD..(ARL,GEN)¥2,890198608-198808

main88716-22690iGX71,LX7#,MX7#,RX70..LHD¥2,710198408-198608

main88716-22691iGX71,LX70,MX73,RX7#..LHD¥2,690198608-198808

9015960195

main90159-60195¥70

9017906054

main90179-06054¥100

9048026013

main90480-26013¥0

9048026014

main90480-26014¥0

9048036010

main90480-36010¥0

9338516012

main93385-16012¥70

18 parts on this diagram · 3 diagrams in section
