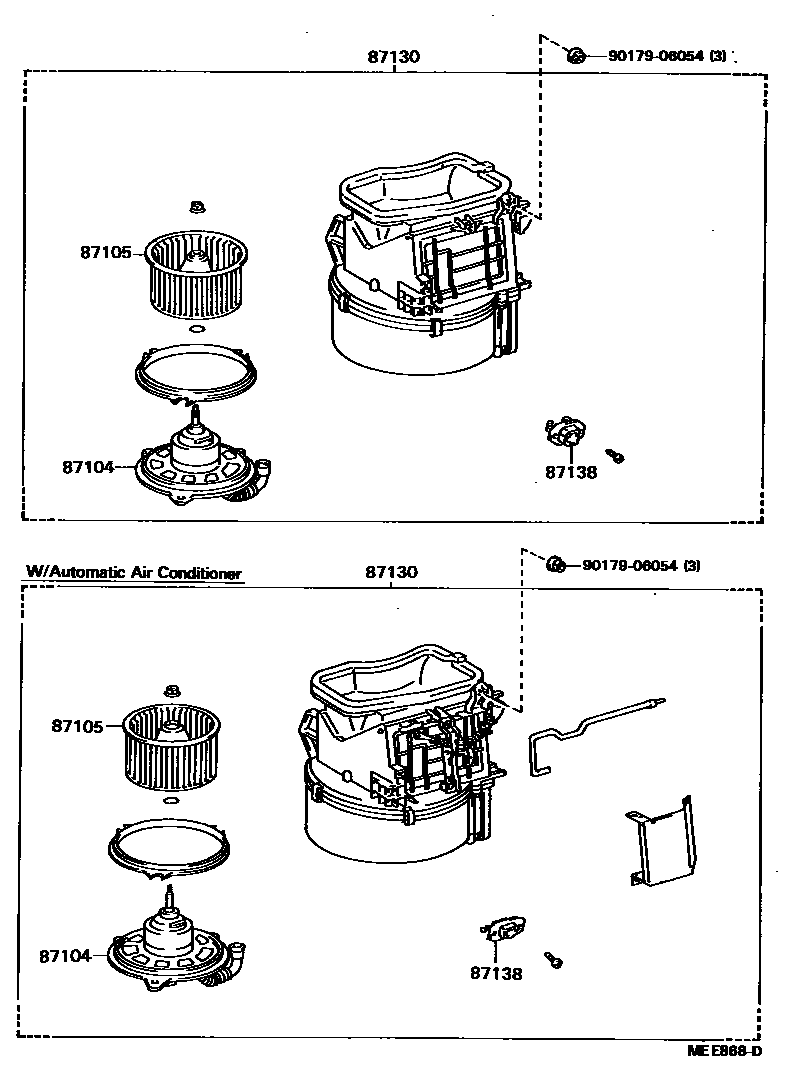

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0004 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-22120iGX71,LX7#,MX7#,RX70198408-198502

main87104-22140iGX71,MX73,RX70,YX70..RHD..(ARL,GEN,SA)198502-198808

main87104-22150iGX71,LX7#,MX7#,RX70..LHD..(EUR,GEN)198504-198808

main87104-22160iMX73,RX72..ME198608-198808

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14030iGX71,LX7#,MX7#..LHD..EUR198504-198808

main87105-22050iGX71,MX73,RX70..RHD198408-198504

main87105-22060iGX71,LX7#,MX7#,RX70..LHD198408-198504

main87105-22080iGX71,MX73,RX70..LHD..(GEN,ME)198504-198808

main87134-30010iMX73,RX72..ME198608-198808

87130BLOWER ASSY, HEATER, FRONT

main87130-22080iMX73..RHD..(ARL,EUR)198408-198808

main87130-22081iMX73..ARL198608-198808

main87130-22090iGX71..RHD198408-198808

W/*AAC

main87130-22100iMX73..GEN,SA198411-198808

main87130-22101iGX71,MX73..RHD..GLX..(ARL,GEN)198608-198808

W/*AAC

main87130-22110iGX71,LX7#,MX7#,RX70..LHD..(EUR,GEN)198408-198608

sub87130-22130

main87130-22120iMX7#..LHD..EUR198408-198608

W/*AAC

sub87130-22140

main87130-22130iGX71,RX70..ME198504-198608

main87130-22131iGX71,LX70,RX7#..LHD..GEN198608-198808

main87130-22140iGX71..LHD..GEN198504-198608

W/*AAC

main87130-22141iGX71..LHD198608-198808

W/*AAC

main87130-22160iMX73,RX72..ME198608-198808

main87130-22170iMX73..GD,GTX198608-198808

W/*AAC

87138RESISTOR, HEATER BLOWER

main87138-22050iMX73,RX72..ME198608-198808

main87138-32010iGX71,LX7#,MX7#,RX70..(GL,GLX,XL)..(ARL,EUR,GEN,ME)198408-198808

main88635-22031iGX71..GLX198412-198808

W/*AAC

sub88635-22040

main88635-22031iMX7#..SWZ198604-198608

sub88635-22040

main88635-22040iGX71,MX73..RHD..GLX198604-198608

W/*AAC

main88635-22041iGX71,MX73..RHD..GLX198608-198808

W/*AAC

main88635-32010iMX73;GX71,MX72..EFI..(EUR,GEN)198408-198412

W/*AAC

9017906054

main90179-06054

5 parts on this diagram · 9 diagrams in section
