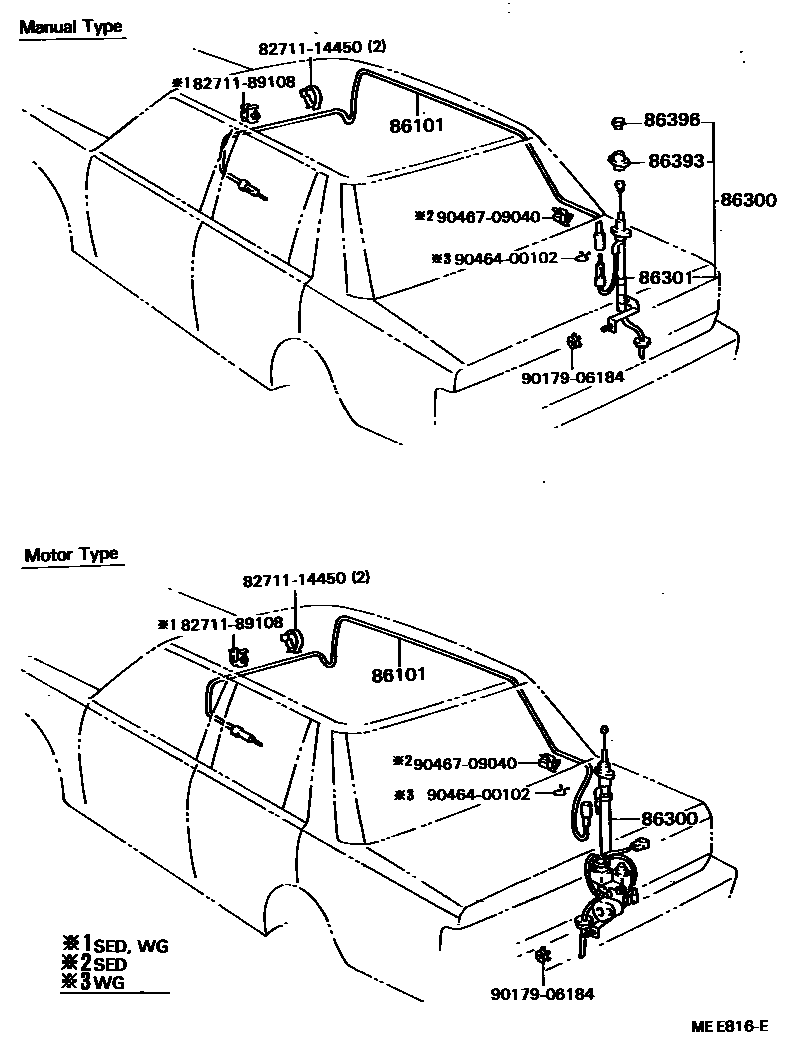

ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-22170iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

main86101-22180iLX70,MX72,RX70,72..WG198411-198808

86300ANTENNA ASSY, W/HOLDER

main86300-22210iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

MOTOR TYPE

sub86300-22211

main86300-22220iMX73,RX70,72..SED..XL..(GEN,ME)198408-198808

MANUAL TYPE

main86300-22240iRX70,72..WG..XL..(GEN,ME)198411-198808

MANUAL TYPE

main86300-22250iLX70,MX72,RX70,72..WG198411-198808

MOTOR TYPE

sub86300-22251

86301POLE SUB-ASSY, ANTENNA

main86301-22210iGX71,LX7#,MX73,RX70,YX70..SED198408-198504

MOTOR TYPE

sub86336-22210

sub86327-22210

main86301-22250iLX70,MX72,RX70..WG198411-198504

MOTOR TYPE

main86309-22060iMX73,RX70,72..SED..XL..(GEN,ME)198408-198808

MANUAL TYPE

main86309-22080iRX70,72..WG..XL..(GEN,ME)198411-198808

MANUAL TYPE

sub86300-22240

86393ORNAMENT, ANTENNA

main86392-22010iMX73,RX70,72..SED..XL..(GEN,ME)198408-198808

MANUAL TYPE

main86392-22020iRX70,72..WG..XL..(GEN,ME)198411-198808

MANUAL TYPE

86396NUT, ANTENNA

main86396-16020iMX73,RX70,72..SED..XL..(GEN,ME)198408-198808

MANUAL TYPE

8271114450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14450

8271189108WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-89108

9017906184

main90179-06184

9046400102

main90464-00102

9046709040

main90467-09040

10 parts on this diagram · 2 diagrams in section
