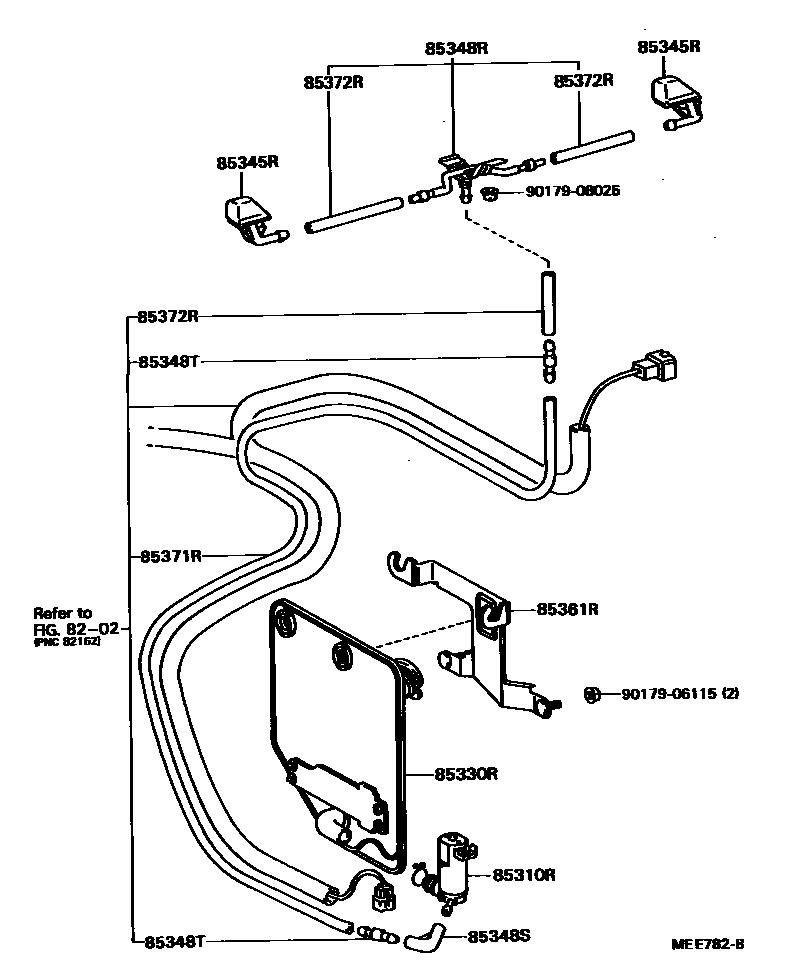

REAR WASHER

0001 1 0002 1

8202

85310RMOTOR ASSY, REAR WASHER

main85310-22080iMX73..GTX198608-198808

main85310-30060iLX70,MX72,RX70,72..WG..GL198411-198808

sub85310-89115

85330RJAR ASSY, REAR WASHER

main85331-22300iMX73..GTX198608-198808

main85331-22430iRX70,72..WG..(GEN,SA)198411-198808

85345RNOZZLE, REAR WASHER

main85341-16090iRX72..WG..XL..ME198411-198808

main85341-22150iMX73..GTX198608-198808

RH

main85341-22160iMX73..GTX198608-198808

LH

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iRX72..WG..XL..ME198411-198808

main85355-22030iMX73..GTX198608-198808

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-14481iRX70,72..WG..(GEN,SA)198411-198808

NO.1

main85355-14481iMX73..GTX198608-198808

main85355-20200iRX70..WG..GEN198411-198502

NO.2

85348TJOINT, REAR WASHER HOSE, NO.2

main85348-12250iRX70,72..WG..(GEN,SA)198502-198808

main85349-89122iMX73..GTX198608-198808

85361RHOLDER, REAR WASHER

main85361-22270iMX73..GTX198608-198808

main85361-22430iLX70,MX72,RX70,72..WG..GL198411-198808

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-06013iRX70,72..WG..(GEN,SA)198411-198808

L=1450(*H,L=270)

main90446-06013iRX72..WG..XL..ME198708-198808

L=1000

main90446-07001iMX73..GTX198608-198808

L=1500

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33299iMX73..GTX198608-198808

L=1000(*H,L=60)

main90446-07001iLX70,MX72,RX70,72..WG..GL198511-198808

L=1120

main90446-07001iLX70,MX72,RX70..WG..GL198411-198502

L=1800(*H,L=1700)

main90446-07001iLX70,MX72,RX70..WG..GL198502-198511

L=1800(*H,L=1525)

main90446-07001iRX72..WG..XL..ME198708-198808

L=1450(*H,L=400)

9017906115

main90179-06115

9017908025

main90179-08025

12 parts on this diagram · 2 diagrams in section
