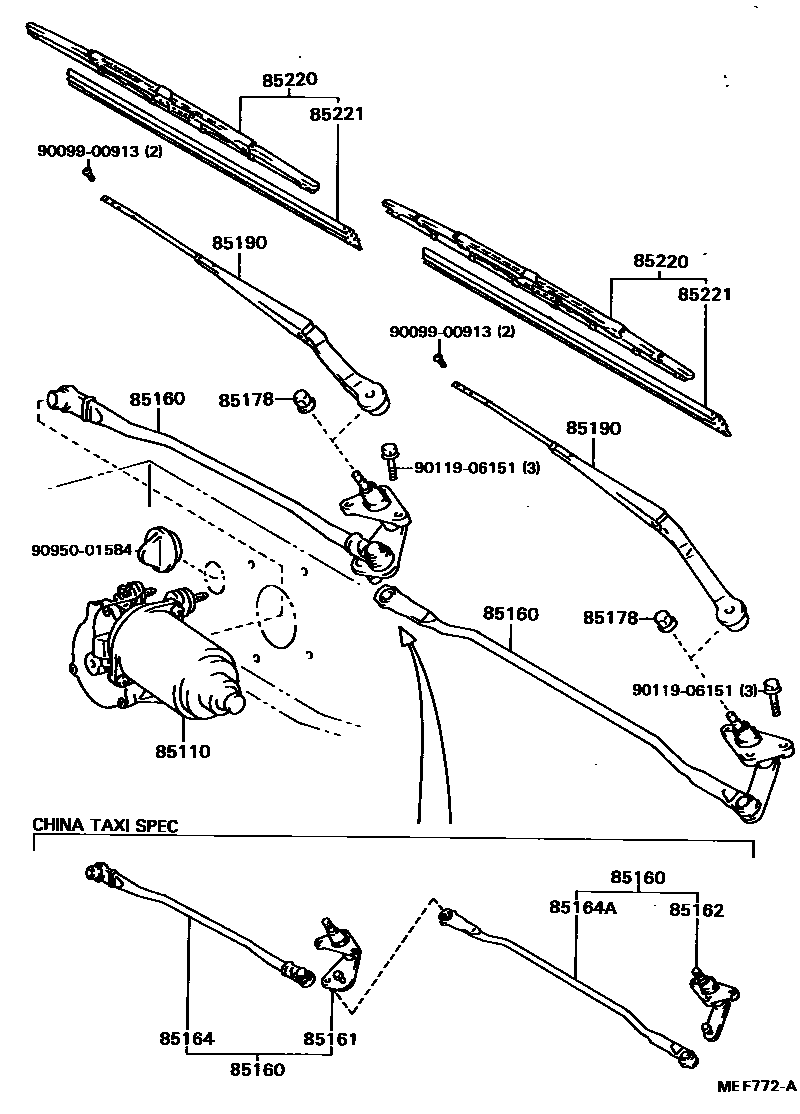

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-22290iGX71,MX73,RX70,YX70..RHD..(ARL,GEN,SA)198408-198512

sub85110-22291

main85110-22291iGX71,MX73,RX70,YX70..RHD..(ARL,GEN,SA)198512-198611

sub85110-22292

main85110-22292iGX71,MX73,RX70,72,YX70..SA198611-198808

main85110-22300iMX73..RHD..EUG198408-198608

main85110-22320iGX71,LX70,MX73,RX7#..LHD..(GEN,ME)198408-198803

sub85110-22321

main85110-22321iGX71,LX70,MX73,RX7#..LHD198803-198808

sub85110-91603

main85110-22330iGX71,LX7#,MX7#..LHD..EUR198408-198608

main85110-22401iGX71,MX73,RX70,72..RHD..(ARL,GEN)198611-198808

sub85110-22402

85160LINK ASSY, WINDSHIELD WIPER

main85160-22240iGX71,MX73,RX70,YX70..RHD198408-198512

LH

sub85150-23030

main85160-22241iGX71,MX73,RX70,72,YX70..RHD198512-198808

LH

main85160-22250iGX71,MX73,RX70,72,YX70..RHD198408-198808

RH

sub85160-22220

main85160-22280iLX70,RX70,72..LHD..MTM..GEN198502-198808

LH,CHINA TAXI SPEC

sub85160-22390

main85160-22290iGX71,LX7#,MX7#,RX7#..(SED,WG)..LHD198408-198808

RH

sub85160-22350

main85160-22300iGX71,LX7#,MX7#,RX7#..LHD198408-198808

LH

sub85160-22280

main85160-22330iGX71,MX73,RX70,72..HT198504-198808

RH

sub85160-22350

main85160-22350iLX70,RX70,72..LHD..MTM..GEN198502-198808

RH,CHINA TAXI SPEC

85161PIVOT, WINDSHIELD WIPER LINK, NO.1

main85161-22350iLX70,RX70,72..LHD..MTM..GEN198502-198808

CHINA TAXI SPEC

85162PIVOT, WINDSHIELD WIPER LINK, NO.2

main85162-22280iLX70,RX70,72..LHD..MTM..GEN198502-198808

CHINA TAXI SPEC

85164ROD, WINDSHIELD WIPER LINK, NO.1

main85164-22350iLX70,RX70,72..LHD..MTM..GEN198502-198808

CHINA TAXI SPEC

85164AROD, WINDSHIELD WIPER LINK, NO.2

main85165-22220iLX70,RX70,72..LHD..MTM..GEN198502-198808

CHINA TAXI SPEC

85178NUT (FOR FRONT WIPER ARM SETTING)

main90176-08029iGX71,LX7#,MX7#,RX70,YX70198408-198506

main90176-08033iGX71,LX7#,MX7#,RX7#,YX70198506-198808

85190ARM ASSY, WINDSHIELD WIPER

main85190-22500iGX71,MX73,RX70,72,YX70..SA198408-198808

RH

sub85190-22501

main85190-22501iGX71,MX73,RX70,72..RHD..GEN198608-198808

RH

sub85190-22511

main85190-22520iMX73..RHD..EUG198408-198608

RH

main85190-22540iGX71,LX70,MX73,RX70..(SED,WG)..LHD..(GEN,ME)198408-198608

LH

sub85190-22541

main85190-22541iGX71,LX70,MX73,RX7#..(SED,WG)..LHD198608-198808

LH

sub85221-23040

main85190-22550iGX71,LX7#,MX7#..LHD..EUR198408-198608

LH

main85190-22580iMX73..ARL198408-198608

RH

sub85190-22581

main85190-22581iMX73..ARL198608-198808

RH

sub85190-22511

main85190-22590iGX71,MX73,RX70..HT198504-198608

LH

sub85190-22591

main85190-22591iMX73,RX72..HT198608-198808

LH

main85210-22180iGX71,MX73,RX70,72,YX70..SA198408-198808

LH

sub85210-22181

main85210-22181iGX71,MX73,RX70,72..RHD..GEN198608-198808

LH

sub85221-23050

main85210-22200iGX71,LX7#,MX7#,RX70..LHD198408-198608

RH

sub85210-22201

main85210-22201iGX71,LX70,MX73,RX7#..LHD198608-198808

RH

sub85211-23030

main85210-22220iMX73..ARL198408-198608

LH

sub85210-22221

main85210-22221iMX73..ARL198608-198808

LH

sub85210-22181

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16260iGX71,LX7#,MX7#,RX7#..LHD198408-198808

RH

sub85220-16640

main85220-16300iMX73..ARL198408-198808

LH

sub85220-16330

main85220-16330iGX71,MX73,RX70,YX70..RHD..(EUR,GEN,SA)198408-198507

LH

sub85222-24050

main85220-16500iGX71,MX73,RX70,72,YX70..SA198507-198808

LH

sub85220-16330

main85220-16660iGX71,MX73,RX70,72..RHD..GEN198608-198808

LH

sub85222-24050

main85220-32280iGX71,LX70,MX73,RX7#..LHD..(GEN,ME)198408-198808

LH

sub85220-3A060

main85220-32300iMX73..ARL198408-198808

RH

sub85220-32311

main85220-32310iGX71,MX73,RX70,YX70..RHD..(GEN,SA)198408-198507

RH

sub85220-32311

main85220-32370iMX73..RHD..EUG198408-198608

RH

sub85212-23040

main85220-32380iGX71,LX7#,MX7#..LHD..EUR198408-198608

LH

main85220-32440iGX71,MX73,RX70,YX70..RHD..(GEN,SA)198507-198808

RH

sub85220-32310

main85220-32620iGX71,MX73,RX70,72..RHD..GEN198608-198808

RH

sub85220-32311

85221BLADE, WINDSHIELD WIPER

main85221-22100iMX73..RHD..EUG198408-198608

RH

sub85221-30130

main85221-22100iMX73..RHD..EUG198408-198608

LH

sub85221-30130

main85221-22110iGX71,MX73,RX70,72..RHD..GEN198608-198808

RH

sub85221-30130

main85221-22120iGX71,MX73,RX70,72..RHD..GEN198608-198808

LH

sub85221-30120

main85221-30100iGX71,LX7#,MX7#,RX7#..LHD198408-198808

LH

sub85221-40040

main85221-30100iMX73..ARL198408-198808

RH

sub85221-40040

main85221-30110iGX71,MX73,RX70,YX70..RHD..(GEN,SA)198408-198507

RH

sub85221-30130

main85221-30120iGX71,MX73,RX70,YX70..RHD..(EUR,GEN,SA)198408-198507

LH

sub85221-40040

main85221-30130iGX71,MX73,RX70,72,YX70..SA198507-198808

RH

sub85214-24H90

main85221-32060iGX71,LX70,MX73,RX7#..LHD..(GEN,ME)198408-198808

RH

sub85221-30130

main85221-32060iGX71,LX70,MX73,RX7#..LHD..(GEN,ME)198408-198808

LH

sub85221-30130

main85221-40040iGX71,MX73,RX70,YX70..RHD..(EUR,GEN,SA)198507-198808

LH

sub85214-24H90

9009900913

main90099-00913

9011906151

main90119-06151

9095001584

main90950-01584

13 parts on this diagram · 1 diagram in section
