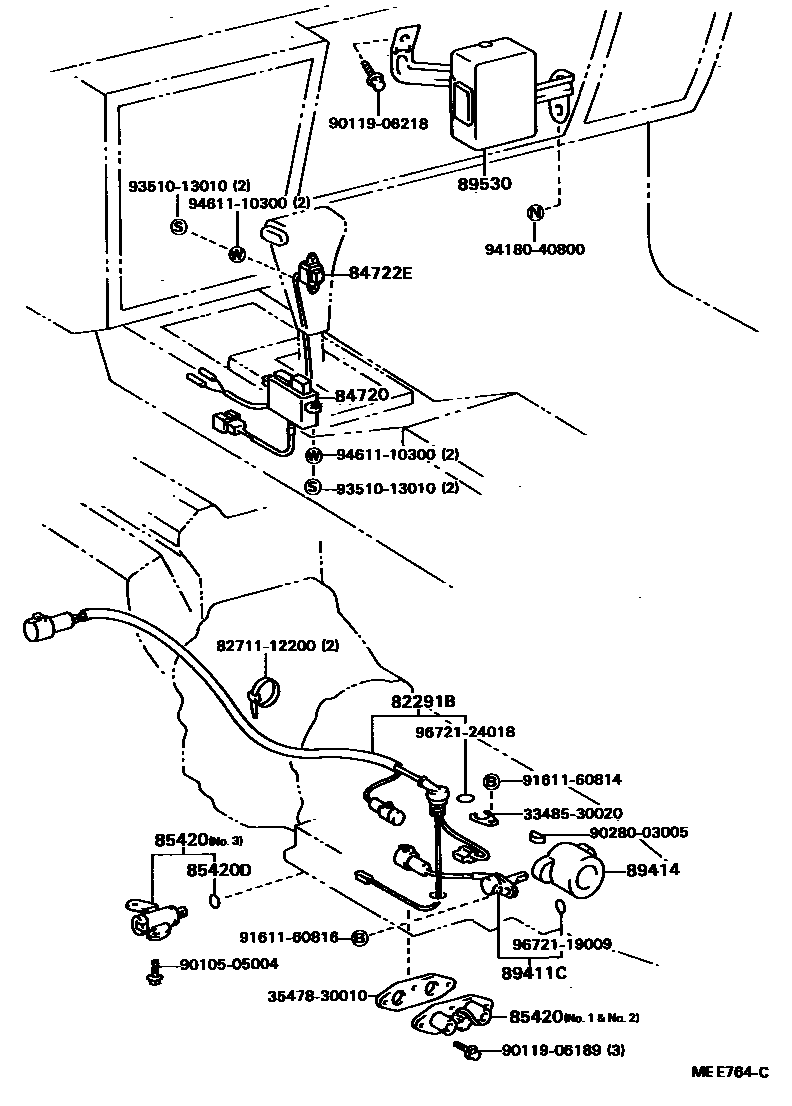

ELECTRONIC CONTROLLED TRANSMISSION

82291BWIRE, TO SOLENOID (FOR TRANSMISSION)

main82125-22060iMX73..TWC..(ARL,GEN)198608-198808

main82291-30150iMX73..ARL198408-198808

84720SWITCH ASSY, PATTERN SELECT

main84720-22060iMX73..LHD..4FC..EUG198408-198608

main84720-22070iMX73..RHD..4FC..TWC..(EUR,GEN,SA)198408-198808

main84720-22080iMX73..ARL198508-198608

main84720-22081iMX73..ARL198608-198808

sub84720-14061

84722ESWITCH, TRANSMISSION CONTROL

main84722-14070-03iMX73..4FC..TWC..(EUR,GEN,SA)198408-198808

GRAY,GRAY

sub84722-14070

main84722-14070-12iMX73..4FC..TWC..(EUR,GEN,SA)198408-198808

MAROON,MAROON

sub84722-14070

main84722-14070-15iMX73..4FC..TWC..(EUR,GEN,SA)198408-198808

BEIGE,BEIGE

sub84722-14070

main84722-14070-25iMX73..TWC..(ARL,GEN)198608-198808

BEIGE,DARK BEIGE

sub84722-14070

main84722-14070-32iMX73..TWC..(ARL,GEN)198608-198808

MAROON,MAROON

sub84722-14070

main84722-14070-34iMX73..TWC..(ARL,GEN)198608-198808

BLUE,DARK BLUE

sub84722-14070

85420SOLENOID ASSY, TRANSMISSION

main85420-30050iMX73..4FC..TWC..(EUR,GEN,SA)198408-198808

NO.1 & NO.2

main85420-30070iMX73..ARL198408-198808

NO.3

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iMX73..4FC..TWC..(EUR,GEN,SA)198408-198808

ID=6

89411CSENSOR, SPEED

main89411-22050iMX73..TWC..(ARL,GEN)198608-198808

sub89411-22051

main89411-30081iMX73..GLX..SA198408-198808

sub89411-30082

89414ROTOR, SENSOR

main89414-30010iMX73..ARL198408-198808

sub89414-30011

89530COMPUTER ASSY, TRANSMISSION CONTROL

main89530-22200iMX73..LHD..4FC..EUG198408-198608

DENSO

main89530-22210iMX73..LHD..4FC..EUG198408-198411

AISIN

sub89530-22200

main89530-22220iMX73..RHD..EUG198408-198608

DENSO

main89530-22230iMX73..RHD..EUG198408-198411

AISIN

sub89530-22220

main89530-22270iMX73..4FC..(GEN,SA)198411-198808

main89530-22300iMX73..ARL198508-198608

main89530-22301iMX73..ARL198608-198808

3348530020PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020

3547830010GASKET, ACCUMULATOR COVER

main35478-30010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9010505004

main90105-05004

9011906189

main90119-06189

9011906218

main90119-06218

9028003005

main90280-03005

9161160814

main91611-60814

9161160816

main91611-60816

9351013010

main93510-13010

9418040800

main94180-40800

9461110300

main94611-10300

9672119009

main96721-19009

9672124018

main96721-24018

22 parts on this diagram · 1 diagram in section
