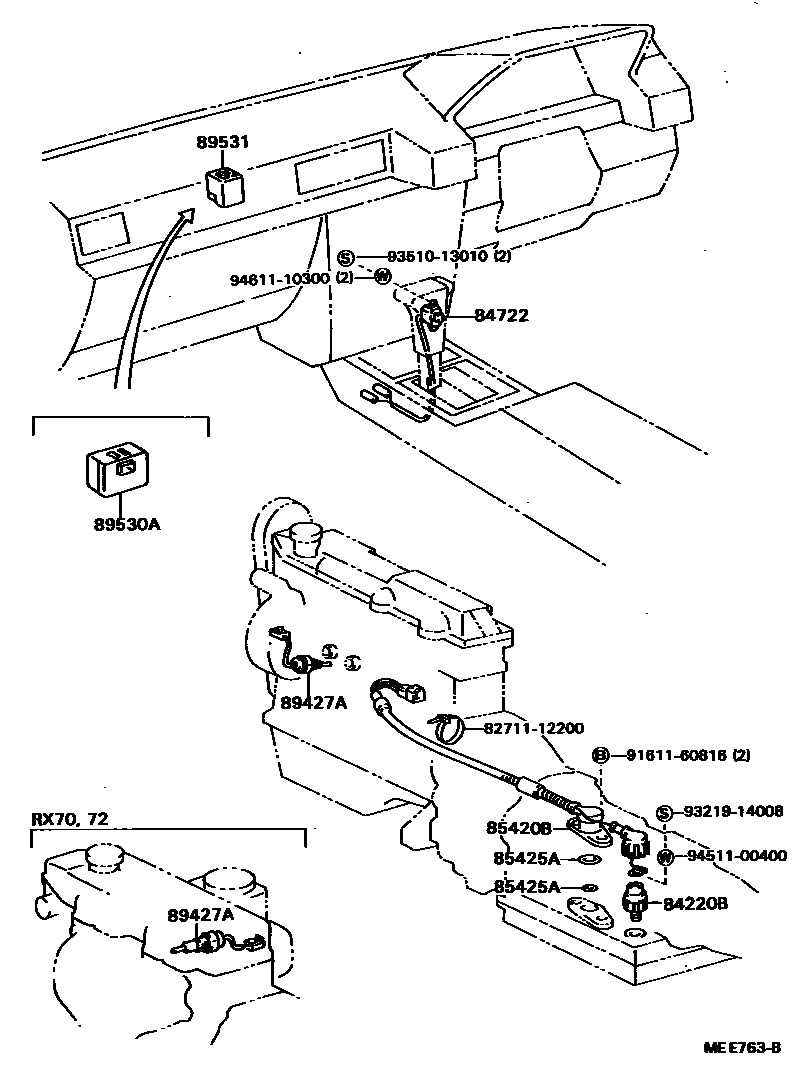

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84220BSWITCH ASSY, KICK DOWN

main84220-30050iLX71,MX7#..4FC..GL198408-198808

84722SWITCH, TRANSMISSION CONTROL

main84722-14070-03iGX71,RX70,72..4FC..SA198408-198808

GRAY,GRAY

sub84722-14070

main84722-14070-12iGX71,RX70,72..4FC..SA198408-198808

MAROON,MAROON

sub84722-14070

main84722-14070-15iGX71,RX70,72..4FC..SA198408-198808

BEIGE,BEIGE

sub84722-14070

main84722-14070-25iGX71,LX70,RX70,72..4FC..GEN198608-198808

BEIGE,DARK BEIGE

sub84722-14070

main84722-14070-32iMX73..4FC..ME198608-198808

MAROON,MAROON

sub84722-14070

main84722-14070-34iGX71,LX70,RX70,72..4FC..GEN198608-198808

BLUE,DARK BLUE

sub84722-14070

85420BSOLENOID ASSY, TRANSMISSION

main85420-30090iGX71,RX70,72..4FC..SA198408-198808

sub85420-22090

main85420-30100iMX73..4FC..EFI..GEN198408-198808

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-11001iMX7#..LHD..4FC..EFI198408-198808

ID=11

main90301-23001iGX71,LX7#,RX70,72..4FC198408-198808

ID=23

89427ASWITCH, TEMPERATURE

main89427-14060iRX70,72..4FC198408-198808

main89428-30050iGX71..4FC198408-198808

89530ACOMPUTER ASSY, TRANSMISSION CONTROL

main89530-22150iMX7#..4FC..SWZ198408-198608

main89530-22160iLX71..4FC198408-198608

main89530-22320iMX73..4FC..ME198508-198808

89531RELAY, TRANSMISSION CONTROL

main89531-28010iGX71,LX70,MX73,RX70..4FC..(ARL,GEN,ME)198408-198808

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9161160816

main91611-60816

9321914008

main93219-14008

9351013010

main93510-13010

9451100400

main94511-00400

9461110300

main94611-10300

13 parts on this diagram · 1 diagram in section
