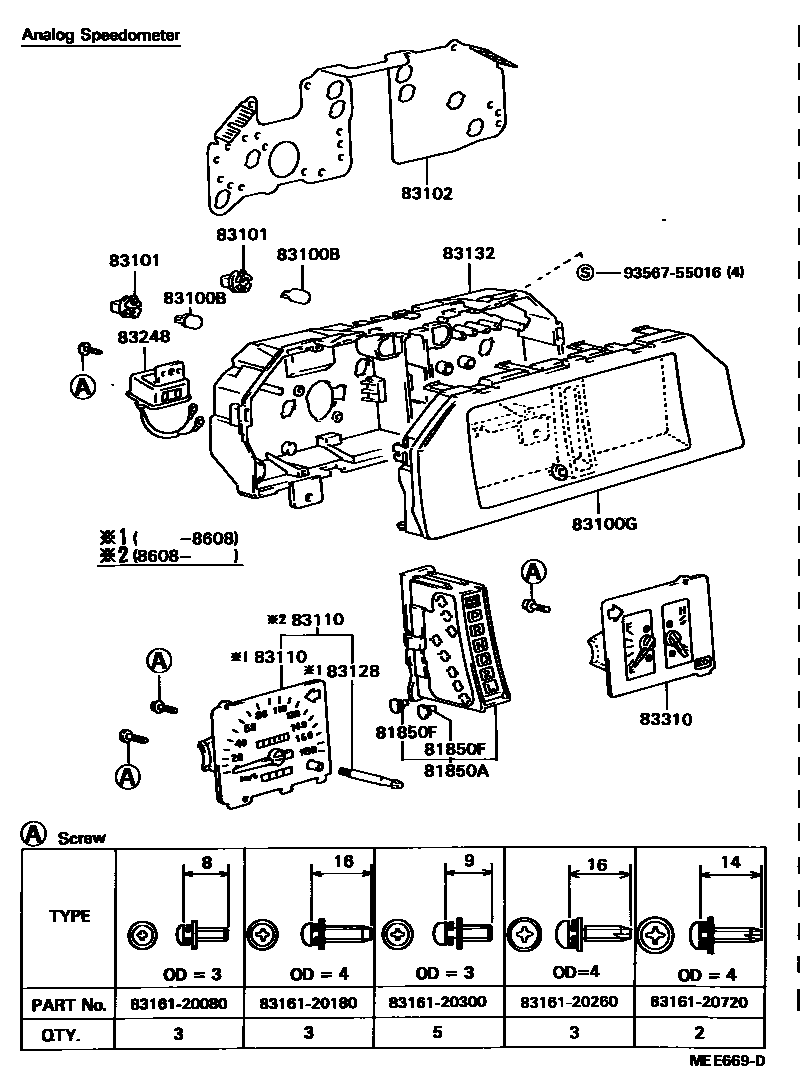

METER

0001 1 0002 1 0005 1 0006 1 0007 1 0008 1

81850ALAMP ASSY, INDICATOR

main81850-22100iMX73..4FC..(ARL,ME)198608-198808

main81850-22110iMX73..5F..EFI198408-198608

main81850-22111iMX73..5F..ME198608-198808

main81850-22120iGX71,LX7#,RX70..4FC198408-198608

81850FBULB, INDICATOR LAMP

main84999-50140×7iGX71,LX7#,MX7#,RX7#,YX70198408-198808

12V 1.4W

main84999-50150iGX71,LX7#,MX7#,RX7#,YX70198408-198808

12V 1.4W,GREEN CAP

83100BBULB, COMBINATION METER, NO.1

main83109-24030×4iMX73..TWC..ARL;MX7#..EFI..(ARL,EUR,ME)198408-198808

12V3.4W W(GREEN CAP)

main83119-24010×3iGX71,MX73..RHD..GLX..GEN198408-198808

12V 1.4W W(SOCKET),W/*DS

main83119-24050×3iGX71,MX73..RHD..GLX..GEN198408-198808

12V 1.4W,GREEN,W/*DS

main99132-12034×4iMX73..TWC..ARL;MX7#..EFI..(ARL,EUR,ME)198408-198808

12V 3.4W

83100GGLASS, COMBINATION METER

main83133-22590iGX71,MX73..ME198408-198608

W/*DS

main83133-22610iMX73..RHD..EUG198408-198608

main83133-22690iGX71,MX73..RHD..GLX..GEN198608-198808

W/*DS

main83134-22920iMX73..ARL198408-198608

W/*AS,W/TACHOMETER

main83134-22960iYX70198608-198808

main83134-2A160iMX7#..LHD..EFI198408-198608

W/*AS,W/TACHOMETER

main83134-2A180iLX7#198408-198608

main83134-2A200iRX70..LHD..XL198408-198608

W/O TACHOMETER

main83134-2A380iGX71,RX7#..LHD198608-198808

W/*AS,W/TACHOMETER

main83134-2A400iRX70,72..LHD..XL198608-198808

W/O TACHOMETER

main83134-2A420iLX70198608-198808

main83134-2A440iGX71,RX70,72..RHD..GEN198608-198808

W/*AS,W/TACHOMETER

main83134-2A460iRX70,72..RHD..XL..GEN198608-198808

W/O TACHOMETER

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-20040×4iMX73..TWC..ARL;MX7#..EFI..(ARL,EUR,ME)198408-198808

main83101-20070×4iMX73..TWC..ARL;MX7#..EFI..(ARL,EUR,ME)198408-198808

GREEN

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-22700iGX71,MX73,RX70,72..ME198508-198808

W/*TAC

main83247-22720iRX70..XL..ME198408-198508

W/O *TAC,SAUDI ARABIA SPEC

main83247-22740iGX71,RX70,72..RHD198408-198808

W/*TAC

main83247-22760iRX70,72..RHD..XL..GEN198408-198808

W/O *TAC

main83247-2A180iMX73..ME198411-198508

EXCL/SAUDI ARABIA

main83247-2A200iRX70..XL..ME198408-198508

W/O *TAC,EXCL/SAUDI ARABIA

83110SPEEDOMETER ASSY

main83110-22870iRX70..RHD..GL198408-198608

SINGAPORE SPEC

main83110-2A200iGX71..EUG198408-198608

main83110-2A220iLX70..GEN198408-198608

KM

main83110-2A221iLX70198608-198808

KM

main83110-2A230iLX71..4FC198408-198608

main83110-2A250iMX73..ARL198408-198508

main83110-2A260iMX73..GTX198504-198508

SAUDI ARABIA SPEC

main83110-2A270iGX71,MX73..ME198508-198608

W/*CRC

main83110-2A271iMX73..ME198608-198808

main83110-2A280iRX70..ME198408-198508

SAUDI ARABIA SPEC

main83110-2A282iRX72..ME198608-198808

main83110-2A290iGX71,MX73..ME198408-198508

EXCL/SAUDI ARABIA,W/*CRC

main83110-2A300iGX71..RHD198408-198608

KM

main83110-2A310iGX71..RHD..GEN198408-198608

MILE & KM

main83110-2A320iRX70,72,YX70..SA198608-198808

KM

main83110-2A322iRX70,72..RHD..XL..GEN198608-198808

KM

main83110-2A330iRX70..RHD..GEN198408-198608

MILE & KM

main83110-2A332iRX70,72..RHD..XL..GEN198608-198808

MILE & KM

main83110-2A340iGX71..LHD..GEN198408-198608

KM

main83110-2A341iGX71..LHD198608-198808

KM

main83110-2A350iGX71..LHD..GEN198408-198608

MILE & KM

main83110-2A351iGX71..LHD198608-198808

MILE & KM

main83110-2A360iRX70..LHD..GEN198408-198608

KM

main83110-2A362iRX7#..LHD198608-198808

KM

main83110-2A370iRX70..LHD..GEN198408-198608

MILE & KM

main83110-2A372iRX7#..LHD..GEN198608-198808

MILE & KM,W/TACHOMETER

main83110-2A380iLX70..GEN198408-198608

MILE & KM

main83110-2A381iLX70198608-198808

MILE & KM

main83110-2A390iGX71..SA198502-198808

KM,W/*CRC

main83110-2A420iMX73..ARL198508-198608

main83110-2A470iMX73..ARL198608-198808

main83110-2A480iMX73..EFI..GEN198701-198808

main83110-2A490iGX71..RHD..GEN198608-198808

KM

main83110-2A500iGX71..RHD..GEN198608-198808

MILE & KM

main83110-2A510iRX70,72..RHD..GEN198608-198808

KM,W/TACHOMETER

main83110-2A520iRX70,72..RHD..GL198608-198708

KM,W/*CRC;SINGAPORE SPEC

main83110-2A530iRX70,72..RHD..GEN198608-198808

MILE & KM,W/TACHOMETER

main83110-2A540iMX73..XL..SA198705-198808

83128KNOB, TRIP COUNTER

main83128-22020iMX7#..EFI;MX73..TWC..ARL198408-198608

83132CASE, COMBINATION METER

main83132-22260iMX73..EFI..GEN198701-198808

main83132-22370iMX73..GLX..SA198502-198808

main83132-22390iGX71,MX73..ME198408-198808

W/*DS

main83132-2A120iRX70,72,YX70..RHD..(STD,XL)198408-198808

W/O TACHOMETER

main83132-2A140iMX7#..LHD..EFI198408-198808

W/*AS,W/TACHOMETER

main83132-2A160iMX73..XL..ME198708-198808

W/O TACHOMETER

83248CHIME, SPEED WARNING

main86640-12090iGX71,MX73..ME198408-198808

W/*DS

main86640-22080iGX71,MX73,RX70,72..ME198408-198808

W/*AS

83310GAGE ASSY, FUEL RECEIVER

main83243-22320iMX73..ARL198408-198608

W/*TAC

main83243-22340iRX70..RHD..XL..GEN198408-198608

W/O *TAC

main83243-22360iMX73..EFI..GEN198701-198808

main83243-22380iRX70,72..RHD..XL..GEN198608-198808

W/O *TAC

main83243-22400iGX71,LX70,RX7#..LHD198608-198808

W/*TAC

main83243-22420iRX70,72..LHD..XL..GEN198608-198808

W/O *TAC

main83243-22460iRX70,72..LHD..XL..GEN198608-198808

W/O *TAC,RADIATOR=SINGLE ROW

main83243-2A040iMX7#..LHD..EFI198408-198608

W/*TAC

main83243-2A080iRX70..LHD..XL..GEN198409-198608

W/O *TAC,RADIATOR=DOUBLE ROW

main83243-2A100iRX70..LHD..XL..GEN198408-198608

W/O *TAC,RADIATOR=SINGLE ROW

8316120080CASE, COMBINATION METER MIRROR, NO.1

main83161-20080

8316120180CASE, COMBINATION METER MIRROR, NO.1

main83161-20180

8316120260CASE, COMBINATION METER MIRROR, NO.1

main83161-20260

8316120300CASE, COMBINATION METER MIRROR, NO.1

main83161-20300

8316120720CASE, COMBINATION METER MIRROR, NO.1

main83161-20720

9356755016

main93567-55016

17 parts on this diagram · 6 diagrams in section
