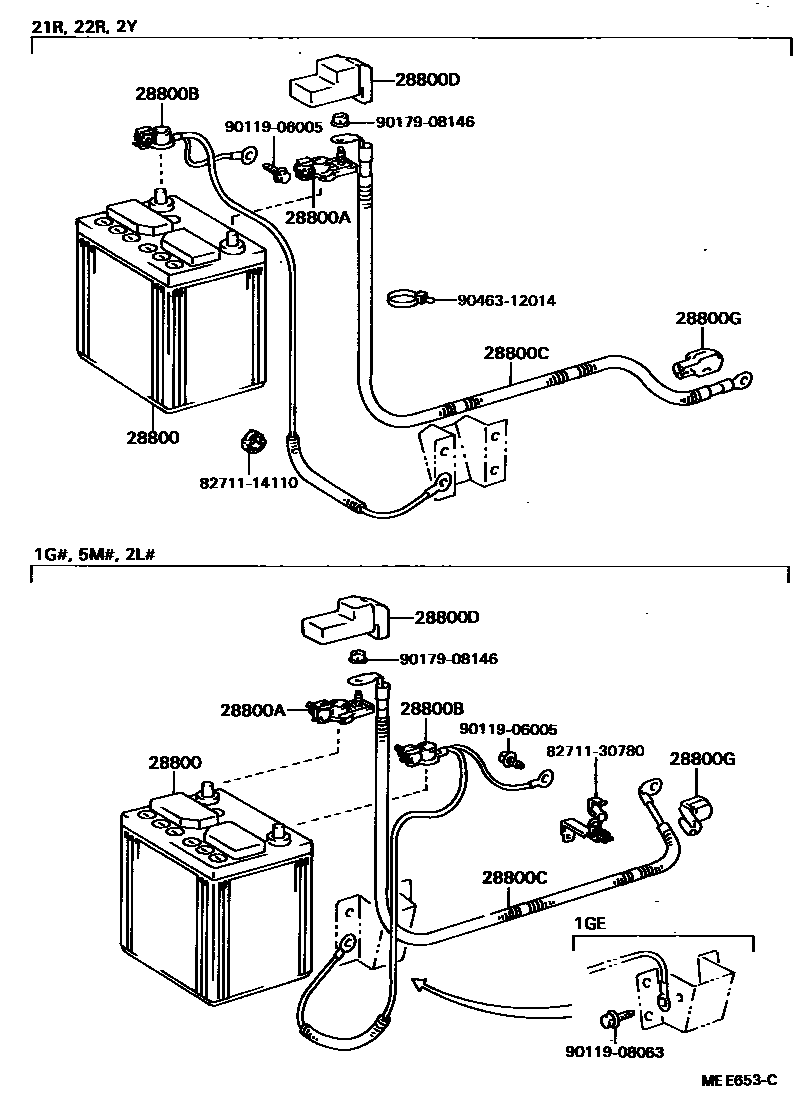

BATTERY & BATTERY CABLE

28800BATTERY

main28800-14010i21R,22R,2Y..RX7#,YX70198408-198808

55D23R,55D23R

sub28800-15020

main28800-15050i5MGE..MX73..ARL198408-198808

55D23L,55D23L-MF

sub28800-42030

main28800-30131i1GE..GX71..RHD..GEN198507-198808

55D26R,55D26L(N50Z)

sub28800-73010

main28800-30131i5ME..MX73..XL198711-198808

55D26R,55D26L,S.ARABIA TAXI SPEC

sub28800-73010

main28800-31200i5ME..MX73..ARL,ME198408-198808

50D20L,50D20L-MF

main28800-33071i21R,22R..RX70,72198408-198808

32C24R,32C24R(N40)

sub28800-33101

main28800-33111i1GE..GX71..RHD..5F..GEN198408-198507

55D26R,55D26R(N50Z)

sub28800-33120

main28800-37011i21R,22R..RX7#..MTM..(GEN,ME);21R,22R..RX70,72..RHD..4FC..GEN198408-198808

34B19R,34B19R-MF(NS40ZA-MF)

sub28800-24030

main28800-43011i1GE..GX71..GEN,ME198408-198808

46B24L,46B24L-MF(NS60L-MF)

sub28800-62040

main28800-44021i21R,22R..RX70,72..WG..RHD..4FC198408-198808

46B24R,46B24R-MF(NS60-MF)

sub28800-33050

main28800-45030i5M#..MX7#..EUR198408-198501

75D31L-MF(N70ZL-MF)

main28800-45050i2LT..LX71;2L#..LX70..5F198501-198808

75D31L,75D31L-MF(N70ZL-MF)

sub28800-42130

main28800-54250i2L#..LX7#198408-198808

125D38L,125D38L

main28800-64070i2L..LX70..4FC198408-198808

95D31L,95D31L(NX120-7L)

sub28800-64180

28800ATERMINAL, BATTERY POSITIVE

main90982-05027i1GE..GX71..GEN,ME198408-198610

46B24L(NS60L)

sub90982-05028

main90982-05028i21R,22R..RX7#..GEN,ME198408-198808

34B19R(NS40ZA),46B24R(NS60)

sub90982-05057

main90982-05028i1GE..GX71..GEN198610-198808

46B24L(NS60L)

sub90982-05057

main90982-05029i2L#,5M#..LX7#,MX7#198408-198610

55D23L,55D26R(N50Z)

sub90982-05030

main90982-05030i2Y..YX70198502-198808

main90982-05030i21R,22R..RX7#..GEN,ME198408-198808

32C24R(N40),55D23R

main90982-05030i2L,5M#..LX70,MX73198610-198808

55D23L,55D26R(N50Z)

28800BCABLE, BATTERY TO GROUND

main90982-02239i2L#..LX7#198408-198808

main90982-02263i1GE..GX71..GEN,ME198408-198808

46B24L(NS60L)

main90982-02264i5M#..MX7#198408-198808

55D23L,55D26R(N50Z)

main90982-02265i21R,22R..RX7#..GEN,ME198408-198808

34B19R(NS40ZA),46B24R(NS60)

main90982-02266i21R,22R,2Y..RX7#,YX70198408-198808

32C24R(N40),55D23R

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82122-22030i1G#..GX71198408-198808

main82122-22040i5M#..MX7#198408-198808

main82122-22060i2L..LX70198408-198808

STARTER:12V 2.0KW

main82122-22070i21R,22R,2Y..RX7#,YX70198408-198808

main82122-22080i2L#..LX7#198408-198808

STARTER:12V 2.5KW

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-24010i21R,22R,1G#,2L#,5M#,2Y..GX71,LX7#,MX7#,RX7#,YX70198408-198808

28800GCAP, TERMINAL(FOR STARTER)

main82823-20030i21R,2L#..LX7#,RX70198408-198501

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8271130780WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30780

9011906005

main90119-06005

9011908063

main90119-08063

9017908146

main90179-08146

9046312014

main90463-12014

12 parts on this diagram · 1 diagram in section
