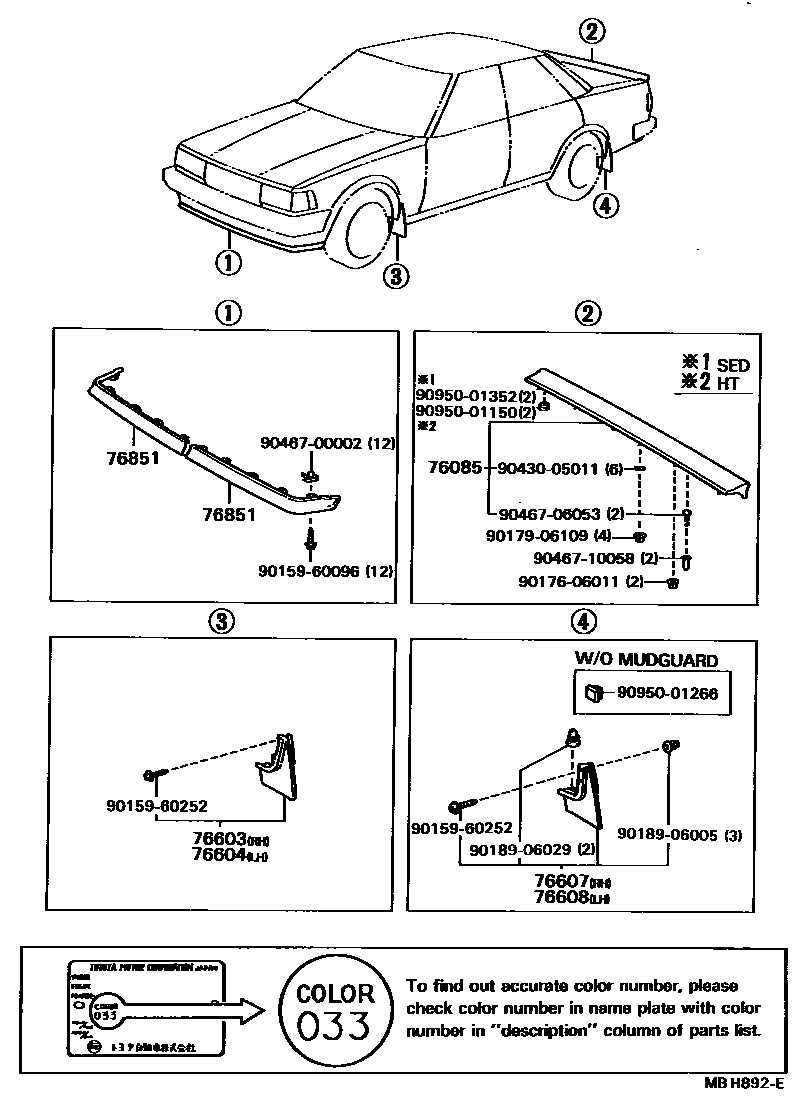

MUDGUARD & SPOILER

76085SPOILER SUB-ASSY, REAR

main76085-22010iGX71,LX71..EUG;MX73..SED..(EUR,ME)198408-198808

main76085-22030iMX73..GTX198504-198608

main76085-22040-01iMX73..(GD,GLX)..(ARL,ME)198608-198808

BLACK(202),BLACK

main76085-22040-02iMX73..(GD,GLX)..(ARL,ME)198608-198808

RED(3D7),RED

main76085-22040-03iMX73..(GD,GLX)..(ARL,ME)198608-198808

SUPER SILVER 2-M(166),SUPER SILVER 2

main76085-22040-04iMX73..(GD,GLX)..(ARL,ME)198608-198808

LIGHT BLUE-M(8D8),LIGHT BLUE METALLIC

main76085-22040-05iMX73..(GD,GLX)..(ARL,ME)198608-198808

BEIGE-M(4G8),BEIGE METALLIC

main76085-22040-06iMX73..(GD,GLX)..(ARL,ME)198608-198808

MEDIUM BROWN-M(4H1),MEDIUM BROWN M

main76085-22040-08iMX73..(GD,GLX)..(ARL,ME)198608-198808

SUPER WHITE 2(040),SUPER WHITE 2

main76085-22040-12iMX73..(GD,GLX)..(ARL,ME)198608-198808

RED MICA(3H3),RED MICA

main76085-22040-13iMX73..(GD,GLX)..(ARL,ME)198608-198808

GRAY-M(167),GRAY METALLIC

main76085-22040-14iMX73..(GD,GLX)..(ARL,ME)198608-198808

BLUE MICA(8E3),BLUE MICA

main76085-22040-15iMX73..(GD,GLX)..(ARL,ME)198608-198808

FINE BEIGE-M(27C),FINE BEIGE METALLIC

main76085-22060-02iMX73,RX72..HT198608-198808

RED(3D7),RED

main76085-22060-03iMX73,RX72..HT198608-198808

SUPER SILVER 2-M(166),SUPER SILVER 2

main76085-22060-04iMX73,RX72..HT198608-198808

LIGHT BLUE-M(8D8),LIGHT BLUE METALLIC

main76085-22060-05iMX73,RX72..HT198608-198808

FINE BEIGE-M(27C),FINE BEIGE METALLIC

main76085-22060-06iMX73,RX72..HT198608-198808

MEDIUM BROWN-M(4H1),MEDIUM BROWN M

main76085-22060-08iMX73,RX72..HT198608-198808

SUPER WHITE 2(040),SUPER WHITE 2

main76085-22060-11iMX73,RX72..HT198608-198808

BLACK(202),BLACK

main76085-22060-12iMX73,RX72..HT198608-198808

RED MICA(3H3),DARK RED MICA

main76085-22060-13iMX73,RX72..HT198608-198808

GRAY-M(167),GRAY METALLIC

main76085-22060-14iMX73,RX72..HT198608-198808

BLUE MICA(8E3),BLUE MICA

main76085-22060-15iMX73,RX72..HT198608-198808

BEIGE-M(4G8),BEIGE METALLIC

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76603-29055-02iGX71,MX73..GLX..SA198408-198808

DEEP MAROON(3E8,2V2),DEEP MAROON

sub76603-29055

main76603-29055-03iGX71,MX73..GD,GLX,GTX198408-198808

SUPER SILVER-M(150),SUPER SILVER M

sub76603-29055

main76603-29055-05iGX71,MX73..GD,GLX,GTX198508-198808

BEIGE-M(4E6,2Z8),BEIGE METALLIC

sub76603-29055

main76603-29055-06iGX71,MX73..GLX..SA198408-198808

GRAYISH BROWN-M(4E5),GRAYISH BROWN M

sub76603-29055

main76603-29055-07iGX71,MX73..GD,GLX198408-198808

GREEN-M(6H8),GREEN METALLIC

sub76603-29055

main76603-29055-08iGX71,MX73,RX72..GD,GLX,GT,GTX198408-198808

SUPER WHITE(040),SUPER WHITE

sub76603-29055

main76603-29055-11iGX71,MX73,RX72..GD,GLX,GT,GTX198504-198808

BLACK,BLACK

sub76603-29055

main76603-29055-11iGX71,MX73..GLX..SA198508-198808

BLACK(2V1,6A5),BLACK

sub76603-29055

main76603-29055-11iGX71,MX73..GD,GLX198408-198508

BLACK(3E9,4E6,2V1,6A5),BLACK

sub76603-29055

main76603-29055-12iGX71,MX73..GD,GLX,GTX198508-198808

DARK RED(3E9),DARK RED

sub76603-29055

main76603-29055-14iGX71,MX73..GD,GLX198408-198508

LIGHT BLUE-M(894),LIGHT BLUE METALLIC

sub76603-29055

main76603-29055-15iMX73..GTX198504-198608

LIGHT BEIGE-M(2U8),FINE BEIGE METALLIC

sub76603-29055

main76603-29055-15iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

LIGHT BEIGE-M(27C),FINE BEIGE METALLIC

sub76603-29055

main76603-29055-16iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198708

MEDIUM BROWN-M(4H1),MEDIUM BROWN M

sub76603-29055

main76603-29055-22iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

RED(3D7),RED

sub76603-29055

main76603-29055-23iGX71,MX73..GLX..SA198608-198808

BLOISH GRAY-M(163),BLUISH GRAY METALLIC

sub76603-29055

main76603-29055-23iGX71,MX73..GD,GLX,GTX198508-198608

BLUISH GRAY-M(163),BLUISH GRAY METALLIC

sub76603-29055

main76603-29055-24iGX71,MX73..GLX..SA198608-198808

GRAISH BLUE-M(8B4,2U4),GRAYISH BLUE M

sub76603-29055

main76603-29055-24iGX71,MX73..GD,GLX,GTX198508-198608

GRAYISH BLUE-M(8B4,2U4),GRAYISH BLUE M

sub76603-29055

main76603-29055-24iGX71,MX73..GD,GLX198408-198508

GRAYISH BLUE-M(8B4),GRAYISH BLUE M

sub76603-29055

main76603-29055-25iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

BEIGE-M(4G8),BEIGE METALLIC

sub76603-29055

main76603-29055-32iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

RED MICA(3H3),RED MICA

sub76603-29055

main76603-29055-33iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

SUPER SILVER 2-M(166),SUPER SILVER 2

sub76603-29055

main76603-29055-34iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

LIHT BLUE-M(8D8),LIGHT BLUE METALLIC

sub76603-29055

main76603-29055-42iGX71,MX73,RX72..GD,GLX,GT,GTX198708-198808

RED MICA(3H4),RED MICA

sub76603-29055

main76603-29055-43iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

GRAY-M(167),GRAY METALLIC

sub76603-29055

main76603-29055-44iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

BLUE MICA(8E3),BLUE MICA

sub76603-29055

main76603-29065iMX73..XL..SA198408-198808

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76604-29055-02iGX71,MX73..GLX..SA198408-198808

DEEP MAROON(3E8,2V2),DEEP MAROON

sub76604-29055

main76604-29055-03iGX71,MX73..GLX..SA198408-198808

SUPER SILVER-M(150),SUPER SILVER M

sub76604-29055

main76604-29055-05iGX71,MX73..GLX..SA198508-198808

BEIGE-M(4E6,2Z8),BEIGE

sub76604-29055

main76604-29055-06iGX71,MX73..GD,GLX198408-198808

GRAYISH BROWN-M(4E5),GRAYISH BROWN M

sub76604-29055

main76604-29055-07iGX71,MX73..GD,GLX198408-198808

GREEN-M(6H8),GREEN METALLIC

sub76604-29055

main76604-29055-08iGX71,MX73,RX72..GD,GLX,GT,GTX198408-198808

SUPER WHITE(040),SUPER WHITE

sub76604-29055

main76604-29055-11iGX71,MX73..GLX..SA198508-198808

BLACK(2V1,6A5),BLACK

sub76604-29055

main76604-29055-11iGX71,MX73..GLX..SA198504-198808

BLACK,BLACK

sub76604-29055

main76604-29055-11iGX71,MX73..GD,GLX198408-198508

BLACK(3E9,4E6,2V1,6A5),BLACK

sub76604-29055

main76604-29055-12iGX71,MX73..GLX..SA198508-198808

DARK RED(3E9),DARK RED

sub76604-29055

main76604-29055-14iGX71,MX73..GD,GLX198408-198508

LIGHT BLUE-M(894),LIGHT BLUE METALLIC

sub76604-29055

main76604-29055-15iMX73..GTX198504-198608

LIGHT BEIGE-M(2U8),FINE BEIGE METALLIC

sub76604-29055

main76604-29055-15iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

LIGHT BEIGE-M(27C),FINE BEIGE METALLIC

sub76604-29055

main76604-29055-16iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198708

MEDIUM BROWN-M(4H1),MEDIUM BROWN M

sub76604-29055

main76604-29055-22iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

RED(3D7),RED

sub76604-29055

main76604-29055-23iGX71,MX73..GLX..SA198608-198808

BLOISH GRAY-M(163),BLUISH GRAY METALLIC

sub76604-29055

main76604-29055-23iGX71,MX73..GD,GLX,GTX198508-198608

BLUISH GRAY-M(163),BLUISH GRAY METALLIC

sub76604-29055

main76604-29055-24iGX71,MX73..GLX..SA198508-198808

GRAYISH BLUE-M(8B4,2U4),GRAYISH BLUE M

sub76604-29055

main76604-29055-24iGX71,MX73..GD,GLX198408-198508

GRAYISH BLUE-M(8B4),GRAYISH BLUE M

sub76604-29055

main76604-29055-25iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

BEIGE-M(4G8),BEIGE METALLIC

sub76604-29055

main76604-29055-32iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

RED MICA(3H3),RED MICA

sub76604-29055

main76604-29055-33iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

SUPER SILVER 2-M(166),SUPER SILVER 2

sub76604-29055

main76604-29055-34iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

LIGHT BLUE-M(8D8),LIGHT BLUE METALLIC

sub76604-29055

main76604-29055-42iGX71,MX73,RX72..GD,GLX,GT,GTX198708-198808

RED MICA(3H4),RED MICA

sub76604-29055

main76604-29055-43iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

GRAY-M(167),GRAY METALLIC

sub76604-29055

main76604-29055-44iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

BLUE MICA(8E3),BLUE MICA

sub76604-29055

main76604-29065iGX71,LX7#,MX7#,RX7#..(GL,XL)..(ARL,EUR,GEN,ME)198408-198808

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76607-29055-02iGX71,MX73..GLX..SA198408-198808

DEEP MAROON(3E8,2V2),DEEP MAROON

sub76607-29055

main76607-29055-03iGX71,MX73..GLX..SA198408-198808

SUPER SILVER-M(150),SUPER SILVER M

sub76607-29055

main76607-29055-05iGX71,MX73..GD,GLX,GTX198508-198808

BEIGE-M(4E6,2Z8),BEIGE METALLIC

sub76607-29055

main76607-29055-06iGX71,MX73..GLX..SA198408-198808

GRAYISH BROWN-M(4E5),GRAYISH BROWN M

sub76607-29055

main76607-29055-07iGX71,MX73..GD,GLX198408-198808

GREEN-M(6H8),GREEN METALLIC

sub76607-29055

main76607-29055-08iGX71,MX73..GD,GLX198408-198808

SUPER WHITE(040),SUPER WHITE

sub76607-29055

main76607-29055-11iGX71,MX73..GLX..SA198608-198808

BRACK(2V1,6A5),BLACK

sub76607-29055

main76607-29055-11iGX71,MX73..GD,GLX198408-198508

BLACK(3E9,4E6,2V1,6A5),BLACK

sub76607-29055

main76607-29055-11iMX73..GTX198504-198808

BLACK,BLACK

sub76607-29055

main76607-29055-11iGX71,MX73..GD,GLX198508-198608

BLACK(2V1,6A5),BLACK

sub76607-29055

main76607-29055-12iGX71,MX73..GLX..SA198508-198808

DARK RED(3E9),DARK RED

sub76607-29055

main76607-29055-14iGX71,MX73..GD,GLX198408-198508

LIGHT BLUE-M(894),LIGHT BLUE METALLIC

sub76607-29055

main76607-29055-15iMX73..GTX198504-198608

LIGHT BEIGE-M(2U8),FINE BEIGE METALLIC

sub76607-29055

main76607-29055-15iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

LIGHT BEIGE-M(27C),FINE BEIGE METALLIC

sub76607-29055

main76607-29055-16iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198708

MEDIUM BROWN-M(4H1),MEDIUM BROWN M

sub76607-29055

main76607-29055-22iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

RED(3D7),RED

sub76607-29055

main76607-29055-23iGX71,MX73..GD,GLX,GTX198508-198808

BLUISH GRAY-M(163),BLUISH GRAY METALLIC

sub76607-29055

main76607-29055-24iGX71,MX73..GLX..SA198508-198808

GRAYISH BLUE-M(8B4,2U4),GRAYISH BLUE M

sub76607-29055

main76607-29055-24iGX71,MX73..GD,GLX198408-198508

GRAYISH BLUE-M(8B4),GRAYISH BLUE M

sub76607-29055

main76607-29055-25iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

BEIGE-M(4G8),BEIGE METALLIC

sub76607-29055

main76607-29055-32iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

RED MICA(3H3),RED MICA

sub76607-29055

main76607-29055-33iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

SUPER SILVER 2-M(166),SUPER SILVER 2

sub76607-29055

main76607-29055-34iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

LIGHT BLUE-M(8D8),LIGHT BLUE METALLIC

sub76607-29055

main76607-29055-42iGX71,MX73,RX72..GD,GLX,GT,GTX198708-198808

RED MICA(3H4),RED MICA

sub76607-29055

main76607-29055-43iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

GRAY-M(167),GRAY METALLIC

sub76607-29055

main76607-29055-44iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

BLUE MICA(8E3),BLUE MICA

sub76607-29055

main76607-29065iGX71,LX7#,MX73,RX7#..(HT,SED)..(GL,XL)..(ARL,EUR,GEN,ME)198408-198808

main76607-29085iLX70,MX72,RX70,72..WG..(EUR,GEN,ME)198411-198808

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76608-29055-02iGX71,MX73..GLX..SA198408-198808

DEEP MAROON(3E8,2V2),DEEP MAROON

sub76608-29055

main76608-29055-03iGX71,MX73..GD,GLX,GTX198408-198808

SUPER SILVER-M(150),SUPER SILVER M

sub76608-29055

main76608-29055-05iGX71,MX73..GLX..SA198508-198808

BEIGE-M(4E6,2Z8),BEIGE METALLIC

sub76608-29055

main76608-29055-06iGX71,MX73..GD,GLX198408-198808

GRAYISH BROWN-M(4E5),GRAYISH BROWN M

sub76608-29055

main76608-29055-07iGX71,MX73..GLX..SA198408-198808

GREEN-M(6H8),GREEN METALLIC

sub76608-29055

main76608-29055-08iGX71,MX73..GD,GLX198408-198808

SUPER WHITE(040),SUPER WHITE

sub76608-29055

main76608-29055-11iMX73..GTX198504-198808

BLACK,BLACK

sub76608-29055

main76608-29055-11iGX71,MX73..GD,GLX198508-198808

BLACK(2V1,6A5),BLACK

sub76608-29055

main76608-29055-11iGX71,MX73..GD,GLX198408-198508

BLACK(3E9,4E6,2V1,6A5),BLACK

sub76608-29055

main76608-29055-12iGX71,MX73..GLX..SA198508-198808

DARK RED(3E9),DARK RED

sub76608-29055

main76608-29055-14iGX71,MX73..GD,GLX198408-198508

LIGHT BLUE-M(894),LIGHT BLUE METALLIC

sub76608-29055

main76608-29055-15iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

LIGHT BEIGE-M(27C),FINE BEIGE METALLIC

sub76608-29055

main76608-29055-15iMX73..GTX198504-198608

LIGHT BEIGE-M(2U8),FINE BEIGE METALLIC

sub76608-29055

main76608-29055-16iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198708

MEDIUM BROWN-M(4H1),MEDIUM BROWN M

sub76608-29055

main76608-29055-22iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

RED(3D7),RED

sub76608-29055

main76608-29055-23iGX71,MX73..GD,GLX,GTX198508-198808

BLUISH GRAY-M(163),BLUISH GRAY METALLIC

sub76608-29055

main76608-29055-24iGX71,MX73..GD,GLX198408-198508

GRAYISH BLUE-M(8B4),GRAYISH BLUE M

sub76608-29055

main76608-29055-24iGX71,MX73..GLX..SA198508-198808

GRAYISH BLUE-M(8B4,2U4),GRAYISH BLUE M

sub76608-29055

main76608-29055-25iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

BEIGE-M(4G8),BEIGE METALLIC

sub76608-29055

main76608-29055-32iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

RED MICA(3H3),RED MICA

sub76608-29055

main76608-29055-33iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

SUPER SILVER 2-M(166),SUPER SILVER 2

sub76608-29055

main76608-29055-34iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

LIGHT BLUE-M(8D8),LIGHT BLUE METALLIC

sub76608-29055

main76608-29055-42iGX71,MX73,RX72..GD,GLX,GT,GTX198708-198808

RED MICA(3H4),RED MICA

sub76608-29055

main76608-29055-43iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

GRAY-M(167),GRAY METALLIC

sub76608-29055

main76608-29055-44iGX71,MX73,RX72..GD,GLX,GT,GTX198608-198808

BLUE MICA(8E3),BLUE MICA

sub76608-29055

main76608-29065iMX73..XL..SA198408-198808

main76608-29085iLX70,MX72,RX70,72..WG..(EUR,GEN,ME)198411-198808

76851COVER, FRONT SPOILER

main76851-22010iGX71,MX73,RX72,YX70..SA198408-198808

RH

main76851-22011iRX72..GT198608-198808

RH

main76852-22010iMX73;GX71,LX7#,MX72,YX70..(CBR,EFI,TD,TWC)..(EUR,GEN,SA)198408-198808

LH

main76852-22011iRX72..GT198608-198808

LH

9015960096

main90159-60096

9015960252

main90159-60252

9017606011

main90176-06011

9017906109

main90179-06109

9018906005

main90189-06005

9018906029

main90189-06029

9043005011

main90430-05011

9046700002

main90467-00002

9046706053

main90467-06053

9046710058

main90467-10058

9095001150

main90950-01150

9095001266

main90950-01266

9095001352

main90950-01352

19 parts on this diagram · 1 diagram in section
