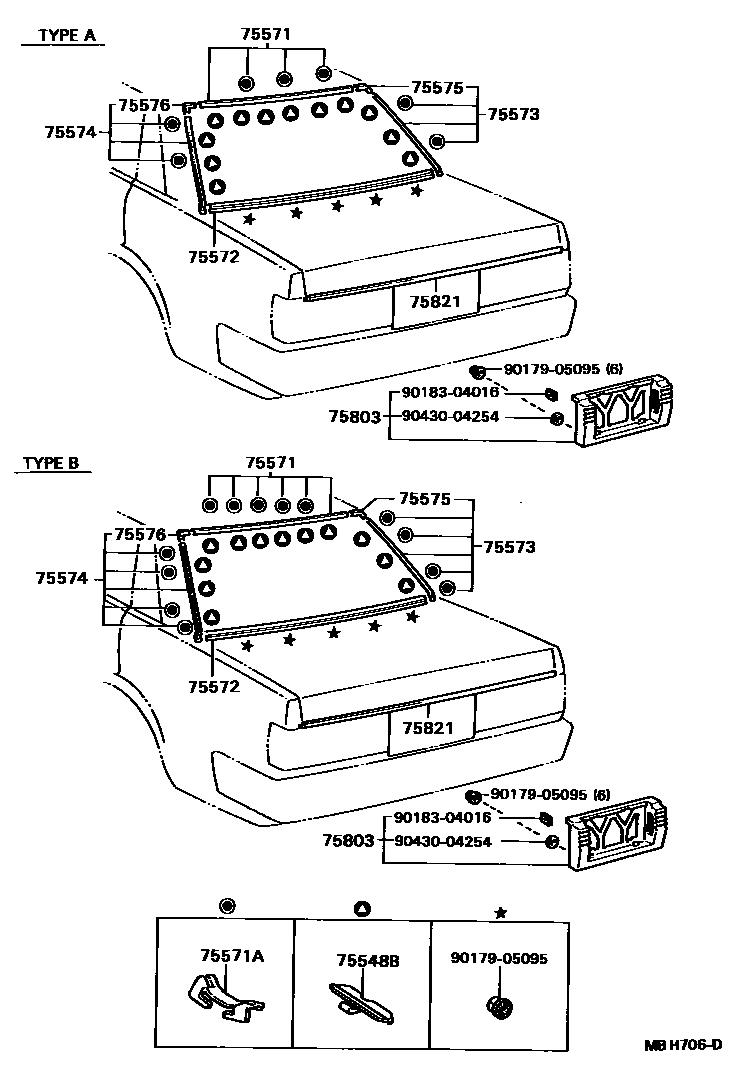

REAR MOULDING

0001 1 0002 1 0003 1

75548BFASTENER, BACK WINDOW OUTSIDE MOULDING

main75548-22100iGX71,LX7#,MX73,RX7#,YX70..HT,SED¥350198408-198610

main75548-22101iGX71,LX70,MX73,RX7#,YX70..HT,SED¥340198610-198808

75571MOULDING, BACK WINDOW, OUTSIDE UPPER

main75571-22090iGX71,LX7#,MX73,RX7#,YX70..SED¥6,700198408-198808

TYPE A

sub75571-22110¥5,600

main75571-22110iRX72..RHD..4FC..GL¥5,600198410-198808

TYPE B

main75571-22120iGX71,MX73,RX70,72..HT¥3,370198504-198808

main75571-23010iLX70,MX72,RX70,72..WG¥3,540198411-198808

75571ACLIP(FOR BACK WINDOW MOULDING SET)

main75547-22030iGX71,LX7#,MX73,RX7#,YX70..HT,SED¥210198408-198808

75572MOULDING, BACK WINDOW, LOWER

main75507-22060iGX71,LX7#,MX73,RX7#,YX70..SED¥8,900198408-198808

main75507-22090iMX73,RX72..GT¥10,400198504-198808

main75507-22100iMX73..GTX¥10,400198608-198808

W/RR WIPER

main75575-23010iLX70,MX72,RX70,72..WG¥3,540198411-198808

75573MOULDING, BACK WINDOW SIDE, RH

main75573-22090iGX71,LX7#,MX73,RX70¥4,380198408-198409

TYPE A

sub75573-22091¥4,400

main75573-22091iGX71,LX7#,MX73,RX7#,YX70..SED¥4,400198409-198808

TYPE A

sub75573-22110¥4,400

main75573-22110iRX72..SED..RHD..XL¥4,400198410-198808

TYPE B

main75573-23010iLX70,MX72,RX70,72..WG¥3,540198411-198808

75574MOULDING, BACK WINDOW SIDE, LH

main75574-22070iGX71,LX7#,MX73,RX70¥4,380198408-198409

TYPE A

sub75574-22071¥4,400

main75574-22071iGX71,LX7#,MX73,RX7#,YX70..SED¥4,400198409-198808

TYPE A

sub75574-22090¥4,400

main75574-22090iRX72..RHD..4FC..GL¥4,400198410-198808

TYPE B

main75574-23010iLX70,MX72,RX70,72..WG¥3,540198411-198808

75575MOULDING, BACK WINDOW CORNER, UPPER RH

main75581-22050iGX71,LX7#,MX73,RX7#,YX70..SED¥610198408-198808

75576MOULDING, BACK WINDOW CORNER, UPPER LH

main75581-22050iGX71,LX7#,MX73,RX7#,YX70..SED¥610198408-198808

75803PANEL SUB-ASSY, BODY LOWER BACK FINISH CENTER

main75803-22120iGX71,MX73,RX70..SED..ME¥23,700198408-198608

main75803-22140iGX71,MX73,RX70..HT¥12,200198504-198608

main75803-22150iMX73,RX72..SED..ME¥12,300198608-198808

main75803-22180iMX73,RX72..HT¥14,700198608-198808

75821MOULDING, LUGGAGE COMPARTMENT DOOR BACK

main75813-22090iGX71,LX7#,MX73,RX7#,YX70..SED¥5,100198408-198808

main75813-22110iGX71,MX73,RX70..HT¥7,100198504-198608

main75813-22120iMX73,RX72..HT¥9,600198608-198808

9017905095

main90179-05095¥240

9018304016

main90183-04016¥80

9043004254

main90430-04254¥130

13 parts on this diagram · 3 diagrams in section
