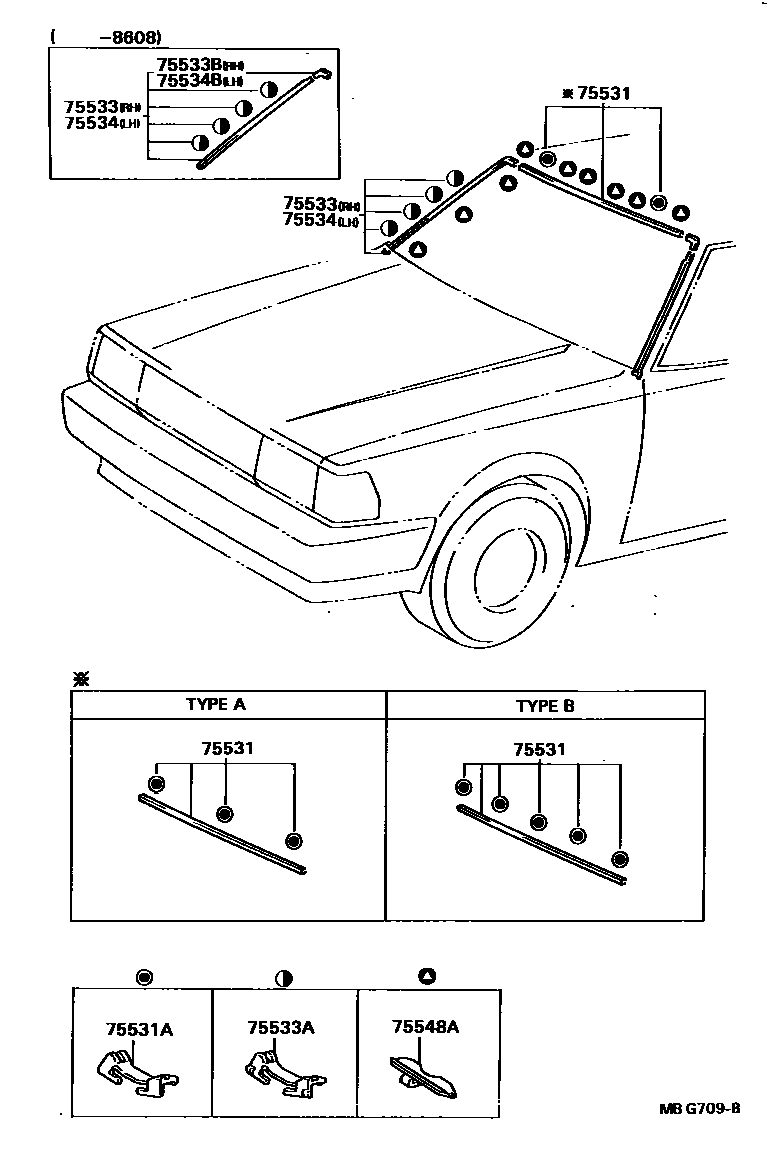

FRONT MOULDING

0001 1 0002 1

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-22090iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

TYPE A

main75531-22100iGX71,MX73,RX70,72..HT198504-198808

main75531-22110iGX71..RHD198410-198808

TYPE B

75531ACLIP, WINDSHIELD MOULDING SET, NO.1

main75545-22040iGX71,LX7#,MX7#,RX7#,YX70198408-198808

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-22140iGX71,LX7#,MX7#,RX70,YX70..SED,WG198408-198608

main75533-22180iGX71,LX70,MX73,RX7#,YX70..SED,WG198608-198808

main76003-22020iGX71,MX73,RX70,72..HT198504-198808

75533ACLIP, WINDSHIELD SIDE MOULDING, RH

main75546-22050iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

75533BCOVER, WINDSHIELD MOULDING JOINT, UPPER RH

main75541-22020iGX71,LX7#,MX7#,RX70,YX70..SED,WG198408-198608

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-22120iGX71,LX70,MX73,RX7#,YX70..SED,WG198608-198808

main75534-22130iGX71,LX7#,MX7#,RX70,YX70..SED,WG198408-198608

main76004-22020iGX71,MX73,RX70,72..HT198504-198808

75534BCOVER, WINDSHIELD MOULDING JOINT, UPPER LH

main75542-22020iGX71,LX7#,MX73,RX70..SED,WG198408-198608

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-22100iRX72..ME;GX71,LX7#,MX7#,RX70,71,YX70198408-198610

main75548-22101iGX71,LX70,MX73,RX7#,YX70198610-198808

8 parts on this diagram · 2 diagrams in section
