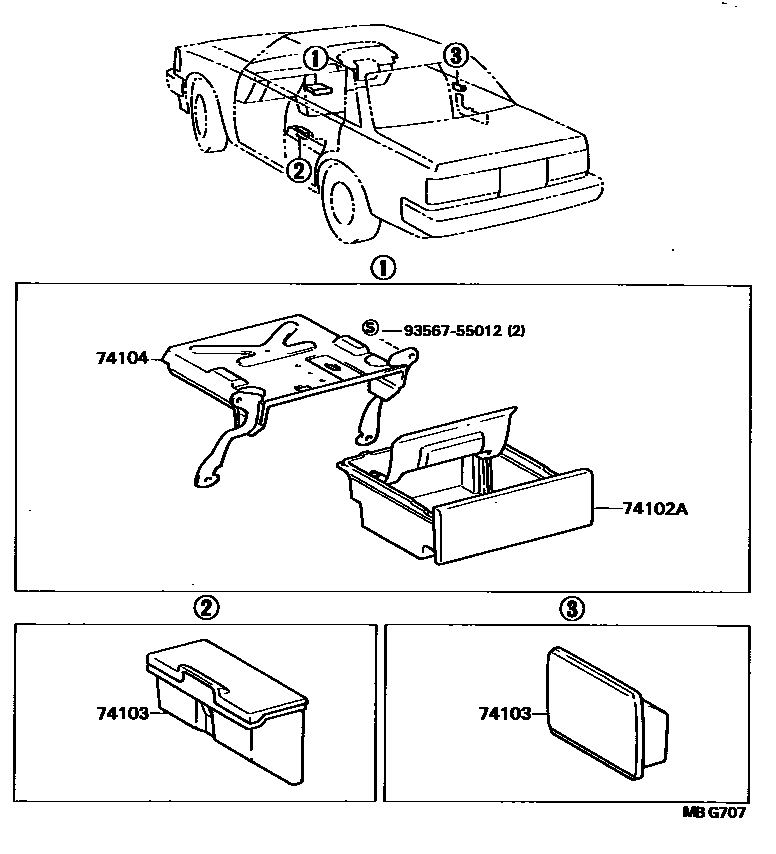

ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-22060iGX71,LX7#,MX7#,RX7#,YX70..GL,GT,STD,XL198408-198808

main74102-22070iGX71,MX73..GD,GLX,GTX198408-198808

74103RECEPTACLE SUB-ASSY, ASH, NO.1

main74130-22080iMX73..(GL,GT)..(ARL,GEN,ME)198408-198808

ARMREST SIDE

main74130-22090-02iGX71,LX7#,MX7#,RX70..(SED,WG)..(GL,XL)198408-198808

MAROON,RED/MAROON

sub74130-22090

main74130-22090-03iGX71,LX7#,MX7#,RX70,YX70..(SED,WG)..(GL,STD,XL)198408-198808

GRAY,COOL GRAY

sub74130-22090

main74130-22090-04iLX70,RX7#..GEN198608-198808

BLUE,DARK BLUE

sub74130-22090

main74130-22090-05iRX70,YX70..SA198408-198612

BEIGE,BEIGE

sub74130-22090

main74130-22090-12iLX70,RX7#..GEN198608-198808

MAROON,MAROON

sub74130-22090

main74130-22090-15iRX72..XL..ME198608-198808

BEIGE,DARK BEIGE

sub74130-22090

main74130-22100iGX71,MX73..GD,GLX,GTX198408-198808

ARMREST SIDE

74104RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1

main74104-22100iGX71,LX7#,MX7#,RX7#,YX70198408-198808

9356755012

main93567-55012

4 parts on this diagram · 1 diagram in section
