BATTERY CARRIER

74411CARRIER, BATTERY

main74411-22100iLX7#198408-198608

125D38L

main74431-14040iLX70198608-198808

main74431-22010iRX70..RHD..GEN;RX70..LHD..MTM198408-198608

NS40ZA,NS60

main74431-22030iRX70..WG..GEN198608-198705

TRINIDAD SPEC

main74431-22040iGX71,MX73198608-198808

74413BOLT, BATTERY CLAMP

main74451-14010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

D=5.35

main74451-22020iLX7#198408-198808

D=7.10

74453SUPPORT, BATTERY CARRIER

main74414-22010iLX7#198408-198808

74474PAD, BATTERY

main74471-30080×2iGX71,LX7#,MX73,RX70198408-198411

main74473-22010iGX71,LX7#,MX7#,RX7#,YX70198411-198808

RR

main74474-22010iGX71,LX7#,MX7#,RX7#,YX70198411-198808

FR

74481CLAMP, BATTERY HOLD DOWN

main74404-22170iRX70,72..SED..RHD..GEN;RX7#..(HT,SED)..LHD..5F198608-198808

main74404-22180iLX70,MX73198608-198808

INDONESIA SPEC

main74404-22190iRX70..4FC..GL;RX70..SED..XL..GEN198608-198705

TRINIDAD SPEC

main74404-22200iGX71..GEN198608-198808

main74404-22210iLX70198608-198808

COLD SPEC

main74404-22220iGX71..RHD..GEN198509-198608

NS60,NEW ZEALAND SPEC

9017906097

main90179-06097

9165140614

main91651-40614

9165540618

main91655-40618

9166540618

main91665-40618

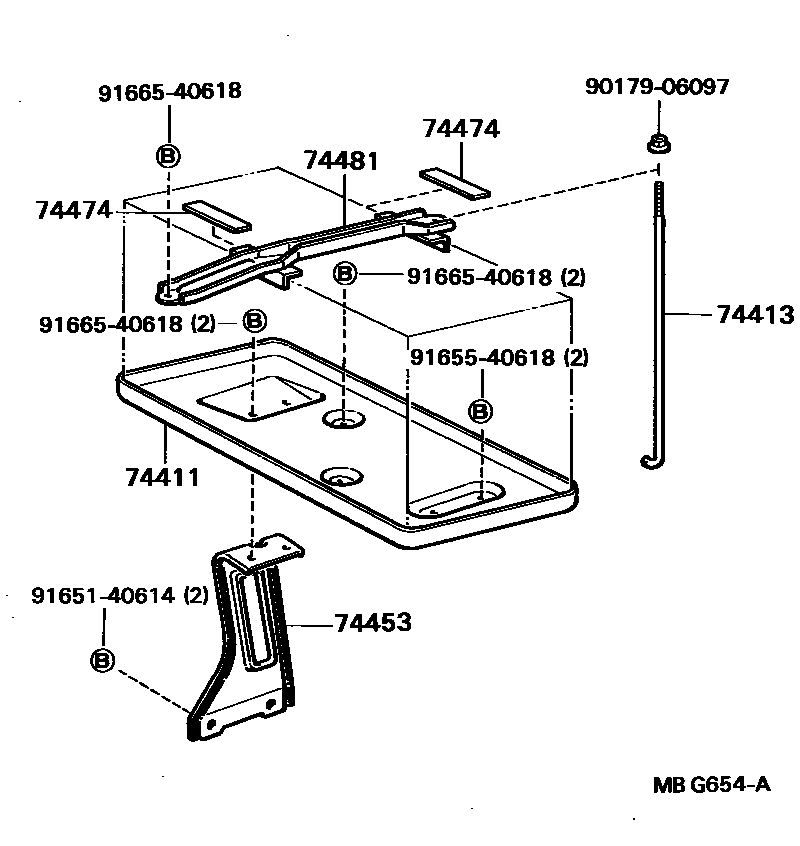

9 parts on this diagram · 1 diagram in section
