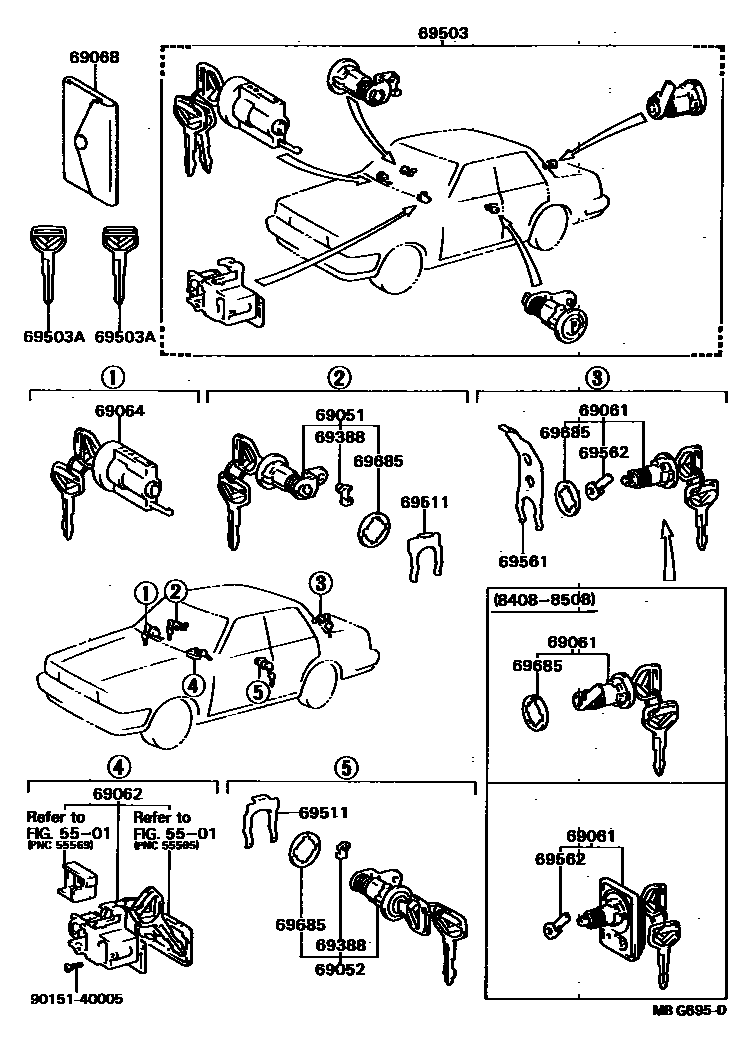

LOCK CYLINDER SET

0001 1 0002 1

5501

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-22120iMX73..GL..ARL198408-198608

sub69051-20190

main69051-22121iGX71..LHD198608-198808

sub69051-22260

main69051-22140iMX73..GEN,SA;GX71,MX73..RHD..EFI198408-198608

sub69051-22141

main69051-22141iGX71,MX73..RHD..GLX198608-198808

main69051-22150iGX71,LX71,MX73..EUR198408-198608

main69051-22180iMX73..GLX..SA198709-198808

sub69051-22181

main69051-23050iRX70..WG198411-198608

sub69051-23051

main69051-23051iRX70,72..WG..RHD198608-198808

main69051-23070iLX70,MX72..EUR198411-198608

main69051-23080iRX70,72..WG..LHD198608-198808

sub69051-23051

main69052-22190iMX73..GLX..SA198709

sub69052-22191

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-22120iGX71..ME;GX71..RHD198408-198608

main69052-22121iMX73..GL,GT198608-198808

sub69052-22260

main69052-22130iGX71..LHD..GEN198408-198608

sub69052-22140

main69052-22131iMX73..GD198608-198808

sub69052-22141

main69052-22150iGX71,LX71,MX73..EUR198408-198608

main69052-22160iMX73..GTX198504-198608

main69052-22161iMX73..GTX198608-198808

main69052-22190iMX73..GLX..SA198709-198808

sub69052-22191

main69052-23050iRX70..WG198411-198608

sub69052-23051

main69052-23051iRX70,72..WG..RHD198608-198808

main69052-23070iLX70,MX72..EUR198411-198608

main69052-23080iRX70,72..WG..LHD198608-198808

sub69052-23051

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-22140iGX71,LX70,MX73,RX70,YX70..(HT,SED)..(ARL,GEN,ME,SA)198408-198608

sub69055-22150

main69055-22141iGX71,MX73,RX70,72,YX70..SED..SA198608-198709

main69055-22160iGX71,LX71,MX73..EUR198408-198508

main69055-22161iGX71,LX71,MX73..EUR198508-198608

main69055-22171iMX73..GLX..ARL198508-198808

sub69055-22172

main69055-22172iGX71,LX70,RX7#..(HT,SED)..(GL,GLX,GT)198608-198808

main69055-22190iMX73..GLX..SA198709-198808

sub69055-22191

main69055-22210iRX70..SED..XL..(GEN,ME)198508-198608

sub69055-22211

main69055-22211iMX73..RHD..GL198608-198808

main69055-22230iGX71,MX73,RX72,YX70..SED..SA198709-198808

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-22020-02iGX71,MX73,RX70,72..SED..SA198408-198808

MAROON,MAROON

sub69056-22020

sub69056-22130

sub55565-22010

sub55569-22020

main69056-22020-03iGX71,MX73,RX70,72,YX70..SED..SA198408-198808

GRAY,COOL GRAY

sub69056-22020

sub69056-22130

sub55565-22010

sub55569-22020

main69056-22020-04iGX71,LX70,MX73,RX7#..(HT,SED)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub69056-22020

sub69056-22130

sub55565-22010

sub55569-22020

main69056-22020-05iGX71,LX70,MX73,RX70,YX70..(HT,SED)..(ARL,GEN,ME,SA)198408-198612

BEIGE,BEIGE

sub69056-22020

sub69056-22130

sub55565-22010

sub55569-22020

main69056-22020-12iGX71,LX70,MX73,RX7#..(HT,SED)..(ARL,GEN,ME)198608-198808

MAROON,MAROON

sub69056-22020

sub69056-22130

sub55565-22010

sub55569-22020

main69056-22020-15iGX71,LX70,MX73,RX7#..(HT,SED)..(ARL,GEN,ME)198608-198808

BEIGE,DARK BEIGE

sub69056-22020

sub69056-22130

sub55565-22010

sub55569-22020

main69056-22080-02iGX71,LX71,MX73..EUR198408-198608

MAROON,MAROON

sub69056-22080

main69056-22080-03iGX71,LX71,MX73..EUR198408-198608

GRAY,COOL GRAY

sub69056-22080

main69056-22080-05iGX71,LX71,MX73..EUR198408-198608

BEIGE,BEIGE

sub69056-22080

main69056-23010-02iRX70..WG198411-198608

MAROON,MAROON

sub69056-23010

sub69056-23011

main69056-23010-03iRX70..WG198411-198608

GRAY,COOL GRAY

sub69056-23010

sub69056-23011

main69056-23010-04iRX70,72..WG..LHD198608-198808

BLUE,DARK BLUE

sub69056-23010

sub69056-23011

main69056-23010-05iRX70..WG198411-198608

BEIGE,BEIGE

sub69056-23010

sub69056-23011

main69056-23010-12iRX70,72..WG..LHD198608-198808

MAROON,MAROON

sub69056-23010

sub69056-23011

main69056-23010-15iRX70,72..WG..LHD198608-198808

BEIGE,DARK BEIGE

sub69056-23010

sub69056-23011

main69056-23011-02iRX70,72..WG..RHD198608-198808

MAROON,MAROON

sub69056-23011

sub69056-22130

sub55565-22010

sub55569-22020

main69056-23011-03iRX70,72..WG..RHD198608-198808

GRAY,MEDIUM GRAY

sub69056-23011

sub69056-22130

sub55565-22010

sub55569-22020

main69056-23011-04iRX70,72..WG..RHD..GEN198608-198808

BLUE,DARK BLUE

sub69056-23011

sub69056-22130

sub55565-22010

sub55569-22020

main69056-23011-05iRX70,72..WG..RHD198608-198808

BEIGE,DARK BEIGE

sub69056-23011

sub69056-22130

sub55565-22010

sub55569-22020

main69056-23040-02iLX70,MX72..EUR198411-198608

MAROON,MAROON

main69056-23040-03iLX70,MX72..EUR198411-198608

GRAY,COOL GRAY

main69056-23040-05iLX70,MX72..EUR198411-198608

BEIGE,BEIGE

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-22050iRX70,YX70..SED..RHD198408-198608

sub69057-22060

main69057-22051iRX70,72,YX70..SED..SA198608-198808

sub69057-22180

main69057-22060iRX70..SED..SA;GX71,MX73,RX70..RHD..(GL,GLX)198408-198608

W/LAMP

main69057-22061iRX72..RHD..GL198705-198808

W/LAMP

sub69057-22170

main69057-22061iGX71,MX73..RHD..(GL,GLX)198608-198808

sub69057-22170

main69057-22070iLX70,RX70..(HT,SED)..LHD198408-198608

sub69057-22080

main69057-22071iLX70,MX73,RX7#..GD,GL,GT,GTX198608-198808

sub69057-22081

main69057-22100iGX71,LX71,MX73..LHD..EUR198408-198608

main69057-23020iRX70..WG..5F..XL198411-198608

main69057-23021iRX70,72..WG..RHD198608-198808

sub69057-91607

main69057-23040iLX70,MX72..EUR198411-198608

main69057-23050iRX70..WG..LHD198411-198608

sub69057-23030

main69057-23051iRX70,72..WG..LHD198608-198808

sub69057-23031

main69057-30050iMX73..RHD..EUG198408-198608

69068COVER SUB-ASSY, KEY

main69555-20010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

69388SNAP, ROD(FOR DOOR LOCK)

main69759-20080iGX71,LX7#,MX7#,RX7#,YX70198408

RH,FR DOOR

main69759-20090iGX71,LX7#,MX7#,RX7#,YX70198408

LH,FR DOOR

main69759-20090iLX70,MX72,RX70,72..WG198411

BACK DOOR

69503CYLINDER SET, LOCK

main69005-22251iGX71,MX73..RHD..GLX..(ARL,GEN)198508-198608

main69005-22280iLX70,RX70..(HT,SED)..LHD198408-198508

main69005-22281iRX70..SED..LHD..XL..GEN198508-198608

main69005-22290iRX70,YX70..SED..SA198408-198608

main69005-22320iMX73..RHD..EUG198408-198508

main69005-22321iMX73..RHD..EUG198508-198608

main69005-22330iGX71,LX71,MX73..LHD..EUR198408-198508

main69005-22331iGX71,LX71,MX73..LHD..EUR198508-198608

main69005-22340iRX70..RHD..GL198408-198508

W/POWER WINDOW

main69005-22342iRX70..RHD..GL198508-198608

W/POWER WINDOW

main69005-22350iGX71,MX73..RHD..(ARL,GEN,SA)198408-198608

main69005-22360iGX71,MX73..LHD..(GD,GLX)198408-198508

main69005-22362iGX71,MX73..LHD..(GD,GLX)198508-198608

main69005-22380iMX73..GTX198504-198508

SAUDI ARABIA SPEC

sub69005-22381

main69005-22381iMX73..GTX198508-198608

SAUDI ARABIA SPEC

sub69005-22382

main69005-22383iMX73..GTX198608-198808

main69005-22391iRX70..RHD..GL198508-198608

main69005-22401iGX71..ME198508-198608

main69005-22410iMX73..GL..ARL198508-198608

main69005-22420iRX70..SED..RHD..XL..GEN198508-198608

main69005-22531iMX73,RX70,72,YX70..(STD,XL)..SA198608-198709

main69005-22532iMX73,RX72,YX70..(STD,XL)..SA198709-198808

sub69005-22533

main69005-22541iRX70,72..RHD..GL198608-198808

W/POWER WINDOW

main69005-22551iGX71,MX73..GLX..SA198608-198709

main69005-22552iGX71..SA198709-198808

main69005-22561iRX70,72..SED..LHD..XL..GEN198608-198808

main69005-22571iGX71,MX73..LHD..(GD,GLX,GTX)198608-198808

main69005-22581iRX70,72..RHD..GL198608-198808

main69005-22591iLX70,MX73,RX7#..(HT,SED)..LHD..(GL,GT)198608-198808

main69005-22601iMX73..RHD..GL198608-198808

main69005-22620iGX71..RHD198608-198808

main69005-22630iRX70,72..SED..RHD..XL..GEN198608-198808

main69005-22640iMX73..GLX..SA198709-198808

sub69005-22641

main69005-23020iRX70..WG..5F..XL198411-198608

main69005-23050iLX70,MX72..EUR198411-198608

main69005-23060iRX70..WG..LHD198411-198608

sub69005-23100

main69005-23081iRX70,72..WG..RHD198608-198808

sub69005-91642

main69005-23101iRX70,72..WG..LHD198608-198808

69503AKEY, BLANK

main90999-00084iGX71,LX71,MX73..EUR198408-198608

MASTER KEY,W(*68),MASTER

sub90999-00214

main90999-00088iGX71,LX71,MX73..EUR198408-198608

SUB KEY,W(*68),SUB

main90999-00097iLX70,MX72..EUR198411-198608

MASTER KEY,W(*68),MASTER

main90999-00098iLX70,MX72..EUR198411-198608

SUB KEY,W(*68),SUB

main90999-00099iGX71,LX70,MX73,RX7#,YX70..(HT,SED)..(ARL,GEN,ME,SA)198408-198808

MASTER KEY,MASTER

main90999-00100iGX71,LX70,MX73,RX7#,YX70..(HT,SED)..(ARL,GEN,ME,SA)198408-198808

SUB KEY,SUB

main90999-00107iRX70,72..WG198411-198808

MASTER KEY,MASTER

main90999-00108iRX70,72..WG198411-198808

SUB KEY,SUB

main90999-00109iRX70,72..WG..LHD198608-198808

MASTER KEY,W(*68),MASTER,W/PROTECTOR

sub90999-00123

main90999-00118iGX71,LX70,MX73,RX7#..HT,SED198608-198808

MASTER KEY,W(*68),MASTER,W/PROTECTOR

main90999-00123iRX70,72..WG..RHD..GEN198608-198808

MASTER KEY,W(*68),MASTER,W/PROTECTOR

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-32010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69561-22050iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

69562LEVER, LUGGAGE COMPARTMENT DOOR LOCK

main69562-22010iGX71,MX73,RX7#..(GD,GL,GLX,GT,GTX)..(GEN,ME)198508-198808

main69562-22020iMX73..RHD..GL198508-198808

69685PAD, LOCK CYLINDER

main69513-32010iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

FR DOOR

main69513-87001iLX70,MX72,RX70,72..WG198411-198808

FR DOOR

sub69513-32010

main69563-32010iMX73198408-198808

LUGGAGE

9015140005

main90151-40005

15 parts on this diagram · 2 diagrams in section
