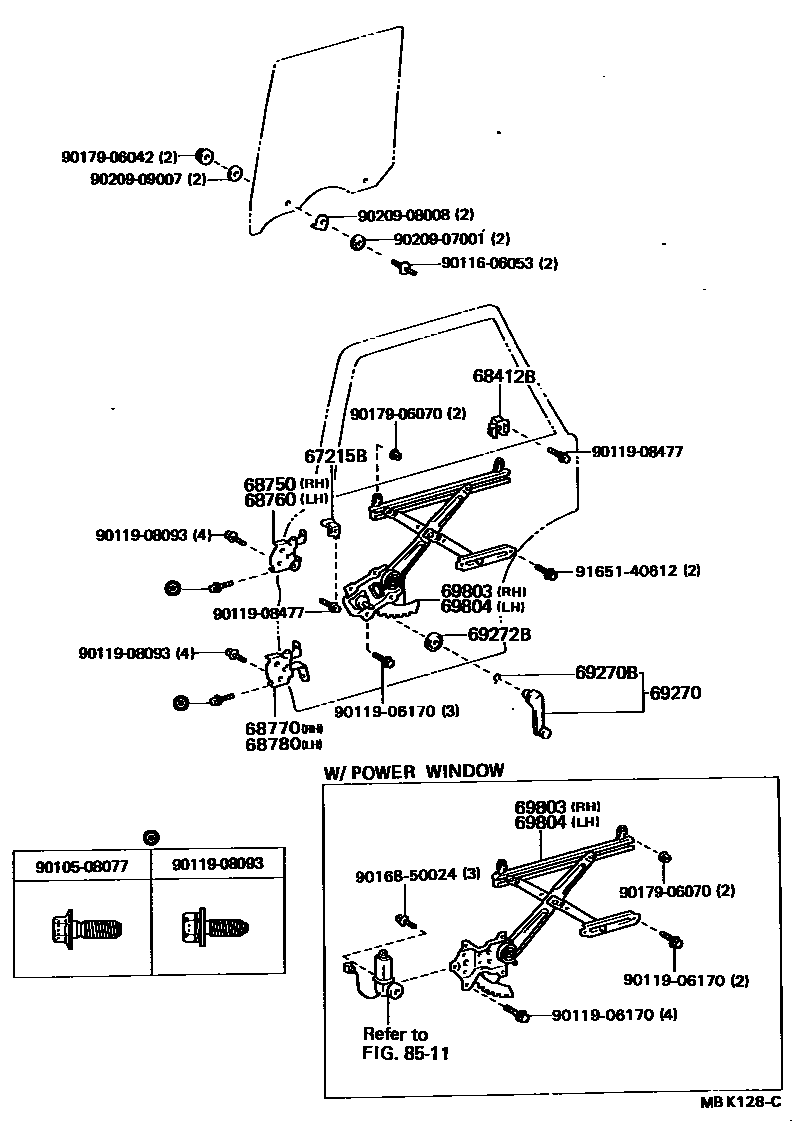

REAR DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1 0003 1

67215BSTOP, REAR DOOR WINDOW, UPPER

main67215-22020iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

68412BSTOP SUB-ASSY, DOOR WINDOW, UPPER

main67211-30040iGX71,MX73,RX70,72..HT198504-198808

main67212-22010iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20050iGX71,MX73,RX70,72..HT198504-198808

main68750-32010iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20040iGX71,MX73,RX70,72..HT198504-198808

main68760-32010iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-20040iGX71,MX73,RX70,72..HT198504-198808

main68770-32010iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-20040iGX71,MX73,RX70,72..HT198504-198808

main68780-32010iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-14030-22iMX73,RX70,72..XL..SA198408-198808

MAROON,RED/MAROON

sub69260-14030

main69260-14030-35iRX70,YX70..SA198408-198612

BEIGE,BEIGE

sub69260-14030

main69260-14030-43iMX73,RX70,72,YX70..(STD,XL)..SA198408-198808

GRAY,COOL GRAY

sub69260-14030

main69260-14030-55iMX73,RX70,72,YX70..(STD,XL)..SA198612-198808

BEIGE,DARK BEIGE

sub69260-14030

main69260-22030-02iGX71..SED..ME198408-198608

MAROON,MAROON

sub69260-22030

main69260-22030-03iGX71..SED..ME198408-198608

GRAY,COOL GRAY

sub69260-22030

main69260-22030-05iGX71..SED..ME198408-198608

BEIGE,BEIGE

sub69260-22030

main69260-22030-14iRX72..XL..ME198608-198808

DARK BLUE

sub69260-22030

main69260-22030-15iRX72..XL..ME198608-198808

DARK BEIGE

sub69260-22030

main69260-22030-22iRX72..XL..ME198608-198808

MAROON

sub69260-22030

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002iGX71,LX7#,MX7#,RX70,YX70..(SED,WG)..(GL,STD,XL)198408-198808

sub90520-01274

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iRX7#..GEN,SA198408-198808

NATURAL WHITE

sub69285-22010

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-22080iGX71,LX7#,MX7#,RX7#..(SED,WG)..(GD,GL,GLX)198408-198808

W/POWER WINDOW

main69803-22100iGX71,MX73,RX70,72..HT198504-198808

main69830-22120iLX70,RX70,71,YX70198408-198808

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-22080iGX71,LX7#,MX7#,RX7#..(SED,WG)..(GD,GL,GLX)198408-198808

W/POWER WINDOW

main69804-22100iGX71,MX73,RX70,72..HT198504-198808

main69840-22120iRX72..XL..ME198408-198808

8511

9010508077

main90105-08077

9011606053

main90116-06053

9011906170

main90119-06170

9011908093

main90119-08093

9011908477

main90119-08477

9016850024

main90168-50024

9017906042

main90179-06042

9017906070

main90179-06070

9020907001

main90209-07001

9020908008

main90209-08008

9020909007

main90209-09007

9165140612

main91651-40612

24 parts on this diagram · 3 diagrams in section
