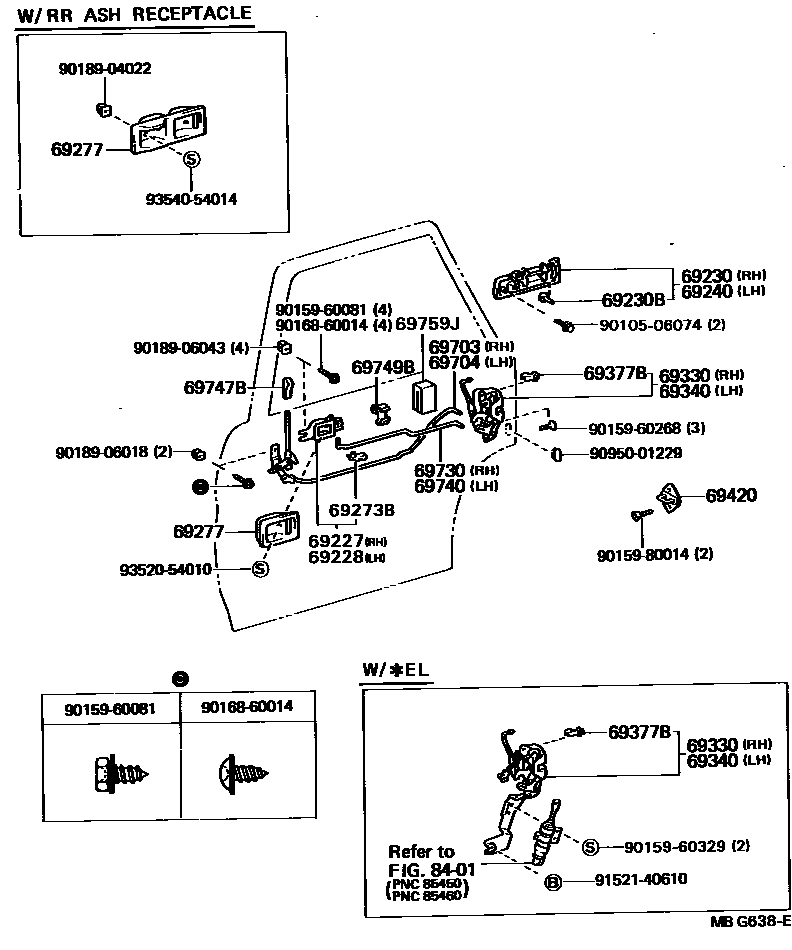

REAR DOOR LOCK & HANDLE

0001 1 0002 1

69227HANDLE, REAR DOOR INSIDE, RH

main69205-22020-02iMX73,RX70,72..XL198408-198808

MAROON,RED

sub69205-22020

main69205-22020-03iRX70,YX70..STD,XL198408-198808

GRAY,COOL GRAY

sub69205-22020

main69205-22020-04iRX70,72..XL..(GEN,ME)198608-198808

BLUE,DARK BLUE

sub69205-22020

main69205-22020-05iRX70,YX70..STD,XL198408-198612

BEIGE,BEIGE

sub69205-22020

main69205-22020-15iRX70,72..XL..(GEN,ME)198608-198808

BEIGE,DARK BEIGE

sub69205-22020

main69205-22030iGX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX198408-198808

69228HANDLE, REAR DOOR INSIDE, LH

main69206-22020-02iMX73,RX70,72..XL198408-198808

MAROON,RED

sub69206-22020

main69206-22020-03iMX73,RX70,72,YX70..(STD,XL)..SA198408-198808

GRAY,COOL GRAY

sub69206-22020

main69206-22020-04iRX70,72..XL..(GEN,ME)198608-198808

BLUE,DARK BLUE

sub69206-22020

main69206-22020-05iRX70,YX70..SA198408-198612

BEIGE,BEIGE

sub69206-22020

main69206-22020-15iRX70,72..XL..(GEN,ME)198608-198808

BEIGE,DARK BEIGE

sub69206-22020

main69206-22030iGX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX198408-198808

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-22080iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

main69230-22050iGX71,MX73,RX70,72..HT198504-198808

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021iGX71,LX7#,MX7#,RX7#,YX70198408-198808

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-22070iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

main69240-22050iGX71,MX73,RX70,72..HT198504-198808

69273BSNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR)

main69759-20060iRX70..XL198408-198410

LH

main69759-20070iRX70..XL198408-198410

RH

main69759-20100iGX71,LX7#,MX73,RX70..GL,GLX198408-198410

LH

main69759-20110iGX71,LX7#,MX73,RX70..GL,GLX198408-198410

RH

main69759-22040iMX73,RX70,72,YX70..STD,XL198410-198808

RH

main69759-22050iMX73,RX70,72,YX70..STD,XL198410-198808

LH

main69759-22060iGX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX198410-198808

RH

main69759-22070iGX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX198410-198808

LH

69277BEZEL, REAR DOOR INSIDE HANDLE

main69277-22050-02iGX71,MX73..GLX..SA198408-198808

W/POWER WINDOW,MAROON,RED

sub69277-22050

main69277-22050-03iGX71,MX73..GLX..SA198408-198808

W/POWER WINDOW,GRAY,COOL GRAY

sub69277-22050

main69277-22050-04iGX71,LX70,MX73,RX7#..(GD,GL,GLX,GT,GTX)..(ARL,GEN,ME)198608-198808

W/POWER WINDOW,BLUE,DARK BLUE

sub69277-22050

main69277-22050-05iGX71,MX73..SA198408-198612

W/POWER WINDOW,BEIGE,BEIGE

sub69277-22050

main69277-22050-12iGX71,LX70,MX73,RX7#..(GD,GL,GLX,GT,GTX)..(ARL,GEN,ME)198608-198808

W/POWER WINDOW,MAROON,MAROON

sub69277-22050

main69277-22050-15iGX71,MX73..GLX..SA198608-198808

W/POWER WINDOW,BEIGE,DARK BEIGE

sub69277-22050

main69297-22010-02iGX71,LX7#,MX7#,RX70..(SED,WG)..(GL,XL)198408-198808

RH,MAROON,RED

sub69297-22010

main69297-22010-03iRX70,72,YX70..SA198408-198808

RH,GRAY,COOL GRAY

sub69297-22010

main69297-22010-04iRX72..XL..ME198608-198808

RH,BLUE,DARK BLUE

sub69297-22010

main69297-22010-05iRX70,YX70..SA198408-198612

RH,BEIGE,BEIGE

sub69297-22010

main69297-22010-12iRX72..XL..ME198608-198808

RH,MAROON,MAROON

sub69297-22010

main69297-22010-15iRX7#..GEN198608-198808

RH,BEIGE,DARK BEIGE

sub69297-22010

main69298-22010-02iRX70,72..SA198408-198808

LH,MAROON,RED

sub69298-22010

main69298-22010-03iMX73..XL198408-198808

LH,GRAY,COOL GRAY

sub69298-22010

main69298-22010-04iRX7#..GEN198608-198808

LH,BLUE,DARK BLUE

sub69298-22010

main69298-22010-05iRX70,YX70..SA198408-198612

LH,BEIGE,BEIGE

sub69298-22010

main69298-22010-12iRX7#..GEN198608-198808

LH,MAROON,MAROON

sub69298-22010

main69298-22010-15iLX70,RX70,71..GEN198608-198808

LH,BEIGE,DARK BEIGE

sub69298-22010

69330LOCK ASSY, REAR DOOR, RH

main69330-22110iRX70..WG..ME198411-198508

EXCL/SAUDI ARABIA

main69330-22110iGX71,LX7#,MX7#,RX70..(GL,XL)..(EUR,GEN,SA)198408-198508

main69330-22111iRX70,72,YX70..SA198508-198808

main69330-22120iGX71,LX7#,MX73,RX70..(GL,GLX)..(EUR,GEN)198408-198409

W/*EL

main69330-22121iMX73..GD198411-198508

W/*EL,EXCL/SAUDI ARABIA

main69330-22121iGX71,LX7#,MX7#,RX70..(GL,GLX)..(EUR,GEN,SA)198409-198508

W/*EL

main69330-22121iRX70..WG..GL198411-198508

W/*EL & EXCL/SAUDI ARABIA

main69330-22122iGX71,MX73..GLX..SA198508-198709

W/*EL

main69330-22130iMX73..ARL198408-198409

W/*EL

sub69330-22180

main69330-22131iMX73..ARL198409-198808

W/*EL

main69330-22131iRX70..WG..GL198411-198508

W/*EL,SAUDI ARABIA SPEC

main69330-22140iGX71,RX70..SED..ME198408-198808

main69330-22140iRX70..WG..ME198411-198508

SAUDI ARABIA SPEC

main69330-22160iGX71,MX73,RX70..HT198504-198508

main69330-22161iGX71,MX73,RX70,72..HT198508-198808

main69330-22181iMX73..ARL198609-198808

W/*EL

main69330-22200iRX72,YX70..SA198609-198808

main69330-22210iGX71,MX73..GLX..SA198609-198808

W/*EL

69340LOCK ASSY, REAR DOOR, LH

main69340-22120iGX71,LX7#,MX7#,RX70..(GL,XL)..(EUR,GEN,SA)198408-198508

main69340-22120iRX70..WG..ME198411-198508

EXCL/SAUDI ARABIA

main69340-22121iMX73..XL..SA198508-198808

main69340-22130iGX71,LX7#,MX73,RX70..(GL,GLX)..(EUR,GEN)198408-198409

W/*EL

main69340-22131iMX73..GD198411-198508

W/*EL,EXCL/SAUDI ARABIA

main69340-22131iMX73..GD198411-198508

W/*EL & EXCL/SAUDI ARABIA

main69340-22131iGX71,LX7#,MX7#,RX70..(GL,GLX)..(EUR,GEN,SA)198409-198508

W/*EL

main69340-22132iGX71,LX7#,MX7#,RX70..(GL,GLX)..(EUR,GEN,SA)198508-198709

W/*EL

main69340-22140iGX71,RX70..GL..ME198408-198409

W/*EL

sub69340-22190

main69340-22141iRX70,72..WG..GL198409-198808

W/*EL

main69340-22141iMX73..GD198411-198508

W/*EL,SAUDI ARABIA SPEC

main69340-22150iMX73..XL..ME198408-198808

main69340-22150iRX70..WG..ME198411-198508

SAUDI ARABIA SPEC

main69340-22170iGX71,MX73,RX70..HT198504-198508

main69340-22171iGX71,MX73,RX70,72..HT198508-198808

main69340-22191iMX73..ARL198609-198808

W/*EL

main69340-22200iGX71,MX73..GLX..SA198709-198808

W/*EL

main69340-22210iMX73..XL..SA198609-198808

main69340-22220iGX71,LX70,MX73,RX7#..(GL,GLX)..GEN198609-198808

W/*EL

69377BSNAP, REAR DOOR LOCK CONTROL ROD

main69759-20040iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

LH

main69759-20050iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

RH

main69759-22030iGX71,MX73,RX70,72..HT198504-198808

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-87001iGX71,LX7#,MX7#,RX7#,YX70198408-198808

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69770-22040iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

main69770-22050iGX71,MX73,RX70,72..HT198504-198808

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69780-22040iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

main69780-22050iGX71,MX73,RX70,72..HT198504-198808

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69713-22040iGX71,LX7#,MX73,RX70198408-198409

main69713-22041iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198409-198808

main69713-22050iGX71,MX73,RX70,72..HT198504-198808

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69714-22040iGX71,LX7#,MX73,RX70198408-198409

main69714-22041iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198409-198808

main69714-22050iGX71,MX73,RX70,72..HT198504-198808

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-22010iGX71,MX73,RX70,72..HT198504-198808

main69741-30030-03iGX71,MX73,RX70,72,YX70..SA198408-198808

GRAY,COOL GRAY

sub69741-30030

main69741-30030-12iGX71,LX7#,MX7#,RX70..SED,WG198408-198808

MAROON,RED/MAROON

sub69741-30030

main69741-30030-15iGX71,LX7#,MX7#,RX70,YX70..SED,WG198408-198612

BEIGE,BEIGE

sub69741-30030

main69741-30030-22iGX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME)198608-198808

MAROON,MAROON

sub69741-30030

main69741-30030-24iGX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub69741-30030

main69741-30030-25iGX71,LX70,MX73,RX7#,YX70..SED,WG198608-198808

BEIGE,DARK BEIGE

sub69741-30030

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12040iGX71,LX7#,MX7#,RX7#,YX70198408-198808

TYPE A

main69749-20010iGX71,MX73,RX70,72..HT198504-198808

TYPE B

69759JSILENCER, DOOR LOCK LINK

main69759-30021iGX71,LX7#,MX7#,RX70,YX70..SED,WG198408-198608

8401

9010506074

main90105-06074

9015960081

main90159-60081

9015960268

main90159-60268

9015960329

main90159-60329

9015980014

main90159-80014

9016860014

main90168-60014

9018904022

main90189-04022

9018906018

main90189-06018

9018906043

main90189-06043

9095001229

main90950-01229

9152140610

main91521-40610

9352054010

main93520-54010

9354054014

main93540-54014

32 parts on this diagram · 2 diagrams in section
