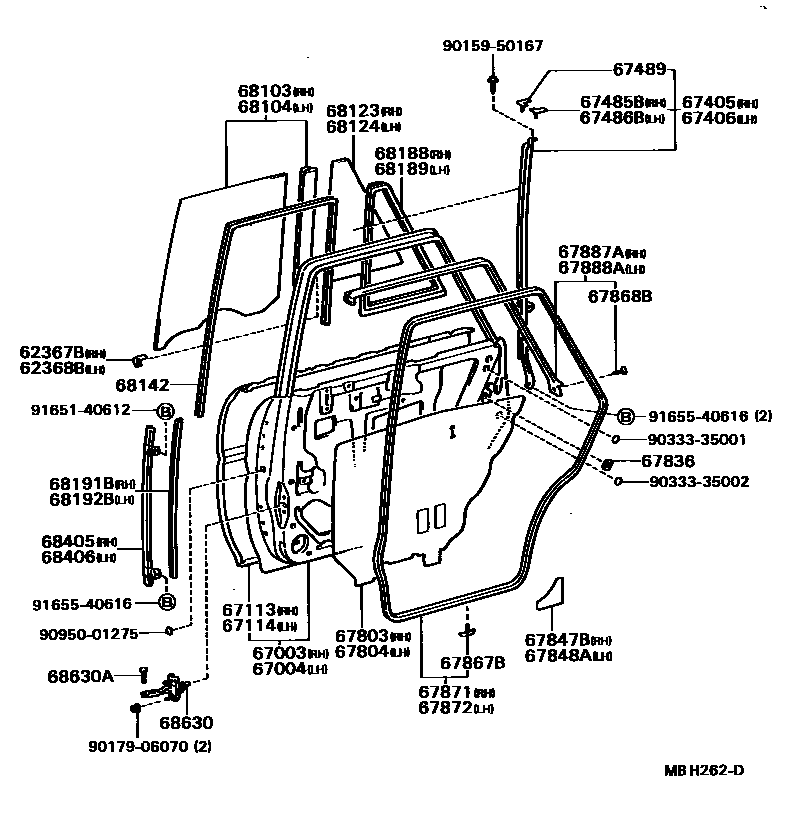

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

62367BCLIP, DOOR WINDOW GLASS, REAR RH

main62367-22030iGX71,MX73..GLX..SA¥740198408-198808

W/FRAME MOULDING

main62367-22040iMX73..XL¥810198408-198808

W/O FRAME MOULDING

main62367-22050iMX73..TWC..GEN¥740198608-198808

W/FRAME MOULDING

62368BCLIP, DOOR WINDOW GLASS, REAR LH

main62368-22040iMX73..GL..ARL;MX73..GLX..(ARL,EUR)¥740198408-198808

W/FRAME MOULDING

main62368-22050iRX72..XL..GEN¥810198408-198808

W/O FRAME MOULDING

main62368-22060iMX73..TWC..GEN¥740198608-198808

W/FRAME MOULDING

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-22210iGX71,MX73,RX70,72..SED..ME¥56,200198408-198808

main67003-22210iGX71,MX73,RX70..SED..ME¥56,200198408-198508

SAUDI ARABIA SPEC

main67003-22230iGX71,LX7#,MX73,RX7#,YX70..SED..(EUR,GEN,SA)¥56,100198408-198808

main67003-22230iGX71,MX73,RX70..SED..ME¥56,100198408-198508

EXCL/SAUDI ARABIA

main67003-22340iGX71,MX73,RX70,72..HT198508-198808

main67003-22340iGX71,MX73,RX70..HT198504-198508

SAUDI ARABIA SPEC

main67003-22350iGX71,MX73,RX70..HT¥70,100198504-198508

EXCL/SAUDI ARABIA

sub67003-22340

main67003-23030iRX70,72..WG..ME¥56,200198508-198808

main67003-23030iRX70..WG..ME¥56,200198411-198508

SAUDI ARABIA SPEC

main67003-23050iRX70..WG..ME¥56,100198411-198508

EXCL/SAUDI ARABIA

main67003-23050iLX70,MX72,RX70,72..WG..(EUR,GEN,SA)¥56,100198411-198808

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-22220iMX73..ARL¥56,200198408-198808

main67004-22220iGX71,MX73,RX70..SED..ME¥56,200198408-198508

SAUDI ARABIA SPEC

main67004-22240iGX71,LX7#,MX73,RX7#,YX70..SED..(EUR,GEN,SA)¥56,100198408-198808

main67004-22240iGX71,MX73,RX70..SED..ME¥56,100198408-198508

EXCL/SAUDI ARABIA

main67004-22330iGX71,MX73,RX70..HT¥70,300198504-198508

SAUDI ARABIA SPEC

main67004-22330iGX71,MX73,RX70,72..HT¥70,300198508-198808

main67004-22340iGX71,MX73,RX70..HT¥70,100198504-198508

EXCL/SAUDI ARABIA

sub67004-22330¥70,300

main67004-23030iRX70,72..WG..ME¥56,200198508-198808

main67004-23030iRX70..WG..ME¥56,200198411-198508

SAUDI ARABIA SPEC

main67004-23050iLX70,MX72,RX70,72..WG..(EUR,GEN,SA)¥56,100198411-198808

main67004-23050iRX70..WG..ME¥56,100198411-198508

EXCL/SAUDI ARABIA

67113PANEL, REAR DOOR, OUTER RH

main67113-22110iGX71,LX7#,MX7#,RX7#,YX70..SED,WG¥23,000198408-198808

main67113-22140iGX71,MX73,RX70,72..HT¥23,300198504-198808

67114PANEL, REAR DOOR, OUTER LH

main67114-22110iGX71,LX7#,MX7#,RX7#,YX70..SED,WG¥23,000198504-198808

main67114-22140iGX71,MX73,RX70,72..HT¥23,300198408-198808

67405BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH

main67407-22050iGX71,LX7#,MX73,RX7#,YX70..SED¥5,100198408-198808

main67407-23010iLX70,MX72,RX70,72..WG¥5,100198411-198808

67406BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH

main67408-22050iGX71,LX7#,MX73,RX7#,YX70..SED¥5,100198408-198808

main67408-23010iLX70,MX72,RX70,72..WG¥5,100198411-198808

67485BSEAL, REAR DOOR DIVISION BAR, INSIDE, RH

main67485-22010iGX71,LX7#,MX7#,RX7#,YX70..SED,WG¥300198408-198808

67486BSEAL, REAR DOOR DIVISION BAR, INSIDE, LH

main67486-22010iGX71,LX7#,MX7#,RX7#,YX70..SED,WG¥300198408-198808

67489SEAL, REAR DOOR DIVISION BAR

main67487-22030iGX71,LX7#,MX7#,RX7#,YX70..SED,WG¥300198408-198808

RH

main67488-22030iGX71,LX7#,MX7#,RX7#,YX70..SED,WG¥300198408-198808

LH

67803COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH

main67841-22060iMX73..HT¥590198708-198808

main67841-22110iGX71,LX7#,MX7#,RX70,YX70..(SED,WG)..(EUR,GEN,ME,SA)¥740198408-198808

sub67841-22150¥720

main67841-22130iGX71,MX73,RX70,72..HT¥880198504-198708

sub67841-22160¥860

main67841-22140iMX73..HT¥400198708-198808

DUST PROOF

main67841-22150iGX71,LX70,MX73,RX7#..GEN,ME¥720198506-198808

DUST PROOF OR COLD SPEC

main67841-22150iLX70,RX70..LHD..GEN¥720198502-198506

CHINA SPEC

main67841-22150iMX73..ARL¥720198408-198808

main67841-22160iGX71,MX73,RX70,72..HT¥860198506-198708

DUST PROOF

67804COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH

main67841-22060iMX73..HT¥590198708-198808

main67841-22140iMX73..HT¥400198708-198808

DUST PROOF

main67841-22150iGX71,MX73,RX70,72,YX70..SA¥720198408-198808

main67841-22150iGX71,LX70,MX73,RX7#..GEN,ME¥720198506-198808

DUST PROOF OR COLD SPEC

main67841-22150iLX70,RX70..LHD..GEN¥720198502-198506

CHINA SPEC

main67841-22160iGX71,MX73,RX70,72..HT¥860198506-198708

DUST PROOF

main67842-22020iGX71,LX7#,MX7#,RX7#..(SED,WG)..(EUR,GEN,ME)¥740198408-198808

sub67841-22150¥720

main67842-22040iGX71,MX73,RX70,72..HT¥880198504-198708

sub67841-22160¥860

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-14010iMX73..(GL,XL)..ME¥250198601-198808

main67836-14010iGX71,LX70,MX73,RX70..ARL,GEN,ME¥250198506-198808

DUST PROOF

67847BSEAL, REAR DOOR VENT, RH NO.1

main67847-22020iLX70,RX70..LHD..GEN¥1,160198502-198506

CHINA SPEC

main67847-22020iMX73..ARL¥1,160198408-198808

main67847-22020iGX71,LX70,MX73,RX7#..GEN,ME¥1,160198506-198808

DUST PROOF OR COLD SPEC

67848ASEAL, REAR DOOR VENT, LH NO.1

main67848-22020iLX70,RX70..LHD..GEN¥1,160198502-198506

CHINA SPEC

main67848-22020iMX73..ARL¥1,160198408-198808

main67848-22020iGX71,LX70,MX73,RX7#..GEN,ME¥1,160198506-198808

DUST PROOF OR COLD SPEC

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-22020iGX71,LX7#,MX7#,RX7#,YX70¥170198408-198808

RH

main67868-22010iGX71,LX7#,MX7#,RX7#,YX70¥170198408-198808

LH

67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)

main67869-30020iGX71,LX7#,MX7#,RX7#,YX70¥220198408-198808

67871WEATHERSTRIP, REAR DOOR, RH

main67871-22100iGX71,LX7#,MX73,RX7#,YX70..SED¥6,600198408-198808

main67871-22120iGX71,MX73,RX70..HT¥5,500198504-198608

sub67871-22190¥5,500

main67871-22180iMX73,RX72..HT¥5,500198608-198808

main67871-23010iLX70,MX72,RX70,72..WG¥5,900198411-198808

67872WEATHERSTRIP, REAR DOOR, LH

main67872-22100iGX71,LX7#,MX73,RX7#,YX70..SED¥6,600198408-198808

main67872-22120iGX71,MX73,RX70..HT¥5,500198504-198608

sub67872-22190¥5,500

main67872-22180iMX73,RX72..HT¥5,500198608-198808

main67872-23010iLX70,MX72,RX70,72..WG¥5,900198411-198808

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-22010iGX71,LX7#,MX73,RX7#,YX70..SED¥3,810198408-198808

main67887-23010iLX70,MX72,RX70,72..WG¥3,920198411-198808

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-22010iGX71,LX7#,MX73,RX7#,YX70..SED¥3,810198408-198808

main67888-23010iLX70,MX72,RX70,72..WG¥3,920198411-198808

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-22050iGX71,LX7#,MX73,RX7#,YX70..SED¥17,800198408-198808

*TT,T=3.5,*TT,T=3.5

main68103-22060iGX71..SED..(GEN,ME)¥21,200198408-198808

*TEM,T=3.5,BRONZE,*TEM,T=3.5,BRONZE

main68103-23010iLX70,MX72,RX70,72..WG¥22,500198411-198808

*TT,T=3.5,*TT,T=3.5

main68113-22190iGX71,MX73,RX70,72..HT¥18,100198504-198808

*TT,T=5.0,*TT,T=5.0

main68113-22200iGX71,MX73,RX70,72..HT¥23,500198504-198808

*TT,T=5.0,BRONZE,*TT,T=5.0,BRONZE

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-22050iGX71,LX7#,MX73,RX7#,YX70..SED¥17,800198408-198808

*TT,T=3.5,*TT,T=3.5

main68104-22060iLX70,RX7#..SED..GL¥21,200198408-198808

*TEM,T=3.5,BRONZE,*TEM,T=3.5,BRONZE

main68104-23010iLX70,MX72,RX70,72..WG¥22,500198411-198808

*TT,T=3.5,*TT,T=3.5

main68114-22190iGX71,MX73,RX70,72..HT¥18,100198504-198808

*TT,T=5.0,*TT,T=5.0

main68114-22200iGX71,MX73,RX70,72..HT¥23,500198504-198808

*TT,T=5.0,BRONZE,*TT,T=5.0,BRONZE

68123GLASS, REAR DOOR WINDOW, RH

main68123-22140iGX71,LX7#,MX73,RX7#,YX70..SED¥4,220198408-198808

*TT,T=3.5,*TT,T=3.5

main68123-22150iMX73..(GD,GLX)..(EUR,GEN,ME)¥5,800198408-198808

*TEM,T=3.5,BRONZE,*TEM,T=3.5,BRONZE

main68123-23010iLX70,MX72,RX70,72..WG¥4,180198411-198808

*TT,T=3.5,*TT,T=3.5

68124GLASS, REAR DOOR WINDOW, LH

main68124-22130iGX71,LX7#,MX73,RX7#,YX70..SED¥4,220198408-198808

*TT,T=3.5,*TT,T=3.5

main68124-22140iLX70,RX7#..SED..GL¥5,800198408-198808

*TEM,T=3.5,BRONZE,*TEM,T=3.5,BRONZE

main68124-23010iLX70,MX72,RX70,72..WG¥4,180198411-198808

*TT,T=3.5,*TT,T=3.5

68142RUN, REAR DOOR GLASS

main68142-22050iGX71,LX7#,MX7#,RX7#,YX70¥3,930198408-198808

RH

main68142-22060iLX70,RX70..WG..(EUR,GEN)¥3,900198411-198608

RH,COLD SPEC

sub68142-22050¥3,930

main68152-22010iGX71,LX7#,MX7#,RX7#,YX70¥3,930198408-198808

LH

main68152-22020iLX70,RX70..WG..(EUR,GEN)¥3,900198411-198608

LH,COLD SPEC

sub68152-22010¥3,930

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-22060iGX71,LX7#,MX73,RX7#,YX70..SED¥5,800198408-198808

main68188-23010iLX70,MX72,RX70,72..WG¥5,800198411-198808

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-22050iGX71,LX7#,MX73,RX7#,YX70..SED¥5,800198408-198808

main68189-23010iLX70,MX72,RX70,72..WG¥5,800198411-198808

68191BRUN, REAR DOOR GLASS, NO.2 RH

main68191-22010iGX71,LX7#,MX7#,RX7#,YX70..SED,WG¥1,700198408-198808

68192BRUN, REAR DOOR GLASS, NO.2 LH

main68192-22010iGX71,LX7#,MX7#,RX7#,YX70..SED,WG¥1,700198408-198808

68405GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH

main67405-22060iGX71,LX7#,MX7#,RX7#,YX70..SED,WG¥1,810198408-198808

main67405-22080iGX71,MX73,RX70,72..HT¥4,130198504-198808

68406GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH

main67406-22060iGX71,LX7#,MX7#,RX7#,YX70..SED,WG¥1,810198408-198808

main67406-22080iGX71,MX73,RX70,72..HT¥4,130198504-198808

68630CHECK ASSY, REAR DOOR

main68630-22040iGX71,LX7#,MX7#,RX7#,YX70..SED,WG¥3,730198408-198808

main68630-22050iGX71,MX73,RX70,72..HT¥3,740198504-198808

68630APIN(FOR REAR DOOR CHECK)

main68617-22020iGX71,LX7#,MX7#,RX7#,YX70¥300198507-198808

main68617-90A00iGX71,LX7#,MX7#,RX70,YX70¥280198408-198507

sub68617-90A01¥300

9015950167

main90159-50167¥120

9017906070

main90179-06070¥180

9033335001

main90333-35001¥140

9033335002

main90333-35002¥80

9095001275

main90950-01275¥270

9165140612

main91651-40612¥70

9165540616

main91655-40616¥120

42 parts on this diagram · 3 diagrams in section
