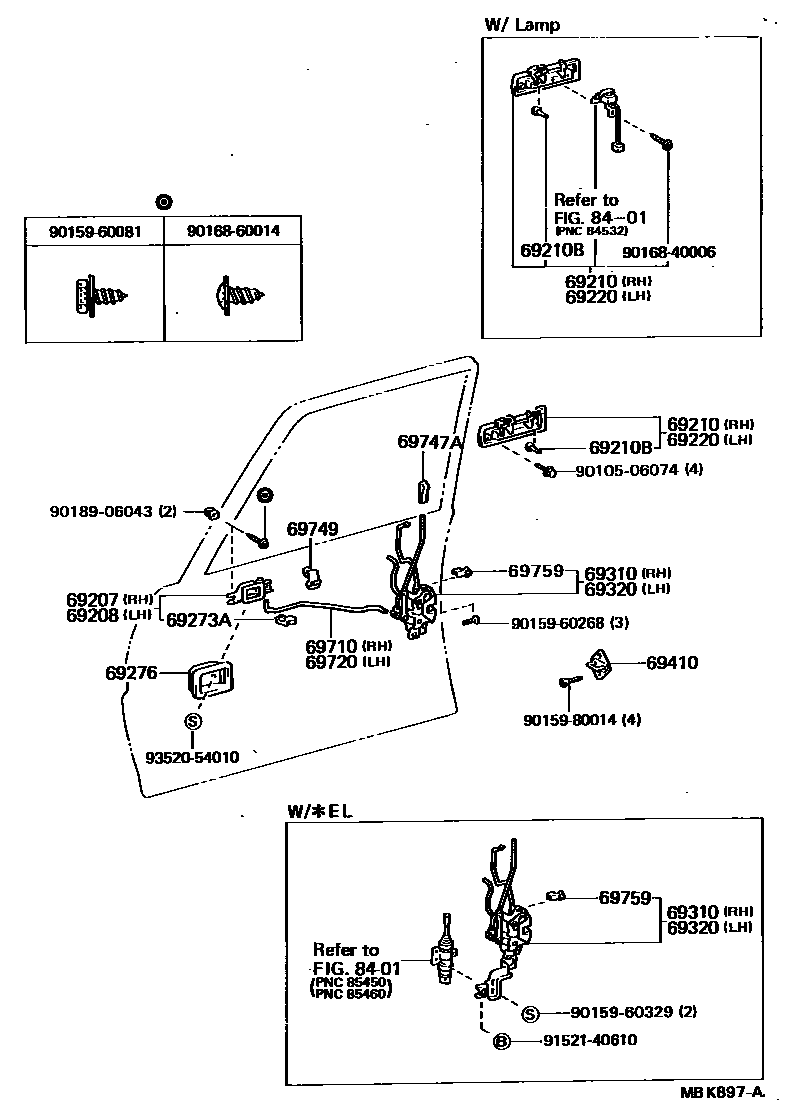

FRONT DOOR LOCK & HANDLE

0001 1 0002 1

69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-22020-02iMX73,RX70,72..XL198408-198808

MAROON,RED

sub69205-22020¥1,760

main69205-22020-03iRX70,YX70..STD,XL198408-198808

GRAY,COOL GRAY

sub69205-22020¥1,760

main69205-22020-04iRX70,72..XL..(GEN,ME)198608-198808

BLUE,DARK BLUE

sub69205-22020¥1,760

main69205-22020-05iRX70,YX70..SA198408-198612

BEIGE,BEIGE

sub69205-22020¥1,760

main69205-22020-15iRX70,72..XL..(GEN,ME)198608-198808

BEIGE,DARK BEIGE

sub69205-22020¥1,760

main69205-22030iGX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX¥1,550198408-198808

69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-22020-02iMX73,RX70,72..XL198408-198808

MAROON,RED

sub69206-22020¥1,760

main69206-22020-03iRX70,YX70..STD,XL198408-198808

GRAY,COOL GRAY

sub69206-22020¥1,760

main69206-22020-04iRX70,72..XL..(GEN,ME)198608-198808

BLUE,DARK BLUE

sub69206-22020¥1,760

main69206-22020-05iRX70,YX70..STD,XL198408-198612

BEIGE,BEIGE

sub69206-22020¥1,760

main69206-22020-15iRX70,72..XL..(GEN,ME)198608-198808

BEIGE,DARK BEIGE

sub69206-22020¥1,760

main69206-22030iGX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX¥1,550198408-198808

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-22080iGX71,MX73..LHD¥3,930198408-198808

main69210-22090iGX71,MX73..RHD..GLX..(GEN,SA)¥7,400198408-198808

sub69210-22080¥3,930

main69210-22100iMX73..GLX..ARL¥7,400198408-198808

sub69210-22110¥7,400

main69210-22110iMX73..GLX..SA¥7,400198709-198808

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-03021iGX71,LX7#,MX7#,RX7#,YX70¥310198408-198808

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-22070iLX7#,MX7#,RX7#,YX70..GL,GLX,GT,STD,XL¥3,930198408-198808

main69220-22080iMX73..GD¥7,400198411-198508

SAUDI ARABIA SPEC

sub69220-22100¥7,400

main69220-22080iMX73..GD,GTX¥7,400198508-198808

sub69220-22100¥7,400

main69220-22090iMX73..GD¥7,400198411-198508

EXCL/SAUDI ARABIA

sub69220-22100¥7,400

main69220-22090iGX71..LHD..GEN¥7,400198408-198808

sub69220-22100¥7,400

main69220-22100iMX73..GTX¥7,400198504-198808

69273ASNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)

main69759-20060iRX70..XL¥240198408-198410

LH

main69759-20070iRX70..XL¥140198408-198410

RH

main69759-20100iGX71,LX7#,MX73,RX70..GL,GLX¥250198408-198410

LH

main69759-20110iGX71,LX7#,MX73,RX70..GL,GLX¥250198408-198410

RH

main69759-22040iMX73,RX70,72,YX70..STD,XL¥250198410-198808

RH

main69759-22050iMX73,RX70,72,YX70..STD,XL¥250198410-198808

LH

main69759-22060iGX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX¥270198410-198808

RH

main69759-22070iGX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX¥270198410-198808

LH

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69277-22050-02iGX71,MX73,RX70,72..SA198408-198808

MAROON,RED

sub69277-22050¥660

main69277-22050-03iGX71,LX7#,MX7#,RX70,YX70198408-198808

GRAY,COOL GRAY

sub69277-22050¥660

main69277-22050-04iGX71,LX70,MX73,RX7#..ARL,GEN,ME198608-198808

BLUE,DARK BLUE

sub69277-22050¥660

main69277-22050-05iGX71,MX73,RX70,YX70..SA198408-198612

BEIGE,BEIGE

sub69277-22050¥660

main69277-22050-12iGX71,LX70,MX73,RX7#..ARL,GEN,ME198608-198808

MAROON,MAROON

sub69277-22050¥660

main69277-22050-15iRX72..ME;GX71,LX70,MX73,RX70,71..ARL,GEN,ME198608-198808

BEIGE,DARK BEIGE

sub69277-22050¥660

69310LOCK ASSY, FRONT DOOR, RH

main69310-22170iRX70,YX70..RHD¥6,800198408-198508

main69310-22171iRX70,72,YX70..RHD¥6,700198508-198808

main69310-22190iGX71,MX73,RX70..RHD..(GL,GLX)..(EUR,GEN,SA)¥8,100198408-198508

W/*EL

main69310-22191iGX71,MX73,RX70,72..RHD..(GL,GLX)..(EUR,GEN,SA)¥8,200198508-198808

W/*EL

main69310-22200iGX71,MX73,RX70..(SED,WG)..(GD,GL)..ME¥8,800198408-198508

SAUDI ARABIA SPEC,W/*EL

main69310-22201iGX71,MX73,RX70,72..(SED,WG)..(GD,GL)..ME¥9,900198508-198808

W/*EL

main69310-22220iMX73..ARL¥10,400198408-198508

main69310-22221iMX73..ARL¥10,600198508-198808

main69310-22230iGX71,RX70..(SED,WG)..ME¥6,400198408-198508

EXCL/SAUDI ARABIA

main69310-22231iLX70,RX7#..LHD..GEN¥7,200198508-198808

main69310-22240iMX73..XL..ME¥7,400198508-198808

main69310-22240iGX71,RX70..(SED,WG)..ME¥7,400198408-198508

SAUDI ARABIA SPEC

main69310-22250iLX70,RX70..LHD..GL..GEN¥6,800198408-198508

W/*EL

main69310-22250iGX71,LX7#,MX7#..LHD..EUR¥6,800198408-198508

EXCL/SAUDI ARABIA,W/*EL

main69310-22251iGX71,LX7#,MX7#..LHD..EUR¥6,800198508-198808

W/*EL

main69310-22290iGX71,MX73,RX70..HT¥8,100198504-198508

SAUDI ARABIA SPEC

sub69310-22291¥8,200

main69310-22291iGX71,MX73,RX70,72..HT¥8,200198508-198808

main69310-22300iGX71,MX73,RX70..HT198504-198508

EXCL/SAUDI ARABIA

sub69310-22301

main69310-22370iMX73..GLX..SA¥9,800198709-198808

69320LOCK ASSY, FRONT DOOR, LH

main69320-22170iRX70,YX70..RHD¥6,400198408-198508

main69320-22171iMX73..XL..SA¥6,300198508-198808

main69320-22190iMX73..ARL198408-198508

main69320-22191iMX73..ARL¥9,100198508-198808

main69320-22200iLX70,RX70..LHD..GEN¥6,800198408-198508

EXCL/SAUDI ARABIA

main69320-22201iGX71,LX7#,MX7#..LHD..EUR¥7,400198508-198808

main69320-22210iGX71,RX70,72..(SED,WG)..ME¥7,400198508-198808

main69320-22210iGX71,RX70..(SED,WG)..ME¥7,400198408-198508

SAUDI ARABIA SPEC

main69320-22220iGX71,MX73,RX70..RHD..(GL,GLX)..(EUR,GEN,SA)¥6,800198408-198508

W/*EL

main69320-22221iGX71,MX73,RX70,72..RHD..(GL,GLX)..(EUR,GEN,SA)¥6,800198508-198808

W/*EL

main69320-22230iGX71,LX7#,MX7#..LHD..EUR¥8,100198408-198508

EXCL/SAUDI ARABIA,W/*EL

main69320-22230iGX71,LX7#,MX7#..LHD..EUR¥8,100198408-198508

W/*EL

main69320-22231iGX71,LX7#,MX7#..LHD..EUR¥8,200198508-198808

W/*EL

main69320-22240iGX71,MX73,RX70..(SED,WG)..(GD,GL)..ME¥10,400198408-198508

SAUDI ARABIA SPEC,W/*EL

main69320-22241iGX71,MX73,RX70,72..(SED,WG)..(GD,GL)..ME¥11,400198508-198808

W/*EL

main69320-22280iGX71,MX73,RX70..HT198504-198508

SAUDI ARABIA SPEC

sub69320-22281¥8,200

main69320-22281iGX71,MX73,RX70,72..HT¥8,200198508-198808

main69320-22290iGX71,MX73,RX70..HT198504-198508

EXCL/SAUDI ARABIA

sub69320-22291

main69320-22350iMX73..GLX..SA¥9,800198709-198808

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iGX71,LX7#,MX7#,RX7#,YX70¥710198408-198808

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69711-22040iGX71,LX7#,MX7#,RX7#,YX70..SED,WG¥620198408-198808

main69711-22050iGX71,MX73,RX70,72..HT¥600198504-198808

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69712-22040iGX71,LX7#,MX7#,RX7#,YX70..SED,WG¥620198408-198808

main69712-22050iGX71,MX73,RX70,72..HT¥600198504-198808

69747ABUTTON, DOOR LOCKING(FOR FRONT DOOR)

main69741-22010iGX71,MX73,RX70,72..HT¥350198504-198808

main69741-30030-03iGX71,LX7#,MX7#,RX70,YX70..SED,WG198408-198808

GRAY,COOL GRAY

sub69741-30030¥340

main69741-30030-12iGX71,LX7#,MX7#,RX70..SED,WG198408-198808

MAROON,RED/MAROON

sub69741-30030¥340

main69741-30030-15iGX71,MX73,RX70,YX70..SA198408-198612

BEIGE,BEIGE

sub69741-30030¥340

main69741-30030-22iGX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME)198608-198808

MAROON,MAROON

sub69741-30030¥340

main69741-30030-24iGX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub69741-30030¥340

main69741-30030-25iGX71,LX70,MX73,RX7#,YX70..SED,WG198608-198808

BEIGE,DARK BEIGE

sub69741-30030¥340

69749CLAMP, FRONT DOOR LOCK LINK

main69749-20010iGX71,LX7#,MX7#,RX7#,YX70¥180198408-198808

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-20040iGX71,LX7#,MX7#,RX7#,YX70¥220198408-198808

LH

main69759-20050iGX71,LX7#,MX7#,RX7#,YX70¥160198408-198808

RH

8401

9010506074

main90105-06074¥120

9015960081

main90159-60081¥70

9015960268

main90159-60268¥130

9015960329

main90159-60329¥120

9015980014

main90159-80014¥120

9016840006

main90168-40006¥80

9016860014

main90168-60014¥120

9018906043

main90189-06043¥120

9152140610

main91521-40610¥110

9352054010

main93520-54010¥110

26 parts on this diagram · 2 diagrams in section
