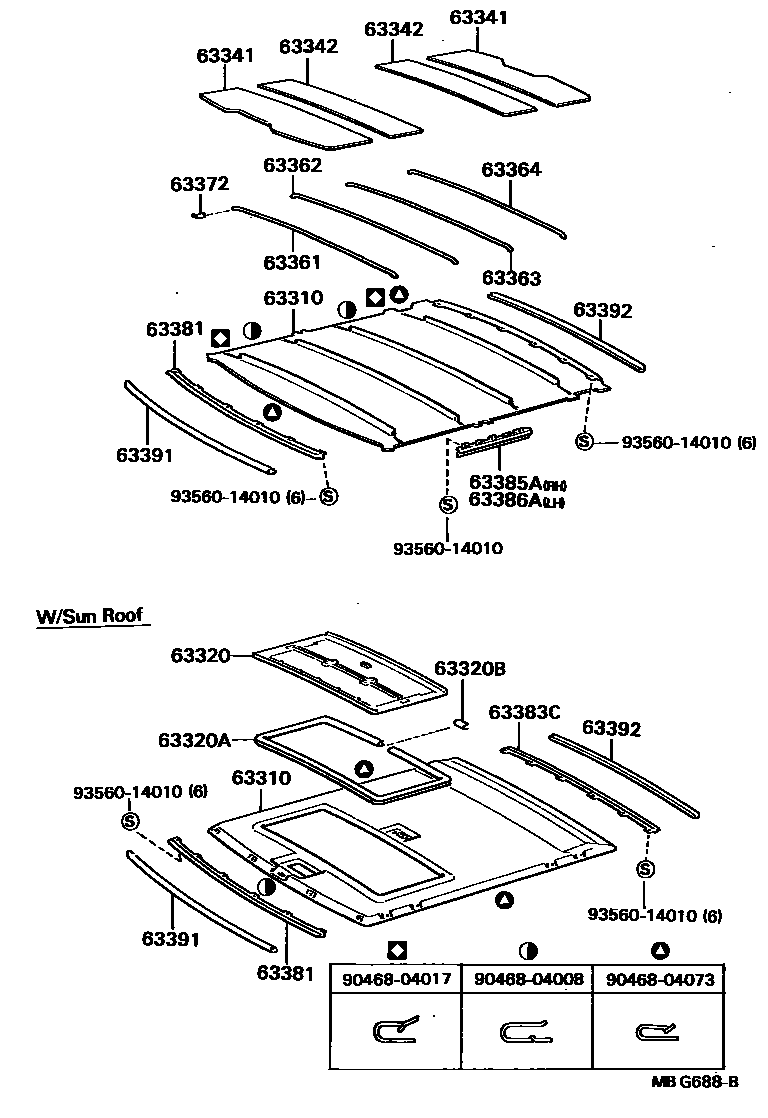

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1

63310HEADLINING ASSY, ROOF

main63310-22280-02iMX73..GD,GLX198608-198808

W/SUN ROOF,MAROON,MAROON

main63310-22280-03iGX71,LX7#,MX73,RX70..SED..(GD,GL,GLX)198408-198608

W/SUN ROOF,GRAY,GRAY

main63310-22280-04iMX73..GD,GLX198608-198808

W/SUN ROOF,BLUE,DARK BLUE

main63310-22280-05iGX71,LX70,RX7#..SED..(GL,GLX)..(GEN,ME)198408-198808

W/SUN ROOF,BEIGE,BEIGE

main63310-22300-02iMX73,RX70,72..SED..XL..(GEN,ME)198608-198808

MAROON,MAROON

main63310-22300-03iRX70..SED..XL198408-198608

GRAY,GRAY

main63310-22300-04iMX73,RX70,72..SED..XL..(GEN,ME)198608-198808

BLUE,DARK BLUE

main63310-22300-05iRX70..SED..XL..(GEN,ME)198408-198608

BEIGE,BEIGE

main63310-22300-15iMX73,RX70,72..SED..XL..(GEN,ME)198608-198808

BEIGE,DARK BEIGE

main63310-22310-02iMX73,RX72..SED..(GD,GL,GLX)..(ARL,ME)198608-198808

MAROON,MAROON

main63310-22310-03iMX73..LHD..4FC..EUG;MX73..TWC..(ARL,GEN);GX71,LX70,MX73,RX70..SED..(GD,GL,GLX)..(CBR,DSL,EFI)..(ARL,EUR,GEN,ME)198408-198608

GRAY,GRAY

main63310-22310-04iGX71,LX70,RX7#..(GL,GLX)..GEN198608-198808

BLUE,DARK BLUE

main63310-22310-05iMX73..LHD..4FC..EUG;MX73..TWC..(ARL,GEN);GX71,LX70,MX73,RX70..SED..(GD,GL,GLX)..(CBR,DSL,EFI)..(ARL,EUR,GEN,ME)198408-198608

BEIGE,BEIGE

main63310-22310-15iGX71,LX70,RX7#..(GL,GLX)..GEN198608-198808

BEIGE,DARK BEIGE

main63310-22320-03iMX73..GEN198411-198511

GRAY,GRAY

main63310-22320-05iGX71,MX73..SA198411-198511

BEIGE,BEIGE

main63310-22330-03iRX70,YX70..SA198502-198511

GRAY,GRAY

main63310-22330-05iRX70,YX70..SA198502-198511

BEIGE,BEIGE

main63310-22370-03iMX73..5F..EUG;MX73..RHD..EUG;GX71,LX71..EUG198408-198608

GRAY,GRAY

main63310-22370-05iMX73..5F..EUG;MX73..RHD..EUG;GX71,LX71..EUG198408-198608

BEIGE,BEIGE

main63310-22500-02iMX73,RX72..HT198608-198808

MAROON,MAROON

main63310-22500-03iGX71,MX73,RX70..HT198504-198608

GRAY,GRAY

main63310-22500-04iMX73,RX72..HT198608-198808

BLUE,DARK BLUE

main63310-22500-05iGX71,MX73,RX70..HT198504-198608

BEIGE,BEIGE

main63310-22500-15iMX73,RX72..HT198608-198808

BEIGE,DARK BEIGE

main63310-23010-02iRX70,72..WG..XL..(GEN,ME)198608-198808

MAROON,MAROON

main63310-23010-03iRX70..WG..XL..(GEN,ME)198411-198608

GRAY,GRAY

main63310-23010-04iRX70,72..WG..XL..(GEN,ME)198608-198808

BLUE,DARK BLUE

main63310-23010-05iRX70..WG..XL198411-198608

BEIGE,BEIGE

main63310-23010-15iRX70,72..WG..XL..(GEN,ME)198608-198808

BEIGE,DARK BEIGE

main63310-23020-02iRX72..WG..GL198608-198808

MAROON,MAROON

main63310-23020-03iLX70,MX72,RX70..WG..GL198411-198608

GRAY,GRAY

main63310-23020-04iRX72..WG..GL198608-198808

BLUE,DARK BLUE

main63310-23020-05iLX70,MX72,RX70..WG..GL198411-198608

BEIGE,BEIGE

main63310-23020-15iRX72..WG..GL198608-198808

BEIGE,DARK BEIGE

63320HEADLINING ASSY, SUN ROOF OR REMOVABLE ROOF

main63320-20030-02iMX73..GD,GLX198608-198808

MAROON,MAROON

main63320-20030-04iMX73..(GD,GLX)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

main63320-20030-13iGX71,LX7#,MX73,RX70..SED..(GD,GL,GLX)198408-198808

GRAY,GRAY

main63320-20030-25iGX71,MX73..GLX..SA198408-198808

BEIGE,BEIGE

main63320-20030-35iGX71,LX70,RX7#..SED..(GL,GLX)..(GEN,ME)198608-198808

BEIGE,DARK BEIGE

63320AMOULDING, SUN ROOF OR REMOVABLE ROOF OPENING TRIM

main63318-20030-02iGX71,LX70,RX7#..SED..(GL,GLX)198408-198808

MAROON,MAROON

main63318-20030-04iMX73..(GD,GLX)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

main63318-20030-13iGX71,LX7#,MX73,RX70..SED..(GD,GL,GLX)198408-198808

GRAY,GRAY

main63318-20030-15iGX71,LX70,RX7#..SED..(GL,GLX)..(GEN,ME)198408-198808

BEIGE,BEIGE

63320BJOINT, SUN ROOF OPENING TRIM

main63319-14011iGX71,LX7#,MX73,RX70..SED..(GD,GL,GLX)198408-198808

main63319-32010-02iMX73..(GD,GLX)..(ARL,GEN,ME)198608-198808

MAROON,MAROON

main63319-32010-04iGX71,LX70,RX7#..SED..(GL,GLX)..(GEN,ME)198608-198808

BLUE,LIGHT BLUE

main63319-32010-05iGX71,LX70,RX7#..SED..(GL,GLX)..(GEN,ME)198608-198808

BEIGE,LIGHT BEIGE

63341PAD, ROOF SILENCER, NO.1

main63341-22120iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

sub63341-22H92

main63341-22130iGX71,MX73,RX70,72..HT198504-198808

sub63341-22H92

main63341-23010iLX70,MX72,RX70,72..WG198411-198808

sub63341-22H92

63342PAD, ROOF SILENCER, NO.2

main63341-22120iLX70,MX72,RX70,72..WG198411-198808

sub63341-22H92

main63342-22060iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

sub63341-22H92

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-22100iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

L=1037,RED+YELLOW

sub63361-22120

main63361-22110iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

L=1040,RED

sub63361-22120

main63361-22120iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

L=1043,RED+BLUE

main63361-23010iLX70,MX72,RX70,72..WG198411-198808

L=1038,WHITE

main63361-23020iLX70,MX72,RX70,72..WG198411-198808

L=1041,RED

main63361-23030iLX70,MX72,RX70,72..WG198411-198808

L=1044,YELLOW

main63362-22130iGX71,MX73,RX70,72..HT198504-198808

L=1092

main63362-22140iGX71,MX73,RX70,72..HT198504-198808

L=1089,BLACK

main63362-22150iGX71,MX73,RX70,72..HT198504-198808

L=1095,WHITE

63362SUPPORT, ROOF HEADLINING, NO.2

main63362-22070iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

L=1019,WHITE+YELLOW

sub63362-22090

main63362-22080iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

L=1022

sub63362-22090

main63362-22090iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

L=1025,WHITE+BLUE

main63362-22130iGX71,MX73,RX70,72..HT198504-198802

L=1092

main63362-22140iGX71,MX73,RX70,72..HT198504-198808

L=1089,BLACK

main63362-22150iGX71,MX73,RX70,72..HT198504-198808

L=1095,WHITE

main63362-22160iMX73,RX72..HT198802-198808

L=1092

main63362-23010iLX70,MX72,RX70,72..WG198411-198808

L=1015,WHITE

main63362-23020iLX70,MX72,RX70,72..WG198411-198808

L=1018,YELLOW

main63362-23030iLX70,MX72,RX70,72..WG198411-198808

L=1021,GREEN

main63362-23040iLX70,MX72,RX70,72..WG198411-198808

L=1025,BLUE

main63362-23050iLX70,MX72,RX70,72..WG198411-198808

L=1028,BROWN

63363SUPPORT, ROOF HEADLINING, NO.3

main63362-22070iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

L=1019,WHITE+YELLOW

sub63362-22090

main63362-22080iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

L=1022

sub63362-22090

main63362-22090iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

L=1025,WHITE+BLUE

main63362-22130iGX71,MX73,RX70,72..HT198504-198808

L=1092

main63362-22140iGX71,MX73,RX70,72..HT198504-198808

L=1089,BLACK

main63362-22150iGX71,MX73,RX70,72..HT198504-198808

L=1095,WHITE

main63362-23010iLX70,MX72,RX70,72..WG198411-198808

L=1015,WHITE

main63362-23020iLX70,MX72,RX70,72..WG198411-198808

L=1018,YELLOW

main63362-23030iLX70,MX72,RX70,72..WG198411-198808

L=1021,GREEN

main63362-23040iLX70,MX72,RX70,72..WG198411-198808

L=1025,BLUE

main63362-23050iLX70,MX72,RX70,72..WG198411-198808

L=1028,BROWN

63364SUPPORT, ROOF HEADLINING, NO.4

main63362-22070iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

L=1019,WHITE+YELLOW

sub63362-22090

main63362-22080iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

L=1022

sub63362-22090

main63362-22090iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

L=1025,WHITE+BLUE

main63362-22130iGX71,MX73,RX70,72..HT198504-198808

L=1092

main63362-22140iGX71,MX73,RX70,72..HT198504-198808

L=1089,BLACK

main63362-22150iGX71,MX73,RX70,72..HT198504-198808

L=1095,WHITE

main63362-23010iLX70,MX72,RX70,72..WG198411-198808

L=1015,WHITE

main63362-23020iLX70,MX72,RX70,72..WG198411-198808

L=1018,YELLOW

main63362-23030iLX70,MX72,RX70,72..WG198411-198808

L=1021,GREEN

main63362-23040iLX70,MX72,RX70,72..WG198411-198808

L=1025,BLUE

main63362-23050iLX70,MX72,RX70,72..WG198411-198808

L=1028,BROWN

63372RETAINER, HEADLINING SUPPORT

main63371-22020iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

63381RETAINER, HEADLINING, FRONT

main63381-22050iGX71,LX7#,MX7#,RX7#,YX70..SED,WG198408-198808

main63381-22070iGX71,MX73,RX70,72..HT198504-198808

63383CRETAINER, ROOF HEADLINING TRIM, REAR

main63383-22040iMX73..GLX..ARL198408-198808

63385ARETAINER, ROOF HEADLINING TRIM SIDE, RH

main63385-22020iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

63386ARETAINER, ROOF HEADLINING TRIM SIDE, LH

main63386-22020iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

63391TRIM, ROOF HEADLINING, FRONT

main63391-22060-02iGX71..SA198408-198808

MAROON,MAROON

sub63391-22060

main63391-22060-03iGX71..SA198408-198808

GRAY,COOL GRAY

sub63391-22060

main63391-22060-04iLX70,MX73,RX7#..(GL,XL)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub63391-22060

main63391-22060-05iRX70,72,YX70..SA198408-198808

BEIGE,BEIGE

sub63391-22060

main63391-22060-15iLX70,MX73,RX7#..(GL,XL)..(ARL,GEN,ME)198608-198808

BEIGE,DARK BEIGE

sub63391-22060

main63391-22070-02iMX73..GLX..SA198408-198808

MAROON,MAROON

sub63391-22070

main63391-22070-03iMX73..GLX..SA198408-198808

GRAY,COOL GRAY

sub63391-22070

main63391-22070-04iGX71,MX73..(GD,GLX)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub63391-22070

main63391-22070-05iMX73..GLX..SA198408-198808

BEIGE,BEIGE

sub63391-22070

main63391-22070-15iGX71,MX73..(GD,GLX)..(ARL,GEN,ME)198608-198808

BEIGE,DARK BEIGE

sub63391-22070

main63391-22080-02iGX71,RX70..HT198504-198808

MAROON,MAROON

sub63391-22080

main63391-22080-03iGX71,RX70..HT198504-198608

GRAY,COOL GRAY

sub63391-22080

main63391-22080-04iMX73,RX72..GT198608-198808

BLUE,DARK BLUE

sub63391-22080

main63391-22080-05iGX71,RX70..HT198504-198608

BEIGE,BEIGE

sub63391-22080

main63391-22080-15iMX73,RX72..GT198608-198808

BEIGE,DARK BEIGE

sub63391-22080

main63391-22090-02iMX73..GTX198504-198808

MAROON,MAROON

main63391-22090-03iMX73..GTX198504-198608

GRAY,COOL GRAY

main63391-22090-04iMX73..GTX198608-198808

BLUE,DARK BLUE

main63391-22090-05iMX73..GTX198504-198608

BEIGE,BEIGE

main63391-22090-15iMX73..GTX198608-198808

BEIGE,DARK BEIGE

63392TRIM, ROOF HEADLINING, REAR

main63392-22050-02iGX71..SA198408-198808

MAROON,MAROON

sub63392-22050

main63392-22050-03iGX71,LX7#,MX73,RX70..SED..(GL,XL)198408-198808

GRAY,COOL GRAY

sub63392-22050

main63392-22050-04iLX70,MX73,RX7#..SED..(GL,XL)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub63392-22050

main63392-22050-05iGX71,LX7#,MX73,RX70..SED..(GL,XL)198408-198612

BEIGE,BEIGE

sub63392-22050

main63392-22050-15iLX70,MX73,RX7#..SED..(GL,XL)..(ARL,GEN,ME)198608-198808

BEIGE,DARK BEIGE

sub63392-22050

main63392-22060-02iMX73..GLX..SA198408-198808

MAROON,MAROON

sub63392-22060

main63392-22060-03iMX73..GLX..SA198408-198808

GRAY,COOL GRAY

sub63392-22060

main63392-22060-04iGX71,MX73..(GD,GLX)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub63392-22060

main63392-22060-05iMX73..GLX..SA198408-198808

BEIGE,BEIGE

sub63392-22060

main63392-22060-15iGX71,MX73..(GD,GLX)..(ARL,GEN,ME)198608-198808

BEIGE,DARK BEIGE

sub63392-22060

main63392-22090-02iGX71,RX70..HT198504-198808

MAROON,MAROON

sub63392-22090

main63392-22090-03iGX71,RX70..HT198504-198608

GRAY,COOL GRAY

sub63392-22090

main63392-22090-04iMX73,RX72..GT198608-198808

BLUE,DARK BLUE

sub63392-22090

main63392-22090-05iGX71,RX70..HT198504-198608

BEIGE,BEIGE

sub63392-22090

main63392-22090-15iMX73,RX72..GT198608-198808

BEIGE,DARK BEIGE

sub63392-22090

main63392-22100-02iMX73..GTX198504-198808

MAROON,MAROON

main63392-22100-03iMX73..GTX198504-198608

GRAY,COOL GRAY

main63392-22100-04iMX73..GTX198608-198808

BLUE,DARK BLUE

main63392-22100-05iMX73..GTX198504-198608

BEIGE,BEIGE

main63392-22100-15iMX73..GTX198608-198808

BEIGE,DARK BEIGE

9046804008

main90468-04008

9046804017

main90468-04017

9046804073

main90468-04073

9356014010

main93560-14010

21 parts on this diagram · 3 diagrams in section
