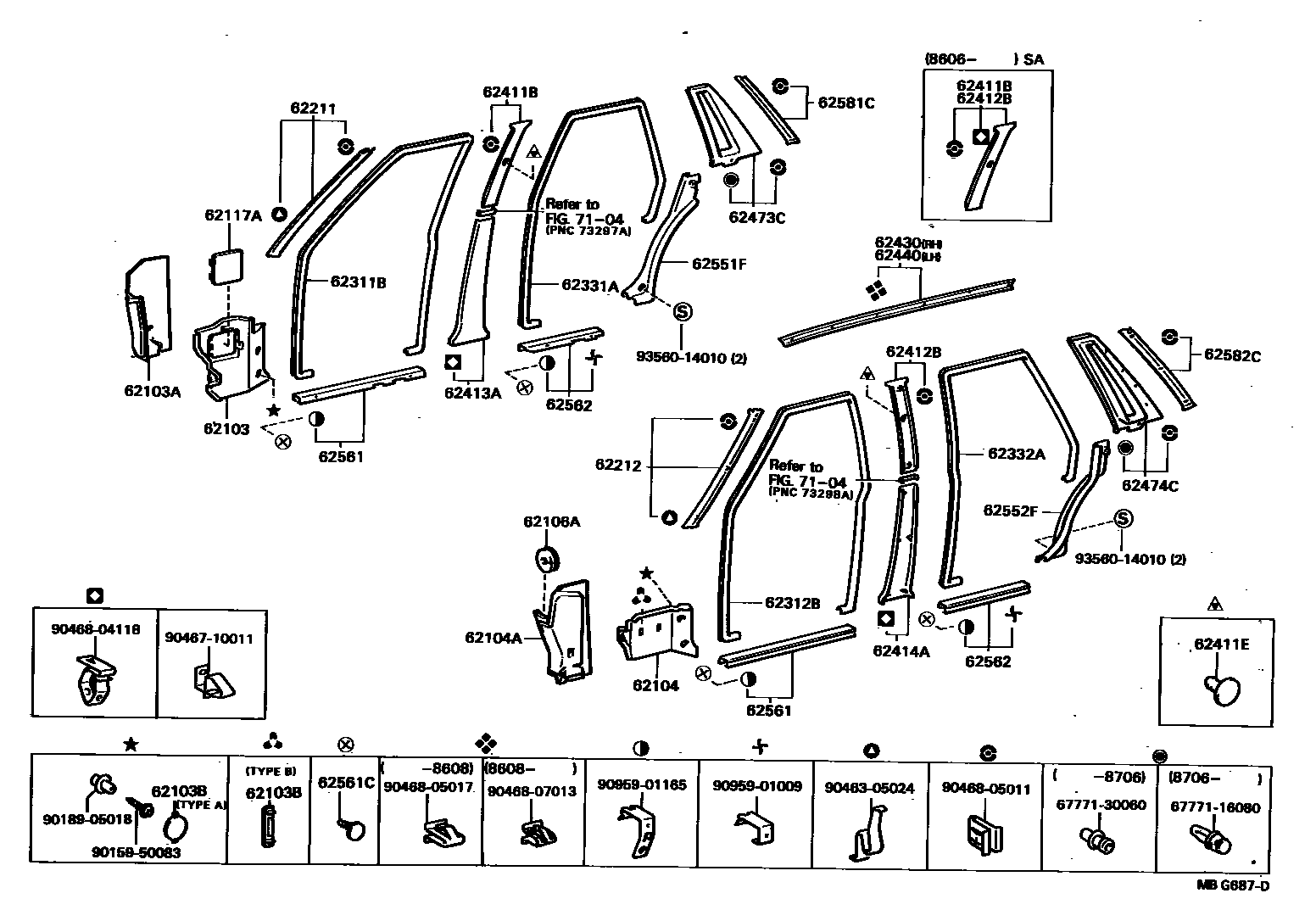

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1 0004 1 0005 1

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-22140-02iGX71,MX73..SA198408-198808

MAROON,MAROON

sub62101-22140

main62101-22140-03iRX70..RHD..XL198408-198808

GRAY,COOL GRAY

sub62101-22140

main62101-22140-04iRX70,72..RHD..XL..GEN198608-198808

BLUE,DARK BLUE

sub62101-22140

main62101-22140-05iRX70..SA198408-198612

BEIGE,BEIGE

sub62101-22140

main62101-22140-15iRX70,72..RHD..XL..GEN198608-198808

BEIGE,DARK BEIGE

sub62101-22140

main62101-22150-03iRX70..LHD..XL198408-198608

GRAY,COOL GRAY

sub62101-22151

main62101-22150-05iRX70..LHD..XL198408-198608

BEIGE,BEIGE

sub62101-22151

main62101-22151-02iMX73,RX70,72..LHD..XL198408-198808

MAROON,MAROON

sub62101-22151

main62101-22151-04iMX73,RX70,72..LHD..XL198608-198808

BLUE,DARK BLUE

sub62101-22151

main62101-22151-05iMX73,RX70,72..LHD..XL198608-198808

BEIGE,DARK BEIGE

sub62101-22151

main62101-22160-02iGX71,MX73,RX70..RHD..(GL,GLX)..(ARL,EUR,GEN)198408-198608

MAROON,MAROON

sub62101-22160

main62101-22160-03iGX71,MX73,RX70..RHD..(GL,GLX)..(ARL,EUR,GEN)198408-198608

GRAY,COOL GRAY

sub62101-22160

main62101-22160-05iGX71,MX73,RX70..RHD..(GL,GLX)..(ARL,EUR,GEN)198408-198608

BEIGE,BEIGE

sub62101-22160

main62101-22161-02iGX71,MX73,RX70,72..RHD..(GL,GLX)..(ARL,GEN)198608-198808

MAROON,MAROON

sub62101-22161

main62101-22161-04iGX71,MX73,RX70,72..RHD..(GL,GLX)..(ARL,GEN)198608-198808

BLUE,DARK BLUE

sub62101-22161

main62101-22161-05iGX71,MX73,RX70,72..RHD..(GL,GLX)..(ARL,GEN)198608-198808

BEIGE,DARK BEIGE

sub62101-22161

main62101-22170-02iGX71,LX7#,MX7#,RX70..LHD..(GD,GL,GLX,GTX)198408-198608

MAROON,MAROON

sub62101-22171

main62101-22170-03iGX71,LX7#,MX7#,RX70..LHD..(GD,GL,GLX,GTX)198408-198608

GRAY,COOL GRAY

sub62101-22171

main62101-22170-05iGX71,LX7#,MX7#,RX70..LHD..(GD,GL,GLX,GTX)198408-198608

BEIGE,BEIGE

sub62101-22171

main62101-22172-02iGX71,LX70,MX73,RX70,71,72..LHD..(GD,GL,GLX,GT,GTX)198608-198808

MAROON,MAROON

sub62101-22172

sub62101-91601

main62101-22172-04iGX71,LX70,MX73,RX70,71,72..LHD..(GD,GL,GLX,GT,GTX)198608-198808

BLUE,DARK BLUE

sub62101-22172

sub62101-91601

main62101-22172-05iGX71,LX70,MX73,RX70,71,72..LHD..(GD,GL,GLX,GT,GTX)198608-198808

BEIGE,DARK BEIGE

sub62101-22172

sub62101-91601

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-22010iGX71,MX73,RX70,72,YX70..RHD198408-198808

main62105-22020iGX71,LX7#,MX7#,RX7#..LHD198408-198808

62103BPLUG(FOR COWL SIDE TRIM BOARD)

main90950-01267-22iGX71,MX73,RX70,72..RHD198408-198808

TYPE B,MAROON,MAROON

sub90950-01267

main90950-01267-33iGX71,MX73,RX70,72,YX70..SA198408-198808

TYPE B,GRAY,COOL GRAY

sub90950-01267

main90950-01267-44iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

TYPE B,BLUE,DARK BLUE

sub90950-01267

main90950-01267-45iGX71,MX73,RX70,YX70..RHD198408-198612

TYPE B,BEIGE,BEIGE

sub90950-01267

main90950-01267-55iGX71,MX73,RX70,72,YX70..RHD198608-198808

TYPE B,BEIGE,DARK BEIGE

sub90950-01267

main90950-01427-02iRX70,72..RHD..XL..GEN198408-198808

TYPE A,MAROON,MAROON

sub90950-01427

main90950-01427-03iGX71,MX73,RX72,YX70..SA198408-198808

TYPE A,GRAY,COOL GRAY

sub90950-01427

main90950-01427-04iRX70,72..RHD..XL..GEN198608-198808

TYPE A,BLUE,DARK BLUE

sub90950-01427

main90950-01427-05iRX70..XL;RX70..WG..GL198408-198612

TYPE A,BEIGE,BEIGE

sub90950-01427

main90950-01427-15iRX70,72..RHD..XL..GEN198608-198808

TYPE A,BEIGE,DARK BEIGE

sub90950-01427

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-22170-02iGX71,MX73..SA198408-198808

MAROON,MAROON

sub62102-22170

main62102-22170-03iRX70..RHD..XL198408-198808

GRAY,COOL GRAY

sub62102-22170

main62102-22170-04iRX70,72..RHD..XL..GEN198608-198808

BLUE,DARK BLUE

sub62102-22170

main62102-22170-05iGX71,MX73,YX70..SA198408-198612

BEIGE,BEIGE

sub62102-22170

main62102-22170-15iRX70,72..RHD..XL..GEN198608-198808

BEIGE,DARK BEIGE

sub62102-22170

main62102-22180-02iMX73,RX70,72..LHD..XL198408-198808

MAROON,MAROON

sub62102-22180

main62102-22180-03iRX70..LHD..XL198408-198608

GRAY,COOL GRAY

sub62102-22180

main62102-22180-04iMX73,RX70,72..LHD..XL198608-198808

BLUE,DARK BLUE

sub62102-22180

main62102-22180-05iRX70..LHD..XL198408-198608

BEIGE,BEIGE

sub62102-22180

main62102-22180-15iMX73,RX70,72..LHD..XL198608-198808

BEIGE,DARK BEIGE

sub62102-22180

main62102-22190-02iGX71,MX73,RX70..RHD..(GL,GLX)..(ARL,EUR,GEN)198408-198608

MAROON,MAROON

sub62102-22190

main62102-22190-03iGX71,MX73,RX70..RHD..(GL,GLX)..(ARL,EUR,GEN)198408-198608

GRAY,COOL GRAY

sub62102-22190

main62102-22190-05iGX71,MX73,RX70..RHD..(GL,GLX)..(ARL,EUR,GEN)198408-198608

BEIGE,BEIGE

sub62102-22190

main62102-22191-02iGX71,MX73,RX70,72..RHD..(GL,GLX)..(ARL,GEN)198608-198808

MAROON,MAROON

sub62102-22191

main62102-22191-04iGX71,MX73,RX70,72..RHD..(GL,GLX)..(ARL,GEN)198608-198808

BLUE,DARK BLUE

sub62102-22191

main62102-22191-05iGX71,MX73,RX70,72..RHD..(GL,GLX)..(ARL,GEN)198608-198808

BEIGE,DARK BEIGE

sub62102-22191

main62102-22200-02iGX71,LX7#,MX7#,RX70..LHD..(GD,GL,GLX,GTX)198408-198608

MAROON,MAROON

sub62102-22200

main62102-22200-03iGX71,LX7#,MX7#,RX70..LHD..(GD,GL,GLX,GTX)198408-198608

GRAY,COOL GRAY

sub62102-22200

main62102-22200-05iGX71,LX7#,MX7#,RX70..LHD..(GD,GL,GLX,GTX)198408-198608

BEIGE,BEIGE

sub62102-22200

main62102-22201-02iGX71,LX70,MX73,RX70,71,72..LHD..(GD,GL,GLX,GT,GTX)198608-198808

MAROON,MAROON

sub62102-22201

sub62102-91601

main62102-22201-04iGX71,LX70,MX73,RX70,71,72..LHD..(GD,GL,GLX,GT,GTX)198608-198808

BLUE,DARK BLUE

sub62102-22201

sub62102-91601

main62102-22201-05iGX71,LX70,MX73,RX70,71,72..LHD..(GD,GL,GLX,GT,GTX)198608-198808

BEIGE,DARK BEIGE

sub62102-22201

sub62102-91601

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-22010iGX71,MX73,RX70,72,YX70..RHD198408-198808

main62106-22020iGX71,LX7#,MX7#,RX7#..LHD198408-198808

62106AINSULATOR SUB-ASSY, COWL SIDE, UPPER LH

main62107-22010iGX71,MX73,RX70,72,YX70..RHD198408-198808

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-22030-02iGX71,MX73,RX70..RHD198408-198510

MAROON,MAROON

main62117-22030-03iGX71,MX73,RX70,YX70..RHD198408-198510

GRAY,COOL GRAY

main62117-22030-05iGX71,MX73,RX70,YX70..RHD198408-198510

BEIGE,BEIGE

main62117-22031-02iGX71,MX73,RX70,72..SA198510-198808

MAROON,MAROON

sub62117-22031

main62117-22031-03iGX71,MX73,RX70,YX70..RHD198510-198808

GRAY,COOL GRAY

sub62117-22031

main62117-22031-05iGX71,MX73,RX70,YX70..RHD198510-198612

BEIGE,BEIGE

sub62117-22031

main62117-22031-15iGX71,MX73,RX70,72,YX70..SA198612-198808

BEIGE,DARK BEIGE

sub62117-22031

main62117-22040-02iGX71,LX7#,MX7#,RX70..LHD198408-198508

MAROON,MAROON

sub62117-22040

main62117-22040-03iGX71,LX7#,MX7#,RX70..LHD198408-198508

GRAY,COOL GRAY

sub62117-22040

main62117-22040-05iGX71,LX7#,MX7#,RX70..LHD198408-198508

BEIGE,BEIGE

sub62117-22040

main62117-22041-02iGX71,LX7#,MX7#,RX70..LHD198508-198608

MAROON,MAROON

sub62117-22041

main62117-22041-03iGX71,LX7#,MX7#,RX70..LHD198508-198608

GRAY,COOL GRAY

sub62117-22041

main62117-22041-05iGX71,LX7#,MX7#,RX70..LHD198508-198608

BEIGE,BEIGE

sub62117-22041

main62117-22050-02iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

MAROON,MAROON

main62117-22050-04iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

BLUE,DARK BLUE

main62117-22050-05iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

BEIGE,DARK BEIGE

main62117-22060-02iGX71,LX70,MX73,RX7#..LHD198608-198808

MAROON,MAROON

main62117-22060-04iGX71,LX70,MX73,RX7#..LHD198608-198808

BLUE,DARK BLUE

main62117-22060-05iGX71,LX70,MX73,RX7#..LHD198608-198808

BEIGE,DARK BEIGE

62211GARNISH, FRONT PILLAR, RH

main62211-22120-02iGX71,RX70,72..SA198408-198808

MAROON,MAROON

sub62211-22120

main62211-22120-03iMX73..XL198408-198808

GRAY,COOL GRAY

sub62211-22120

main62211-22120-04iLX70,RX7#..(GL,XL)..(GEN,ME)198608-198808

BLUE,DARK BLUE

sub62211-22120

main62211-22120-05iGX71,LX7#,MX7#,RX70..(SED,WG)..(GL,XL)..(ARL,EUR,GEN,ME)198408-198612

BEIGE,BEIGE

sub62211-22120

main62211-22120-15iMX73..RHD..GL198608-198808

BEIGE,DARK BEIGE

sub62211-22120

main62211-22130-02iMX73..GLX..SA198408-198808

MAROON,MAROON

sub62211-22130

main62211-22130-03iMX73..GLX..SA198408-198808

GRAY,COOL GRAY

sub62211-22130

main62211-22130-04iGX71,MX73..(GD,GLX)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub62211-22130

main62211-22130-05iGX71,MX73..(GD,GLX)..(ARL,EUR,GEN,ME)198408-198808

BEIGE,BEIGE

sub62211-22130

main62211-22130-15iGX71,MX73..(GD,GLX)..(ARL,GEN,ME)198608-198808

BEIGE,DARK BEIGE

sub62211-22130

main62211-22170-02iMX73,RX72..GT198504-198808

MAROON,MAROON

sub62211-22170

main62211-22170-03iGX71,RX70..HT198504-198608

GRAY,COOL GRAY

sub62211-22170

main62211-22170-04iMX73,RX72..GT198608-198808

BLUE,DARK BLUE

sub62211-22170

main62211-22170-05iGX71,RX70..HT198504-198608

BEIGE,BEIGE

sub62211-22170

main62211-22170-15iMX73,RX72..GT198608-198808

BEIGE,DARK BEIGE

sub62211-22170

main62211-22180-02iMX73..GTX198504-198808

MAROON,MAROON

main62211-22180-03iMX73..GTX198504-198608

GRAY,COOL GRAY

main62211-22180-04iMX73..GTX198608-198808

BLUE,DARK BLUE

main62211-22180-05iMX73..GTX198504-198608

BEIGE,BEIGE

main62211-22180-15iMX73..GTX198608-198808

BEIGE,DARK BEIGE

62212GARNISH, FRONT PILLAR, LH

main62212-22130-02iMX73..GL..(ARL,EUR,GEN)198408-198808

MAROON,MAROON

sub62212-22130

main62212-22130-03iGX71,RX70,72,YX70..SA198408-198808

GRAY,COOL GRAY

sub62212-22130

main62212-22130-04iMX73..RHD..GL198608-198808

BLUE,DARK BLUE

sub62212-22130

main62212-22130-05iGX71,LX7#,MX7#,RX70..(SED,WG)..(GL,XL)..(EUR,GEN,ME)198408-198612

BEIGE,BEIGE

sub62212-22130

main62212-22130-15iMX73..RHD..GL198608-198808

BEIGE,DARK BEIGE

sub62212-22130

main62212-22140-02iMX73..GLX..SA198408-198808

MAROON,MAROON

sub62212-22140

main62212-22140-03iMX73..GLX..SA198408-198808

GRAY,COOL GRAY

sub62212-22140

main62212-22140-04iGX71,MX73..(GD,GLX)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub62212-22140

main62212-22140-05iMX73..GLX..SA198408-198808

BEIGE,BEIGE

sub62212-22140

main62212-22140-15iGX71,MX73..(GD,GLX)..(ARL,GEN,ME)198608-198808

BEIGE,DARK BEIGE

sub62212-22140

main62212-22180-02iGX71,RX70..HT198504-198808

MAROON,MAROON

sub62212-22180

main62212-22180-03iGX71,RX70..HT198504-198608

GRAY,COOL GRAY

sub62212-22180

main62212-22180-04iMX73,RX72..GT198608-198808

BLUE,DARK BLUE

sub62212-22180

main62212-22180-05iGX71,RX70..HT198504-198608

BEIGE,BEIGE

sub62212-22180

main62212-22180-15iMX73,RX72..GT198608-198808

BEIGE,DARK BEIGE

sub62212-22180

main62212-22190-02iMX73..GTX198504-198808

MAROON,MAROON

main62212-22190-03iMX73..GTX198504-198608

GRAY,COOL GRAY

main62212-22190-04iMX73..GTX198608-198808

BLUE,DARK BLUE

main62212-22190-05iMX73..GTX198504-198608

BEIGE,BEIGE

main62212-22190-15iMX73..GTX198608-198808

BEIGE,DARK BEIGE

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-22010-02iGX71,LX7#,MX7#,RX70..SED,WG198408-198608

MAROON,MAROON

sub62311-22010

main62311-22010-03iGX71,LX7#,MX7#,RX70..SED,WG198408-198610

GRAY,COOL GRAY

sub62311-22010

main62311-22010-05iGX71,LX7#,MX7#,RX70..SED,WG198408-198608

BEIGE,BEIGE

sub62311-22010

main62311-22011-02iGX71,LX70,MX73,RX7#..SED,WG198608-198808

MAROON,MAROON

sub62311-22011

main62311-22011-04iGX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub62311-22011

main62311-22011-05iGX71,LX70,MX73,RX7#..SED,WG198608-198808

BEIGE,DARK BEIGE

sub62311-22011

main62311-22011-13iGX71,MX73,RX70,72..SA198610-198808

GRAY,COOL GRAY

sub62311-22011

main62313-22110-03iYX70198502-198808

GRAY,COOL GRAY

sub62313-91603

main62313-22110-05iYX70198502-198612

BEIGE,BEIGE

sub62313-91603

main62313-22110-15iYX70198612-198808

BEIGE,DARK BEIGE

sub62313-91603

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-22010-02iGX71,LX7#,MX7#,RX70..SED,WG198408-198608

MAROON,MAROON

sub62312-22010

main62312-22010-03iGX71,MX73,RX70..SA198408-198610

GRAY,COOL GRAY

sub62312-22010

main62312-22010-05iGX71,LX7#,MX7#,RX70..SED,WG198408-198608

BEIGE,BEIGE

sub62312-22010

main62312-22011-02iGX71,LX70,MX73,RX7#..SED,WG198608-198808

MAROON,MAROON

sub62312-22011

main62312-22011-04iGX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub62312-22011

main62312-22011-05iGX71,LX70,MX73,RX7#..SED,WG198608-198808

BEIGE,DARK BEIGE

sub62312-22011

main62312-22011-13iGX71,MX73,RX70,72..SA198610-198808

GRAY,COOL GRAY

sub62312-22011

main62313-22110-03iYX70198502-198808

GRAY,COOL GRAY

sub62313-91603

main62313-22110-05iYX70198502-198612

BEIGE,BEIGE

sub62313-91603

main62313-22110-15iYX70198612-198808

BEIGE,DARK BEIGE

sub62313-91603

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-22010-02iGX71,LX7#,MX73,RX7#..SED198408-198808

MAROON,MAROON

sub62331-22010

main62331-22010-03iGX71,LX7#,MX73,RX70..SED198408-198808

GRAY,COOL GRAY

sub62331-22010

main62331-22010-04iGX71,LX70,MX73,RX7#..SED..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub62331-22010

main62331-22010-05iGX71,MX73,RX70..SED..SA198408-198612

BEIGE,BEIGE

sub62331-22010

main62331-22010-15iMX73,RX72..SED..(ARL,ME)198608-198808

BEIGE,DARK BEIGE

sub62331-22010

main62331-23010-02iLX70,MX72,RX70,72..WG198411-198808

MAROON,MAROON

sub62331-23010

main62331-23010-03iRX70..WG;RX72..SA;RX70..SED..SA;RX72..WG..(GEN,ME)198411-198808

GRAY,COOL GRAY

sub62331-23010

main62331-23010-04iRX70,72..WG..(GEN,ME)198608-198808

BLUE,DARK BLUE

sub62331-23010

main62331-23010-05iLX70,MX72,RX70..WG198411-198612

BEIGE,BEIGE

sub62331-23010

main62331-23010-15iRX72..WG..ME;RX70..WG..GEN198608-198808

BEIGE,DARK BEIGE

sub62331-23010

main62333-22050-03iYX70198502-198808

GRAY,COOL GRAY

sub62313-22110

main62333-22050-05iYX70198502-198612

BEIGE,BEIGE

sub62313-22110

main62333-22050-15iYX70198612-198808

BEIGE,DARK BEIGE

sub62313-22110

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-22010-02iGX71,LX7#,MX73,RX7#..SED198408-198808

MAROON,MAROON

sub62332-22010

main62332-22010-03iGX71,MX73,RX70,72..SED..SA198408-198808

GRAY,COOL GRAY

sub62332-22010

main62332-22010-04iGX71,LX70,MX73,RX7#..SED..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub62332-22010

main62332-22010-05iGX71,MX73,RX70..SED..SA198408-198612

BEIGE,BEIGE

sub62332-22010

main62332-22010-15iGX71,LX70,MX73,RX7#..SED..(ARL,GEN,ME)198608-198808

BEIGE,DARK BEIGE

sub62332-22010

main62332-23010-02iLX70,MX72,RX70,72..WG198411-198808

MAROON,MAROON

sub62332-23010

main62332-23010-03iRX70,72..WG..SA198411-198808

GRAY,COOL GRAY

sub62332-23010

main62332-23010-04iRX70,72..WG..(GEN,ME)198608-198808

BLUE,DARK BLUE

sub62332-23010

main62332-23010-05iLX70,MX72,RX70..WG198411-198612

BEIGE,BEIGE

sub62332-23010

main62332-23010-15iRX70,72..WG198608-198808

BEIGE,DARK BEIGE

sub62332-23010

main62333-22050-03iYX70198502-198808

GRAY,COOL GRAY

sub62313-22110

main62333-22050-05iYX70198502-198612

BEIGE,BEIGE

sub62313-22110

main62333-22050-15iYX70198612-198808

BEIGE,DARK BEIGE

sub62313-22110

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-22150-02iGX71,LX70,MX73,RX70..(SED,WG)..(ARL,GEN,ME,SA)198408-198808

MAROON,MAROON

sub62411-22150

main62411-22150-03iGX71,LX70,MX73,RX70,YX70..(SED,WG)..(ARL,GEN,ME,SA)198408-198608

GRAY,COOL GRAY

sub62411-22150

main62411-22150-04iGX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub62411-22150

main62411-22150-05iGX71,LX70,MX73,RX70,YX70..(SED,WG)..(ARL,GEN,ME,SA)198408-198608

BEIGE,BEIGE

sub62411-22150

main62411-22150-15iGX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME)198608-198808

BEIGE,DARK BEIGE

sub62411-22150

main62411-22170-02iGX71,LX7#,MX7#,RX70,72..EUR,SA198408-198808

MAROON,MAROON

sub62411-22170

main62411-22170-03iGX71,LX7#,MX7#..EUR198408-198808

GRAY,COOL GRAY

sub62411-22170

main62411-22170-05iGX71,LX7#,MX7#,RX70,YX70..EUR,SA198408-198612

BEIGE,BEIGE

sub62411-22170

main62411-22170-15iGX71,MX73,RX70,72,YX70..SA198612-198808

BEIGE,DARK BEIGE

sub62411-22170

main62411-22190-02iGX71,MX73,RX70,72..HT198504-198808

MAROON,MAROON

main62411-22190-03iGX71,MX73,RX70..HT198504-198608

GRAY,COOL GRAY

main62411-22190-04iMX73,RX72..HT198608-198808

BLUE,DARK BLUE

main62411-22190-05iGX71,MX73,RX70..HT198504-198608

BEIGE,BEIGE

main62411-22190-15iMX73,RX72..HT198608-198808

BEIGE,DARK BEIGE

62411EPLUG, HOLE (FOR SEAT BELT)

main90950-01159-10iRX70..XL..GEN198408-198608

GRAY,COOL GRAY

sub90950-01159

main90950-01159-20iRX70..XL..GEN198408-198608

BEIGE,BEIGE

sub90950-01159

main90950-01159-22iRX70..XL..GEN198408-198705

MAROON,MAROON

sub90950-01159

main90950-01159-58iRX70..XL..GEN198608-198705

BLUE,DARK BLUE

sub90950-01159

main90950-01159-59iRX70..XL..GEN198608-198705

BEIGE,DARK BEIGE

sub90950-01159

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-22170-02iGX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME,SA)198408-198808

MAROON,MAROON

sub62412-22170

main62412-22170-03iGX71,LX70,MX73,RX70,YX70..(SED,WG)..(ARL,GEN,ME,SA)198408-198608

GRAY,COOL GRAY

sub62412-22170

main62412-22170-04iGX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub62412-22170

main62412-22170-05iGX71,LX70,MX73,RX70,YX70..(SED,WG)..(ARL,GEN,ME,SA)198408-198608

BEIGE,BEIGE

sub62412-22170

main62412-22170-15iGX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME)198608-198808

BEIGE,DARK BEIGE

sub62412-22170

main62412-22190-02iGX71,LX7#,MX7#,RX70,72..EUR,SA198408-198808

MAROON,MAROON

sub62412-22190

sub62411-22170

main62412-22190-03iGX71,LX7#,MX7#,RX70,72,YX70..EUR,SA198408-198808

GRAY,COOL GRAY

sub62412-22190

sub62411-22170

main62412-22190-05iGX71,LX7#,MX7#,RX70,YX70..EUR,SA198408-198612

BEIGE,BEIGE

sub62412-22190

sub62411-22170

main62412-22190-15iGX71,MX73,RX70,72,YX70..SA198612-198808

BEIGE,DARK BEIGE

sub62412-22190

sub62411-22170

main62412-22210-02iGX71,MX73,RX70,72..HT198504-198808

MAROON,MAROON

main62412-22210-03iGX71,MX73,RX70..HT198504-198608

GRAY,COOL GRAY

main62412-22210-04iMX73,RX72..HT198608-198808

BLUE,DARK BLUE

main62412-22210-05iGX71,MX73,RX70..HT198504-198608

BEIGE,BEIGE

main62412-22210-15iMX73,RX72..HT198608-198808

BEIGE,DARK BEIGE

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-22040-02iGX71,LX7#,MX7#,RX7#..SED,WG198408-198808

MAROON,MAROON

sub62413-22040

main62413-22040-03iGX71,LX7#,MX7#,RX70,YX70..SED,WG198408-198808

GRAY,COOL GRAY

sub62413-22040

main62413-22040-04iGX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub62413-22040

main62413-22040-05iGX71,LX7#,MX7#,RX70,YX70..SED,WG198408-198612

BEIGE,BEIGE

sub62413-22040

main62413-22040-15iRX72..(GL,XL)..ME;GX71,LX70,MX73,RX70,71..(SED,WG)..(ARL,GEN,ME)198608-198808

BEIGE,DARK BEIGE

sub62413-22040

main62413-22060-02iGX71,MX73,RX70,72..HT198504-198808

MAROON,MAROON

sub62413-22060

main62413-22060-03iGX71,MX73,RX70..HT198504-198608

GRAY,COOL GRAY

sub62413-22060

main62413-22060-04iMX73,RX72..HT198608-198808

BLUE,DARK BLUE

sub62413-22060

main62413-22060-05iGX71,MX73,RX70..HT198504-198608

BEIGE,BEIGE

sub62413-22060

main62413-22060-15iMX73,RX72..HT198608-198808

BEIGE,DARK BEIGE

sub62413-22060

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-22040-02iGX71,LX7#,MX7#,RX7#..SED,WG198408-198808

MAROON,MAROON

sub62414-22040

main62414-22040-03iGX71,LX7#,MX7#,RX70,YX70..SED,WG198408-198808

GRAY,COOL GRAY

sub62414-22040

main62414-22040-04iGX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub62414-22040

main62414-22040-05iGX71,MX73,RX70,YX70..SA198408-198612

BEIGE,BEIGE

sub62414-22040

main62414-22040-15iRX72..(GL,XL)..ME;GX71,LX70,MX73,RX70,71..(SED,WG)..(ARL,GEN,ME)198608-198808

BEIGE,DARK BEIGE

sub62414-22040

main62414-22060-02iGX71,MX73,RX70,72..HT198504-198808

MAROON,MAROON

sub62414-22060

main62414-22060-03iGX71,MX73,RX70..HT198504-198608

GRAY,COOL GRAY

sub62414-22060

main62414-22060-04iMX73,RX72..HT198608-198808

BLUE,DARK BLUE

sub62414-22060

main62414-22060-05iGX71,MX73,RX70..HT198504-198608

BEIGE,BEIGE

sub62414-22060

main62414-22060-15iMX73,RX72..HT198608-198808

BEIGE,DARK BEIGE

sub62414-22060

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62431-22060-02iGX71,LX7#,MX73,RX7#..SED..GL198408-198808

MAROON,MAROON

sub62431-22060

main62431-22060-02iRX70,72..SED..LHD..XL..GEN198408-198808

RR SEAT BELT=*ELR,MAROON,MAROON

sub62431-22060

main62431-22060-03iGX71,LX7#,MX73,RX70..SED..GL198408-198808

GRAY,COOL GRAY

sub62431-22060

main62431-22060-03iGX71,LX7#,MX73,RX70..SED..GL198408-198608

RR SEAT BELT=*ELR,GRAY,COOL GRAY

sub62431-22060

main62431-22060-04iRX70,72..SED..LHD..XL..GEN198608-198808

BLUE,DARK BLUE

sub62431-22060

main62431-22060-04iLX70,MX73,RX7#..SED..GL198608-198808

RR SEAT BELT=*ELR,BLUE,DARK BLUE

sub62431-22060

main62431-22060-05iGX71,LX7#,MX73,RX70..SED..GL198408-198612

BEIGE,BEIGE

sub62431-22060

main62431-22060-05iRX70..SED..LHD..XL..GEN198408-198608

RR SEAT BELT=*ELR,BEIGE,BEIGE

sub62431-22060

main62431-22060-15iRX70,72..SED..LHD..XL..GEN198608-198808

BEIGE,DARK BEIGE

sub62431-22060

main62431-22060-15iLX70,MX73,RX7#..SED..GL198608-198808

RR SEAT BELT=*ELR,BEIGE,DARK BEIGE

sub62431-22060

main62431-22070-02iGX71,MX73..(GD,GLX)..(ARL,EUR,GEN,ME)198408-198808

MAROON,MAROON

sub62431-22070

main62431-22070-03iMX73..SA198408-198808

GRAY,COOL GRAY

sub62431-22070

main62431-22070-04iGX71,MX73..(GD,GLX)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub62431-22070

main62431-22070-05iGX71,MX73..(GD,GLX)..(ARL,EUR,GEN,ME)198408-198612

BEIGE,BEIGE

sub62431-22070

main62431-22070-15iGX71,MX73..(GD,GLX)..(ARL,GEN,ME)198608-198808

BEIGE,DARK BEIGE

sub62431-22070

main62431-22110-02iMX73,RX72..GT198504-198808

MAROON,MAROON

sub62431-22110

main62431-22110-03iGX71,RX70..HT198504-198608

GRAY,COOL GRAY

sub62431-22110

main62431-22110-04iMX73,RX72..GT198608-198808

BLUE,DARK BLUE

sub62431-22110

main62431-22110-05iGX71,RX70..HT198504-198608

BEIGE,BEIGE

sub62431-22110

main62431-22110-15iMX73,RX72..GT198608-198808

BEIGE,DARK BEIGE

sub62431-22110

main62431-22120-02iMX73..GTX198504-198808

MAROON,MAROON

main62431-22120-03iMX73..GTX198504-198608

GRAY,COOL GRAY

main62431-22120-04iMX73..GTX198608-198808

BLUE,DARK BLUE

main62431-22120-05iMX73..GTX198504-198608

BEIGE,BEIGE

main62431-22120-15iMX73..GTX198608-198808

BEIGE,DARK BEIGE

main62431-23010-02iLX70,MX72,RX70,72..WG198411-198808

MAROON,MAROON

sub62431-23010

main62431-23010-03iLX70,MX72,RX70..WG198411-198808

GRAY,COOL GRAY

sub62431-23010

main62431-23010-04iRX70,72..WG..(GEN,ME)198608-198808

BLUE,DARK BLUE

sub62431-23010

main62431-23010-05iRX70..WG..SA198411-198612

BEIGE,BEIGE

sub62431-23010

main62431-23010-15iRX70,72..WG198608-198808

BEIGE,DARK BEIGE

sub62431-23010

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62432-22060-02iRX70,72..SED..LHD..XL..GEN198408-198808

MAROON,MAROON

sub62432-22060

main62432-22060-02iGX71,LX7#,MX73,RX7#198408-198808

RR SEAT BELT=*ELR,MAROON,MAROON

sub62432-22060

main62432-22060-03iRX70..SED..LHD..XL..GEN198408-198608

RR SEAT BELT=*ELR,GRAY,COOL GRAY

sub62432-22060

main62432-22060-03iGX71..SA198408-198808

GRAY,COOL GRAY

sub62432-22060

main62432-22060-04iLX70,MX73,RX7#..SED..GL198608-198808

RR SEAT BELT=*ELR,BLUE,DARK BLUE

sub62432-22060

main62432-22060-04iLX70,MX73,RX7#..SED..GL198608-198808

BLUE,DARK BLUE

sub62432-22060

main62432-22060-05iGX71,LX7#,MX73,RX70..SED..GL198408-198608

RR SEAT BELT=*ELR,BEIGE,BEIGE

sub62432-22060

main62432-22060-05iRX70..SED..LHD..XL..GEN198408-198612

BEIGE,BEIGE

sub62432-22060

main62432-22060-15iLX70,MX73,RX7#..SED..GL198608-198808

RR SEAT BELT=*ELR,BEIGE,DARK BEIGE

sub62432-22060

main62432-22060-15iRX70,72..SED..LHD..XL..GEN198608-198808

BEIGE,DARK BEIGE

sub62432-22060

main62432-22070-02iGX71,MX73..(GD,GLX)..(ARL,EUR,GEN,ME)198408-198808

MAROON,MAROON

sub62432-22070

main62432-22070-03iMX73..SA198408-198808

GRAY,COOL GRAY

sub62432-22070

main62432-22070-04iGX71,MX73..(GD,GLX)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub62432-22070

main62432-22070-05iGX71,MX73..(GD,GLX)..(ARL,EUR,GEN,ME)198408-198612

BEIGE,BEIGE

sub62432-22070

main62432-22070-15iMX73..SA198608-198808

BEIGE,DARK BEIGE

sub62432-22070

main62432-22110-02iGX71,RX70..HT198504-198808

MAROON,MAROON

sub62432-22110

main62432-22110-03iGX71,RX70..HT198504-198608

GRAY,COOL GRAY

sub62432-22110

main62432-22110-04iMX73,RX72..GT198608-198808

BLUE,DARK BLUE

sub62432-22110

main62432-22110-05iGX71,RX70..HT198504-198608

BEIGE,BEIGE

sub62432-22110

main62432-22110-15iMX73,RX72..GT198608-198808

BEIGE,DARK BEIGE

sub62432-22110

main62432-22120-02iMX73..GTX198504-198808

MAROON,MAROON

main62432-22120-03iMX73..GTX198504-198608

GRAY,COOL GRAY

main62432-22120-04iMX73..GTX198608-198808

BLUE,DARK BLUE

main62432-22120-05iMX73..GTX198504-198608

BEIGE,BEIGE

main62432-22120-15iMX73..GTX198608-198808

BEIGE,DARK BEIGE

main62432-23010-02iLX70,MX72,RX70,72..WG198411-198808

MAROON,MAROON

sub62432-23010

main62432-23010-03iLX70,MX72,RX70..WG198411-198808

GRAY,COOL GRAY

sub62432-23010

main62432-23010-04iRX70,72..WG..(GEN,ME)198608-198808

BLUE,DARK BLUE

sub62432-23010

main62432-23010-05iLX70,MX72,RX70..WG198411-198612

BEIGE,BEIGE

sub62432-23010

main62432-23010-15iRX70,72..WG198608-198808

BEIGE,DARK BEIGE

sub62432-23010

62473CBOARD, ROOF SIDE INNER GARNISH, RH

main62473-22120-02iMX73,RX70,72..SED..XL198408-198808

MAROON,MAROON

main62473-22120-03iMX73..XL198408-198808

GRAY,COOL GRAY

main62473-22120-04iRX70,72..SED..XL..(GEN,ME)198608-198808

BLUE,DARK BLUE

main62473-22120-05iRX70,YX70..SED..SA198408-198612

BEIGE,BEIGE

main62473-22120-15iRX70,72..SED..XL..(GEN,ME)198608-198808

BEIGE,DARK BEIGE

main62473-22140-02iRX70..SED..LHD..XL..GEN198408-198808

MAROON,MAROON

main62473-22140-02iRX70..SED..LHD..XL..GEN198507-198808

RR SEAT BELT=*ELR,MAROON,MAROON

main62473-22140-03iRX70..SED..LHD..XL..GEN198408-198808

GRAY,COOL GRAY

main62473-22140-03iGX71,LX7#,MX73,RX70..SED..GL198507-198608

RR SEAT BELT=*ELR,GRAY,COOL GRAY

main62473-22140-04iLX70,MX73,RX7#..SED..GL198608-198808

RR SEAT BELT=*ELR,BLUE,DARK BLUE

main62473-22140-04iRX70..SED..LHD..XL198608-198808

BLUE,DARK BLUE

main62473-22140-05iGX71,LX7#,MX73,RX70..SED..GL198408-198612

BEIGE,BEIGE

main62473-22140-05iGX71,LX7#,MX73,RX70..SED..GL198507-198608

RR SEAT BELT=*ELR,BEIGE,BEIGE

main62473-22140-15iLX70,MX73,RX7#..SED..GL198608-198808

RR SEAT BELT=*ELR,BEIGE,DARK BEIGE

main62473-22140-15iRX70..SED..LHD..XL198608-198808

BEIGE,DARK BEIGE

main62473-22150-02iGX71..GEN198408-198808

MAROON,MAROON

main62473-22150-03iMX73..GLX..SA198408-198808

GRAY,COOL GRAY

main62473-22150-04iGX71..GEN198608-198808

BLUE,DARK BLUE

main62473-22150-05iMX73..GLX..SA198408-198808

BEIGE,BEIGE

main62473-22150-15iMX73..GD198608-198808

BEIGE,DARK BEIGE

main62473-22160-02iGX71,MX73..GLX..(ARL,GEN)198408-198808

RR SEAT BELT=*ELR,MAROON,MAROON

sub62473-22150

main62473-22160-02iMX73..GLX..SA198609-198808

MAROON,MAROON

sub62473-22150

main62473-22160-03iGX71,MX73..GD,GLX198408-198505

RR SEAT BELT=*ELR,HRAY,COOL GRAY

sub62473-22150

main62473-22160-04iGX71,MX73..GLX..(ARL,GEN)198608-198808

RR SEAT BELT=*ELR,BLUE,DARK BLUE

sub62473-22150

main62473-22160-05iGX71,MX73..GD,GLX198408-198505

RR SEAT BELT=*ELR,BEIGE,BEIGE

sub62473-22150

main62473-22160-15iGX71,MX73..GLX..(ARL,GEN)198608-198808

RR SEAT BELT=*ELR,BEIGE,DARK BEIGE

sub62473-22150

main62473-22170-02iGX71,LX7#,MX73,RX70..SED..GL198408-198507

RR SEAT BELT=*ELR,MAROON,MAROON

sub62473-22140

main62473-22170-03iRX70..SED..LHD..XL..GEN198408-198507

RR SEAT BELT=*ELR,GRAY,COOL GRAY

sub62473-22140

main62473-22170-05iRX70..SED..LHD..XL..GEN198408-198507

RR SEAT BELT=*ELR,BEIGE,BEIGE

sub62473-22140

62474CBOARD, ROOF SIDE INNER GARNISH, LH

main62474-22120-02iMX73,RX70,72..SED..XL198408-198808

MAROON,MAROON

main62474-22120-03iRX70,YX70..SED..(STD,XL)198408-198808

GRAY,COOL GRAY

main62474-22120-04iRX70,72..SED..XL..(GEN,ME)198608-198808

BLUE,DARK BLUE

main62474-22120-05iRX70,YX70..SED..SA198408-198612

BEIGE,BEIGE

main62474-22120-15iRX70,72..SED..XL..(GEN,ME)198608-198808

BEIGE,DARK BEIGE

main62474-22140-02iRX70..SED..LHD..XL..GEN198408-198808

MAROON,MAROON

main62474-22140-02iRX70..SED..LHD..XL..GEN198507-198808

RR SEAT BELT=*ELR,MAROON,MAROON

main62474-22140-03iGX71,LX7#,RX70..SED..GL198408-198808

GRAY,COOL GRAY

main62474-22140-03iGX71,LX7#,MX73,RX70..SED..GL198507-198608

RR SEAT BELT=*ELR,GRAY,COOL GRAY

main62474-22140-04iRX70..SED..LHD..XL198608-198808

RR SEAT BELT=*ELR,BLUE,DARK BLUE

main62474-22140-04iLX70,MX73,RX7#..SED..GL198608-198808

BLUE,DARK BLUE

main62474-22140-05iRX70..SED..LHD..XL..GEN198507-198608

RR SEAT BELT=*ELR,BEIGE,BEIGE

main62474-22140-05iGX71,LX7#,MX73,RX70..SED..GL198408-198612

BEIGE,BEIGE

main62474-22140-15iRX70..SED..LHD..XL198608-198808

RR SEAT BELT=*ELR,BEIGE,DARK BEIGE

main62474-22140-15iGX71..SA198608-198808

BEIGE,DARK BEIGE

main62474-22150-02iGX71,MX73..(GD,GLX)..(GEN,ME)198408-198808

MAROON,MAROON

main62474-22150-03iMX73..GLX..SA198408-198808

GRAY,COOL GRAY

main62474-22150-04iGX71..GEN198608-198808

BLUE,DARK BLUE

main62474-22150-05iMX73..GLX..SA198408-198808

BEIGE,BEIGE

main62474-22150-15iMX73..GD198608-198808

BEIGE,DARK BEIGE

main62474-22160-02iGX71,MX73..GD,GLX198408-198808

RR SEAT BELT=*ELR,MAROON,MAROON

sub62474-22150

main62474-22160-02iMX73..GLX..SA198609-198808

MAROON,MAROON

sub62474-22150

main62474-22160-03iGX71,MX73..GD,GLX198408-198505

RR SEAT BELT=*ELR,GRAY,COOL GRAY

sub62474-22150

main62474-22160-04iGX71,MX73..GLX..(ARL,GEN)198608-198808

RR SEAT BELT=*ELR,BLUE,DARK BLUE

sub62474-22150

main62474-22160-05iGX71,MX73..GD,GLX198408-198505

RR SEAT BELT=*ELR,BEIGE,BEIGE

sub62474-22150

main62474-22160-15iGX71,MX73..GLX..(ARL,GEN)198608-198808

RR SEAT BELT=*ELR,BEIGE,DARK BEIGE

sub62474-22150

main62474-22170-02iGX71,LX7#,MX73,RX70..SED..GL198408-198507

RR SEAT BELT=*ELR,MAROON,MAROON

sub62474-22140

main62474-22170-03iRX70..SED..LHD..XL..GEN198408-198507

RR SEAT BELT=*ELR,GRAY,COOL GRAY

sub62474-22140

main62474-22170-05iRX70..SED..LHD..XL..GEN198408-198507

RR SEAT BELT=*ELR,BEIGE,BEIGE

sub62474-22140

62551FGARNISH, REAR SEAT SIDE, RH

main62551-22020-02iGX71,LX7#,MX73,RX7#..SED198408-198808

MAROON,MAROON

sub62551-22020

main62551-22020-03iGX71,MX73,RX70,72,YX70..SED..SA198408-198808

GRAY,COOL GRAY

sub62551-22020

main62551-22020-04iGX71,LX70,MX73,RX7#..SED..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub62551-22020

main62551-22020-05iGX71,MX73,RX70,YX70..SED..SA198408-198612

BEIGE,BEIGE

sub62551-22020

main62551-22020-15iGX71,LX70,MX73,RX7#..SED..(ARL,GEN,ME)198608-198808

BEIGE,DARK BEIGE

sub62551-22020

main62551-22030-02iGX71,MX73,RX70,72..HT198504-198808

MAROON,MAROON

sub62551-22030

main62551-22030-03iGX71,MX73,RX70..HT198504-198608

GRAY,COOL GRAY

sub62551-22030

main62551-22030-04iMX73,RX72..HT198608-198808

BLUE,DARK BLUE

sub62551-22030

main62551-22030-05iGX71,MX73,RX70..HT198504-198608

BEIGE,BEIGE

sub62551-22030

main62551-22030-15iMX73,RX72..HT198608-198808

BEIGE,DARK BEIGE

sub62551-22030

62552FGARNISH, REAR SEAT SIDE, LH

main62552-22020-02iGX71,LX7#,MX73,RX7#..SED198408-198808

MAROON,MAROON

sub62552-22020

main62552-22020-03iGX71,MX73,RX70,72,YX70..SED..SA198408-198808

GRAY,COOL GRAY

sub62552-22020

main62552-22020-04iGX71,LX70,MX73,RX7#..SED..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub62552-22020

main62552-22020-05iGX71,MX73,RX70,YX70..SED..SA198408-198612

BEIGE,BEIGE

sub62552-22020

main62552-22020-15iGX71,LX70,MX73,RX7#,YX70..SED198608-198808

BEIGE,DARK BEIGE

sub62552-22020

main62552-22030-02iGX71,MX73,RX70,72..HT198504-198808

MAROON,MAROON

sub62552-22030

main62552-22030-03iGX71,MX73,RX70..HT198504-198608

GRAY,COOL GRAY

sub62552-22030

main62552-22030-04iMX73,RX72..HT198608-198808

BLUE,DARK BLUE

sub62552-22030

main62552-22030-05iGX71,MX73,RX70..HT198504-198608

BEIGE,BEIGE

sub62552-22030

main62552-22030-15iMX73,RX72..HT198608-198808

BEIGE,DARK BEIGE

sub62552-22030

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-22030iGX71,LX7#,MX7#,RX7#,YX70198408-198808

RH

main62562-22030iGX71,LX7#,MX7#,RX7#,YX70198408-198808

LH

62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)

main90467-08056-03iGX71,MX7#,RX7#,YX70198408-198808

GRAY,LIGHT GRAY

sub90467-08056

62562PROTECTOR, ROCKER PANEL, INNER REAR

main62563-22020iGX71,LX7#,MX7#,RX7#,YX70198408-198808

RH

main62564-22010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

LH

62581CGARNISH, REAR WINDOW SIDE, RH

main62581-22050-02iMX73..XL198408-198808

MAROON,MAROON

sub62581-22050

main62581-22050-03iRX70,72,YX70..SED..SA198408-198808

GRAY,COOL GRAY

sub62581-22050

main62581-22050-04iMX73..GL..EFI198608-198808

BLUE,DARK BLUE

sub62581-22050

main62581-22050-05iGX71,LX7#,MX73,RX70,YX70..SED..(GL,STD,XL)198408-198612

BEIGE,BEIGE

sub62581-22050

main62581-22050-15iMX73..GL..EFI198608-198808

BEIGE,DARK BEIGE

sub62581-22050

main62581-22060-02iMX73..GLX..SA198408-198808

MAROON,MAROON

sub62581-22050

main62581-22060-03iGX71,MX73..(GD,GLX)..(ARL,EUR,GEN,ME)198408-198808

GRAY,COOL GRAY

sub62581-22050

main62581-22060-04iGX71,MX73..(GD,GLX)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub62581-22050

main62581-22060-05iMX73..GLX..SA198408-198808

BEIGE,BEIGE

sub62581-22050

main62581-22060-15iGX71,MX73..(GD,GLX)..(ARL,GEN,ME)198608-198808

BEIGE,DARK BEIGE

sub62581-22050

62582CGARNISH, REAR WINDOW SIDE, LH

main62582-22030-02iMX73..XL198408-198808

MAROON,MAROON

sub62582-22030

main62582-22030-03iMX73..XL198408-198808

GRAY,COOL GRAY

sub62582-22030

main62582-22030-04iMX73..GL..EFI198608-198808

BLUE,DARK BLUE

sub62582-22030

main62582-22030-05iGX71,LX7#,MX73,RX70,YX70..SED..(GL,STD,XL)198408-198612

BEIGE,BEIGE

sub62582-22030

main62582-22030-15iMX73..GL..EFI198608-198808

BEIGE,DARK BEIGE

sub62582-22030

main62582-22040-02iMX73..GLX..SA198408-198808

MAROON,MAROON

sub62582-22030

main62582-22040-03iMX73..GLX..SA198408-198808

GRAY,COOL GRAY

sub62582-22030

main62582-22040-04iGX71,MX73..(GD,GLX)..(ARL,GEN,ME)198608-198808

BLUE,DARK BLUE

sub62582-22030

main62582-22040-05iMX73..GLX..SA198408-198808

BEIGE,BEIGE

sub62582-22030

main62582-22040-15iGX71,MX73..(GD,GLX)..(ARL,GEN,ME)198608-198808

BEIGE,DARK BEIGE

sub62582-22030

7104

6777116080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16080

6777130060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30060

9015950083

main90159-50083

9018905018

main90189-05018

9046305024

main90463-05024

9046710011

main90467-10011

9046804118

main90468-04118

9046805011

main90468-05011

9046805017

main90468-05017

9046807013

main90468-07013

9095901009

main90959-01009

9095901165

main90959-01165

9356014010

main93560-14010

43 parts on this diagram · 5 diagrams in section
