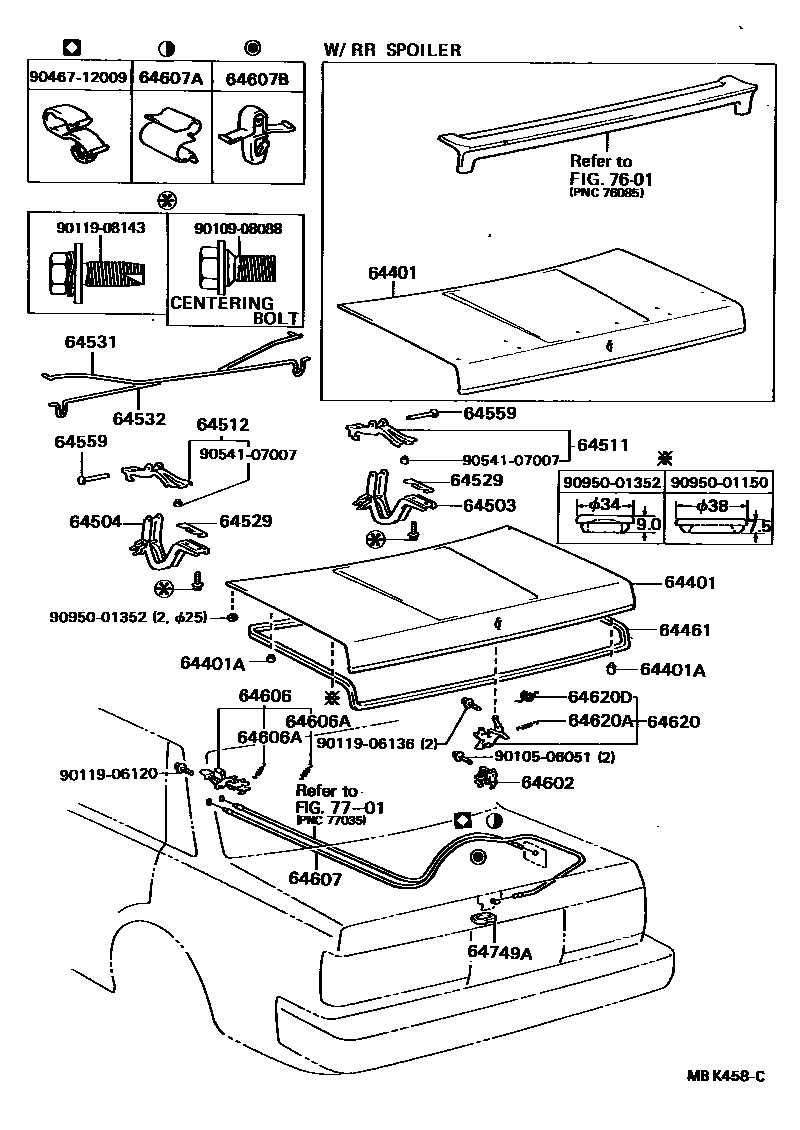

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-22260iGX71,LX70,MX73,RX70..SED..(CBR,DSL,EFI)..(ARL,GEN,ME)198408-198506

sub64401-22270

main64401-22270iGX71,LX70,RX7#..SED..(GEN,ME)198506-198708

main64401-22320iMX73,RX72..GT198504-198708

sub64401-22430

main64401-22370iMX73..SED..(ARL,ME)198708-198808

sub64401-22270

main64401-22380iGX71,LX71..EUG;MX73..SED..(EUR,GEN,ME)198408-198808

W/RR SPOILER

main64401-22380iGX71,RX70..RHD..GEN198601-198608

*62

main64401-22380iGX71,RX72,YX70..SED..SA198708-198808

main64401-22390iMX73..GTX198608-198808

sub64401-22440

main64401-22431iMX73,RX72..GT198708-198808

main64401-22440iMX73..GTX198504-198608

W/RR SPOILER

main64401-22500iMX73,RX72..GT198608-198808

W/RR SPOILER

sub64401-22440

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

FR

sub90541-06056

main90541-09042iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

RR

sub90541-09043

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-22120iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main64461-22160iGX71,MX73,RX70..HT198504-198601

main64461-22190iGX71,MX73,RX70,72..HT198601-198808

sub64461-22160

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-22010iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main64503-22040iGX71,MX73,RX70,72..HT198504-198808

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-22010iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main64504-22020iGX71,MX73,RX70,72..HT198504-198808

sub64503-22040

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-22070iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main64511-22100iGX71,MX73,RX70,72..HT198504-198808

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-22070iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

main64512-22100iGX71,MX73,RX70,72..HT198504-198808

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-14010iGX71,LX7#,MX73,RX7#,YX70..HT,SED198506-198808

main64529-20010iGX71,LX7#,MX73,RX70,YX70..HT,SED198408-198506

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-22120iGX71,LX70,RX7#,YX70..SED198408-198808

main64531-22140iMX73..SA198509-198808

main64531-22140iMX73..GD,GTX198408-198808

W/SPOILER

main64531-22170iGX71,MX73,RX70..HT198504-198808

main64531-22180iMX73,RX72..HT198504-198808

W/RR SPOILER

main64531-22200iGX71..SA198508-198808

main64531-22210iMX73..GLX..SA198609-198808

main64531-22210iMX73..GLX..(ARL,EUR)198508-198808

W/SPOILER

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-22120iMX73..GD,GL;MX73..GEN,SA;GX71,LX7#,RX70,YX70198408-198808

main64532-22140iGX71,LX71,MX73..GL..EUR198408-198808

W/SPOILER

main64532-22170iMX73,RX72..GT198504-198808

main64532-22180iMX73,RX72..HT198504-198808

W/RR SPOILER

main64532-22200iMX73..GLX..(ARL,EUR)198508-198808

main64532-22210iMX73..SA198508-198808

W/SPOILER

64559PIN, LUGGAGE DOOR HINGE

main64559-22010iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-12060iYX70198502-198808

main64620-12070iGX71,LX7#,MX73,RX70..SED198408-198503

sub64621-12060

sub84231-12030

main64620-22040iGX71,LX7#,MX73,RX7#,YX70..HT,SED198503-198808

sub64621-12060

sub84231-22020

sub93315-15010

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-22060iGX71,MX73,RX70,YX70..SED..RHD198408-198709

main64606-22080iGX71,LX7#,MX73,RX70..(HT,SED)..LHD198408-198608

main64606-22090iGX71,MX73,RX70,72..SED..RHD..(ARL,GEN)198608-198808

main64606-22100iGX71,LX70,MX73,RX7#..(HT,SED)..LHD198608-198808

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-22100iGX71,MX73,RX70,YX70..SED..RHD198408-198709

main64607-22160iGX71,LX7#,MX73,RX70..(HT,SED)..LHD198408-198508

main64607-22161iGX71,LX7#,MX73,RX70..(HT,SED)..LHD198508-198608

main64607-22280iGX71,LX70,MX73,RX7#..(HT,SED)..LHD198608-198808

sub64607-32030

main64607-22300iGX71,MX73,RX72,YX70..SED..SA198608-198808

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90959-01158iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90959-01209iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-22040iGX71,LX7#,MX73,RX70,YX70..SED198408-198709

main64610-22070iGX71,MX73,RX70..HT198504-198508

main64610-22080iGX71,LX70,MX73,RX7#..(HT,SED)..(ARL,GEN,ME)198508-198808

main64610-22100iGX71,MX73,RX72,YX70..SED..SA198508-198808

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

CW=13,WD=0.8

64620DSPRING, TORSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90508-08019iGX71,LX70,MX73,RX7#..(HT,SED)..(ARL,GEN,ME,SA)198508-198808

CW=3,WD=0.8

main90508-09001iGX71,LX71,MX73..EUR198508-198608

CW=3,WD=0.9

64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-22020iRX70,72,YX70..SED..(STD,XL)198408-198808

7601

7701

9010506051

main90105-06051

9010908088

main90109-08088

9011906120

main90119-06120

9011906136

main90119-06136

9011908143

main90119-08143

9046712009

main90467-12009

9054107007

main90541-07007

9095001150

main90950-01150

9095001352

main90950-01352

32 parts on this diagram · 1 diagram in section
