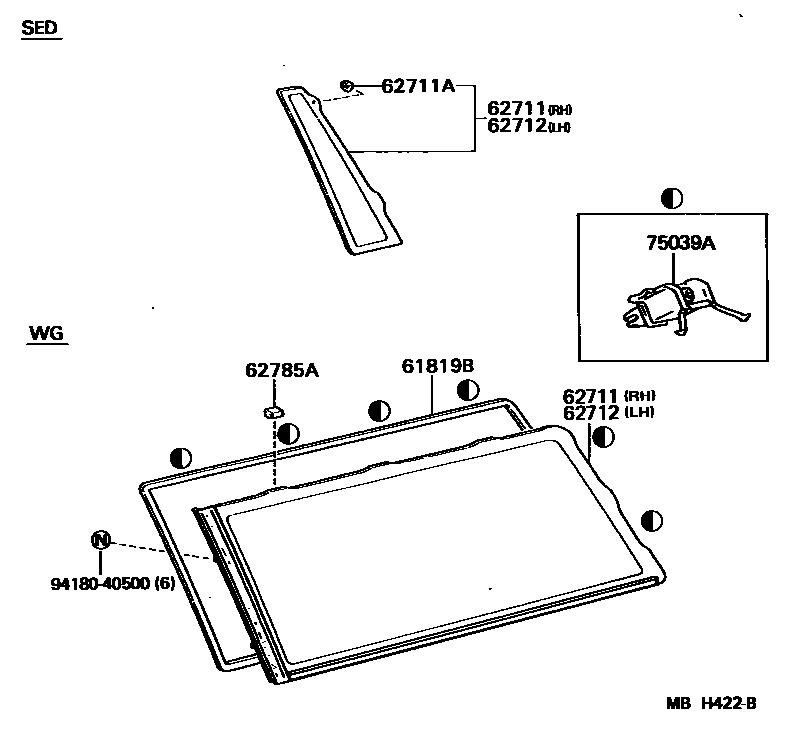

QUARTER WINDOW

61819BSEAL, QUARTER WINDOW REAR SHIELD

main61819-23020iLX70,MX72,RX70,72..WG198411-198808

62711GLASS, QUARTER WINDOW, RH

main62710-23900iLX70,MX72,RX70,72..WG198411-198808

*TT,T=3.5,*TT,T=3.5

main62711-22100iGX71,LX7#,MX73,RX70,YX70..SED198408-198808

*TT,T=3.5,*TT,T=3.5

main62711-22101iGX71,LX70,MX73,RX7#..SED..(GL,GLX,XL)198608-198808

*TT,T=3.5,*TT,T=3.5

main62711-22110iMX73..EUG198408-198608

*TT,T=3.5,BRONZE

main62711-22111iGX71,LX70,RX7#..SED..(GL,GLX)..(GEN,ME)198608-198808

*TT,T=3.5,BRONZE,*TT,T=3.5,BRONZE

main62711-22120iMX73..GD198503-198608

*TT,T=3.5

main62711-22121iMX73..GD,GTX198608-198808

*TT,T=3.5,*TT,T=3.5

main62711-22130iMX73..GD198503-198608

*TT,T=3.5,BRONZE

main62711-22131iMX73..GD,GTX198608-198808

*TT,T=3.5,BRONZE,*TT,T=3.5,BRONZE

62711ASPACER, QUARTER WINDOW GLASS, NO.1

main68137-32010iGX71,LX7#,MX73,RX7#,YX70..SED198408-198808

62712GLASS, QUARTER WINDOW, LH

main62712-22100iGX71,LX7#,MX73,RX70,YX70..SED198408-198808

*TT,T=3.5,*TT,T=3.5

main62712-22101iGX71,LX70,MX73,RX7#..SED..(GL,GLX,XL)198608-198808

*TT,T=3.5,*TT,T=3.5

main62712-22110iMX73..EUG198408-198608

*TT,T=3.5,BRONZE

main62712-22111iGX71,LX70,RX7#..SED..(GL,GLX)..(GEN,ME)198608-198808

*TT,T=3.5,BRONZE,*TT,T=3.5,BRONZE

main62712-22120iMX73..GD198503-198608

*TT,T=3.5

main62712-22121iMX73..GD,GTX198608-198808

*TT,T=3.5,*TT,T=3.5

main62712-22130iMX73..GD198503-198608

*TT,T=3.5,BRONZE

main62712-22131iMX73..GD,GTX198608-198808

*TT,T=3.5,BRONZE,*TT,T=3.5,BRONZE

main62720-23900iLX70,MX72,RX70,72..WG198411-198808

*TT,T=3.5,*TT,T=3.5

62785ASPACER, QUARTER WINDOW GLASS

main62785-23010iLX70,MX72,RX70,72..WG198411-198808

75039ACLIP SUB-ASSY, QUARTER WINDOW, NO.1

main75039-23010iLX70,MX72,RX70,72..WG198411-198808

9418040500

main94180-40500

7 parts on this diagram · 1 diagram in section
