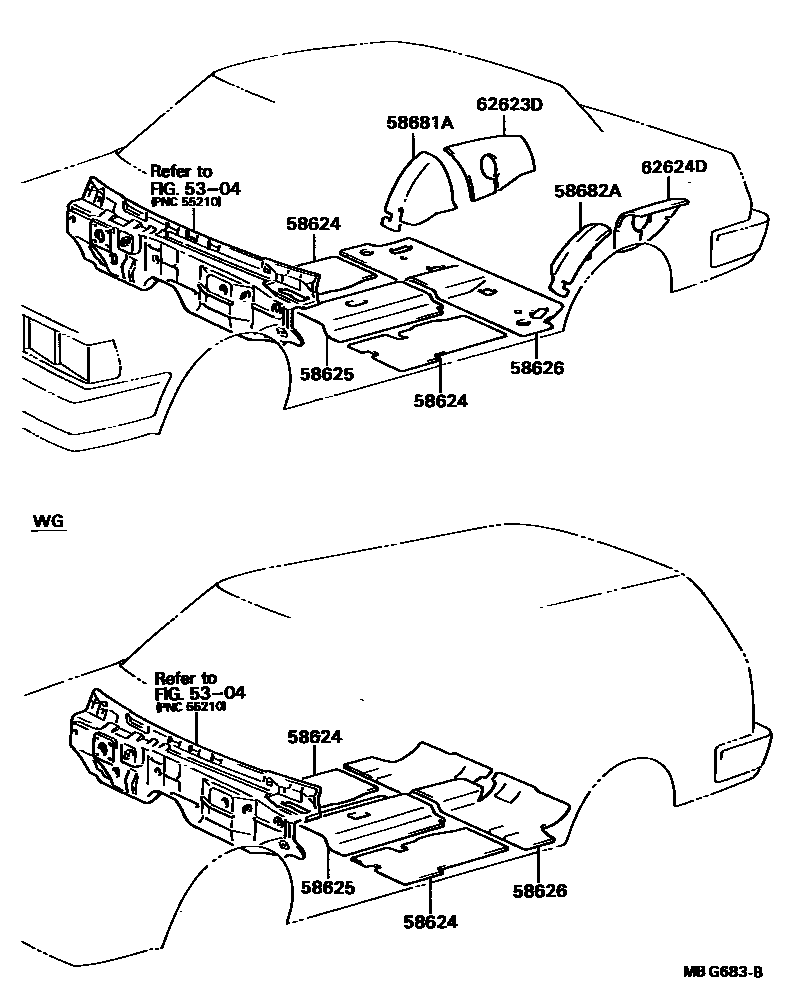

DASH SILENCER BOARD & FLOOR SILENCER PAD

5304

58624PAD, FLOOR SILENCER, REAR SIDE

main58634-22020iGX71,LX7#,MX7#,RX70..GD,GL,GLX,GTX198408-198608

sub58634-22030

main58634-22021iGX71,LX70,MX73,RX70,71..GL,GLX198608-198808

sub58634-22030

58625PAD, FLOOR SILENCER, REAR CENTER

main58636-22070iGX71,LX7#,MX7#,RX7#..GD,GL,GLX,GT,GTX198408-198808

58626PAD, FLOOR SILENCER, REAR

main58624-22070iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

main58624-91605iLX70,MX72,RX70,72..WG198411-198808

58681ASHEET, QUARTER WHEEL HOUSE INNER SILENCER, RH

main58681-22010iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

58682ASHEET, QUARTER WHEEL HOUSE INNER SILENCER, LH

main58682-22010iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

62623DPAD, QUARTER WHEEL HOUSE, INNER REAR RH

main62623-22010iGX71,LX71,MX73,RX71198408-198705

sub58651-22H91

main62623-22020iMX73..ME198705-198808

62624DPAD, QUARTER WHEEL HOUSE, INNER REAR LH

main62623-22010iGX71,LX71,MX73,RX71198408-198808

sub58651-22H91

main62623-22020iMX73..ME198705-198808

8 parts on this diagram · 1 diagram in section
