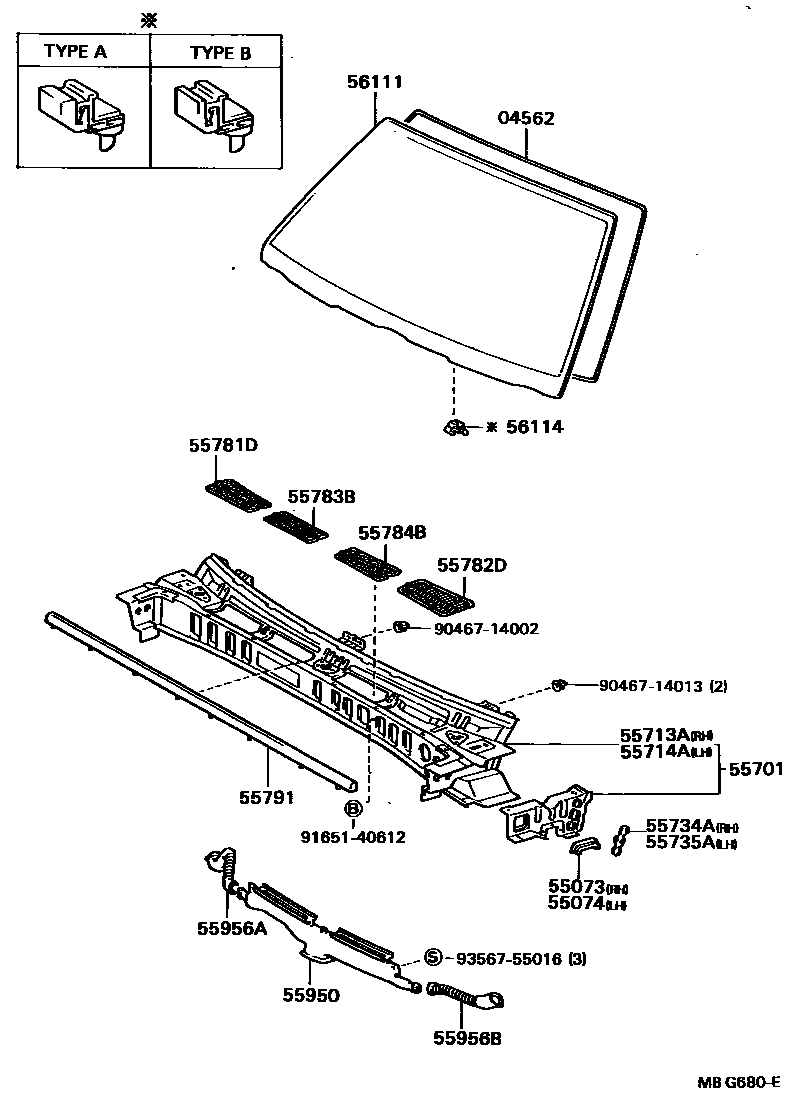

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iGX71,LX7#,MX7#,RX7#,YX70¥2,390198408-198808

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-22020iGX71,LX7#,MX7#,RX7#,YX70¥720198408-198808

55074COVER SUB-ASSY, COWL INNER HEATER AIR

main55074-22030iGX71,LX7#,MX7#,RX7#,YX70¥720198408-198808

55701PANEL SUB-ASSY, COWL

main55700-22540iGX71..RHD¥40,500198408-198608

sub55700-22541

main55700-22541iGX71..RHD198608-198808

main55700-22550iMX73..ARL¥40,500198408-198608

sub55700-22551

main55700-22551iMX73..EFI..GEN198701-198808

main55700-22610iMX73,RX70,YX70..RHD..(EUR,GEN,SA)¥40,500198408-198608

sub55700-22611¥40,600

main55700-22611iMX73,RX70,72,YX70..RHD¥40,600198608-198808

main55700-22650iMX7#..LHD¥40,400198408-198507

sub55700-22670¥40,600

main55700-22670iGX71..LHD..EFI¥40,600198408-198808

main55700-22680iGX71..EUG¥40,400198408-198507

sub55700-22670¥40,600

main55700-22700iLX7#,RX70..LHD¥40,400198408-198507

sub55700-22670¥40,600

55713APANEL, COWL TOP SIDE, RH

main55713-22050iGX71,LX7#,MX7#,RX7#,YX70¥1,730198408-198808

55714APANEL, COWL TOP SIDE, LH

main55714-22050iGX71,LX7#,MX7#,RX7#,YX70¥1,730198408-198808

55734APLATE, WATER GUARD, RH

main55734-22060iGX71,LX7#,MX7#,RX7#,YX70¥500198408-198808

55735APLATE, WATER GUARD, LH

main55734-22060iGX71,LX7#,MX7#,RX7#,YX70¥500198408-198808

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-22140iGX71,MX73,RX70,YX70..RHD¥1,180198408-198610

sub55781-22150¥1,190

main55781-22150iGX71,MX73,RX70,72,YX70..RHD¥1,190198610-198808

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-22040iRX72..ME;GX71,LX7#,MX7#,RX70,71..LHD¥800198408-198610

sub55782-22050¥1,190

main55782-22050iGX71,LX70,MX73,RX7#..LHD¥1,190198610-198808

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-22050iGX71,MX73,RX70,YX70..RHD¥800198408-198610

sub55783-22070¥790

main55783-22060iRX72..ME;GX71,LX7#,MX7#,RX70,71..LHD¥800198408-198610

sub55783-22080¥1,190

main55783-22070iGX71,MX73,RX70,72,YX70..RHD¥790198610-198808

main55783-22080iGX71,LX70,MX73,RX7#..LHD¥1,190198610-198808

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-22050iGX71,MX73,RX70,YX70..RHD¥1,180198408-198610

sub55784-22070¥1,190

main55784-22060iRX72..ME;GX71,LX7#,MX7#,RX70,71..LHD¥800198408-198610

sub55784-22080¥1,190

main55784-22070iGX71,MX73,RX70,72,YX70..RHD¥1,190198610-198808

main55784-22080iGX71,LX70,MX73,RX7#..LHD¥1,190198610-198808

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-22040iGX71,LX7#,MX7#,RX7#,YX70¥2,080198408-198808

55950NOZZLE ASSY, DEFROSTER

main55950-22050iGX71,MX73,RX70,YX70..RHD¥4,020198408-198608

sub55950-22070¥4,030

main55950-22060iGX71,LX7#,MX7#,RX70..LHD¥4,020198408-198608

main55950-22070iGX71,MX73,RX70,72,YX70..RHD¥4,030198608-198808

main55950-22080iGX71,LX70,MX73,RX7#..LHD¥4,020198608-198808

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-22030iGX71,MX73,RX70,72,YX70..RHD¥1,160198408-198808

main55971-22050iGX71,LX7#,MX7#,RX7#..LHD¥1,160198408-198808

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-22020iGX71,MX73,RX70,72,YX70..RHD¥1,160198408-198808

main55972-22040iGX71,LX7#,MX7#,RX7#..LHD¥1,160198408-198808

56111GLASS, WINDSHIELD

main56111-22340iMX73..SED..ME¥129,000198408-198808

*TL,T=5.3,W/SUN SHADE,*TL,T=5.3

sub56111-22341¥129,000

main56111-22350iRX72..XL..GEN¥65,900198408-198808

*TZT,T=5.0,*TZT,T=5.0

sub56111-22370¥114,000

main56111-22360iMX73..ARL,GEN¥115,000198408-198808

*LAM,T=5.3,W/SUN SHADE,*LAM,T=5.3

sub56111-22340¥129,000

main56111-22360iGX71..RHD..GEN¥115,000198506-198608

*LAM,T=5.3,NEW ZEALAND SPEC,*LAM,T=5.3

sub56111-22340¥129,000

main56111-22370iGX71,LX7#,MX73..EUG¥114,000198408-198608

*TL,T=5.3,*TL,T=5.3

main56111-22460iGX71,MX73,RX70,72..HT¥136,000198504-198808

*TL,T=5.3,W/SUN SHADE,*TL,T=5.3

main56111-22490iMX73..(GD,GLX)..(EUR,GEN,ME);GX71,LX70,RX70..SED..(GL,GLX)..(EUR,GEN,ME)¥146,000198408-198608

*TL,T=5.3,BRONZE,W/SUN SHADE,*TL,T=5.3,BRONZE

main56111-22491iGX71,LX70,MX73,RX70,72,73..SED..(GD,GL,GLX)..(GEN,ME)¥147,000198608-198808

W/SUN SHADE,*TL,T=5.3,BRONZE

main56111-22500iGX71,RX70,72..HT¥156,000198504-198608

*TL,T=5.3,BRONZE,W/SUN SHADE,*TL,T=5.3,BRONZE

sub56111-22610

main56111-22510iMX73,RX72..HT¥159,000198608-198808

W/SUN SHADE,*LAM,T=5.3,BRONZE

56114RETAINER, WINDSHIELD GLASS

main56114-30010iGX71,LX7#,MX7#,RX70,YX70¥640198408-198604

TYPE A

sub56114-30050¥620

main56114-30020iGX71,LX7#,MX7#,RX70,YX70¥620198408-198604

TYPE B

sub56114-30060¥620

main56114-30050iGX71,LX70,MX73,RX7#,YX70¥620198604-198808

TYPE A

main56114-30060iGX71,LX70,MX73,RX7#,YX70¥620198604-198808

TYPE B

9046714002

main90467-14002¥540

9046714013

main90467-14013¥160

9165140612

main91651-40612¥70

9356755016

main93567-55016¥110

22 parts on this diagram · 1 diagram in section
