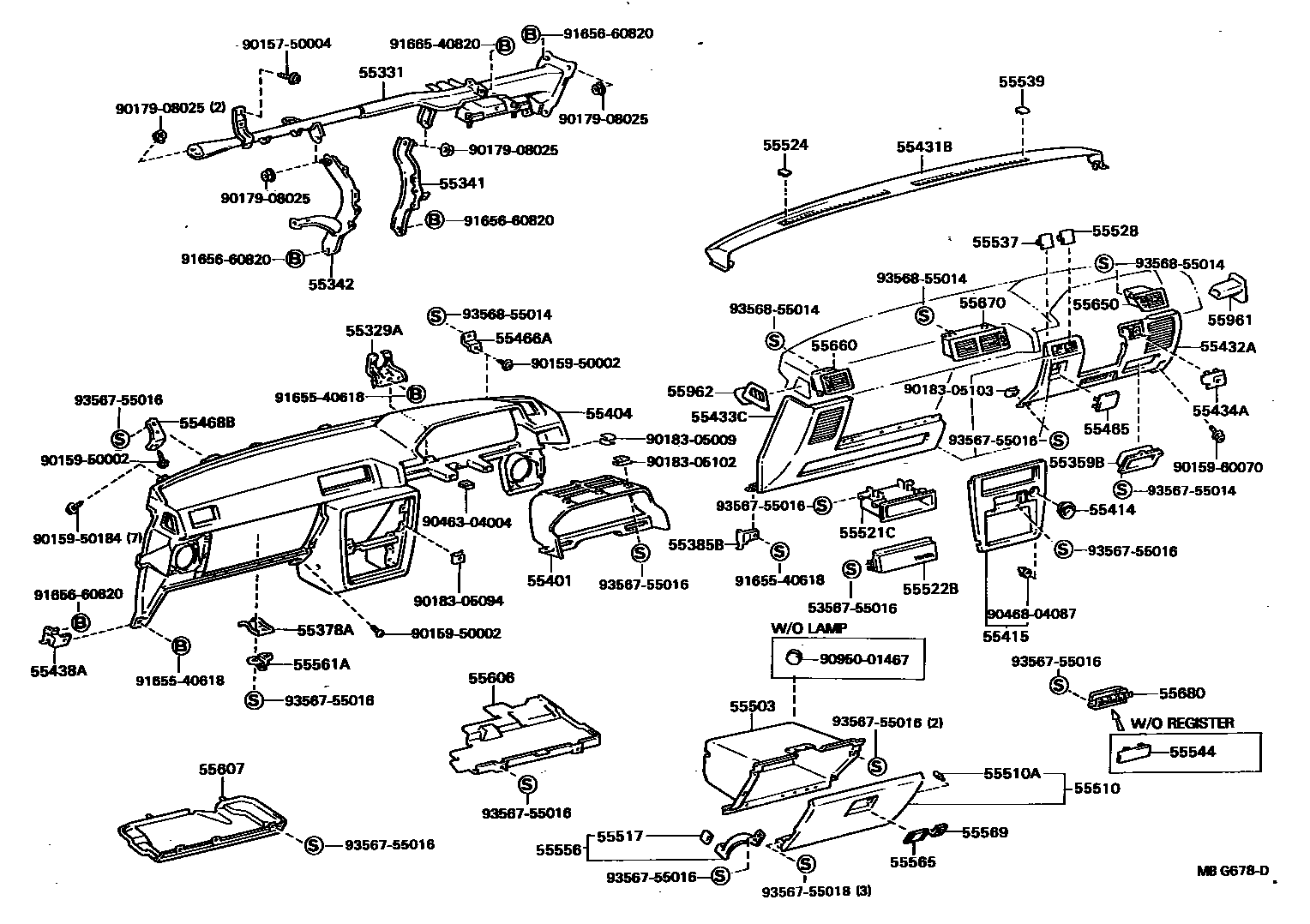

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55329ABRACKET, INSTRUMENT PANEL METER

main55329-22030iMX73..ARL,ME198408-198808

main55329-22040iGX71..RHD..GEN198408-198808

W/DIGITAL METER

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-22010iGX71,MX73,RX70,YX70..RHD198408-198608

main55330-22030iGX71,LX7#,MX7#,RX70..LHD198408-198608

main55330-22050iGX71,MX73,RX70,72,YX70..RHD198608-198808

main55330-22071iGX71,LX70,MX73,RX7#..LHD198608-198808

55341BRACE, INSTRUMENT PANEL, NO.1

main55306-22120iGX71,MX73,RX70,72,YX70..RHD198408-198808

main55306-22140iGX71,LX7#,MX7#,RX7#..LHD198408-198808

55342BRACE, INSTRUMENT PANEL, NO.2

main55307-22170iGX71,MX73,RX70,72,YX70..RHD198408-198808

main55307-22190iGX71,LX7#,MX7#,RX7#..LHD198408-198808

55359BBOX, INSTRUMENT PANEL, CENTER

main55359-22020iGX71,MX73,RX70,72,YX70..RHD198408-198808

main55359-22030iGX71,LX7#,MX7#,RX7#..LHD198408-198808

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-22010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

55385BBRACKET, FINISH PANEL MOUNTING, NO.5

main55385-22020iGX71,MX73,RX70,72,YX70..RHD198408-198808

main55385-22030iGX71,LX7#,MX7#,RX7#..LHD198408-198808

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55411-22250iGX71,MX73,RX70,72,YX70..RHD198408-198808

main55411-22270iGX71,LX7#,MX7#,RX7#..LHD198408-198808

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-22210-03iGX71,MX73,RX70,72,YX70..SA198408-198808

GRAY,COOL GRAY

main55401-22210-04iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

BLUE,DARK BLUE

main55401-22210-12iGX71,MX73,RX70..RHD198408-198808

MAROON,MAROON

main55401-22210-15iGX71,MX73,RX70,YX70..RHD198408-198612

BEIGE,BEIGE

main55401-22210-22iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

MAROON,MAROON

main55401-22210-25iGX71,MX73,RX70,72,YX70..RHD198608-198808

BEIGE,DARK BEIGE

main55401-22230-03iGX71,LX7#,MX7#,RX70..LHD198408-198608

GRAY,COOL GRAY

main55401-22230-04iGX71,LX70,MX73,RX7#..LHD198608-198808

BLUE,DARK BLUE

main55401-22230-12iGX71,LX7#,MX7#,RX70..LHD198408-198608

MAROON,MAROON

main55401-22230-15iGX71,LX7#,MX7#,RX70..LHD198408-198608

BEIGE,BEIGE

main55401-22230-22iGX71,LX70,MX73,RX7#..LHD198608-198808

MAROON,MAROON

main55401-22230-25iGX71,LX70,MX73,RX7#..LHD198608-198808

BEIGE,DARK BEIGE

55414BEZEL, CIGAR LIGHTER HOLE

main55477-22040iGX71,LX7#,MX7#,RX7#,YX70198408-198808

55415PANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55410-22140iMX73..GLX..SA198408-198808

main55410-22150iMX73..LHD..EUG198408-198608

main55410-22160iRX70,72,YX70..SA198502-198808

W/O RADIO OR W/*20 RADIO

main55410-22170iGX71,LX71,MX73..GL..EUR198408-198608

*21 RADIO

main55412-22060iMX73..RHD..GL198508-198808

main55412-22060iRX72..RHD..GEN198408-198808

*25 RADIO

main55412-22070iMX73..GLX..(ARL,GEN)198408-198808

main55412-22100iGX71,LX7#,MX73,RX70..LHD..(GL,XL)198408-198608

LW/MW/FM RADIO

main55412-22100iMX73..(GL,XL)..ME198411-198808

main55412-22110iMX73..GD,GTX198408-198808

55431BPANEL, INSTRUMENT PANEL FINISH, UPPER

main55431-22030-02iGX71,MX73,RX70,72..RHD198408-198808

MAROON,RED

main55431-22030-03iGX71,MX73,RX70,YX70..RHD198408-198808

GRAY,COOL GRAY

main55431-22030-04iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

BLUE,DARK BLUE

main55431-22030-05iGX71,MX73,RX70,YX70..SA198408-198612

BEIGE,BEIGE

main55431-22030-15iGX71,MX73,RX70,72,YX70..RHD198608-198808

BEIGE,DARK BEIGE

main55431-22040-02iGX71,LX7#,MX7#,RX7#..LHD198408-198808

MAROON,RED

main55431-22040-03iGX71,LX7#,MX7#,RX70..LHD198408-198608

GRAY,COOL GRAY

main55431-22040-04iGX71,LX70,MX73,RX7#..LHD198608-198808

BLUE,DARK BLUE

main55431-22040-05iGX71,LX7#,MX7#,RX70..LHD198408-198608

BEIGE,BEIGE

main55431-22040-15iGX71,LX70,MX73,RX7#..LHD198608-198808

BEIGE,DARK BEIGE

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55045-22010-02iGX71,RX70..LHD..GL..(GEN,ME)198508-198608

W/COOL BOX,MAROON,MAROON

main55045-22010-02iGX71,MX73,RX70..HT198504-198608

W/CASSET BOX,MAROON,MAROON

main55045-22010-03iGX71,RX70..LHD..GL..(GEN,ME)198508-198608

W/COOL BOX,GRAY,COOL GRAY

main55045-22010-03iGX71,RX70..LHD..GL..(GEN,ME)198504-198608

W/CASSET BOX,GRAY,COOL GRAY

main55045-22010-05iGX71,MX73,RX70..LHD..(GD,GL,GLX,GTX)..(GEN,ME)198504-198608

W/CASSET BOX,BEIGE,BEIGE

main55045-22010-05iGX71,RX70..LHD..GL..(GEN,ME)198508-198608

W/COOL BOX,BEIGE,BEIGE

main55045-22020-02iGX71,MX73,RX7#..LHD..(GD,GL,GLX,GT,GTX)198608-198808

W/CASSET BOX,COOL BOX,MAROON,MAROON

main55045-22020-04iGX71,MX73,RX7#..LHD..(GD,GL,GLX,GT,GTX)198608-198808

W/CASSET BOX,COOL BOX,BLUE,DARK BLUE

main55045-22020-05iGX71,MX73,RX7#..LHD..(GD,GL,GLX,GT,GTX)198608-198808

W/CASSET BOX,COOL BOX,BEIGE,DARK BEIGE

main55432-22120-02iMX73..RHD..GL198408-198808

MAROON,RED

main55432-22120-03iRX70,72,YX70..SA198408-198808

GRAY,COOL GRAY

main55432-22120-04iRX70,72..RHD..GEN198608-198808

BLUE,DARK BLUE

main55432-22120-05iRX70,YX70..RHD198408-198612

BEIGE,BEIGE

main55432-22120-15iMX73..RHD..GL198608-198808

BEIGE,DARK BEIGE

main55432-22130-02iGX71,MX73..GLX..SA198408-198808

MAROON,RED

main55432-22130-03iGX71,MX73..GLX..SA198408-198808

GRAY,COOL GRAY

main55432-22130-05iGX71,MX73..RHD..GLX198408-198612

BEIGE,BEIGE

main55432-22130-15iGX71,MX73..GLX..SA198612-198808

BEIGE,DARK BEIGE

main55432-22140-02iGX71,LX7#,MX7#,RX7#..LHD..(GL,GT,XL)198408-198808

MAROON,RED

main55432-22140-03iGX71,LX7#,MX7#,RX70..LHD..(GL,XL)198408-198608

GRAY,COOL GRAY

main55432-22140-04iLX70,MX73,RX7#..LHD..(GL,GT,XL)198608-198808

BLUE,DARK BLUE

main55432-22140-05iGX71,LX7#,MX7#,RX70..LHD..(GL,XL)198408-198608

BEIGE,BEIGE

main55432-22140-15iLX70,MX73,RX7#..LHD..(GL,GT,XL)198608-198808

BEIGE,DARK BEIGE

main55432-22150-02iGX71,MX73..LHD..(GD,GLX)198408-198608

MAROON,RED

main55432-22150-03iGX71,MX73..LHD..(GD,GLX)198408-198608

GRAY,COOL GRAY

main55432-22150-05iGX71,MX73..LHD..(GD,GLX)198408-198608

BEIGE,BEIGE

main55432-22170-02iGX71,MX73..RHD..GLX..(ARL,GEN)198608-198808

MAROON,MAROON

main55432-22170-04iGX71,MX73..RHD..GLX..(ARL,GEN)198608-198808

BLUE,DARK BLUE

main55432-22170-05iGX71,MX73..RHD..GLX..(ARL,GEN)198608-198808

BEIGE,DARK BEIGE

main55432-22180-02iGX71..LHD198608-198808

MAROON,MAROON

main55432-22180-04iGX71..LHD198608-198808

BLUE,DARK BLUE

main55432-22180-05iGX71..LHD198608-198808

BEIGE,DARK BEIGE

55433CPANEL, INSTRUMENT PANEL FINISH, LOWER LH

main55433-22020-02iMX73..GL..ARL198408-198808

MAROON,RED

main55433-22020-03iRX70,YX70..RHD198408-198808

GRAY,COOL GRAY

main55433-22020-04iRX70,72..RHD..GEN198608-198808

BLUE,DARK BLUE

main55433-22020-05iRX70,YX70..RHD198408-198612

BEIGE,BEIGE

main55433-22020-15iMX73..XL..SA198608-198808

BEIGE,DARK BEIGE

main55433-22030-02iGX71,MX73..GLX..SA198408-198808

MAROON,RED

main55433-22030-03iGX71,MX73..GLX..SA198408-198808

GRAY,COOL GRAY

main55433-22030-05iGX71,MX73..RHD..GLX198408-198612

BEIGE,BEIGE

main55433-22030-15iGX71,MX73..GLX..SA198612-198808

BEIGE,DARK BEIGE

main55433-22040-02iGX71,LX7#,MX7#,RX7#..LHD..(GL,GT,XL)198408-198808

MAROON,RED

main55433-22040-03iGX71,LX7#,MX7#,RX70..LHD..(GL,XL)198408-198608

GRAY,COOL GRAY

main55433-22040-04iLX70,MX73,RX7#..LHD..(GL,GT,XL)198608-198808

BLUE,DARK BLUE

main55433-22040-05iGX71,LX7#,MX7#,RX70..LHD..(GL,XL)198408-198608

BEIGE,BEIGE

main55433-22040-15iLX70,MX73,RX7#..LHD..(GL,GT,XL)198608-198808

BEIGE,DARK BEIGE

main55433-22050-02iGX71,RX70..LHD..GL..(GEN,ME)198508-198608

W/COOL BOX,MAROON,RED

main55433-22050-02iGX71,RX70..HT198504-198608

W/CASSET BOX,MAROON,RED

main55433-22050-02iGX71,MX73..LHD..(GD,GLX,GTX)198408-198608

MAROON,RED

main55433-22050-03iGX71,RX70..HT198504-198608

W/CASSET BOX,GRAY,COOL GRAY

main55433-22050-03iGX71,RX70..LHD..GL..(GEN,ME)198508-198608

W/COOL BOX,GRAY,COOL GRAY

main55433-22050-03iGX71,MX73..LHD..(GD,GLX,GTX)198408-198608

GRAY,COOL GRAY

main55433-22050-05iGX71,RX70..LHD..GL..(GEN,ME)198508-198608

W/COOL BOX,BEIGE,BEIGE

main55433-22050-05iGX71,MX73..LHD..(GD,GLX,GTX)198408-198608

BEIGE,BEIGE

main55433-22050-05iGX71,RX70..HT198504-198608

W/CASSET BOX,BEIGE,BEIGE

main55433-22060-02iGX71,MX73,RX7#..LHD..(GD,GL,GLX,GT,GTX)198608-198808

W/CASSET BOX,COOL BOX,MAROON,MAROON

main55433-22060-04iGX71,MX73,RX7#..LHD..(GD,GL,GLX,GT,GTX)198608-198808

W/CASSET BOX,COOL BOX,BLUE,DARK BLUE

main55433-22060-05iGX71,MX73,RX7#..LHD..(GD,GL,GLX,GT,GTX)198608-198808

W/CASSET BOX,COOL BOX,BEIGE,DARK BEIGE

main55433-22070-02iGX71,MX73..RHD..GLX..GEN198608-198808

MAROON,MAROON

main55433-22070-04iGX71,MX73..RHD..GLX..GEN198608-198808

BLUE,DARK BLUE

main55433-22070-05iGX71,MX73..RHD..GLX..GEN198608-198808

BEIGE,DARK BEIGE

55434APANEL, INSTRUMENT FINISH, LOWER SUB

main55434-22050-02iGX71,MX73,RX70,72..RHD198408-198808

MAROON,RED

main55434-22050-03iGX71,MX73,RX70,72,YX70..SA198408-198808

GRAY,COOL GRAY

main55434-22050-04iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

BLUE,DARK BLUE

main55434-22050-05iGX71,MX73,RX70,YX70..SA198408-198612

BEIGE,BEIGE

main55434-22050-15iGX71,MX73,RX70..RHD..(ARL,GEN)198608-198808

BEIGE,DARK BEIGE

55438ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.2

main55438-22010iGX71,MX73,RX70,72,YX70..RHD198408-198808

LH

main55438-22010iGX71,MX73,RX70,72,YX70..RHD198408-198808

RH

main55438-22020iGX71,LX7#,MX7#,RX7#..LHD198408-198808

RH

main55438-22020iGX71,MX73,RX70,72,YX70..RHD198408-198808

LH

55465COVER, INSTRUMENT HOLE

main55531-22100-02iGX71,MX73,RX70,72..RHD198408-198808

MAROON,RED

main55531-22100-03iGX71,MX73,RX70,YX70..RHD198408-198808

GRAY,COOL GRAY

main55531-22100-04iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

BLUE,DARK BLUE

main55531-22100-05iGX71,MX73,RX70,YX70..RHD198408-198612

BEIGE,BEIGE

main55531-22100-15iGX71,MX73,RX70..RHD..(ARL,GEN)198608-198808

BEIGE,DARK BEIGE

main55531-22110-02iMX73..RHD..EUG198408-198608

W/*HC,MAROON,RED

main55531-22110-03iMX73..RHD..EUG198408-198608

W/*HC,GRAY,COOL GRAY

main55531-22110-05iMX73..RHD..EUG198408-198608

W/*HC,BEIGE,BEIGE

55466ARETAINER, INSTRUMENT PANEL SAFETY PAD

main55466-22030iGX71,LX7#,MX7#,RX7#,YX70198408-198808

55468BRETAINER, INSTRUMENT PANEL SAFETY PAD, NO.3

main55468-22030iGX71,MX73,RX70,72,YX70..RHD198408-198808

main55468-22040iGX71,LX7#,MX7#,RX7#..LHD198408-198808

55503COMPARTMENT SUB-ASSY, GLOVE

main55506-22060iGX71,MX73,RX70,72,YX70..RHD198408-198808

main55581-22100iGX71,RX70..HT198408-198808

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-22070-02iGX71,MX73,RX70,72..RHD198408-198808

MAROON,RED

main55550-22070-03iGX71,MX73,RX70,72,YX70..SA198408-198808

GRAY,COOL GRAY

main55550-22070-04iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

BLUE,DARK BLUE

main55550-22070-05iGX71,MX73,RX70,YX70..RHD198408-198612

BEIGE,BEIGE

main55550-22070-15iGX71,MX73,RX70..RHD..(ARL,GEN)198608-198808

BEIGE,DARK BEIGE

main55550-22090-02iGX71,LX70,RX7#..LHD198408-198808

MAROON,RED

main55550-22090-03iGX71,LX7#,MX73,RX70..SED..LHD198408-198608

GRAY,COOL GRAY

main55550-22090-04iGX71,LX70,RX7#..LHD198608-198808

BLUE,DARK BLUE

main55550-22090-05iGX71,RX70..HT198408-198608

BEIGE,BEIGE

main55550-22090-15iGX71,LX70,RX7#..LHD198608-198808

BEIGE,DARK BEIGE

main55551-22070-02iGX71,MX73,RX70..HT198504-198808

W/COOLING BOX,MAROON,MAROON

main55551-22070-03iGX71,MX73,RX70..LHD..(GD,GL,GLX,GTX)..(GEN,ME)198504-198608

W/COOLING BOX,GRAY,COOL GRAY

main55551-22070-04iGX71,MX73,RX7#..LHD..(GD,GL,GLX,GT,GTX)198608-198808

W/COOL BOX,BLUE,DARK BLUE

main55551-22070-05iGX71,MX73,RX70..LHD..(GD,GL,GLX,GTX)..(GEN,ME)198504-198608

W/COOLING BOX,BEIGE,BEIGE

main55551-22070-15iGX71,MX73,RX7#..LHD..(GD,GL,GLX,GT,GTX)198608-198808

W/COOL BOX,BEIGE,DARK BEIGE

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015iMX73..GL,GLX,GT198408-198808

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

55521CCOVER, STEREO OPENING

main55521-14050-01iMX73,RX72..XL..ME198408-198808

BLACK,BLACK

main55521-20120iRX70,72,YX70..SA198508-198808

main55521-22030iGX71,LX7#,RX70,YX70..(CBR,TD,TWC)..(EUR,SA)198408-198508

55522BCOVER, RADIO TUNER OPENING

main55522-14070iGX71,LX7#,MX7#,RX70,YX70..(GL,STD,XL)..(EUR,SA)198408-198808

main55522-32010iGX71,LX70,RX7#..GEN198408-198808

55524COVER, SWITCH BACE HOLE

main55524-22050-02iMX73..EFI..GEN198408-198808

MAROON,RED

main55524-22050-03iMX73..ARL,EUR,ME,SA;GX71,LX7#,MX72,RX70,YX70198408-198608

GRAY,COOL GRAY

main55524-22050-04iMX73..ARL,ME,SA198608-198808

BLUE,DARK BLUE

main55524-22050-05iMX73..ARL,EUR,SA;GX71,LX7#,MX72,RX70,YX70198408-198608

BEIGE,BEIGE

main55524-22050-15iGX71,LX70,RX7#,YX70198608-198808

BEIGE,DARK BEIGE

55528COVER, AUTO DRIVE OPENING

main55528-22020iMX73..EFI;MX73..TWC..(ARL,EUR,SA);GX71,LX7#,MX72,RX7#,YX70198408-198808

55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE

main55528-22020iMX73..GT198408-198808

main55537-22020iGX71,LX7#,MX7#,RX7#..LHD..(GL,XL)198408-198808

main55537-22030iGX71,MX73..LHD..(GD,GLX,GTX)198408-198808

55539COVER, SPARE SWITCH HOLE

main55539-22020-02iGX71,LX70,RX7#..LHD198408-198808

MAROON,MAROON

main55539-22020-03iGX71,LX7#,MX7#,RX70..LHD198408-198608

GRAY,COOL GRAY

main55539-22020-04iMX73..GT198608-198808

BLUE,DARK BLUE

main55539-22020-05iGX71,LX7#,MX7#,RX70..LHD198408-198608

BEIGE,BEIGE

main55539-22020-15iGX71,LX70,RX7#..LHD198608-198808

BEIGE,DARK BEIGE

main55539-22070-02iGX71,MX73,RX70,72..RHD198408-198808

MAROON,RED

main55539-22070-03iGX71,MX73,RX70,YX70..RHD198408-198808

GRAY,COOL GRAY

main55539-22070-04iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

BLUE,DARK BLUE

main55539-22070-05iGX71,MX73,RX70,YX70..SA198408-198612

BEIGE,BEIGE

main55539-22070-15iGX71,MX73,RX70..RHD..(ARL,GEN)198608-198808

BEIGE,DARK BEIGE

55544COVER, INSTRUMENT PANEL REGISTER HOLE

main55544-32010-02iMX73..ARL198408-198808

MAROON,MAROON

main55544-32010-05iGX71,MX73,RX70,YX70..SA198408-198612

BEIGE,BEIGE

main55544-32010-15iMX73..ARL198608-198808

BEIGE,DARK BEIGE

main55544-32010-23iGX71,MX73,RX70,72,YX70..SA198408-198808

GRAY,COOL GRAY

main55544-32010-24iGX71,LX70,RX7#..GEN198608-198808

BLUE,DARK BLUE

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-22060iGX71,LX7#,MX7#,RX7#,YX70198408-198808

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-22020iGX71,LX7#,MX7#,RX7#,YX70198408-198808

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-22010-02iGX71,MX73,RX70,72..SA198411-198808

MAROON,MAROON

main55565-22010-03iGX71,LX7#,MX7#,RX70,YX70198411-198808

GRAY,COOL GRAY

main55565-22010-05iGX71,MX73,RX70,YX70..SA198411-198612

BEIGE,BEIGE

main55565-22010-12iGX71,LX70,MX73,RX7#..ARL,GEN,ME198608-198808

MAROON,MAROON

main55565-22010-14iGX71,LX70,MX73,RX7#..ARL,GEN,ME198608-198808

BLUE,DARK BLUE

main55565-22010-15iGX71,LX70,MX73,RX7#,YX70198608-198808

BEIGE,DARK BEIGE

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-22020-02iGX71,LX7#,MX7#,RX70198411-198808

MAROON,MAROON

main55569-22020-03iGX71,MX73,RX70,72,YX70..SA198411-198808

GRAY,COOL GRAY

main55569-22020-05iGX71,MX73,RX70,YX70..SA198411-198612

BEIGE,BEIGE

main55569-22020-12iGX71,LX70,MX73,RX7#..ARL,GEN,ME198608-198808

MAROON,MAROON

main55569-22020-14iGX71,LX70,MX73,RX7#..ARL,GEN,ME198608-198808

BLUE,DARK BLUE

main55569-22020-15iRX72..ME;GX71,LX70,MX73,RX70,71..ARL,GEN,ME198608-198808

BEIGE,DARK BEIGE

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-22090iGX71,MX73,RX70,72,YX70..RHD198408-198808

main55606-22100iGX71,LX7#,MX7#,RX7#..LHD198408-198808

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-22040iGX71,MX73,RX70,72,YX70..RHD198408-198808

main55607-22050iGX71,LX7#,MX7#,RX7#..LHD198408-198808

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-22060-02iGX71,MX73,RX70,72..SA198408-198808

MAROON,RED

main55650-22060-03iGX71,MX73,RX70,YX70..RHD198408-198808

GRAY,COOL GRAY

main55650-22060-05iGX71,MX73,RX70,YX70..RHD198408-198612

BEIGE,BEIGE

main55650-22060-15iGX71,MX73,RX70,72,YX70..SA198612-198808

BEIGE,DARK BEIGE

main55650-22080-02iGX71,LX7#,MX7#,RX70..LHD..(EUR,GEN)198408-198608

MAROON,RED

main55650-22080-03iGX71,LX7#,MX7#,RX70..LHD198408-198608

GRAY,COOL GRAY

main55650-22080-05iGX71,LX7#,MX7#,RX70..LHD198408-198608

BEIGE,BEIGE

main55650-22090-02iGX71,MX73,RX70..ME198508-198608

MAROON,MAROON

main55650-22090-03iGX71,MX73,RX70..ME198508-198608

GRAY,COOL GRAY

main55650-22090-05iGX71,MX73,RX70..ME198508-198608

BEIGE,BEIGE

main55650-22100-02iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

MAROON,MAROON

main55650-22100-04iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

BLUE,DARK BLUE

main55650-22100-05iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

BEIGE,DARK BEIGE

main55650-22110-02iGX71,LX70,MX73,RX7#..LHD198608-198808

MAROON,MAROON

main55650-22110-04iGX71,LX70,MX73,RX7#..LHD198608-198808

BLUE,DARK BLUE

main55650-22110-05iGX71,LX70,MX73,RX7#..LHD198608-198808

BEIGE,DARK BEIGE

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-22080-02iGX71,MX73,RX70,72..RHD..(ARL,EUR,GEN)198408-198808

MAROON,RED

main55660-22080-03iGX71,MX73,RX70..RHD..(ARL,EUR,GEN)198408-198608

GRAY,COOL GRAY

main55660-22080-04iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

BLUE,DARK BLUE

main55660-22080-05iGX71,MX73,RX70..RHD..(ARL,EUR,GEN)198408-198608

BEIGE,BEIGE

main55660-22080-15iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

BEIGE,DARK BEIGE

main55660-22090-02iGX71,MX73,RX70,72..SA198504-198808

MAROON,RED

main55660-22090-03iGX71,MX73,RX70,72,YX70..SA198504-198808

GRAY,COOL GRAY

main55660-22090-05iGX71,MX73,RX70,YX70..SA198504-198612

BEIGE,BEIGE

main55660-22090-15iGX71,MX73,RX70,72,YX70..SA198612-198808

BEIGE,DARK BEIGE

main55660-22110-02iGX71,LX7#,MX7#,RX7#..LHD198408-198808

MAROON,RED

main55660-22110-03iGX71,LX7#,MX7#,RX70..LHD198408-198608

GRAY,COOL GRAY

main55660-22110-04iGX71,LX70,MX73,RX7#..LHD198608-198808

BLUE,DARK BLUE

main55660-22110-05iGX71,LX7#,MX7#,RX70..LHD198408-198608

BEIGE,BEIGE

main55660-22110-15iGX71,LX70,MX73,RX7#..LHD198608-198808

BEIGE,DARK BEIGE

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-22090-02iGX71,MX73,RX70,72..RHD..(ARL,EUR,GEN)198408-198808

MAROON,RED

main55670-22090-03iGX71,MX73,RX70..RHD..(ARL,EUR,GEN)198408-198608

GRAY,COOL GRAY

main55670-22090-04iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

BLUE,DARK BLUE

main55670-22090-05iGX71,MX73,RX70..RHD..(ARL,EUR,GEN)198408-198608

BEIGE,BEIGE

main55670-22090-15iGX71,MX73,RX70,72..RHD..(ARL,GEN)198608-198808

BEIGE,DARK BEIGE

main55670-22110-02iGX71,LX7#,MX7#,RX70..LHD198408-198608

MAROON,RED

main55670-22110-03iGX71,LX7#,MX7#,RX70..LHD198408-198608

GRAY,COOL GRAY

main55670-22110-05iGX71,LX7#,MX7#,RX70..LHD198408-198608

BEIGE,BEIGE

main55670-22120-02iGX71,MX73,RX70,72..SA198502-198808

MAROON,MAROON

main55670-22120-03iGX71,MX73,RX70,72,YX70..SA198502-198808

GRAY,COOL GRAY

main55670-22120-05iGX71,MX73,RX70,YX70..SA198502-198612

BEIGE,BEIGE

main55670-22120-15iGX71,MX73,RX70,72,YX70..SA198612-198808

BEIGE,DARK BEIGE

main55670-22130-02iGX71,LX70,MX73,RX7#..LHD198608-198808

MAROON,MAROON

main55670-22130-04iGX71,LX70,MX73,RX7#..LHD198608-198808

BLUE,DARK BLUE

main55670-22130-05iGX71,LX70,MX73,RX7#..LHD198608-198808

BEIGE,DARK BEIGE

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-32010iGX71,LX7#,MX7#,RX7#,YX70198408-198808

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-22040-02iGX71,LX7#,MX7#,RX7#198408-198808

MAROON,RED

main55961-22040-03iGX71,LX7#,MX7#,RX70,YX70198408-198808

GRAY,COOL GRAY

main55961-22040-04iGX71,LX70,MX73,RX7#..ARL,GEN,ME198608-198808

BLUE,DARK BLUE

main55961-22040-05iGX71,MX73,RX70,YX70..SA198408-198612

BEIGE,BEIGE

main55961-22040-15iGX71,LX70,MX73,RX7#,YX70198608-198808

BEIGE,DARK BEIGE

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-22040-02iGX71,LX7#,MX7#,RX7#198408-198808

MAROON,RED

main55962-22040-03iGX71,LX7#,MX7#,RX70,YX70198408-198808

GRAY,COOL GRAY

main55962-22040-04iGX71,LX70,MX73,RX7#..ARL,GEN,ME198608-198808

BLUE,DARK BLUE

main55962-22040-05iGX71,MX73,RX70,YX70..SA198408-198612

BEIGE,BEIGE

main55962-22040-15iRX72..ME;GX71,LX70,MX73,RX70,71..ARL,GEN,ME198608-198808

BEIGE,DARK BEIGE

5356755016

main53567-55016

9015750004

main90157-50004

9015950002

main90159-50002

9015950184

main90159-50184

9015960070

main90159-60070

9017908025

main90179-08025

9018305009

main90183-05009

9018305094

main90183-05094

9018305102

main90183-05102

9018305103

main90183-05103

9046304004

main90463-04004

9046804087

main90468-04087

9095001467

main90950-01467

9165540618

main91655-40618

9165660820

main91656-60820

9166540820

main91665-40820

9356755014

main93567-55014

9356755016

main93567-55016

9356755018

main93567-55018

9356855014

main93568-55014

62 parts on this diagram · 2 diagrams in section
