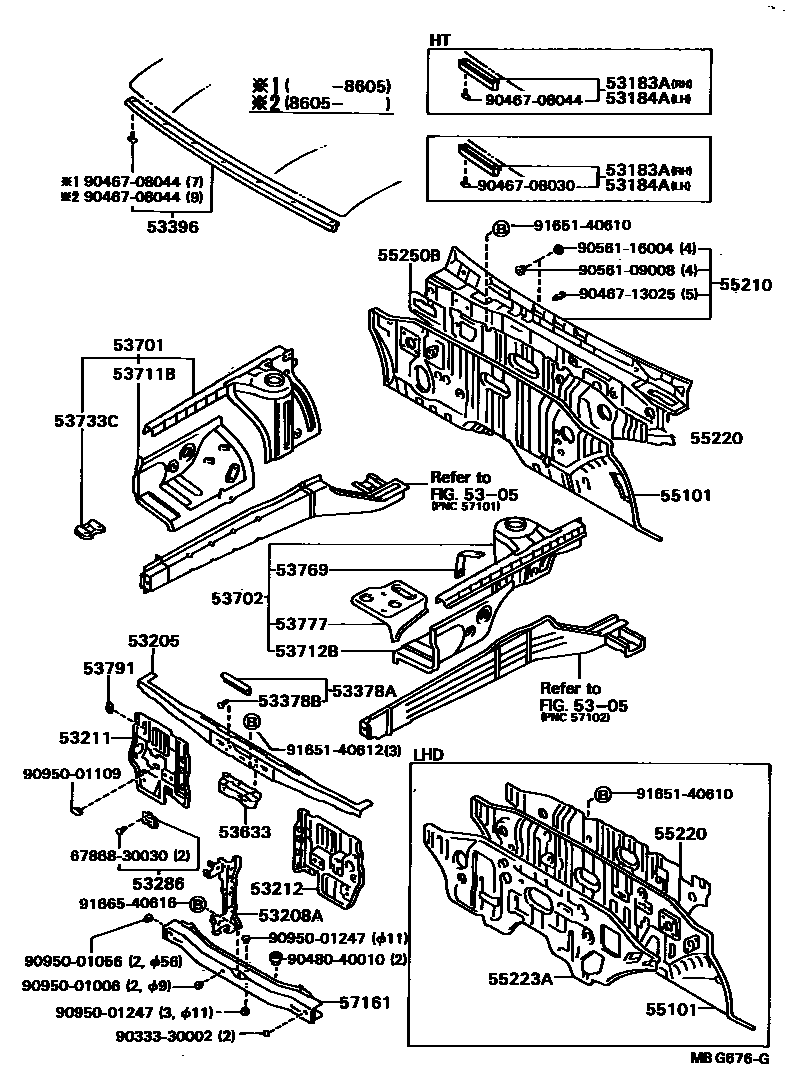

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

5305

53183ASEAL, HEADLAMP COVER, RH

main53183-22010iGX71,MX73,RX70..HT198504-198608

main53183-22030iGX71,RX70..ME198408-198410

sub53396-22030

main53183-22050iMX73,RX72..HT198608-198808

53184ASEAL, HEADLAMP COVER, LH

main53184-22010iGX71,MX73,RX70..HT198504-198608

main53184-22020iGX71,RX70..ME198408-198410

sub53396-22030

main53184-22030iMX73,RX72..HT198608-198808

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-22050iGX71,LX7#,MX7#,RX7#,YX70198408-198808

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-22040iGX71,LX7#,MX7#,RX70,YX70198408-198504

sub53208-22041

main53208-22041iGX71,MX73,RX70,72,YX70..SA198504-198808

sub53208-22050

main53208-22042iGX71,LX70,MX73,RX7#..(SED,WG)..(ARL,GEN,ME)198608-198808

sub53208-22051

main53208-22050iMX73..GD198508-198608

main53208-22051iMX73..GD198608-198808

main53208-22060iGX71,MX73,RX70..HT198504-198508

sub53208-22020

main53208-22061iRX72..GT198608-198808

sub53208-22071

main53208-22070iMX73..GTX198508-198608

main53208-22071iMX73..HT198608-198808

53211SUPPORT, RADIATOR, RH

main53211-22210iGX71,LX7#,MX7#,RX70,YX70198408-198808

main53211-22211iGX71,LX70,MX73,RX7#..ARL,GEN198608-198808

main53211-22230iMX73,RX72..ME198608-198808

53212SUPPORT, RADIATOR, LH

main53212-22140iGX71,LX7#,MX7#,RX70,YX70198408-198808

main53212-22141iGX71,LX70,MX73,RX7#..ARL,GEN198608-198808

sub53212-22190

main53212-22170iMX73,RX72..ME198608-198808

53286COVER, FRONT BUMPER ARM HOLE

main53285-22020iGX71,LX7#..EUG198408-198808

RH

main53286-22010iMX73..GLX..TWC;MX7#,RX70..CBR,EFI198408-198808

LH

53378ASEAL, HOOD AIR INTAKE DUCT

main53378-22010iLX70198608-198808

53378BCLIP(FOR HOOD AIR INTAKE DUCT SEAL)

main90467-08011iLX70198608-198808

53396SEAL, RADIATOR SUPPORT TO HEADLAMP

main53396-22011iGX71,LX7#,MX7#,RX70,YX70..ARL,EUR,GEN,SA198408-198808

main53396-22030iGX71,MX73,RX70..(SED,WG)..ME198410-198608

53633SHIELD, HOOD LOCK CONTROL CABLE

main53633-22030iGX71,LX7#,MX7#,RX7#,YX70198408-198808

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-22410iGX71,MX73..RHD198408-198808

main53701-22420iRX70,72..RHD198408-198808

W/POWER STEERING

sub53701-22400

main53701-22430iGX71,LX7#,MX7#..LHD198408-198808

main53701-22440iRX7#..LHD198408-198808

W/POWER STEERING

main53701-22480iRX70,72,YX70..RHD..(STD,XL)198408-198808

sub53701-22470

main53701-22490iRX70,72..LHD..XL198408-198808

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-22350iGX71,MX73..RHD198408-198808

main53702-22360iRX70,72..RHD198408-198808

W/POWER STEERING

main53702-22370iMX73..ME;GX71..LHD;MX73..LHD..EUG198408-198808

main53702-22380iRX70..LHD198408-198808

W/POWER STEERING

main53702-22410iMX73..RHD..EUG198408-198608

COLD SPEC

main53702-22420iLX70198608-198808

main53702-22420iLX7#,MX7#..LHD..(EUR,GEN)198408-198608

COLD SPEC

main53702-22450iRX70,72,YX70..RHD..(STD,XL)198408-198808

main53702-22460iRX70,72..LHD..XL198408-198808

53711BAPRON, FRONT FENDER, FRONT RH

main53711-22320iGX71,LX7#,MX7#198408-198808

main53711-22340iRX7#,YX70198408-198808

53712BAPRON, FRONT FENDER, FRONT LH

main53712-22290iLX7#,RX7#,YX70198408-198808

sub53712-22291

main53712-22310iMX73..EUG198408-198608

COLD SPEC

53733CPATCH, FRONT FENDER APRON

main53733-22060iGX71,MX73,RX7#..ARL,GEN,ME198801-198808

53769PLATE, IGNITION COIL MOUNTING, LH

main53769-22030iGX71,MX73,RX7#,YX70198801-198808

53777SUPPORT, BATTERY CARRIER, NO.2

main53777-22030iLX70198801-198808

53791COVER, COOL AIR INTAKE HOLE

main53791-22010iGX71,LX7#,MX7#,RX70,YX70198408-198808

main53791-22020iGX71,LX70,MX73,RX7#..ARL,GEN,ME198608-198808

55101PANEL SUB-ASSY, DASH

main55101-22915iGX71,MX73,RX70,72..RHD198408-198808

main55101-22920iGX71,LX7#..GL..(EUR,GEN)198408-198808

main55101-22921iGX71..LHD..EFI198408-198808

main55101-22922iRX70..LHD198408-198608

main55101-22926iMX7#..LHD..EFI198410-198608

main55101-22932iRX7#..SED..LHD198608-198808

main55101-22933iMX73..ME198608-198808

55210INSULATOR ASSY, DASH PANEL

main55210-22160iGX71,LX7#,MX7#,RX70..LHD198408-198608

main55210-22161iGX71,LX70,MX73,RX7#..LHD198608-198808

sub55210-22250

main55210-22180iGX71,MX73,RX70,72,YX70..RHD198408-198808

sub55210-22200

55220INSULATOR ASSY, DASH PANEL, NO.2

main55220-22010iGX71,MX73,RX70,72,YX70..RHD198408-198808

main55220-22020iMX73..LHD..EUR198408-198808

main55220-22030iLX7#198408-198808

55223AINSULATOR, DASH PANEL, OUTER

main55223-22040iGX71,LX7#..GL..(EUR,GEN)198408-198808

55250BINSULATOR ASSY, DUSH PANEL, NO.3

main55250-22010iGX71,MX73,RX70,72,YX70..RHD198408-198808

57161CROSSMEMBER, FRONT

main57104-22110iGX71,LX7#,MX7#,RX70,YX70198408-198808

main57104-22120iMX73,RX72..ME198608-198808

6786830030CLIP, FRONT DOOR GLASS WEATHERSTRIP

main67868-30030

9033330002

main90333-30002

9046708030

main90467-08030

9046708044

main90467-08044

9046713025

main90467-13025

9048040010

main90480-40010

9056109008

main90561-09008

9056116004

main90561-16004

9095001006

main90950-01006

9095001056

main90950-01056

9095001109

main90950-01109

9095001247

main90950-01247

9165140610

main91651-40610

9165140612

main91651-40612

9166540616

main91665-40616

41 parts on this diagram · 2 diagrams in section
