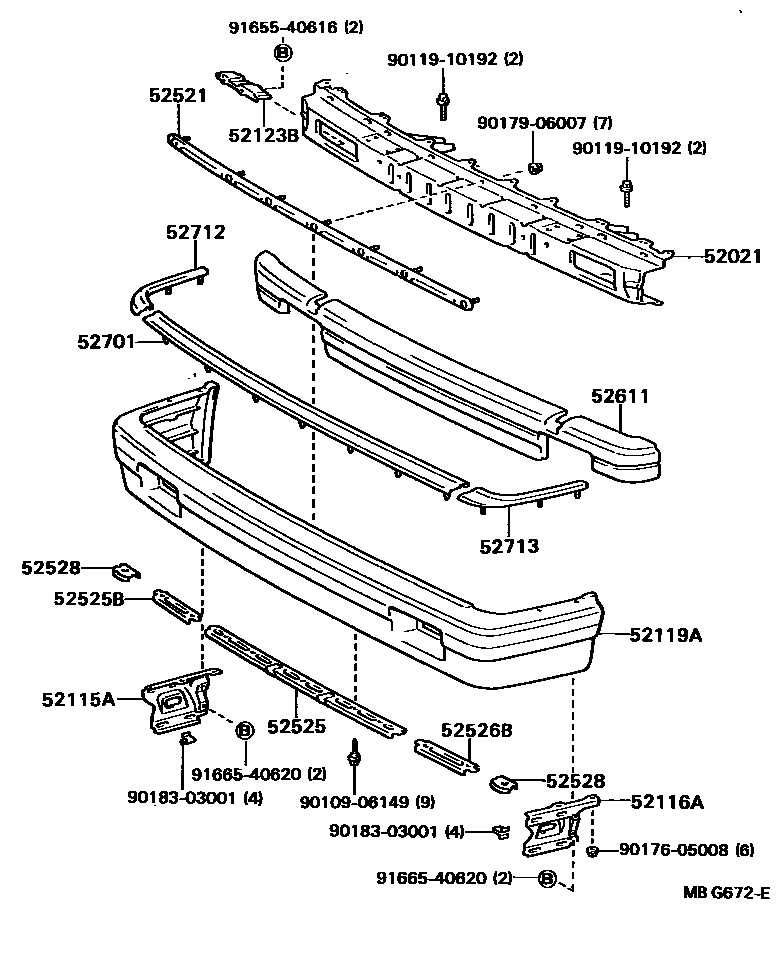

FRONT BUMPER & BUMPER STAY

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-22140iMX73,RX72..ME198608-198808

main52021-22170iGX71,MX73,RX70,72,YX70..SA198608-198808

main52021-22190iGX71,LX70,MX73,RX7#..ARL,GEN198608-198808

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-22100iMX73,RX72..ME198608-198808

main52115-22110iGX71,LX7#,MX7#,RX70,YX70198408-198608

main52115-22111iGX71,LX70,MX73,RX7#..ARL,GEN198608-198808

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-22070iMX73,RX72..ME198608-198808

main52116-22080iGX71,LX7#,MX7#,RX70,YX70198408-198608

main52116-22081iGX71,LX70,MX73,RX7#..ARL,GEN198608-198808

52119ACOVER, FRONT BUMPER

main52119-22230iMX73..GEN,ME198408-198508

main52119-22260iGX71,LX7#,MX7#..GL..EUR198408-198608

W/*HC

main52119-22300iRX72..GT198608-198808

sub52119-22924

main52119-22330iGX71,LX70,RX7#..GEN198608-198808

main52119-22904iGX71,MX73..SA198608-198808

TREATED FOR PAINTING

main52119-22905iGX71,LX7#,MX7#..EUR198408-198608

W/*HC,TREATED FOR PAINTING

main52119-22906iMX73..XL..ME198708-198808

TREATED FOR PAINTING

sub52119-22924

main52119-22909iRX70..RHD..XL..GEN198608-198705

TREATED FOR PAINTING

main52119-22930iMX73..GLX..ARL198705-198808

TREATED FOR PAINTING

52123BPLATE, FRONT BUMPER REINFORCEMENT, RH

main52123-22040iMX73..EFI..GEN198701-198808

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-22080iGX71,LX7#,MX7#,RX70,YX70198408-198608

main52521-22081iGX71,LX70,MX73,RX7#..ARL,GEN198608-198808

main52521-22090iMX73,RX72..ME198608-198808

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52506-22020iMX73,RX72..ME198608-198808

main52525-22040iGX71,LX7#,MX7#,RX70,YX70..SED,WG198408-198608

main52525-22050iGX71,MX73,RX70..HT198504-198608

main52525-22051iGX71,LX70,MX73,RX7#..ARL,GEN198608-198808

52525BRETAINER, FRONT BUMPER, LOWER SIDE RH

main52526-22011iMX73,RX72..ME198608-198808

main52526-22020iGX71,MX73,RX70..HT198504-198608

sub52526-22040

main52526-22030iGX71,MX73,RX70,72,YX70..SA198608-198808

main52526-22050iGX71,LX70,MX73,RX7#..ARL,GEN198608-198808

52526BRETAINER, FRONT BUMPER, LOWER SIDE LH

main52526-22011iMX73,RX72..ME198608-198808

main52526-22020iGX71,MX73,RX70..HT198504-198608

sub52526-22040

main52526-22030iGX71,MX73,RX70,72,YX70..SA198608-198808

main52526-22050iGX71,LX70,MX73,RX7#..ARL,GEN198608-198808

52528RETAINER, FRONT BUMPER, LOWER CORNER

main52528-22020×2iMX73,RX72..ME198608-198808

52611ABSORBER, FRONT BUMPER ENERGY

main52611-22060iMX73,RX72..ME198608-198808

main52611-22070iGX71,LX7#,MX7#,RX70,YX70198408-198608

main52611-22100iGX71,LX70,MX73,RX7#..ARL,GEN198608-198808

52701MOULDING SUB-ASSY, FRONT BUMPER

main52711-22070iGX71,LX7#,MX7#,RX7#,YX70198408-198808

52712MOULDING, FRONT BUMPER SIDE, RH

main52702-22020iGX71,LX7#,MX7#,RX7#,YX70198408-198808

52713PLUG, FRONT BUMPER MOULDING

main52703-22020iGX71,LX7#,MX7#,RX7#,YX70198408-198808

9010906149

main90109-06149

9011910192

main90119-10192

9017605008

main90176-05008

9017906007

main90179-06007

9018303001

main90183-03001

9165540616

main91655-40616

9166540620

main91665-40620

21 parts on this diagram · 1 diagram in section
