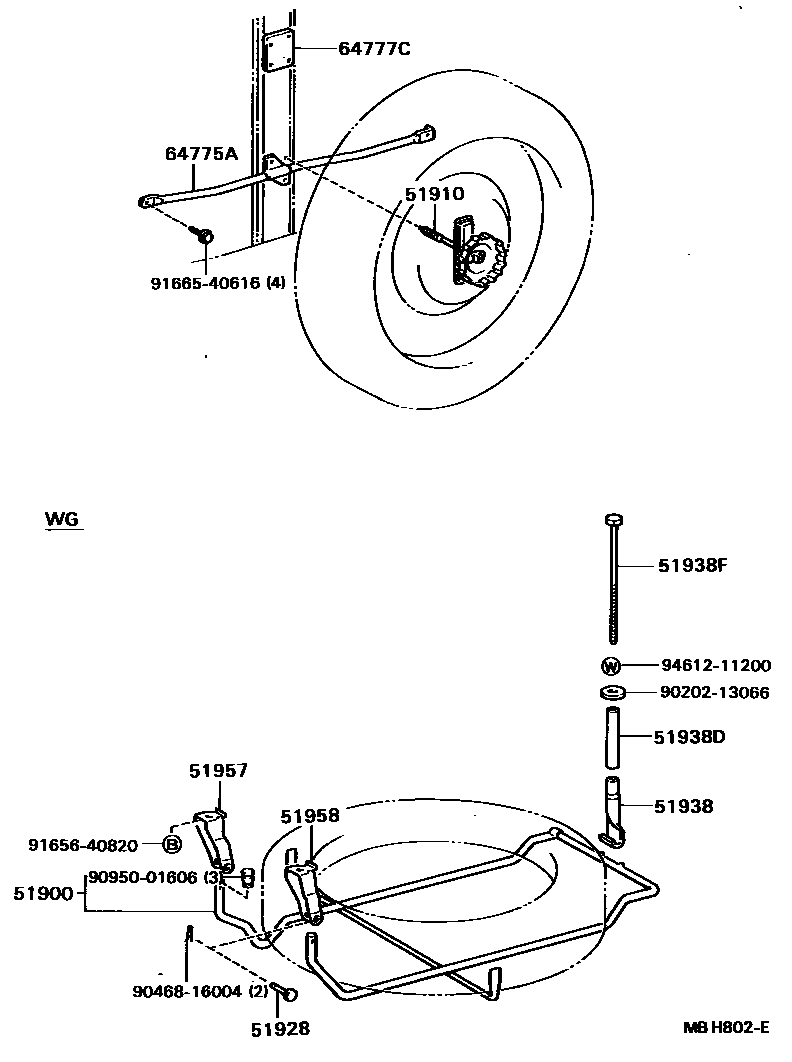

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51903-23010iRX70..WG;RX72..WG..ME198411-198703

sub51903-23011

main51903-23011iRX70,72..WG198703-198808

main51903-23020iLX70,MX72,RX70,72..WG..(EUR,ME)198411-198703

185/70HR14,195/70SR14

sub51903-23021

main51903-23021iRX72..WG..ME198703-198808

185/70HR14,195/70SR14

51910SCREW ASSY, SPARE WHEEL CLAMP

main51910-22040iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

51928PIN, SPARE WHEEL CARRIER

main90240-08014iLX70,MX72,RX70,72..WG198411-198808

51938LOCK, SPARE WHEEL CARRIER

main51938-22020iLX70,MX72,RX70..WG198501-198608

sub51938-28030

main51938-28020iLX70,MX72,RX70..WG198411-198501

sub51938-22020

main51938-28030iRX70,72..WG198608-198808

51938DTUBE(FOR SPARE WHEEL CARRIER BOLT)

main90440-16003iLX70,MX72,RX70,72..WG198411-198808

51938FBOLT(FOR SPARE WHEEL CARRIER LOCK)

main90101-12007iLX70,MX72,RX70,72..WG198411-198808

51957BRACKET, SPARE WHEEL CARRIER HINGE, RH

main51957-23010iLX70,MX72,RX70,72..WG198411-198808

51958BRACKET, SPARE WHEEL CARRIER HINGE, LH

main51958-23010iLX70,MX72,RX70,72..WG198411-198808

64775AGUARD, SPARE WHEEL

main64775-22010iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

64777CCUSHION, SPARE WHEEL

main64777-22010iGX71,LX7#,MX73,RX7#,YX70..HT,SED198408-198808

9020213066

main90202-13066

9046816004

main90468-16004

9095001606

main90950-01606

9165640820

main91656-40820

9166540616

main91665-40616

9461211200

main94612-11200

16 parts on this diagram · 1 diagram in section
